1-3/4" Dia x 13/16" Carbide Tipped Finger Grip Bit, 3/32" x 3/16" Radius, 1/2" Shank

Item # AN53810
Mfr # 53810

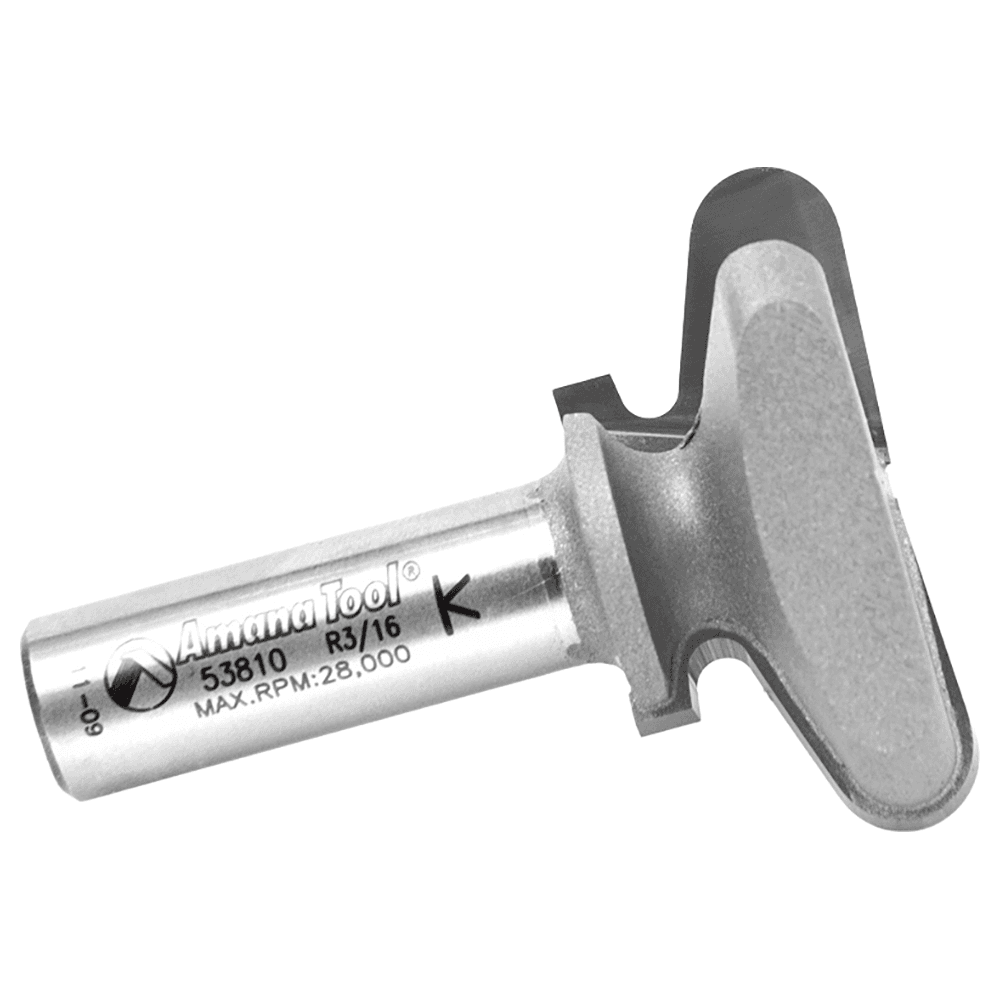

1-3/4" Dia x 13/16" Carbide Tipped Finger Grip Bit, 3/32" x 3/16" Radius, 1/2" Shank Main - Image

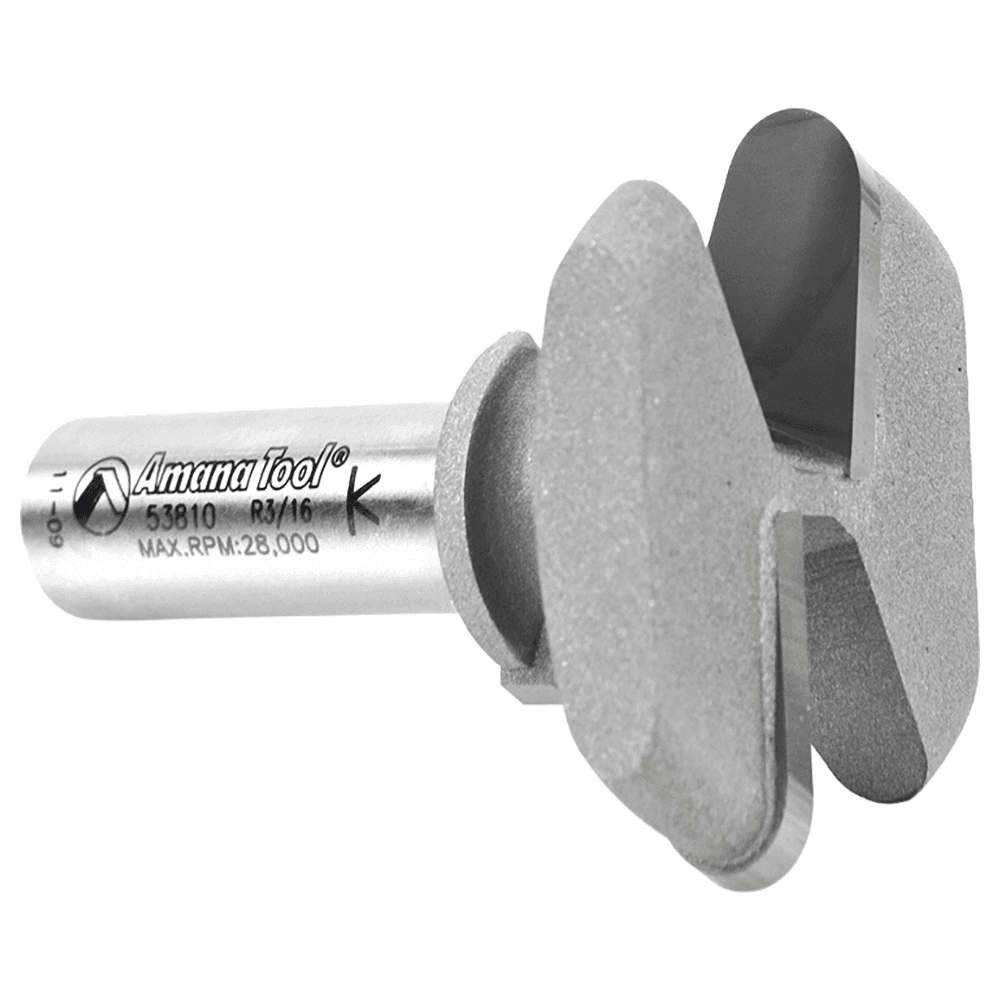

1-3/4" Dia x 13/16" Carbide Tipped Finger Grip Bit, 3/32" x 3/16" Radius, 1/2" Shank Alt 1 - Image

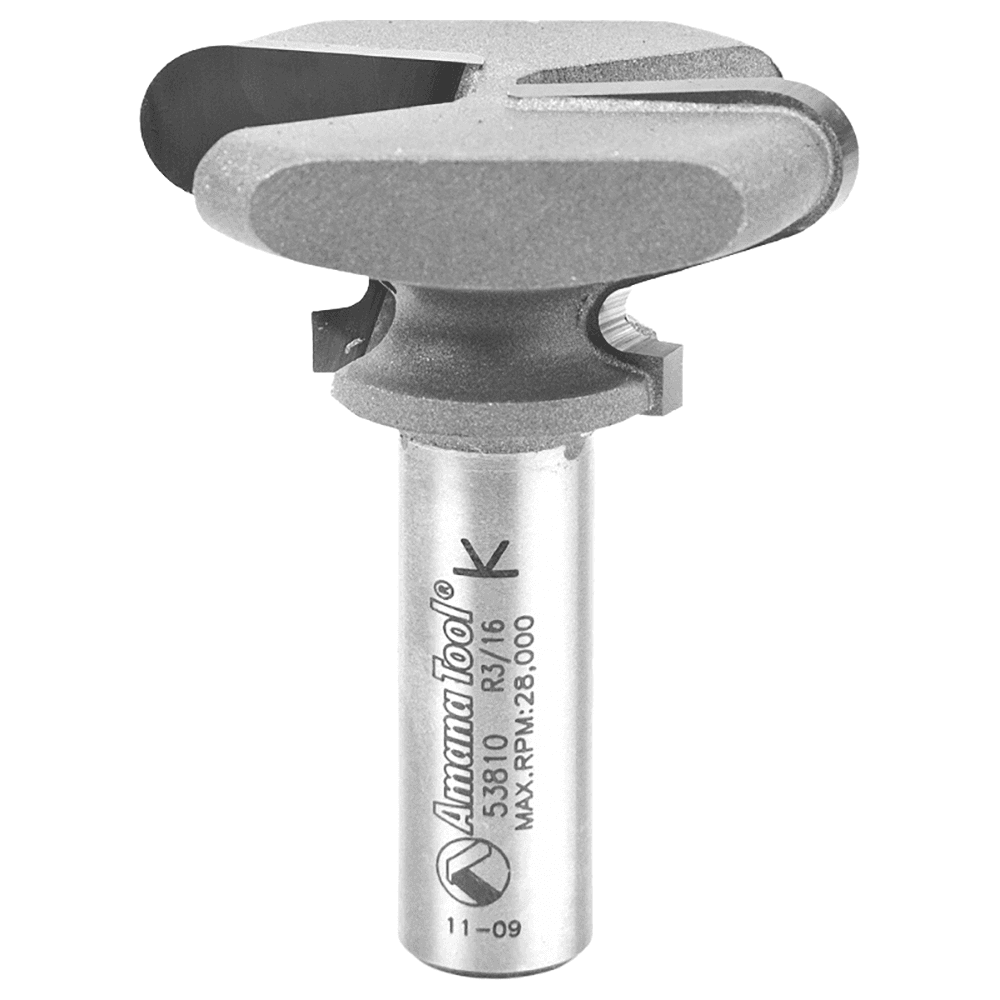

1-3/4" Dia x 13/16" Carbide Tipped Finger Grip Bit, 3/32" x 3/16" Radius, 1/2" Shank Alt 2 - Image

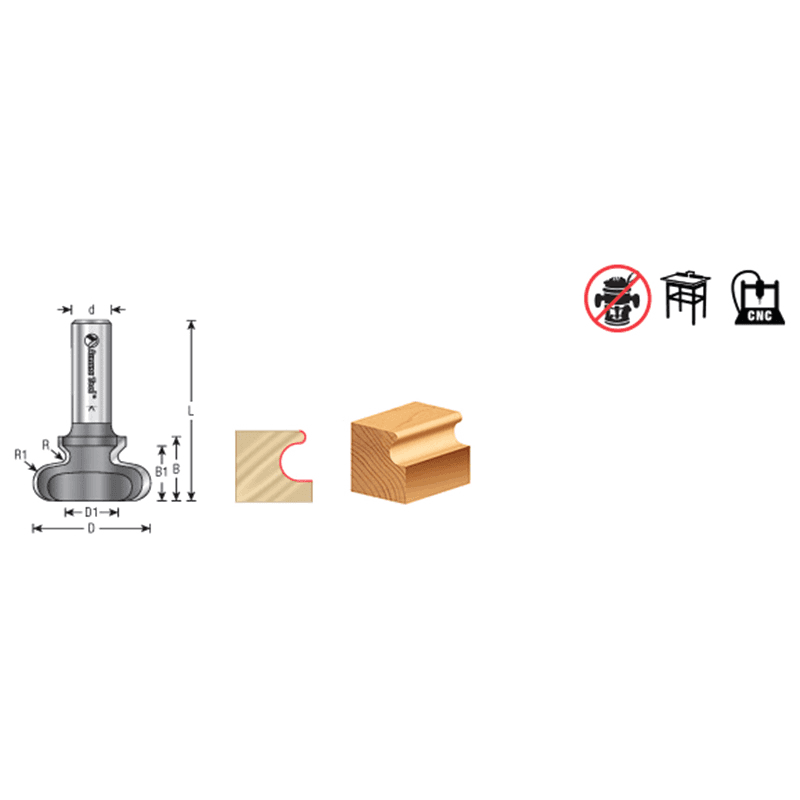

1-3/4" Dia x 13/16" Carbide Tipped Finger Grip Bit, 3/32" x 3/16" Radius, 1/2" Shank Alt 3 - Image
$129.36
/Each
Qty /
Min Order: 1
Qty mult. by: 1

Product Details

Produce clean, modern chests and cabinets uninterrupted by hardware pulls and knobs by integrating the pulls into the doors, drawers and lids. These one-pass cutters offer many appearance and ergonomic options, providing positive grips and softened, easy-on-the-fingers edges. All bits can be used in CNC and table-mounted routers. Larger diameter cutters will work in edge-guide or template-guide equipped handheld routers.

Features:
• 1-3/4" Dia x 13/16" Carbide Tipped Finger Grip 3/32" x 3/16" Radius, 1/2" Shank
• Radius (R1): 13/64"
• Flutes: 2

Specifications

Box Quantity1
Height53/64" x 43/64"
Width
Cutting Diameter1-49/64" x 11/16"
Application
Material
Product TypeFinger Grip Bit
Length2-21/64"
Degree of Cut
Shank Diameter1/2"
