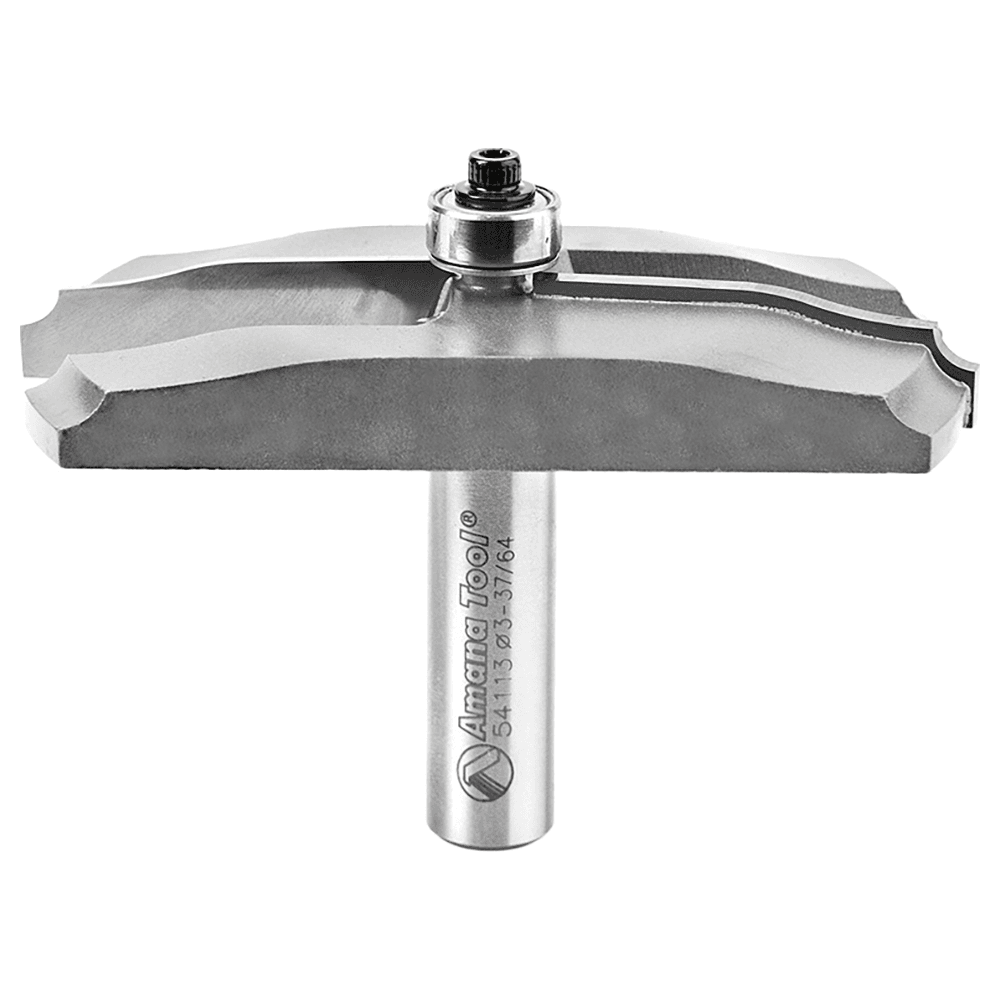

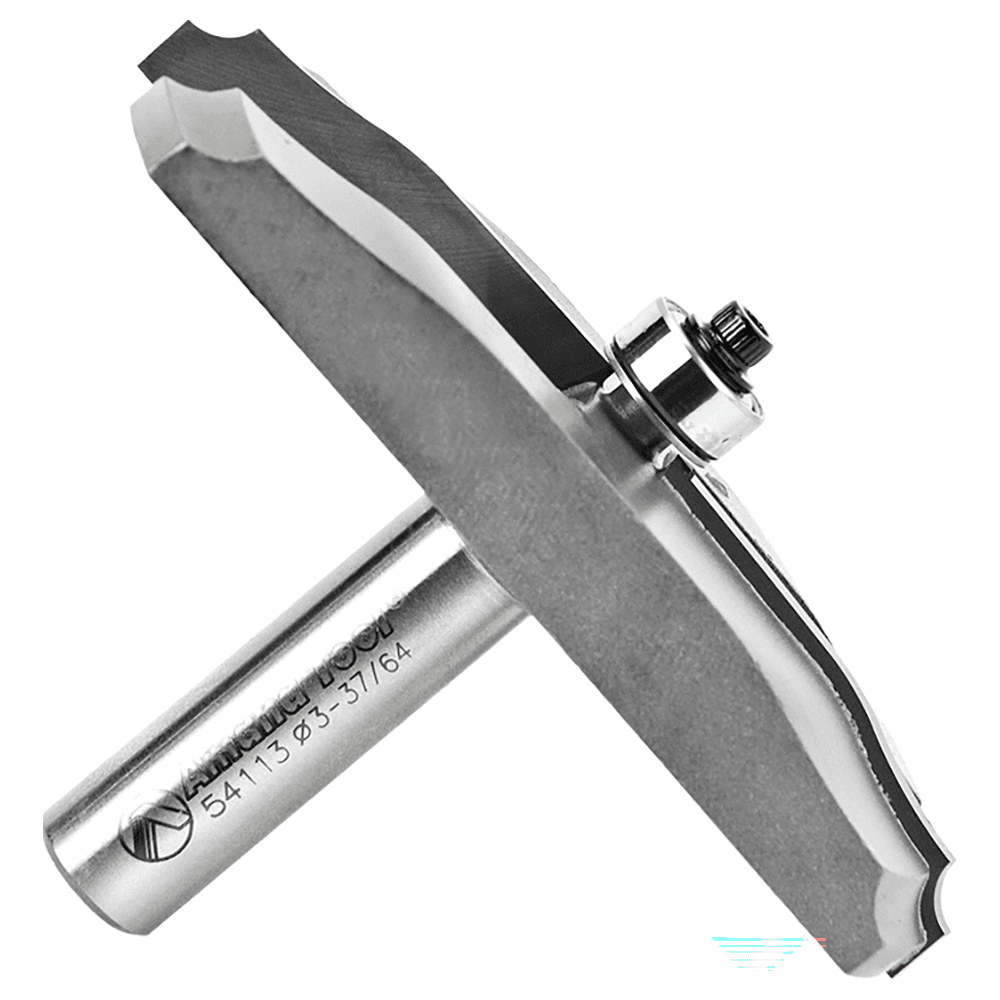

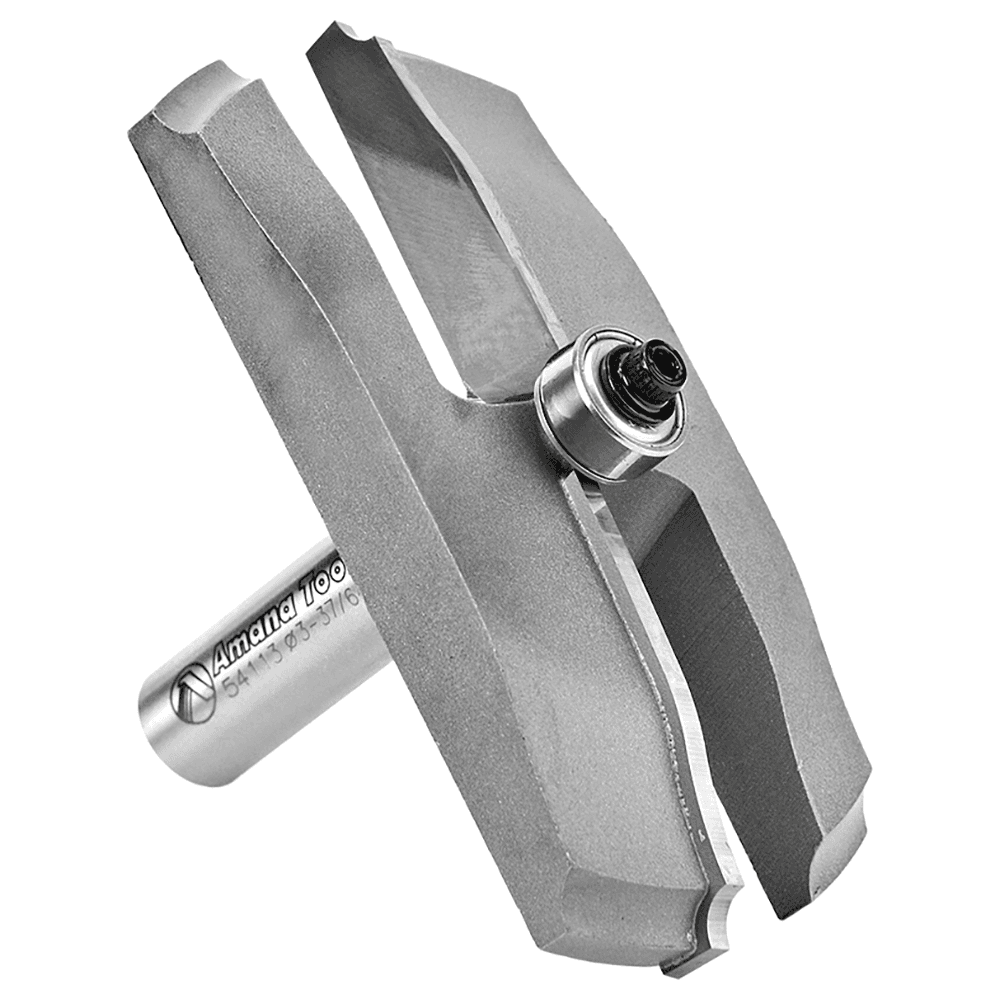

3-9/16" Dia x 1/2" Carbide Tipped Classical Raised Panel Bit, 5/32" Radius, 1/2" Shank
Product Details

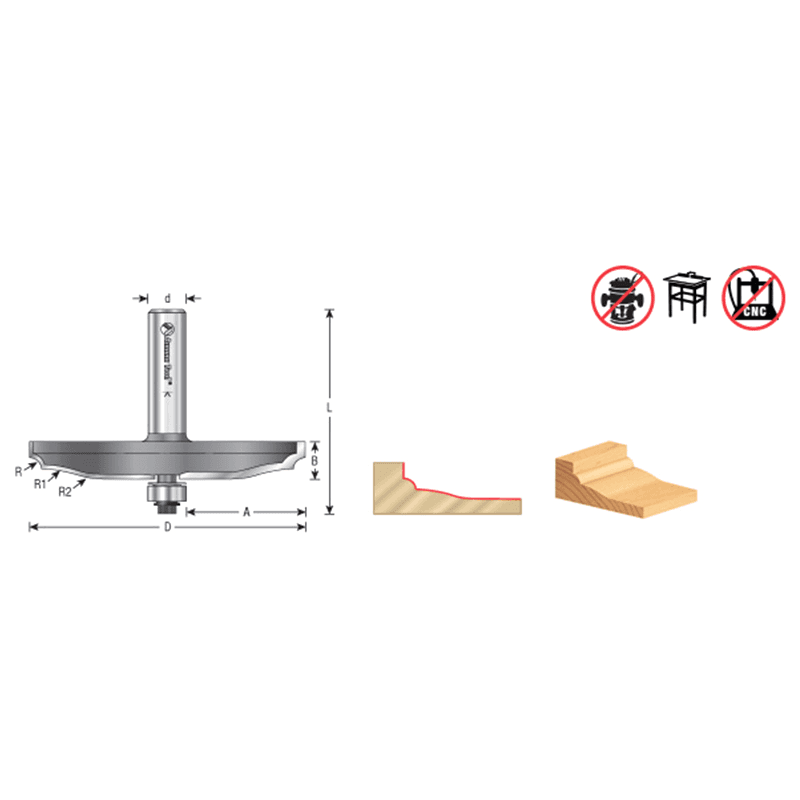

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Features: • 3-9/16" Dia x 1/2" Carbide Tipped Classical Raised Panel 5/32" Radius, 1/2" Shank • Radius(R1): 1-23/32" • Radius(R2): 57/64" • Replacement Bearing: 47706 • Flutes: 2 • Cut Depth (A): 1-17/32"
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1/2" |
| Width | |
| Cutting Diameter | 3-9/16" |
| Application | |
| Material | |
| Product Type | Raised Panel Bit |
| Length | 2-43/64" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
