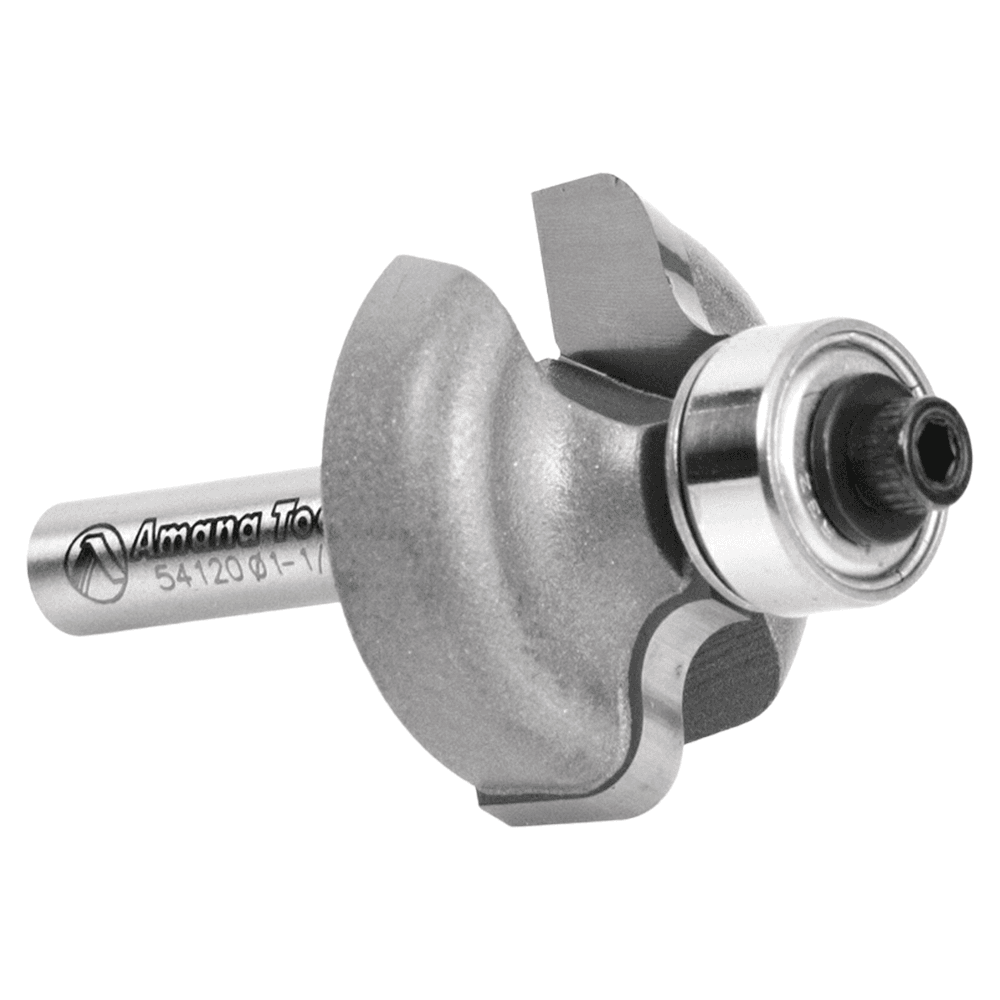

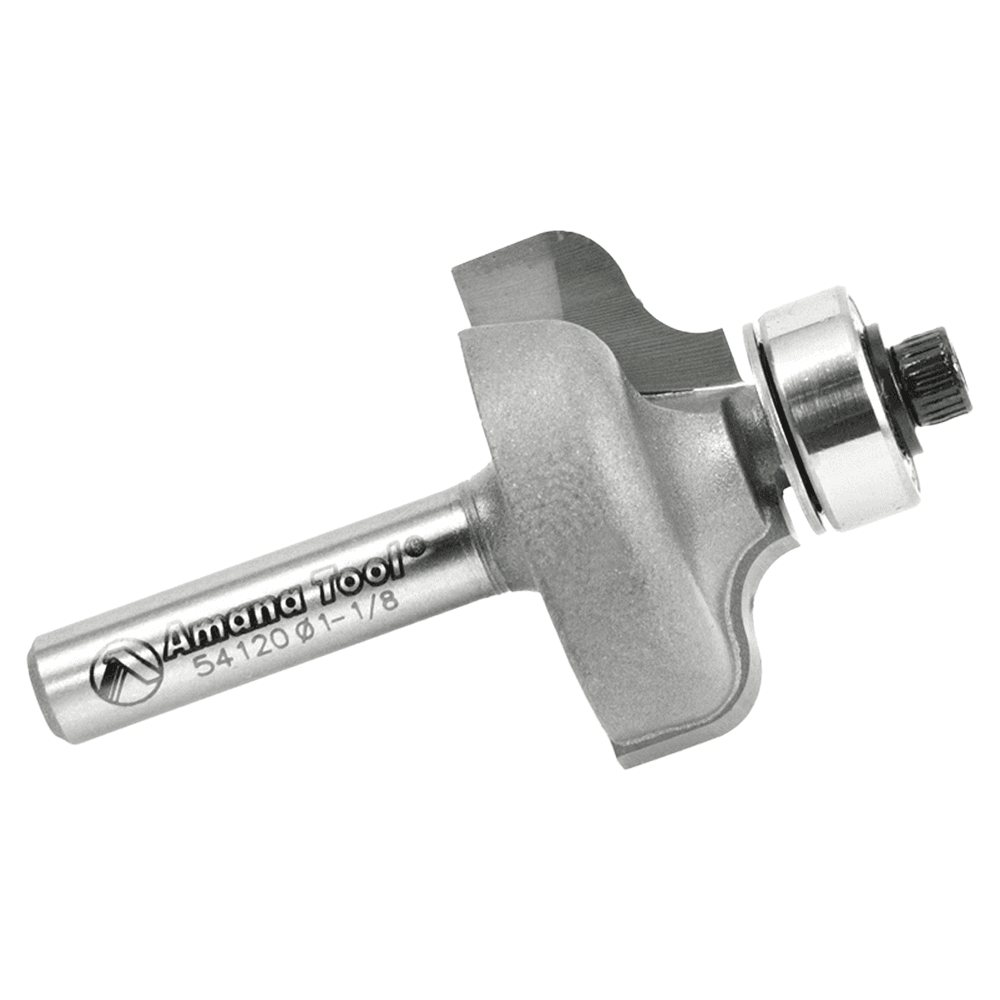

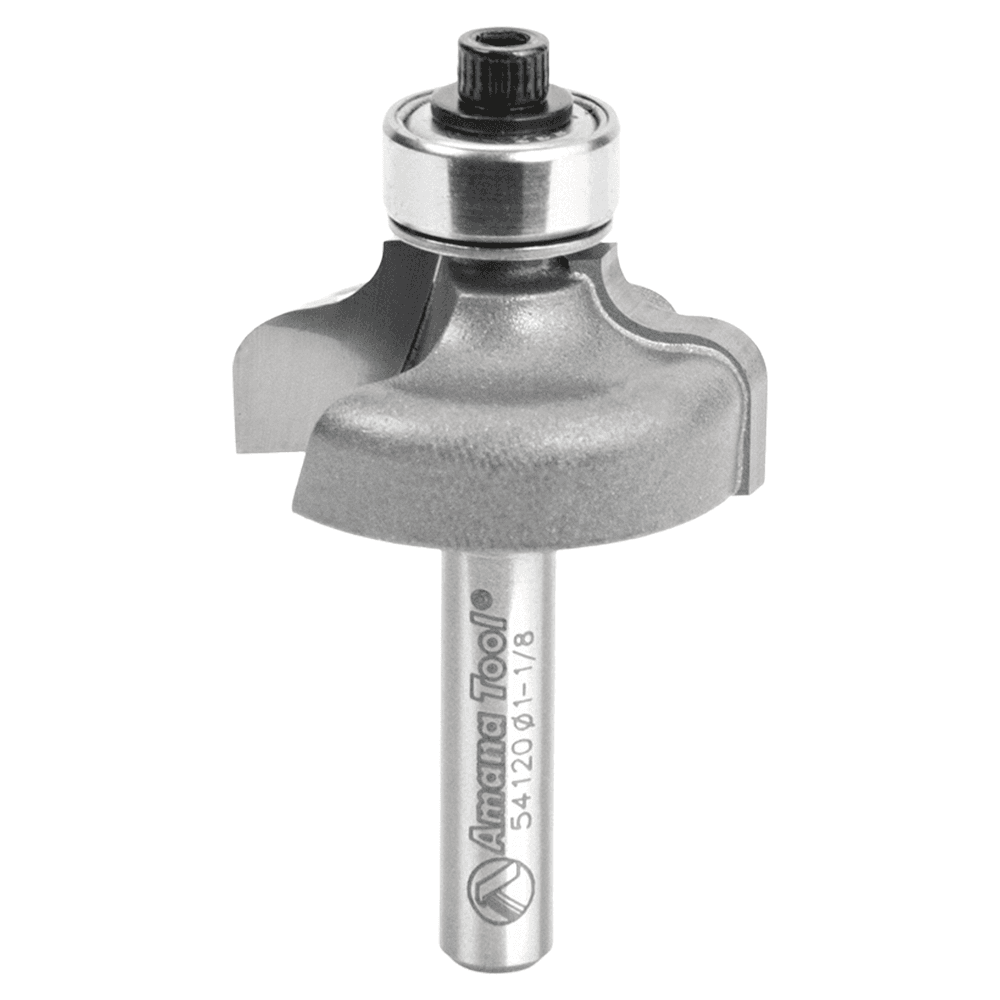

1-1/8" Dia x 1/2" Carbide Tipped Ogee Bit, 5/32" Radius, 1/4" Shank
Product Details

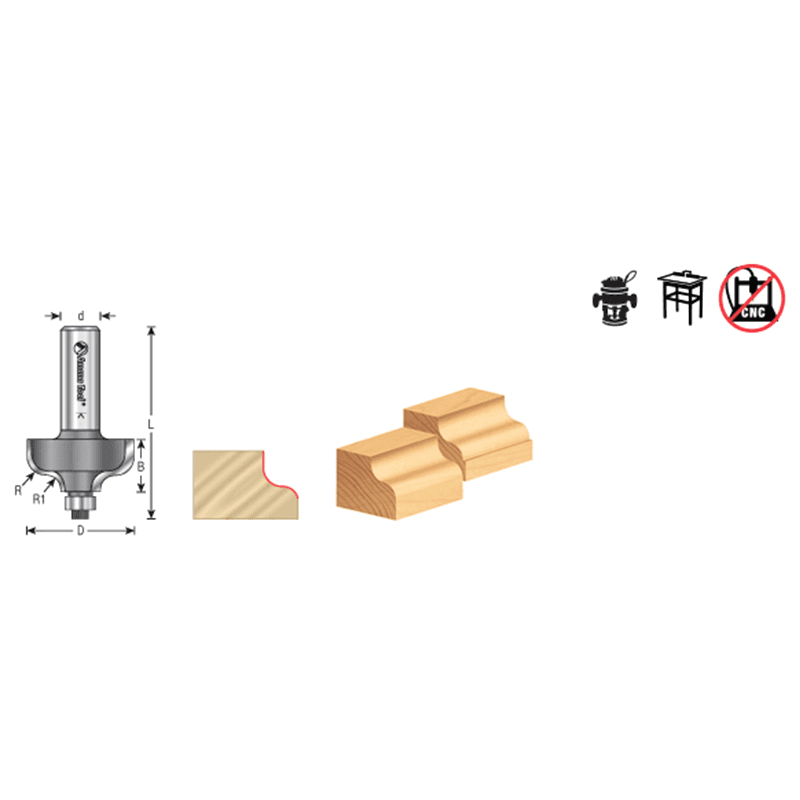

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8" bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router. Features: • 1-1/8" Dia x 1/2" Carbide Tipped Ogee 5/32" Radius, 1/4" Shank • Replacement Bearing: 47706 • Flutes: 2
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1/2" |
| Width | |
| Cutting Diameter | 1-1/8" |
| Application | |
| Material | |
| Product Type | Ogee Bit |
| Length | 2" |
| Degree of Cut | |
| Shank Diameter | 1/4" |
