1-7/8" Dia x 1-1/4" 60 / 30°Carbide Tipped Multi-Sided Glue Joint Router Bit, 1/2" Shank

Item # AN54274
Mfr # 54274

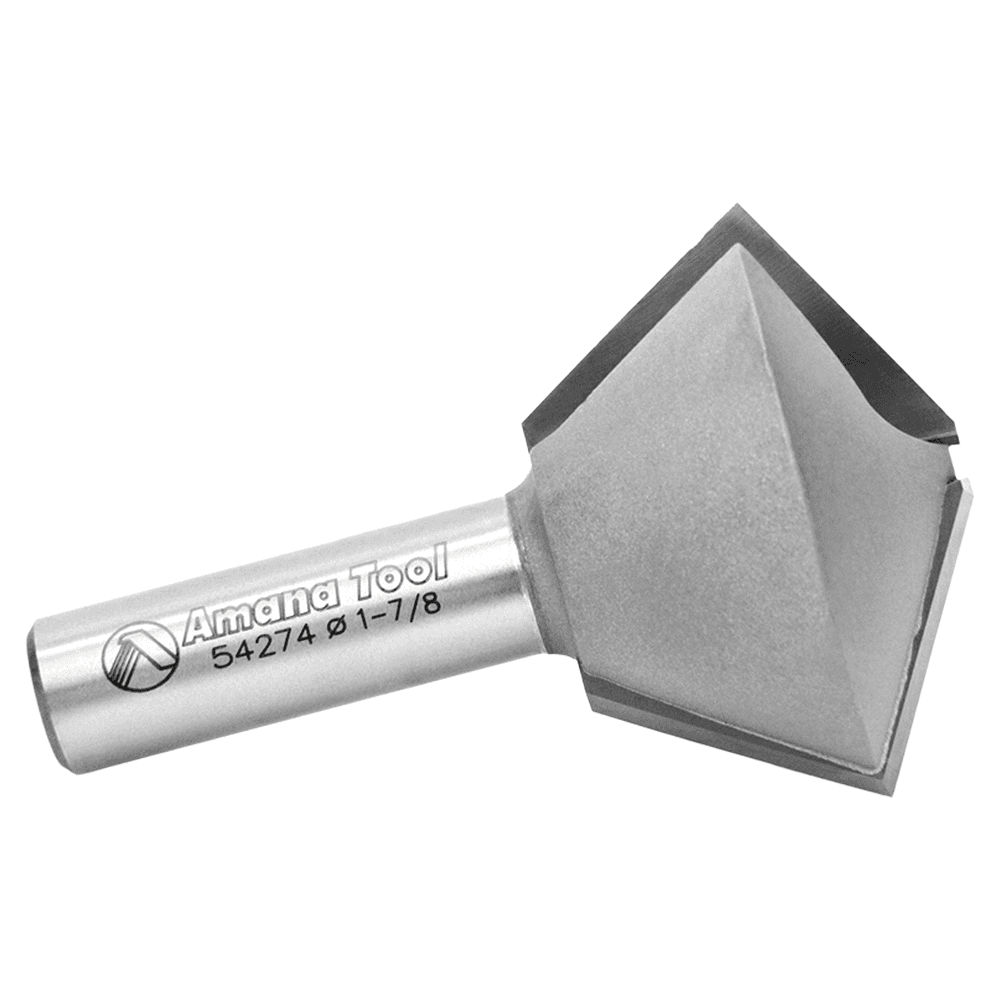

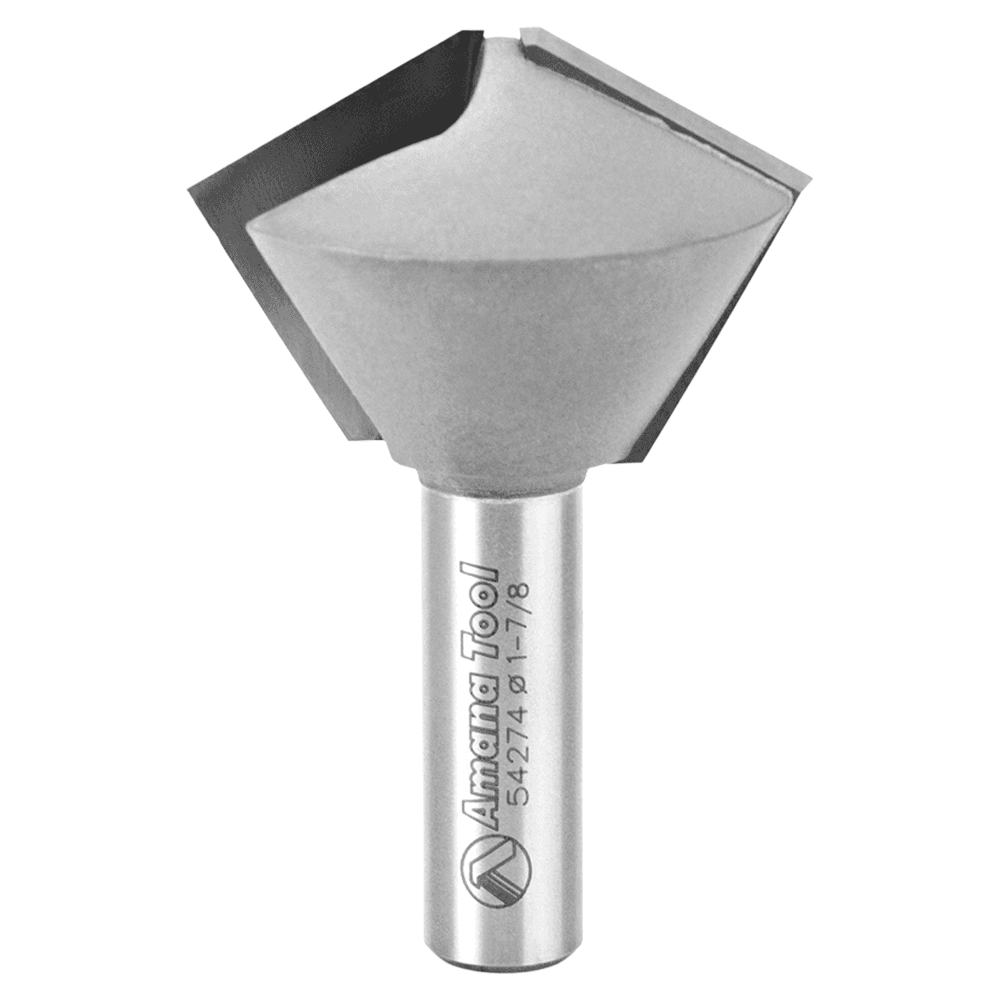

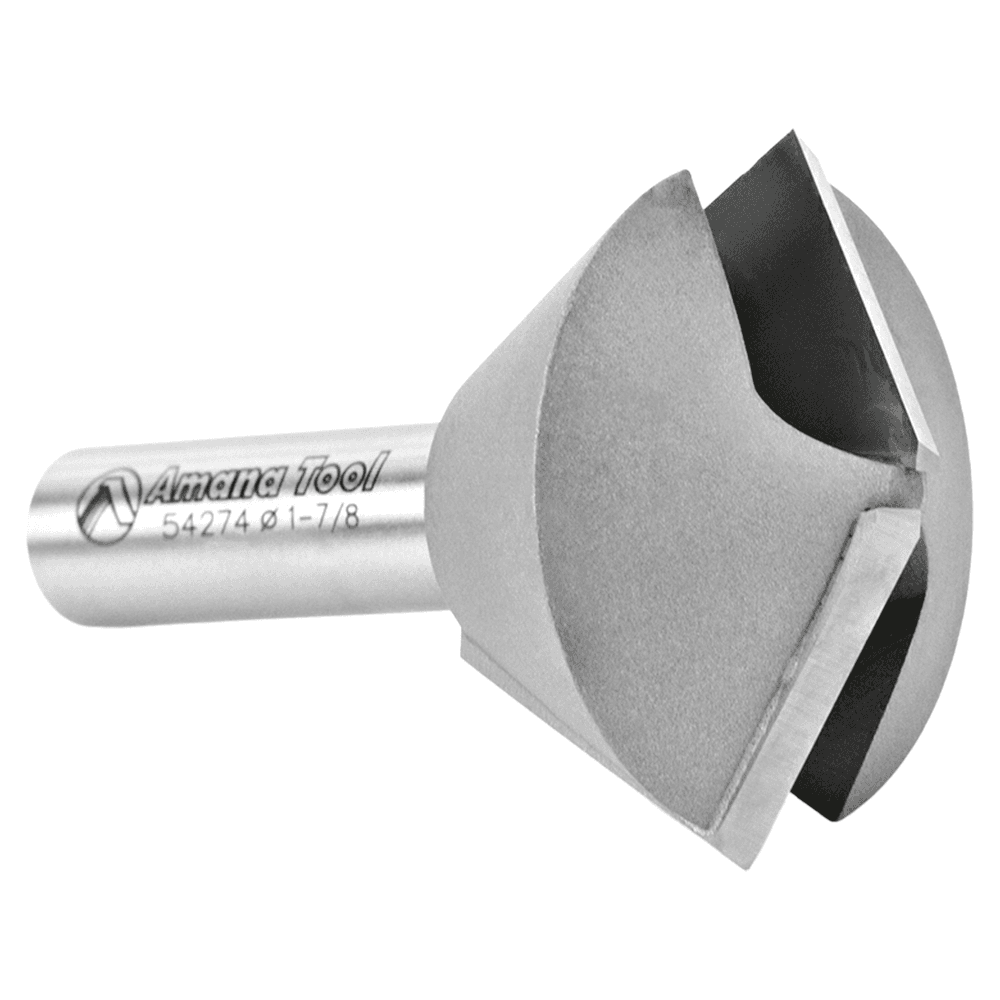

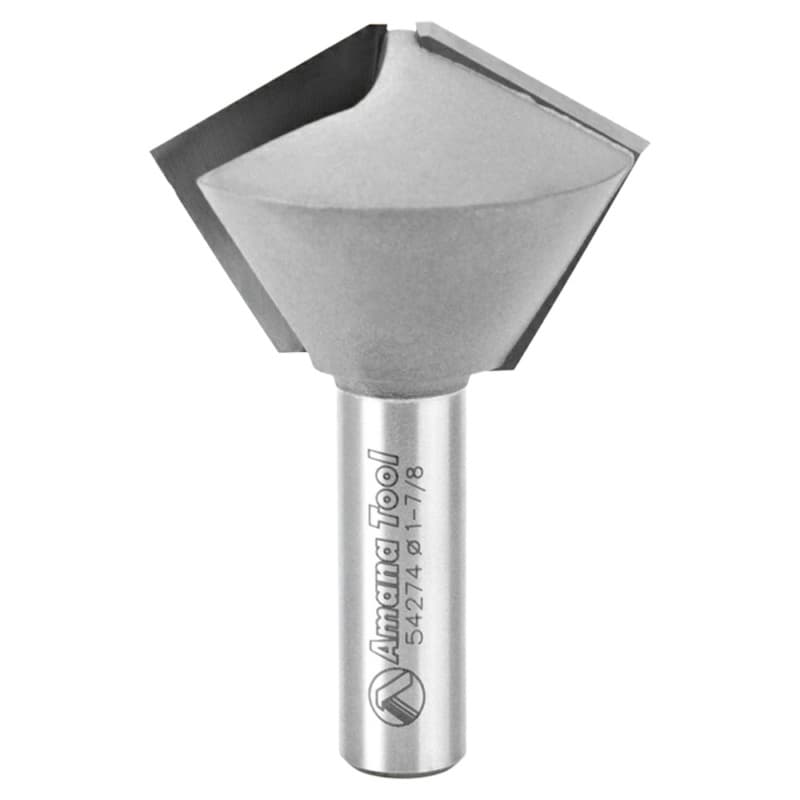

1-7/8" Dia x 1-1/4" 60 / 30°Carbide Tipped Multi-Sided Glue Joint Router Bit, 1/2" Shank Main - Image
1-7/8" Dia x 1-1/4" 60 / 30°Carbide Tipped Multi-Sided Glue Joint Router Bit, 1/2" Shank Alt 1 - Image
1-7/8" Dia x 1-1/4" 60 / 30°Carbide Tipped Multi-Sided Glue Joint Router Bit, 1/2" Shank Alt 2 - Image
1-7/8" Dia x 1-1/4" 60 / 30°Carbide Tipped Multi-Sided Glue Joint Router Bit, 1/2" Shank Alt 3 - Image

Product Details

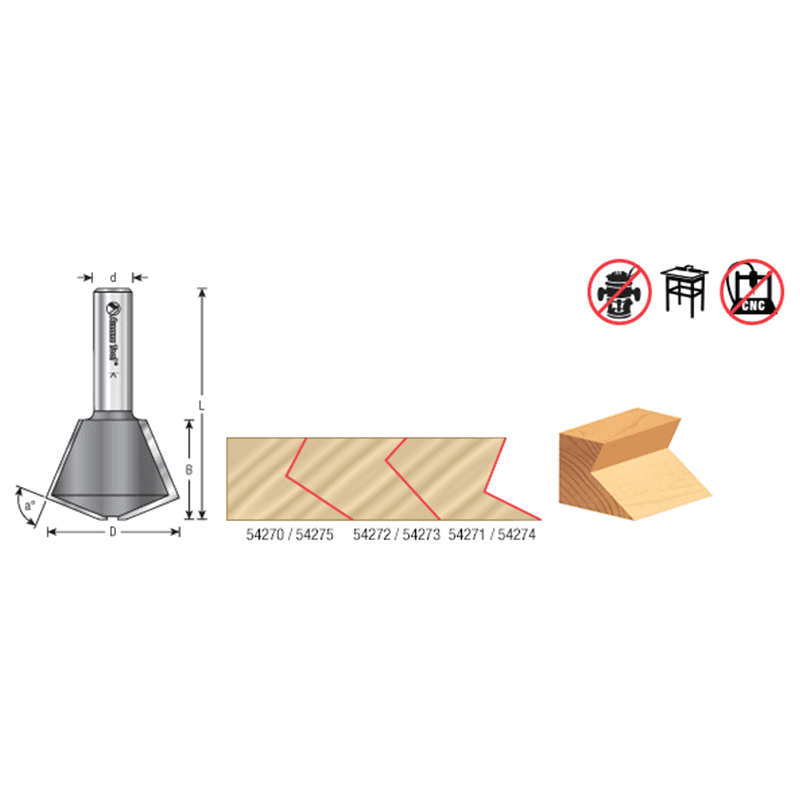

If you′re looking for a better way to construct multi-sided boxes, planters, and columns, then look no further. With these bits, there′s no need for complex miters and time-consuming set-ups. Instead, simply choose the bit based upon the number of sides on the box, rout the joint, and assemble. Unlike a miter joint, the joint created by these bits aligns itself. And the joint stays in alignment while gluing; no more slipping and sliding out of position.

Features:
• 1-7/8" Dia x 1-1/4" Carbide Tipped Multi-Sided Glue Joint 60 / 30 Deg, 1/2" Shank
• No of Sides: 6 or 12

Specifications

Box Quantity1
Height1-1/4"
Width
Cutting Diameter1-7/8"
Application
Material
Product TypeGlue Joint Router Bit
Length2-7/8"
Degree of Cut60°/30°
Shank Diameter1/2"
