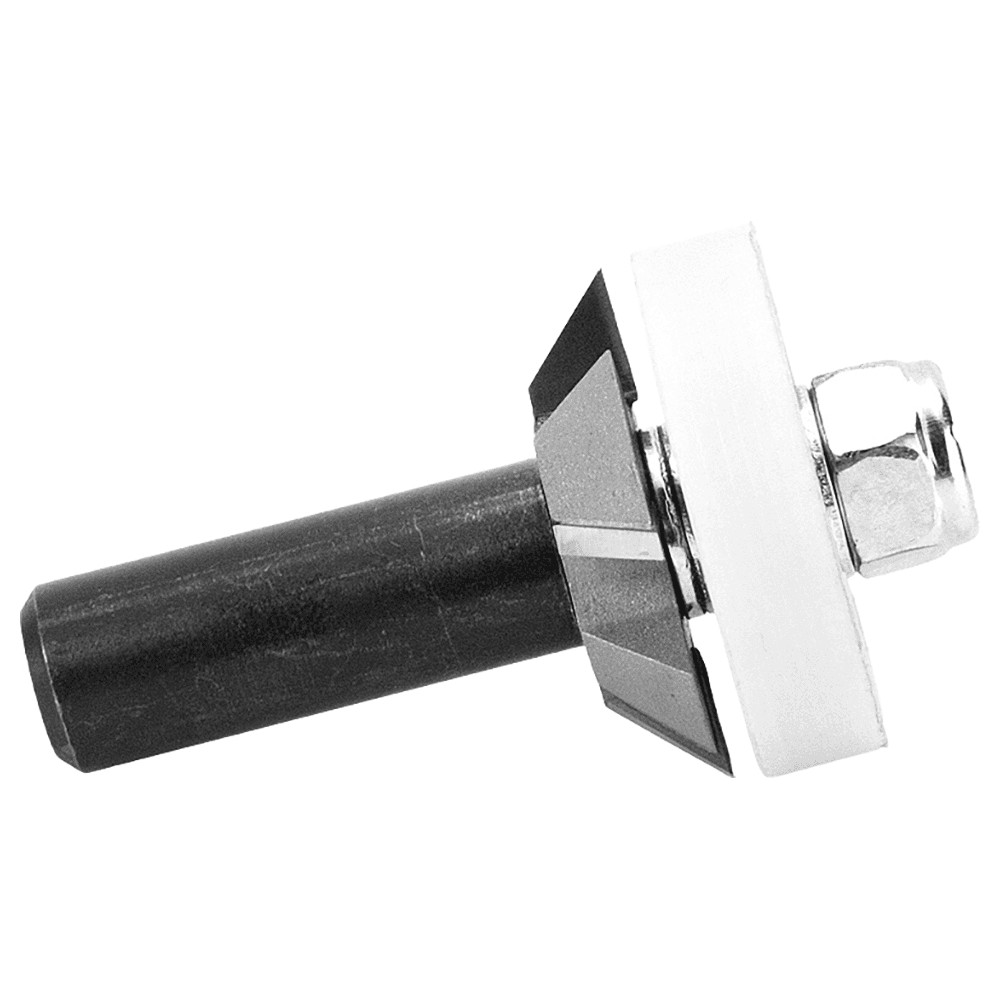

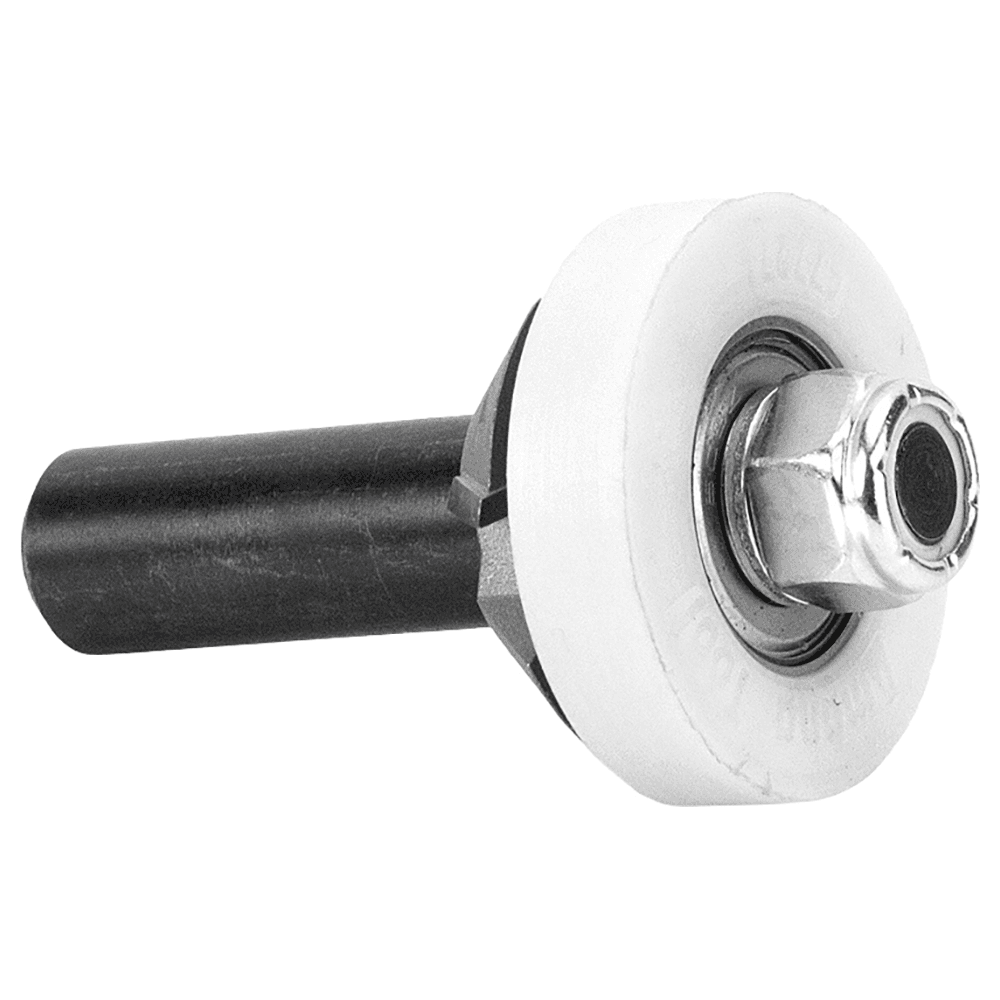

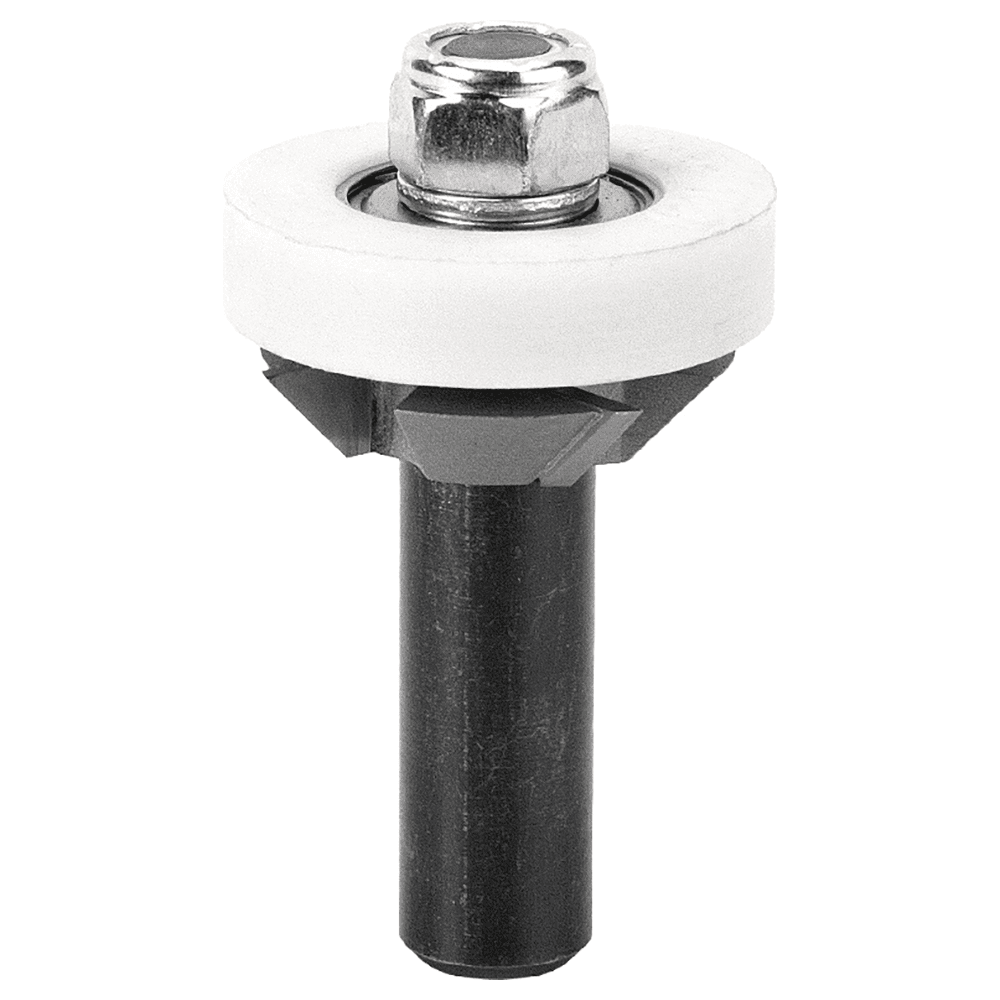

Name: 1-3/8" Dia x 1/4" Carbide Tipped 45° Laminate Miter Bit, Joint Undercutter Assembly, 1/2" Shank
Brand: Amana Tool
Availability: BackOrder

Eliminate that dark line at the edge of a counter or other laminate-covered surface. With this bit assembly, the laminate cemented to the substrate can be trimmed and mitered in one pass. Then a pre-mitered edging strip can be applied. The resulting seam is clean and crisp. Not intended for use in a laminate trimmer.

Features:
• 1-3/8" Dia x 1/4" Carbide Tipped 45 Deg Laminate Miter Joint Undercutter Assembly, 1/2" Shank

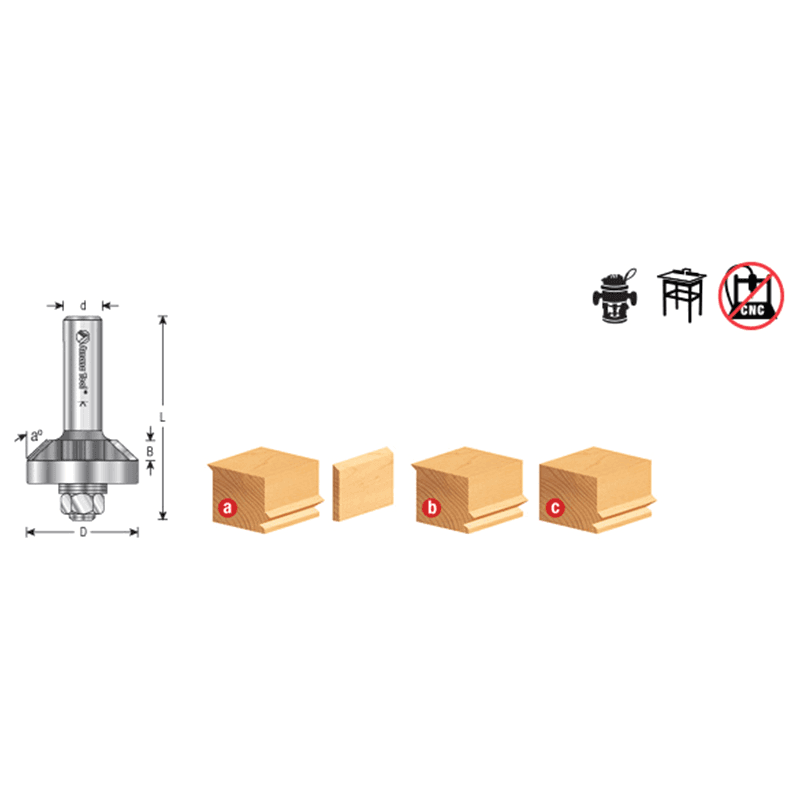

• Laminated top is 'under-cut', as shown
• Apron laminate is pre-cut at 45.°
• Adhere pre-cut laminate for a perfect fit
• A fine file may be used to remove the sharp edge after joining

Box Quantity	1
Diameter (in)	1-3/8 in
Shank Diameter (in)	1/4 in
Cutting diameter (mm)	1-3/8 in
Product Type	Miter Bit
Overall Length (in)	2-3/8 in
Bevel Angle	45 Degree

Box Quantity	1
Diameter (in)	1-3/8 in
Shank Diameter (in)	1/4 in
Cutting diameter (mm)	1-3/8 in
Product Type	Miter Bit
Overall Length (in)	2-3/8 in
Bevel Angle	45 Degree
