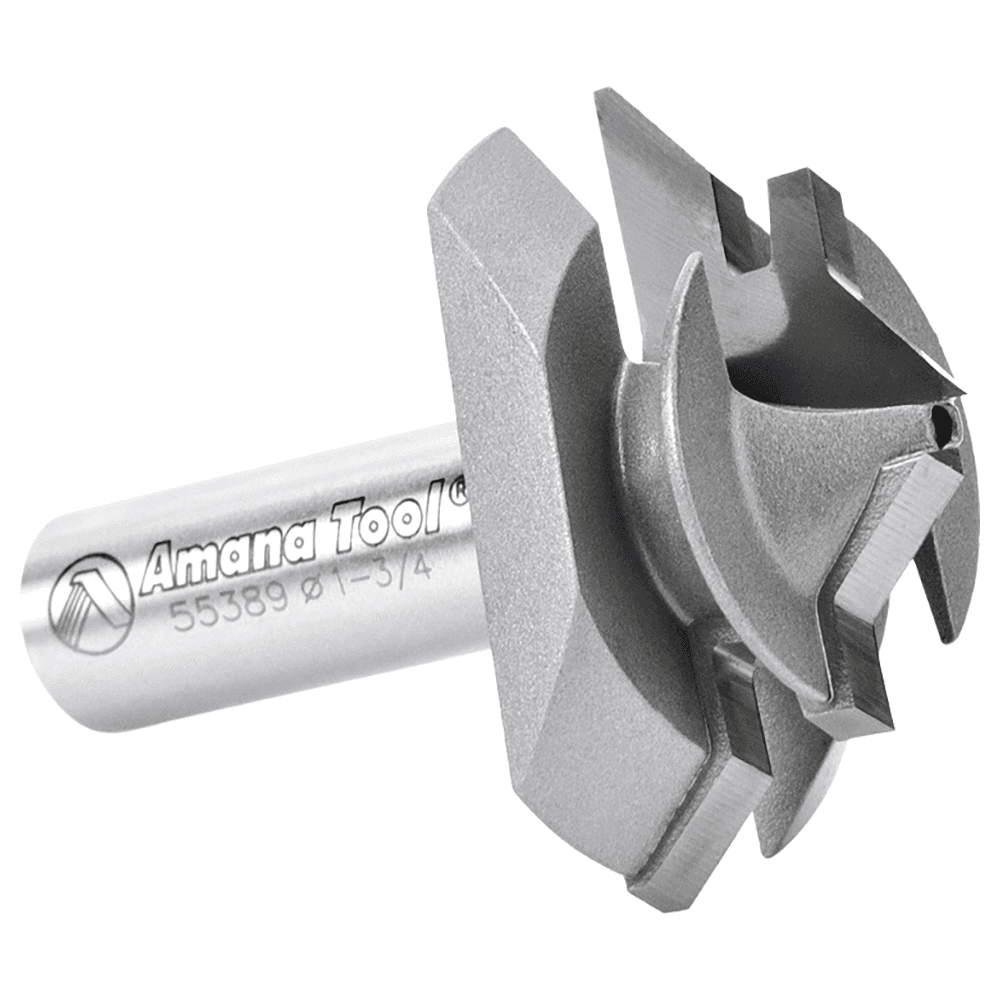

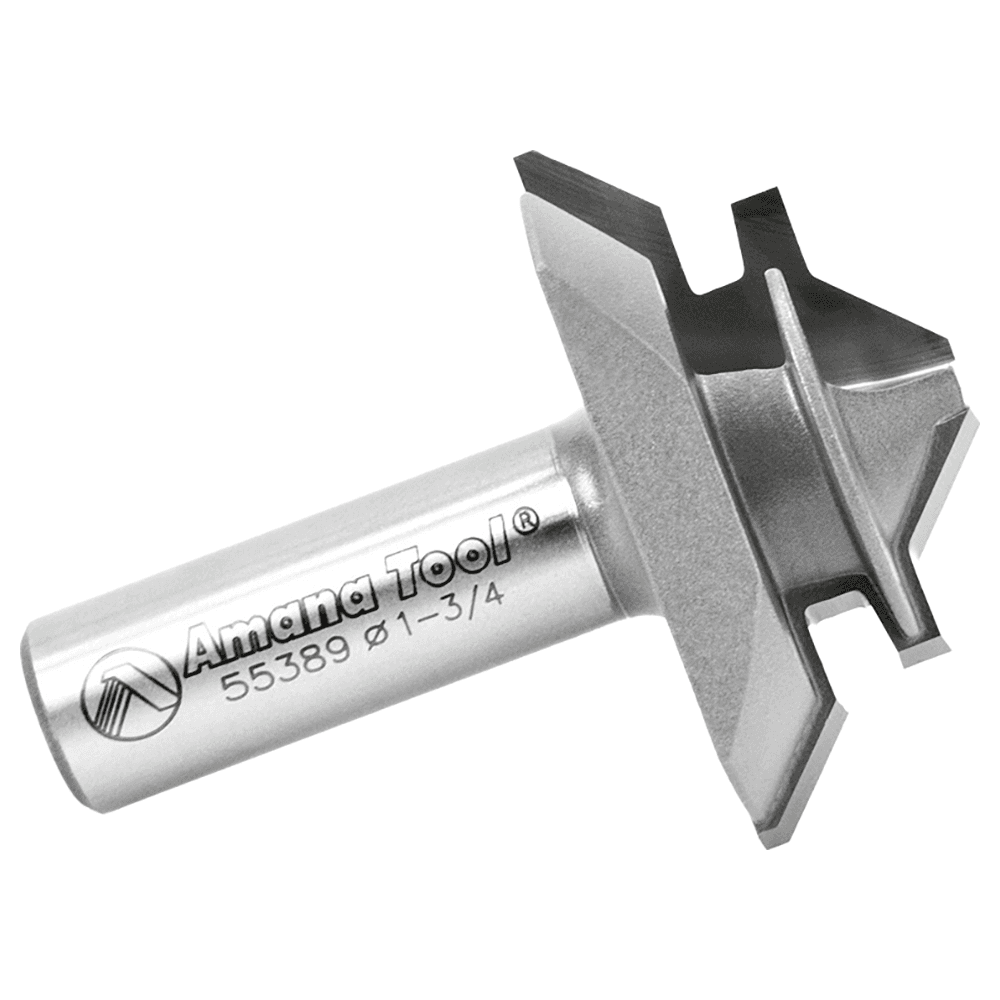

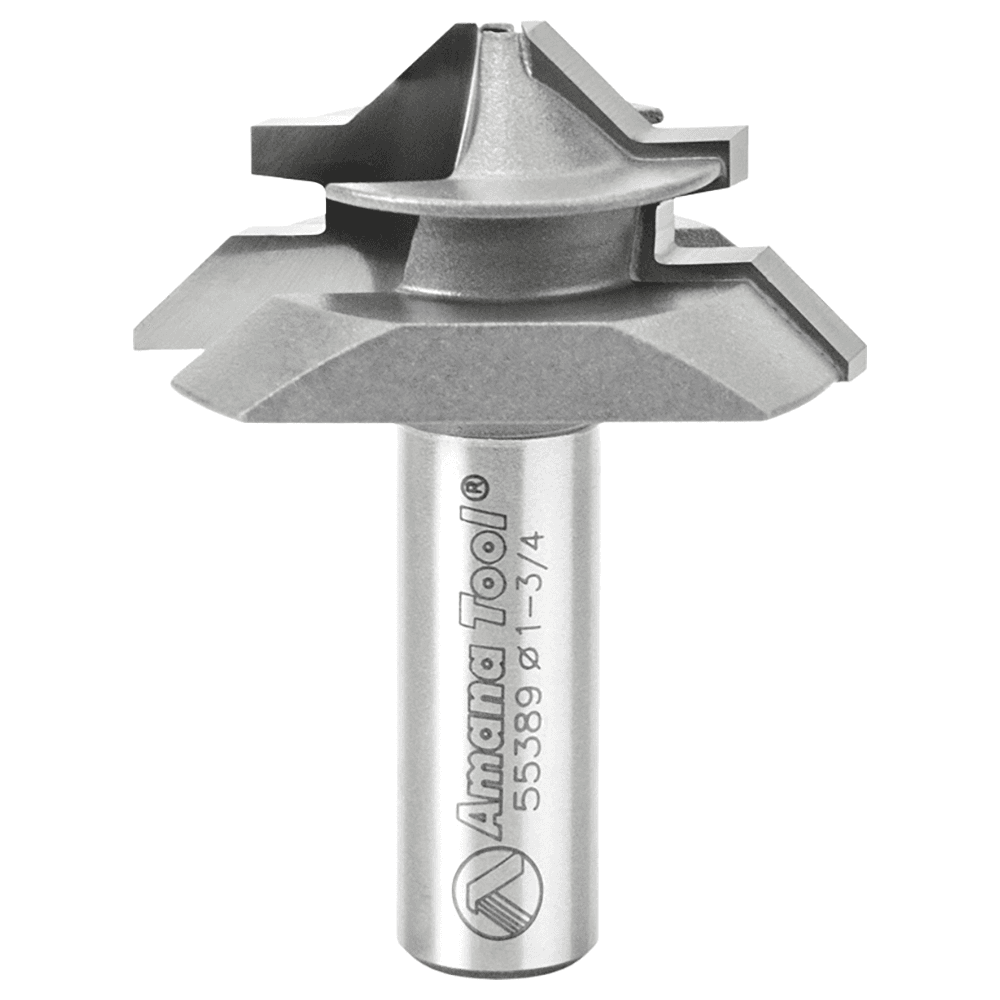

Name: 1-3/4" Dia x 7/8" Carbide Tipped Lock Miter Bit, 45°, 1/2" Shank for 3/8" - 3/4" Material
Brand: Amana Tool
Availability: BackOrder

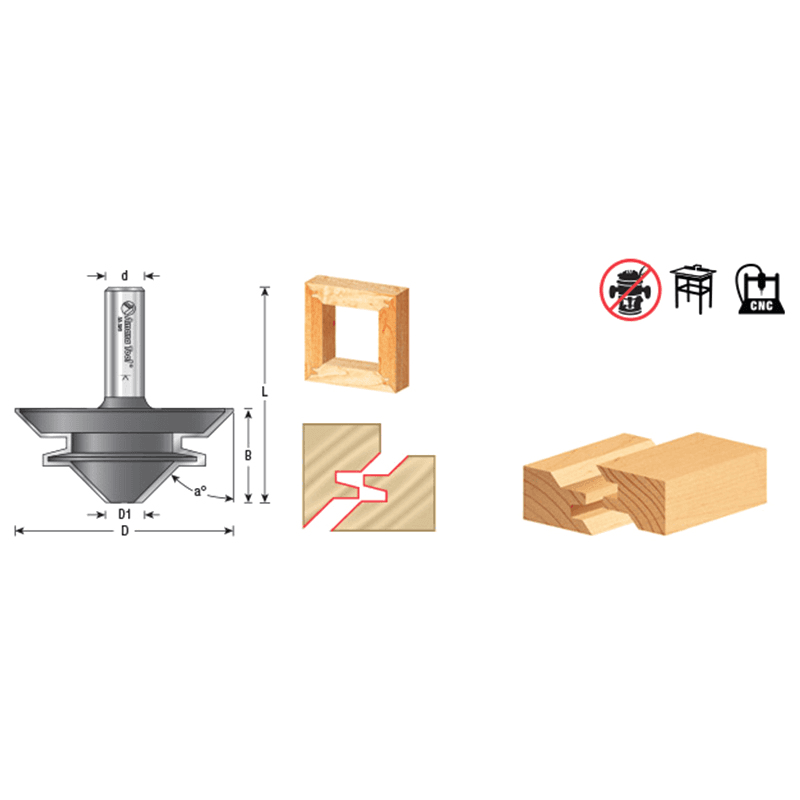

The lock miter is an interlocking edge-to-edge joint, typically used at the corners of casework. Used in a table-mounted router, run at reduced speed, this bit cuts both halves of the joint. The same setup of bit and fence cuts both parts. One part is laid flat on the tabletop and fed across the cutter. The second is braced vertically against the fence and fed across the cutter. For best results use in a table-mounted router.

Features:
• 1-3/4" Dia x 7/8" Carbide Tipped Lock Miter 45 Deg, 1/2" Shank
• Material Size: 3/8" x 3/4"
• Flutes: 2

Box Quantity	1
Diameter (in)	1-3/4 in
Shank Diameter (in)	1/2 in
Product Type	Lock Miter Bit
Overall Length (in)	2-1/8 in
Bevel Angle	45 Degree

Box Quantity	1
Diameter (in)	1-3/4 in
Shank Diameter (in)	1/2 in
Product Type	Lock Miter Bit
Overall Length (in)	2-1/8 in
Bevel Angle	45 Degree
