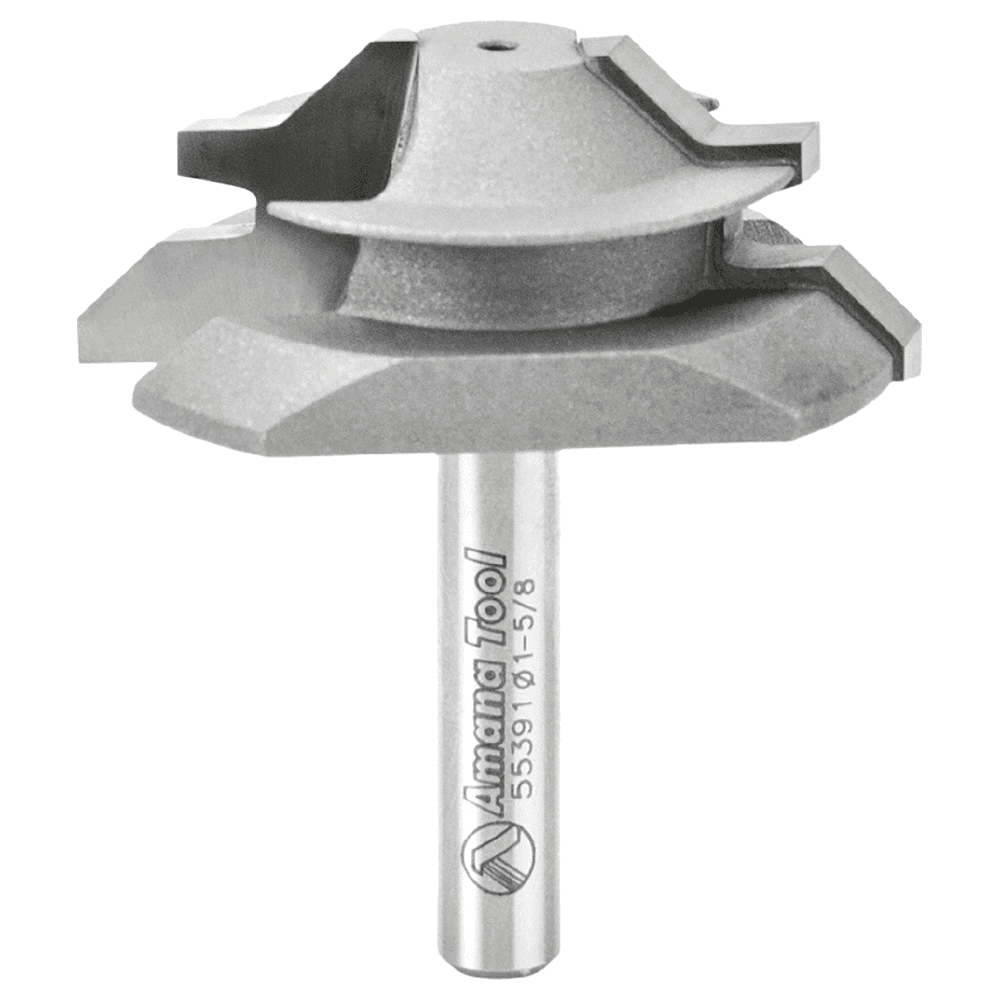

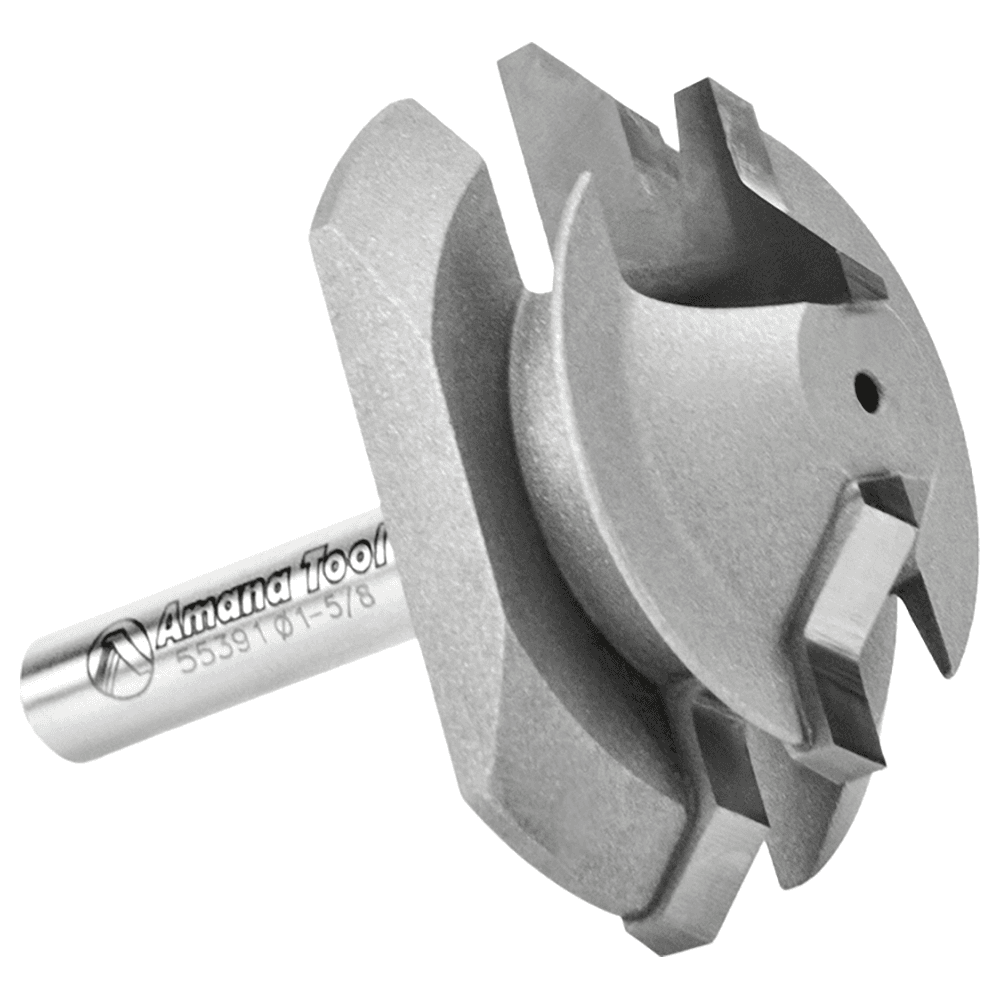

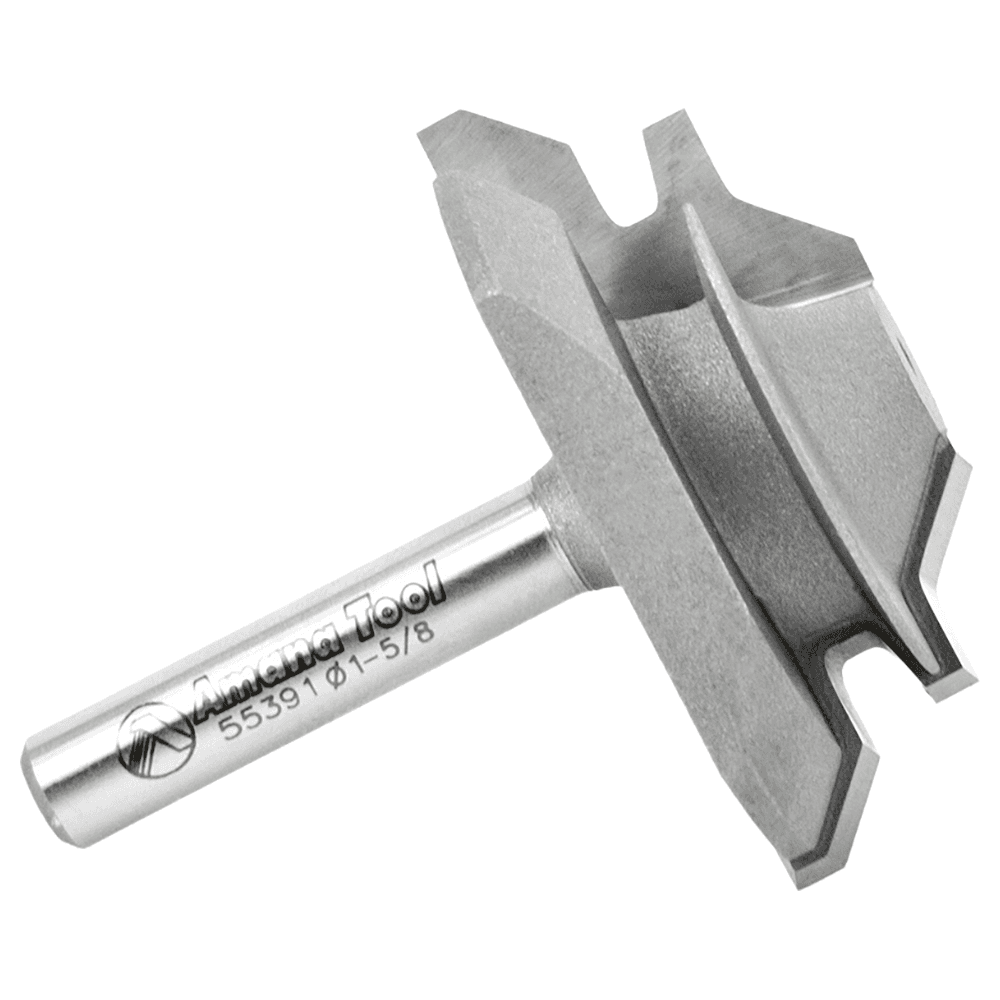

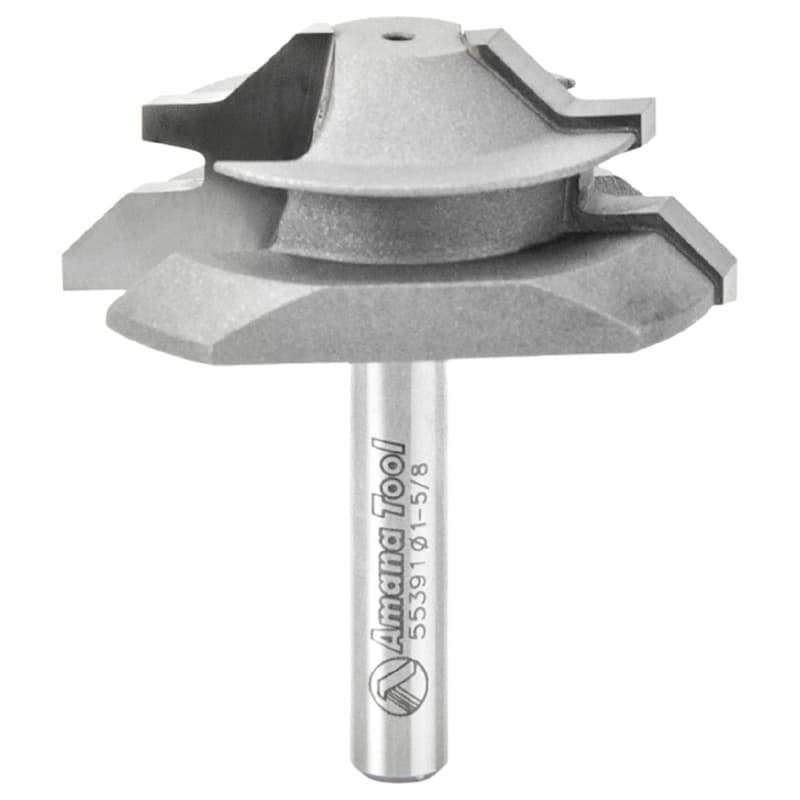

1-5/8" Dia x 5/8" Carbide Tipped Lock Miter Bit, 45°, 1/4" Shank for 3/8" - 1/2" Material
Product Details

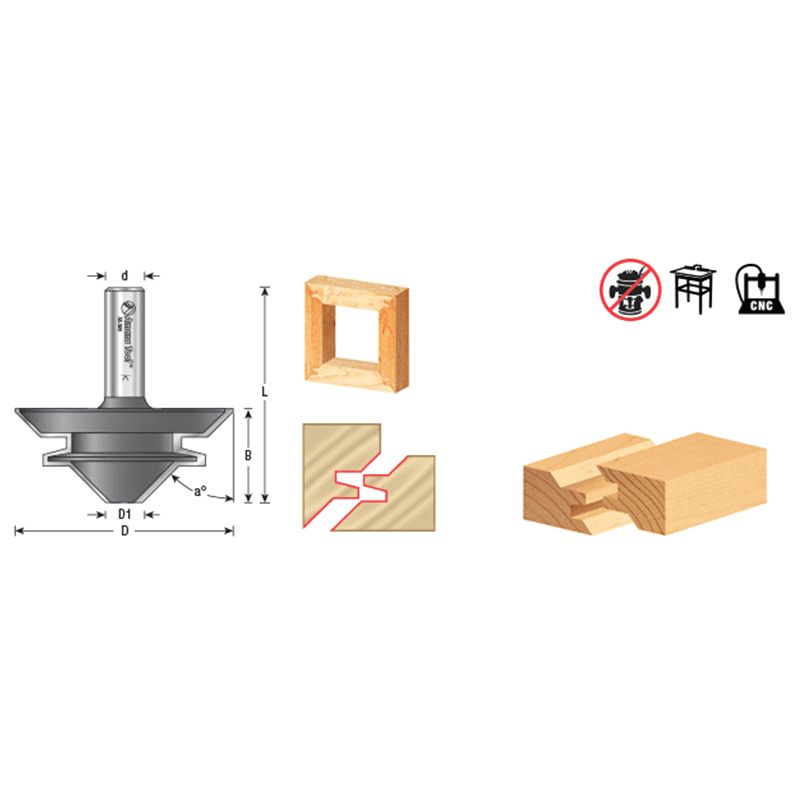

The lock miter is an interlocking edge-to-edge joint, typically used at the corners of casework. Used in a table-mounted router, run at reduced speed, this bit cuts both halves of the joint. The same setup of bit and fence cuts both parts. One part is laid flat on the tabletop and fed across the cutter. The second is braced vertically against the fence and fed across the cutter. For best results use in a table-mounted router. Features: • 1-5/8" Dia x 5/8" Carbide Tipped Lock Miter 45 Deg, 1/4" Shank • Material Size: 3/8" x 1/2" • Flutes: 2
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 5/8" |
| Width | |
| Cutting Diameter | 1-5/8" x 13.2mm |
| Application | |
| Material | |
| Product Type | Lock Miter Bit |
| Length | 1-3/4" |
| Degree of Cut | 45° |
| Shank Diameter | 1/4" |
Product Details
The lock miter is an interlocking edge-to-edge joint, typically used at the corners of casework. Used in a table-mounted router, run at reduced speed, this bit cuts both halves of the joint. The same setup of bit and fence cuts both parts. One part is laid flat on the tabletop and fed across the cutter. The second is braced vertically against the fence and fed across the cutter. For best results use in a table-mounted router. Features: • 1-5/8" Dia x 5/8" Carbide Tipped Lock Miter 45 Deg, 1/4" Shank • Material Size: 3/8" x 1/2" • Flutes: 2
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 5/8" |
| Width | |
| Cutting Diameter | 1-5/8" x 13.2mm |
| Application | |
| Material | |
| Product Type | Lock Miter Bit |
| Length | 1-3/4" |
| Degree of Cut | 45° |
| Shank Diameter | 1/4" |
