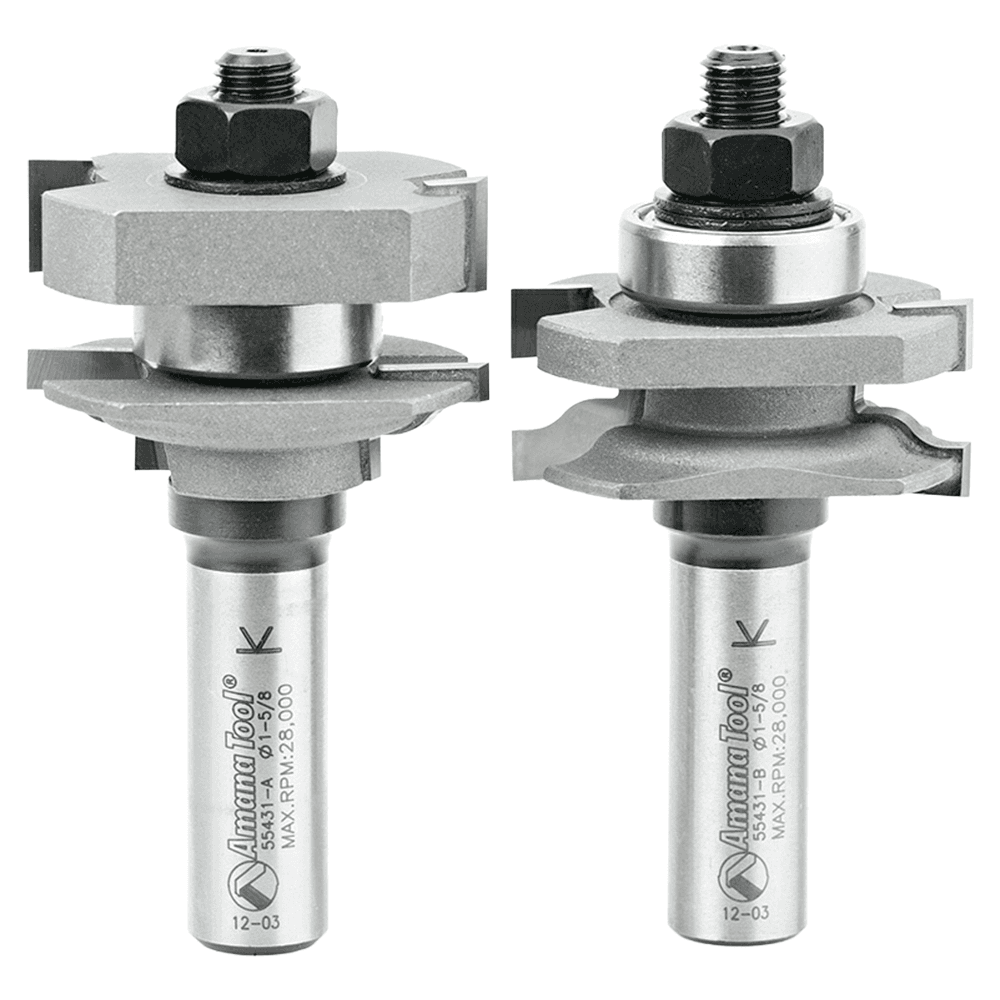

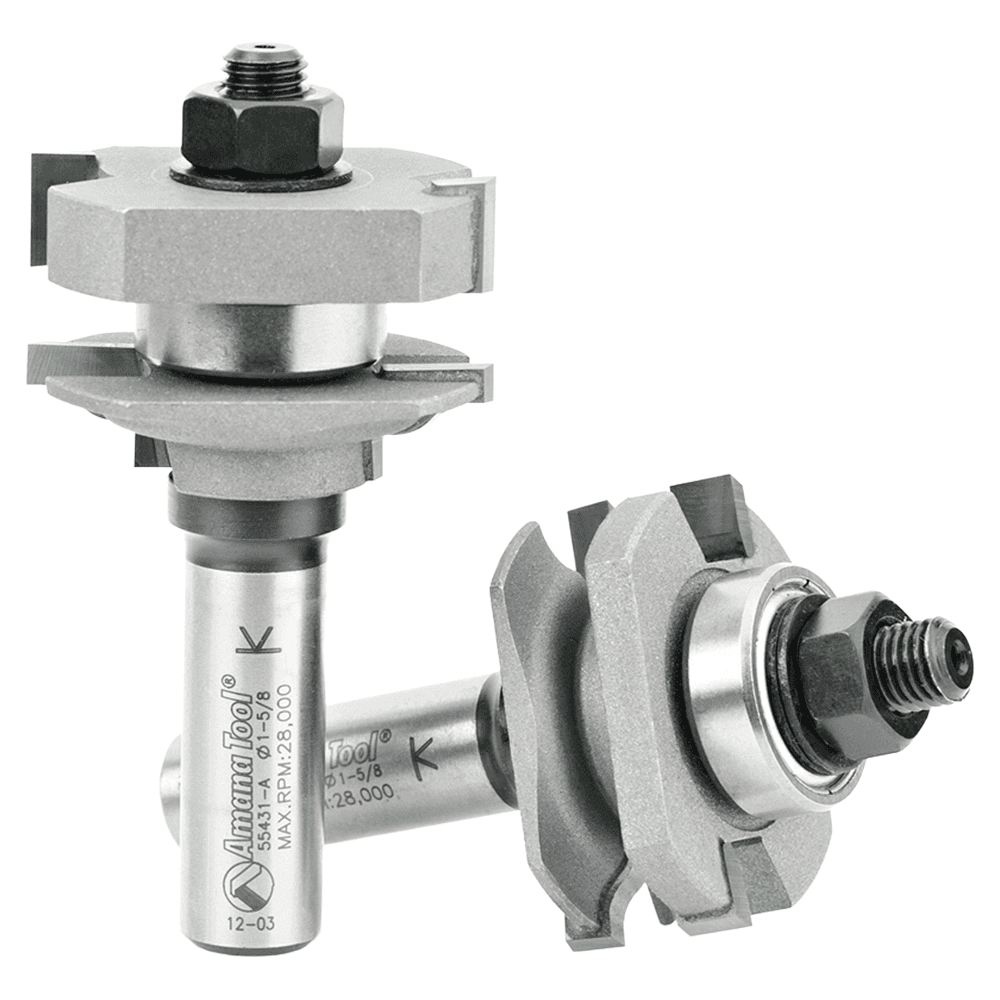

1-5/8" Dia x 11/16" Carbide Tipped Ogee Stile and Rail, 1/2" Shank Set (2-Piece)
Product Details

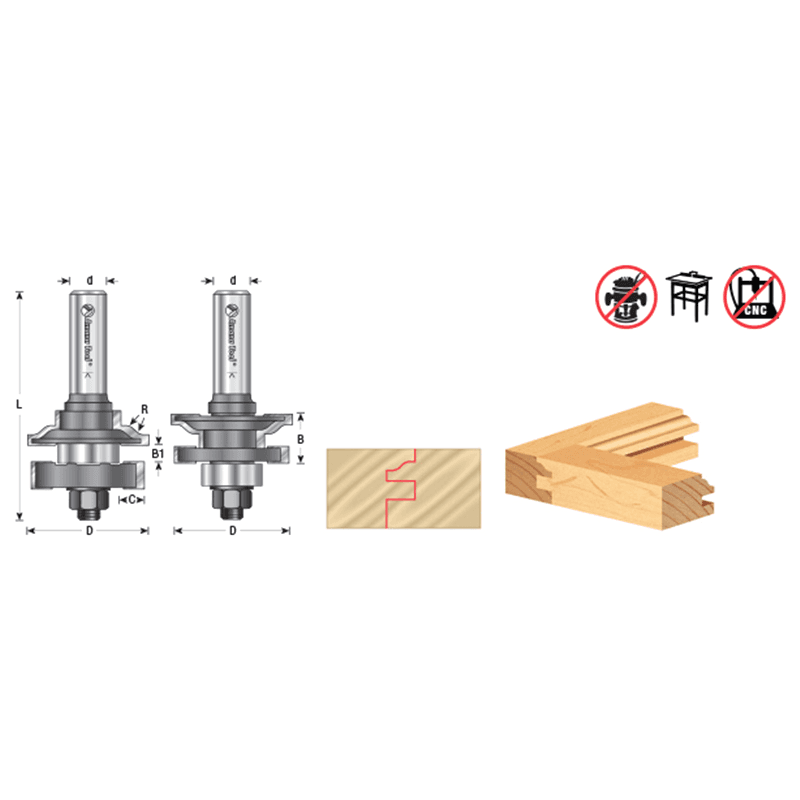

Our stile and rail sets give you two complete bits, one for doing the rail cuts, one for the stiles. Make cabinet doors and all varieties of frame-and-panel assemblies for furniture and architectural applications. These sets are offered in two configurations, one for working material up to 1" thick, the other for material between 5/8" and 7/8" in thickness. The same three profiles are available in either configuration. 3/4" Material Bits in this set have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles. Features: • 1-5/8" Dia x 11/16" Carbide Tipped Ogee Stile and Rail • Replacement Bearing: 47708 • Material Size: 3/4" • Flutes: 2 • C: 3/8"
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 11/16" x 1/4" |
| Width | |
| Cutting Diameter | 1-5/8" |
| Application | |
| Material | |
| Product Type | Ogee Stile and Rail |
| Length | 3-1/8" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
