Name: 1-7/8" Dia x 5/8" to 1-1/8" Carbide Tipped Adjustable Mission Style Straight Instile and Rail System, 1/2" Shank Set
Brand: Amana Tool
Availability: BackOrder

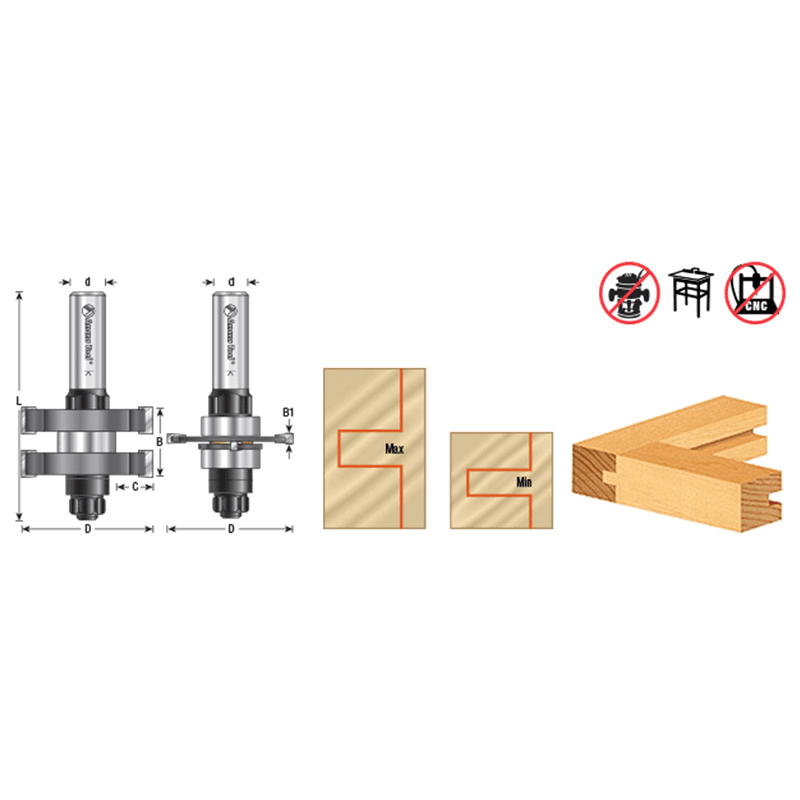

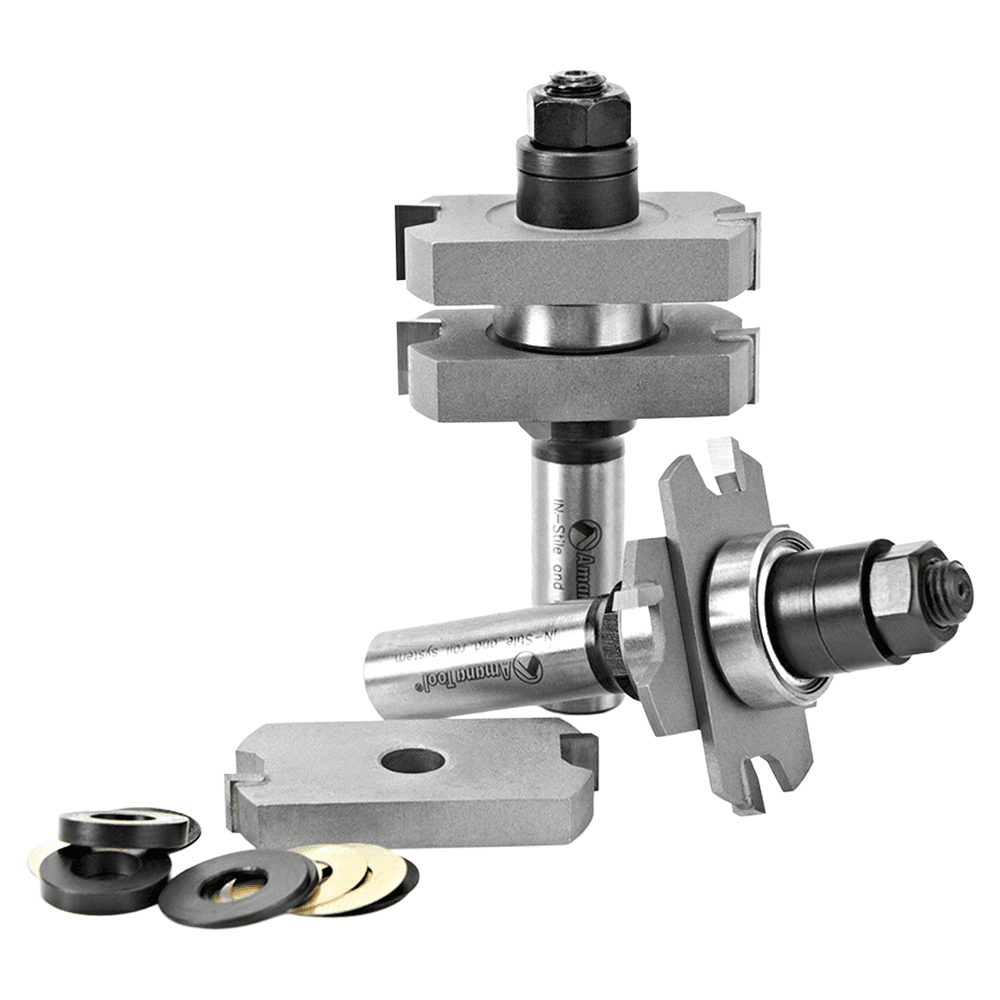

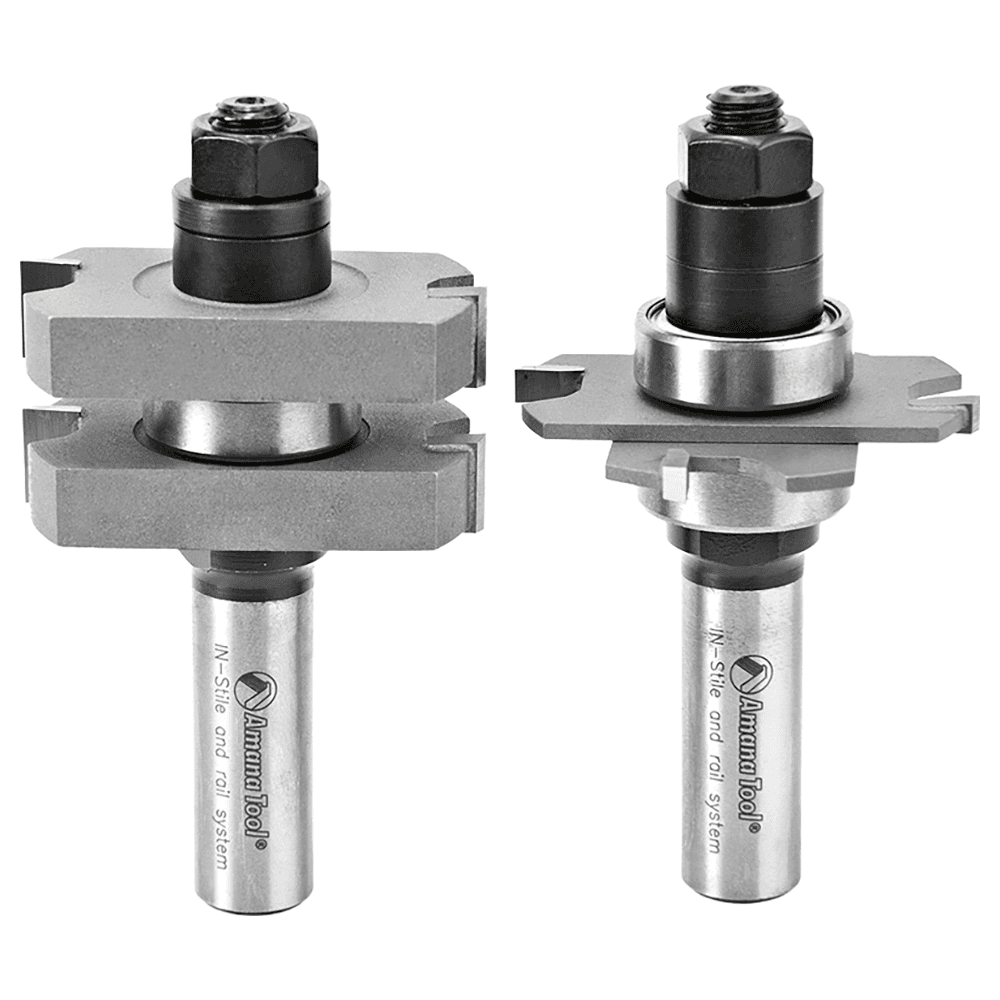

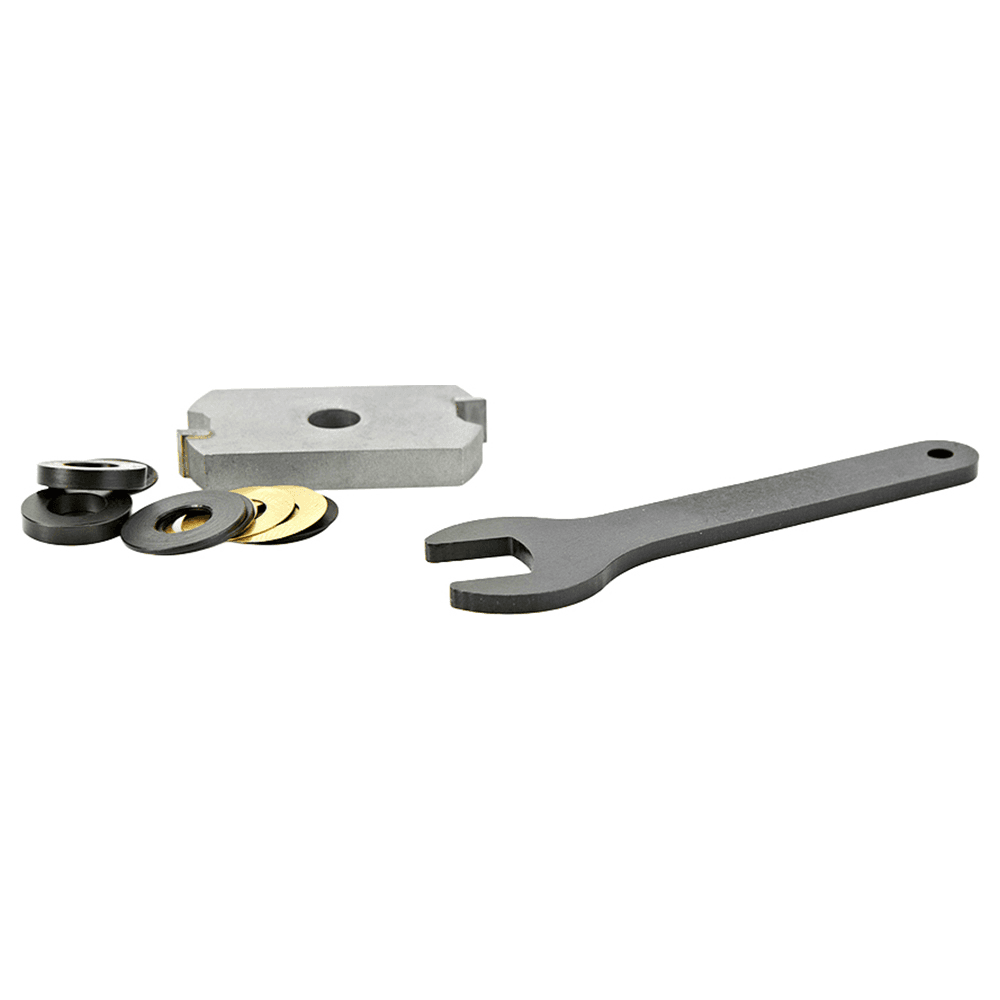

Bits in these sets have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary - using the provided shims - after the cutters have been resharpened. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

Features:

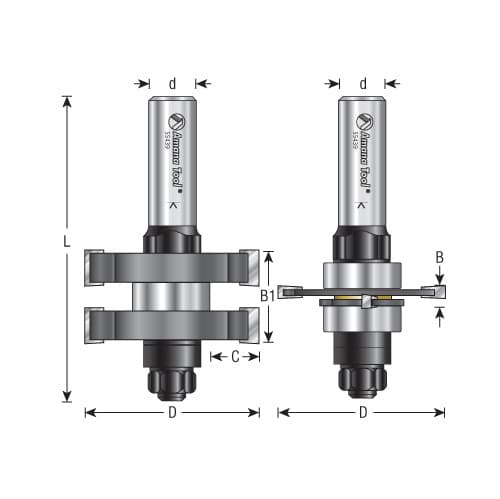

• 1-7/8" Dia x 5/8" to 1-1/8" Carbide Tipped Adjustable Mission Style Straight Instile and Rail System, 1/2" Shank Set
• Flutes: 2
• C: 1/2"
• B1 for 1/4" Plywood: 3/16" to 9/32"
• B1 for 1/2" Plywood: 7/16" to 17/32"

Box Quantity	1
Diameter (in)	1-7/8 in
Shank Diameter (in)	1/2 in
Cutting diameter (mm)	1-7/8 in
Product Type	Rail System
Overall Length (in)	3-11/32 in
Cutting Height Range	5/8-1-1/8 in
Minimum Cutting Height	5/8 in

Box Quantity	1
Diameter (in)	1-7/8 in
Shank Diameter (in)	1/2 in
Cutting diameter (mm)	1-7/8 in
Product Type	Rail System
Overall Length (in)	3-11/32 in
Cutting Height Range	5/8-1-1/8 in
Minimum Cutting Height	5/8 in
