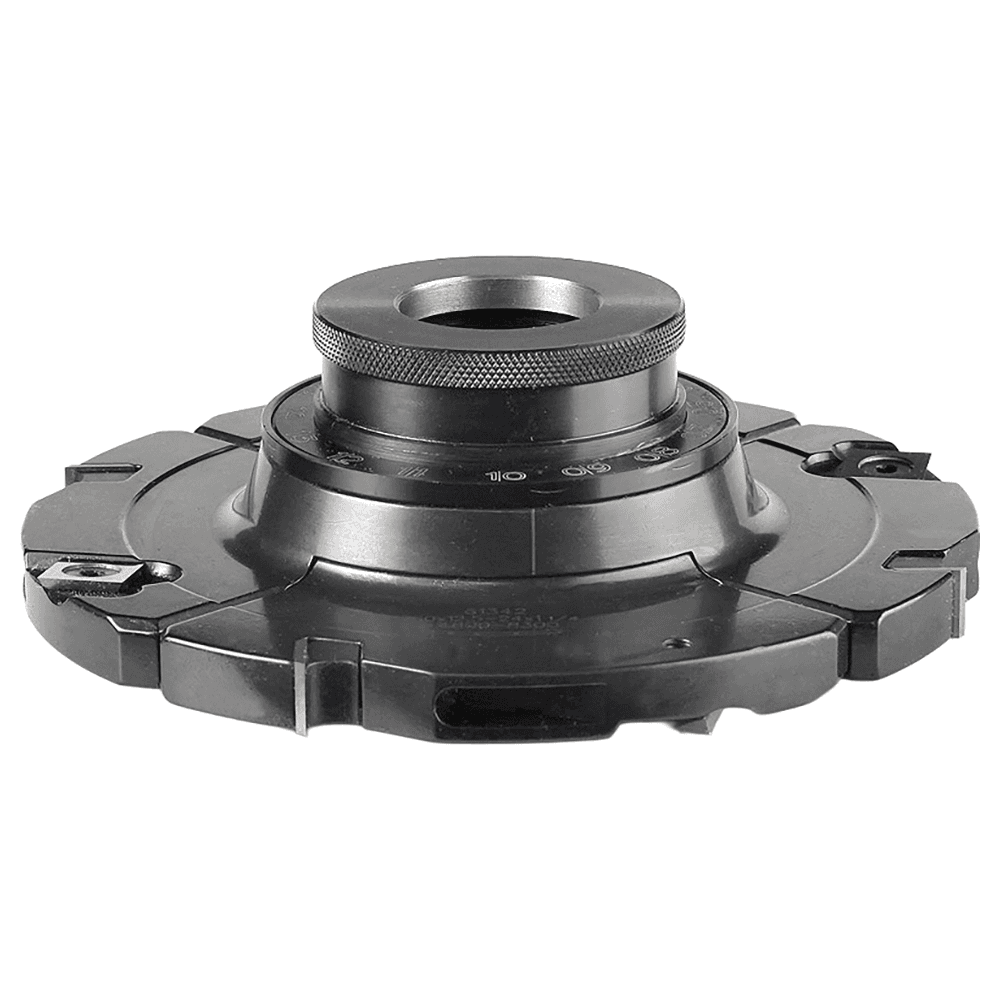

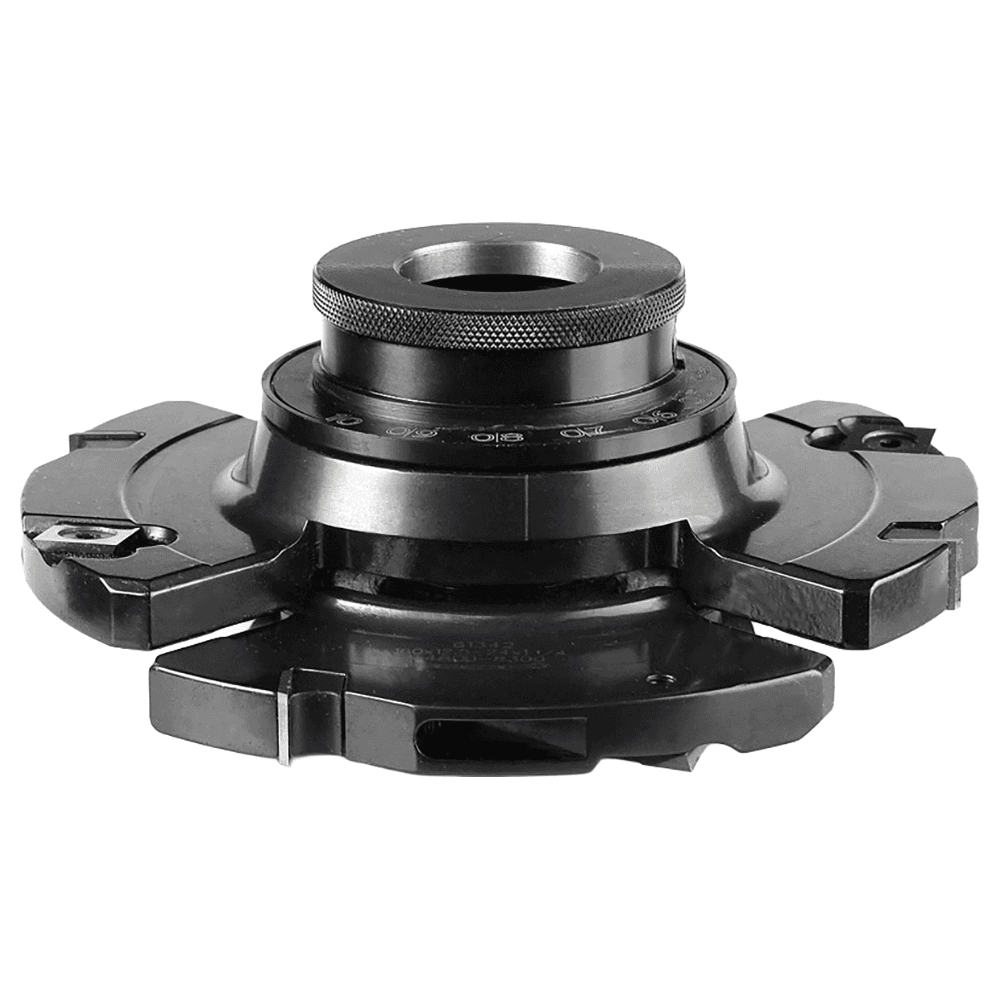

160mm x 12.5mm - 24mm x 1-1/4" Bore Insert Carbide Adjustable Groove with Scorer/Ring Nut
Product Details

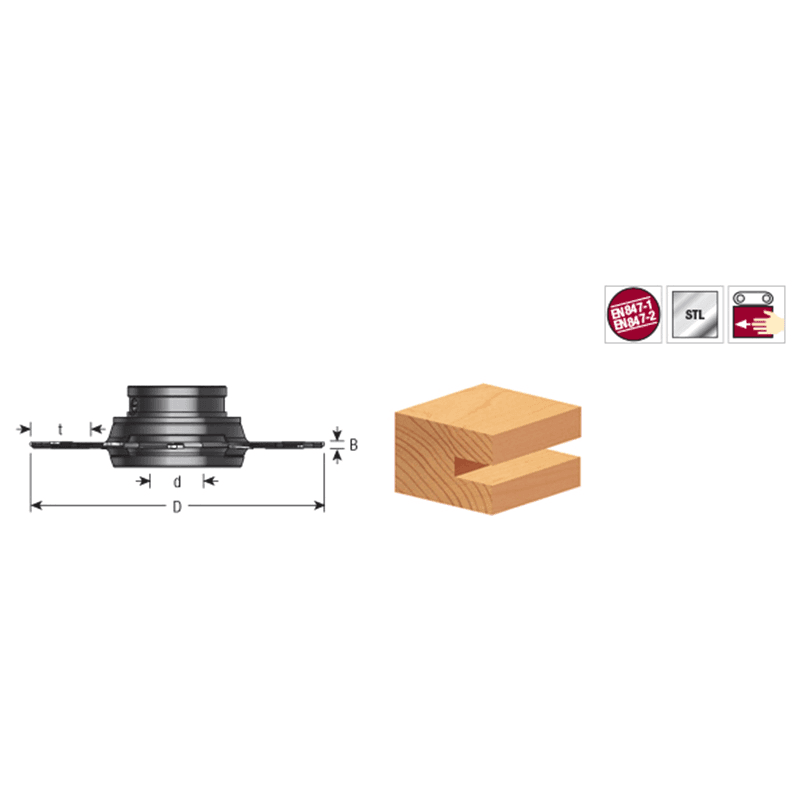

Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Cutting width can be adjusted in 0.1mm increments by special threaded bushing and scale without removing the cutter from the spindle. Features: • Max. t: 30mm (1-3/16) • RPM: 4,800-8,300 • Teeth: 8+4 • Replacement Knives: AMA-19, RCK-70
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | |
| Width | |
| Cutting Diameter | |
| Application | |
| Material | Carbide |
| Product Type | Groove |
| Length | |
| Degree of Cut | |
| Shank Diameter |
