DCE-05 98mm Dust/Chip Extraction Nut System
Product Details

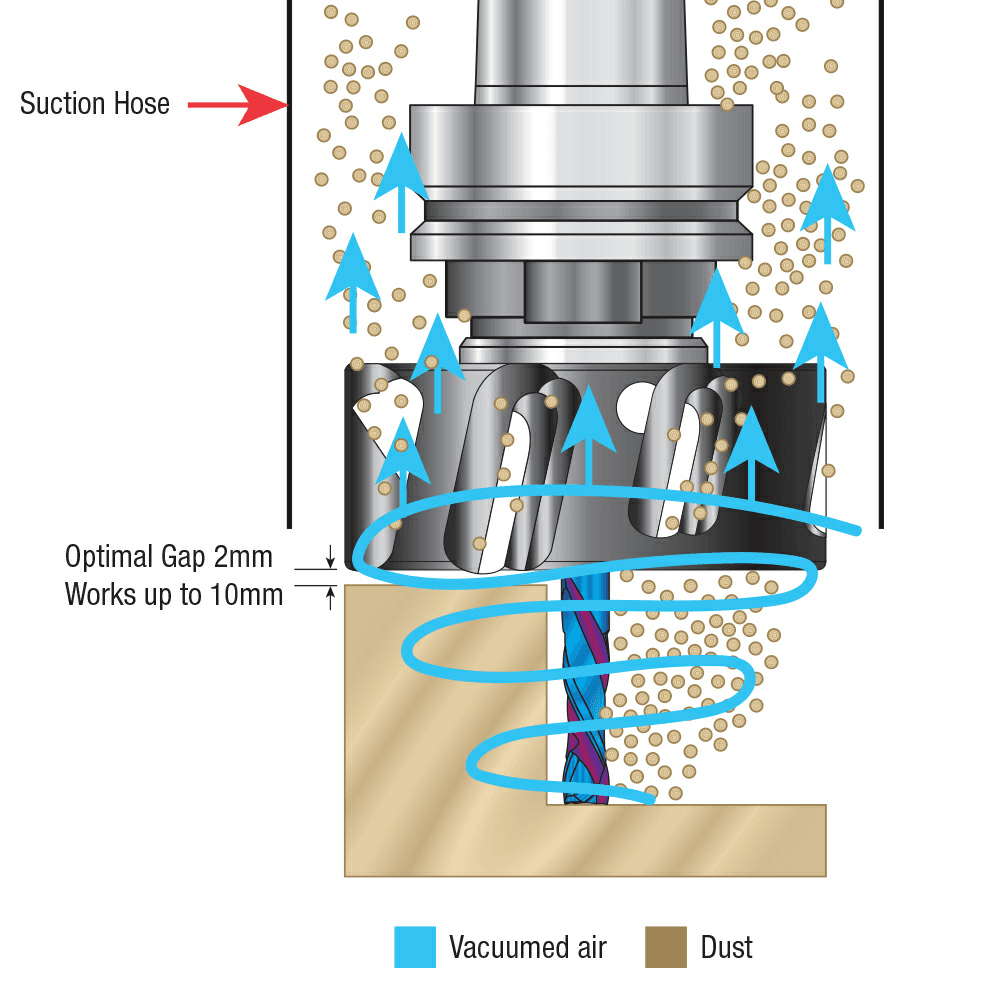

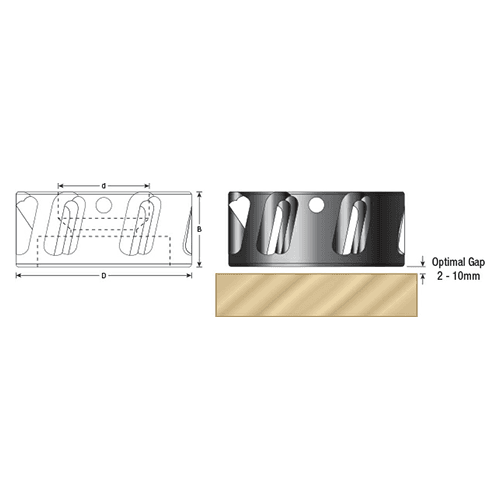

Features: • Collet Standard: ER32 • Tool body in light alloy with wrench • Dust and extractor tool will help evacuate both dust and chips during nesting and conventional CNC routing operations • Easy to assemble directly on the collet chuck instead of the standard nut, also provides a big improvement of dust evacuation, removing it from the work piece directly into the centralized extraction system of the CNC machine • Special surface hardening treatment for longer performance and coating against wear and corrosion, for much better chip evacuation • Suitable for every type of collet chucks (ISO, BT, HSK...) using standard router bits (no adaptors needed!) • Optimal gap between dust collection and material is 2mm (0.078"). It works properly up to 10mm (0.393") • Maximum speed rotation up to 20,000 RPM • Balanced at G2,5
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 42mm |
| Width | 98mm |
| Cutting Diameter | |
| Application | |
| Material | |
| Product Type | Nut System |
| Length | 98mm |
| Degree of Cut | |
| Shank Diameter |
