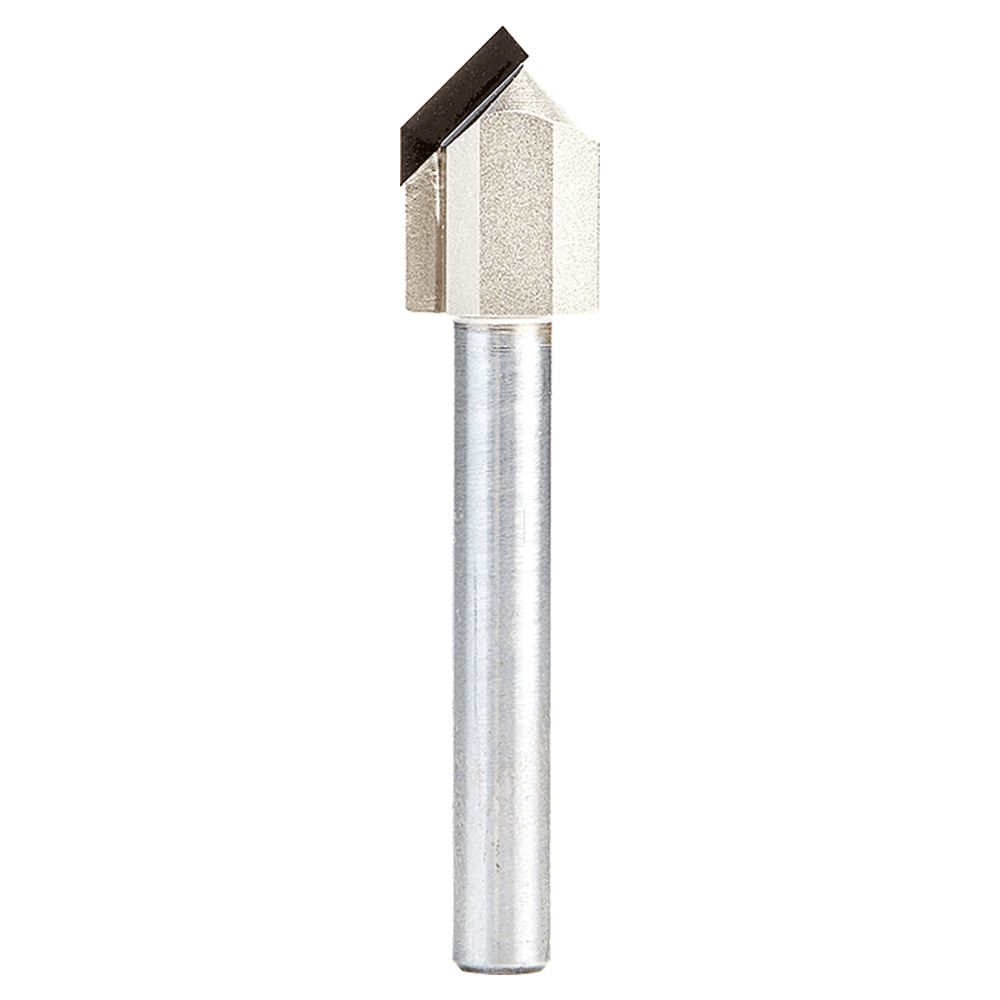

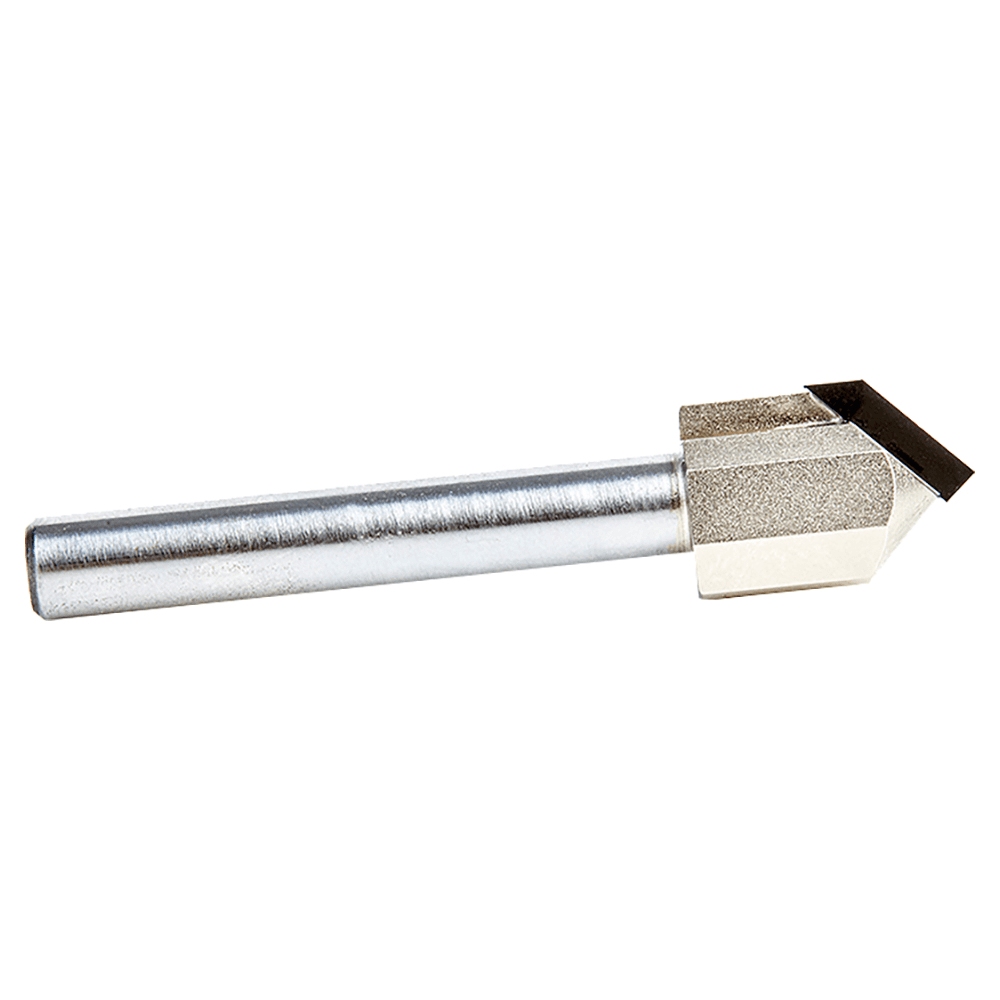

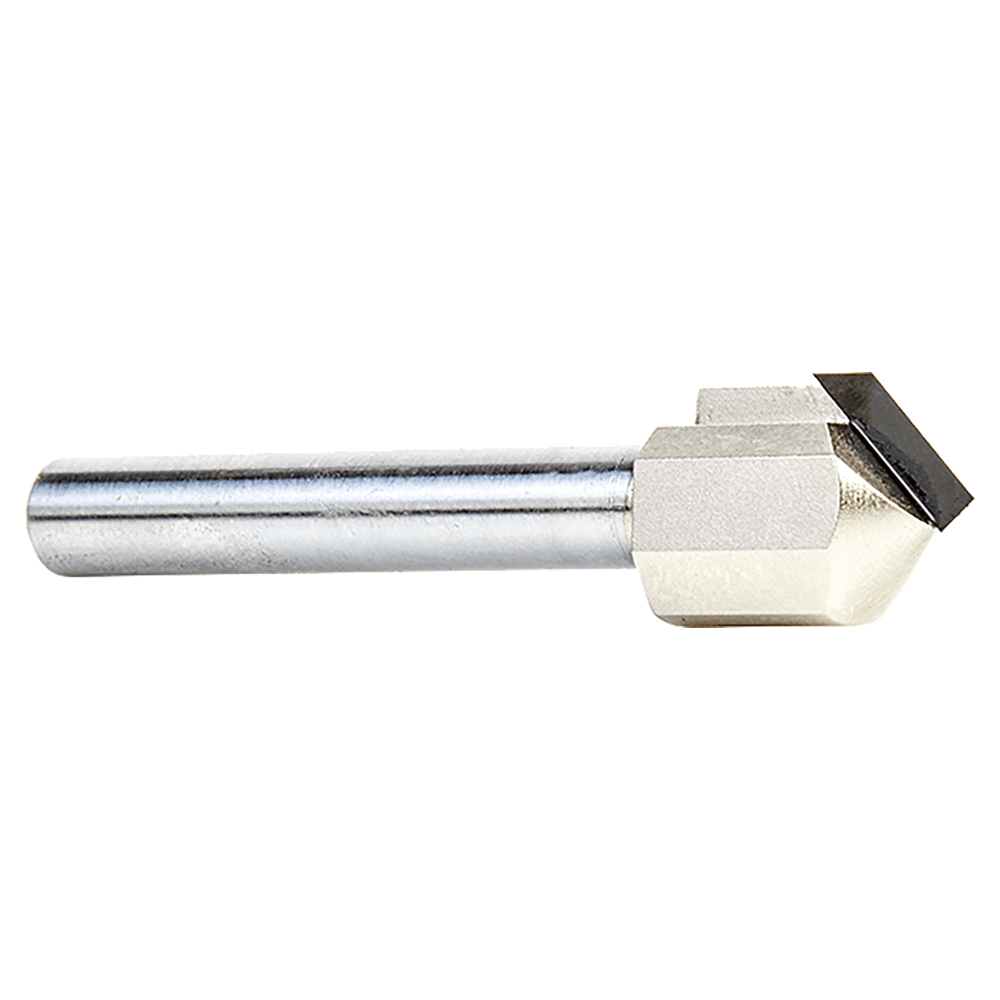

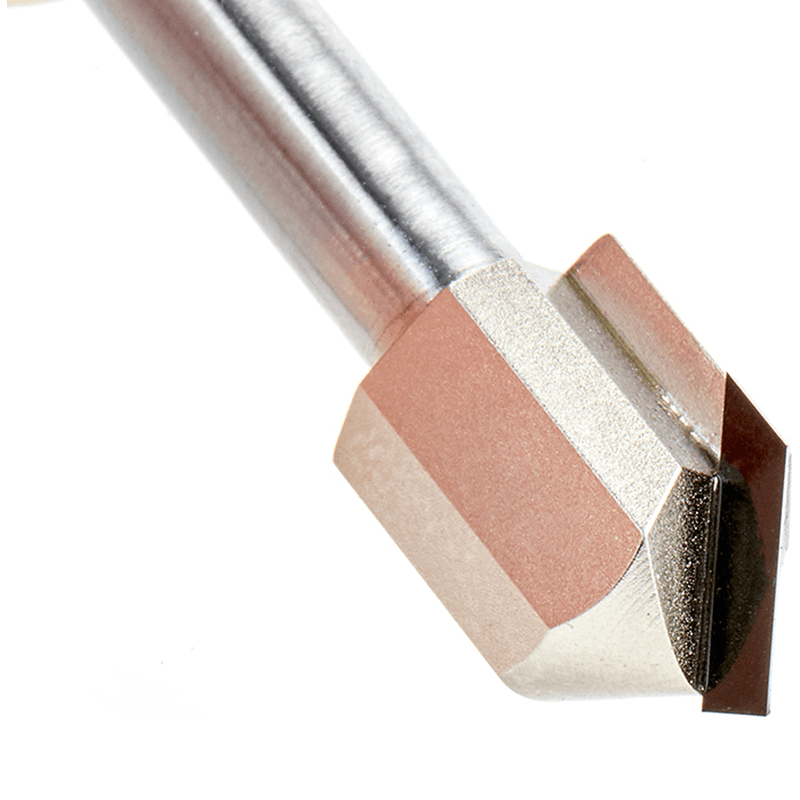

1/2" Dia x 1/4" CNC Polycrystalline Diamond 90° Engraving, V-Grooving and Chamfering Router Bit, 1/4" Shank
Product Details
Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate which allows the diamond to be brazed onto a tool body. If you’re looking for the ultimate in tooling you’ve found it! Amana Tool′s PCD tipped 60 degree engraving V-grooving and chamfering CNC router bits will groove a wide variety of tough abrasive materials including composites particleboard MDF (both raw or with melamine) veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life. Features: • 1/2" Dia x 1/4" CNC Polycrystalline Diamond 90 Degree Engraving, V-Grooving and Chamfering Router Bit, 1/4" Shank • Max RPM: 24000 • Warning: Maximum recommended material depth in one pass varies from 0.5mm - 3.0mm depending on the hardness of the material. The harder the material the less the depth. Excellent for V-Grooving and Chamfering: • Aluminum Composite Material (ACM) • Carbon Fiber • Composites • Composite Decking • Hard Wood • Laminated Chipboard and MDF • PlywoodVeneer • Soft Wood • Solid Surface • Synthetic and Homogenous Marble Excellent for Engraving: • Aluminum Brass & Copper • Aluminum Composite Material (ACM) • Aluminum Composites • Carbon Fiber • Coroplast • Hard Wood • HDPE • King Starboard/Marine Building Material • Laminated Chipboard and MDF • Metal Alloys that don′t contain Iron • PCB Board • Phenolic • Plastics • PlywoodVeneer • Soft Wood • Solid Surface • Synthetic and Homogenous Marble • Titanium Benefits of Diamond Technology: • Harder cutting edge provides higher resistance to wear • Cut thousands of feet more than carbide without changing tool saving setup time • Optimized machine tool efficiency • Quality of finish is often significantly improved
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood

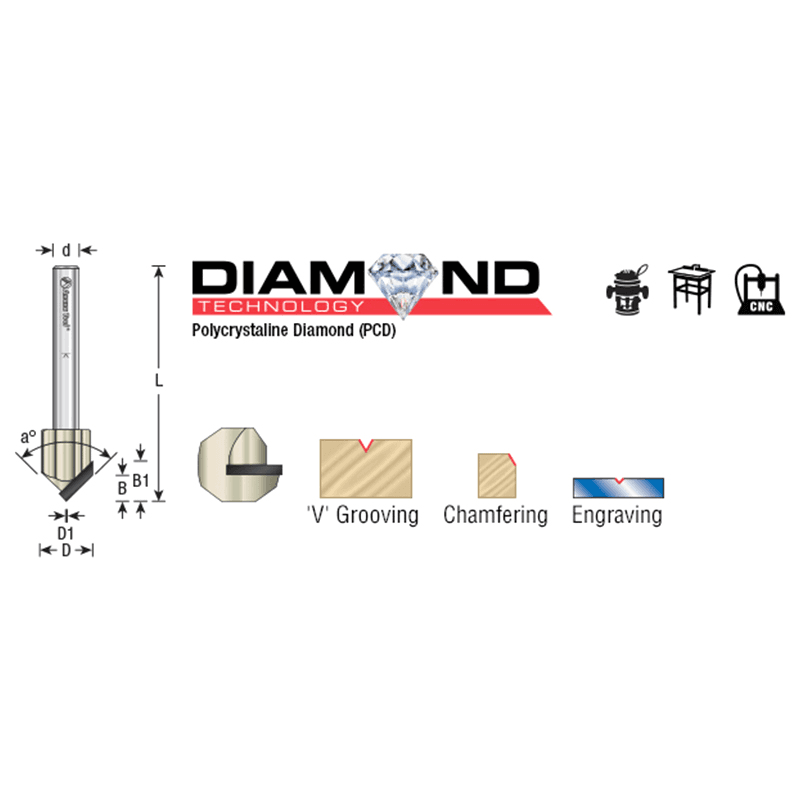

Specifications
| Box Quantity | 1 |
| Height | 1/4" x 3/8" |
| Width | |
| Cutting Diameter | 1/2" x 0.004" |
| Application | |
| Material | |
| Product Type | Engraving, V-Grooving and Chamfering Router Bit |
| Length | 2-1/4" |
| Degree of Cut | 90° |
| Shank Diameter | 1/4" |
