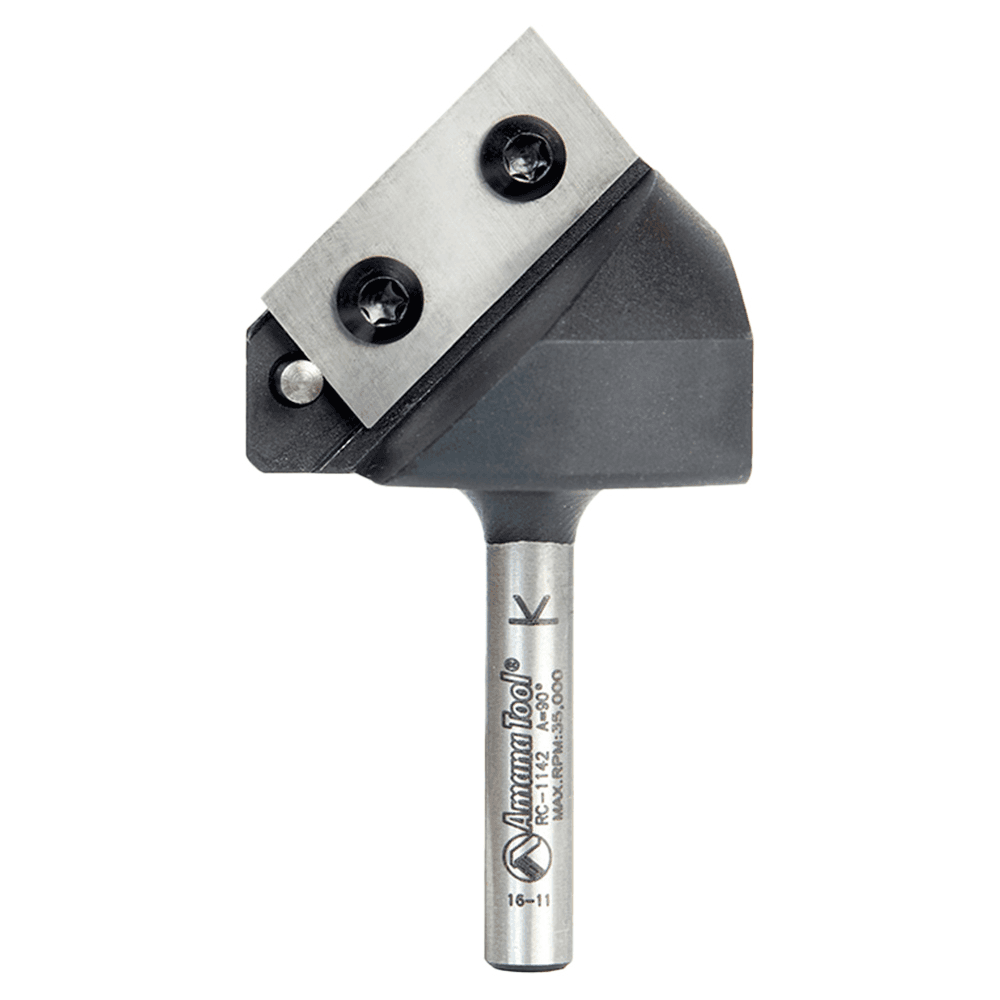

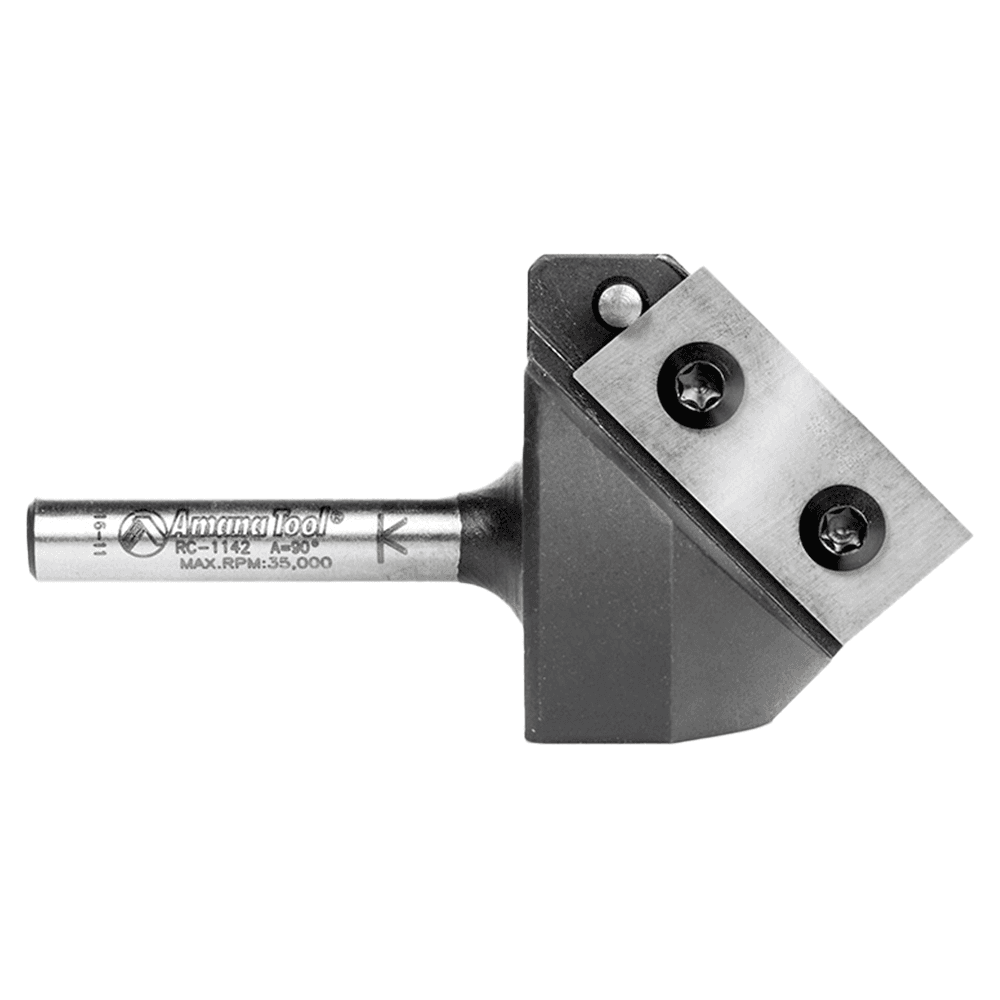

Insert V-Groove 90° x 3/4" x 1/4" Shank CNC Router Bit

The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including:

• Miter folds - "Create the Perfect Joint"

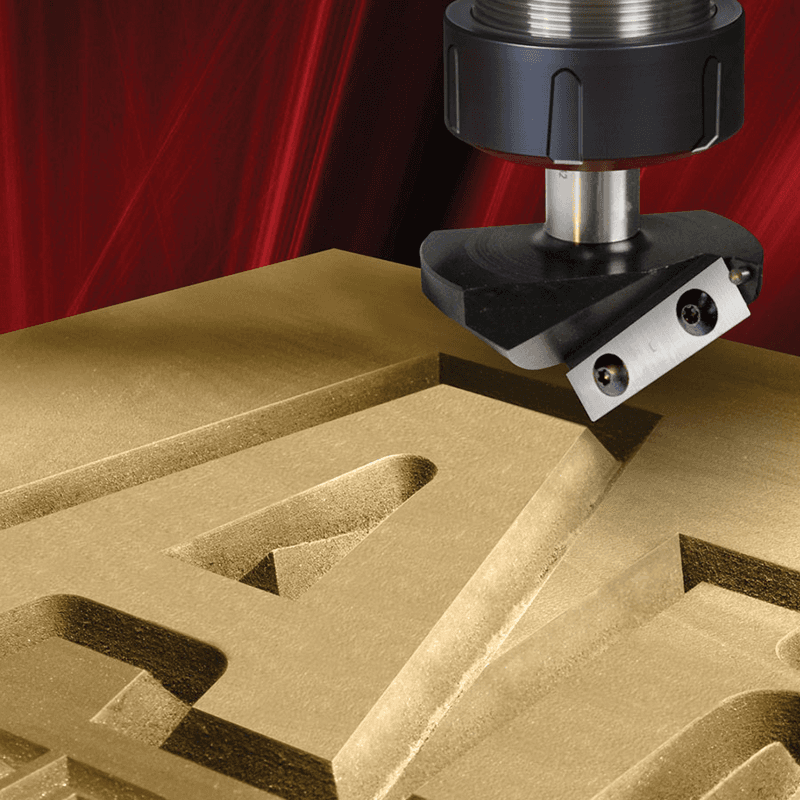

• Signmaking and Lettering

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Features:
• When working with Xanita LightBoard panel (X-board X-board plus) we recommend using MDF knives for better results

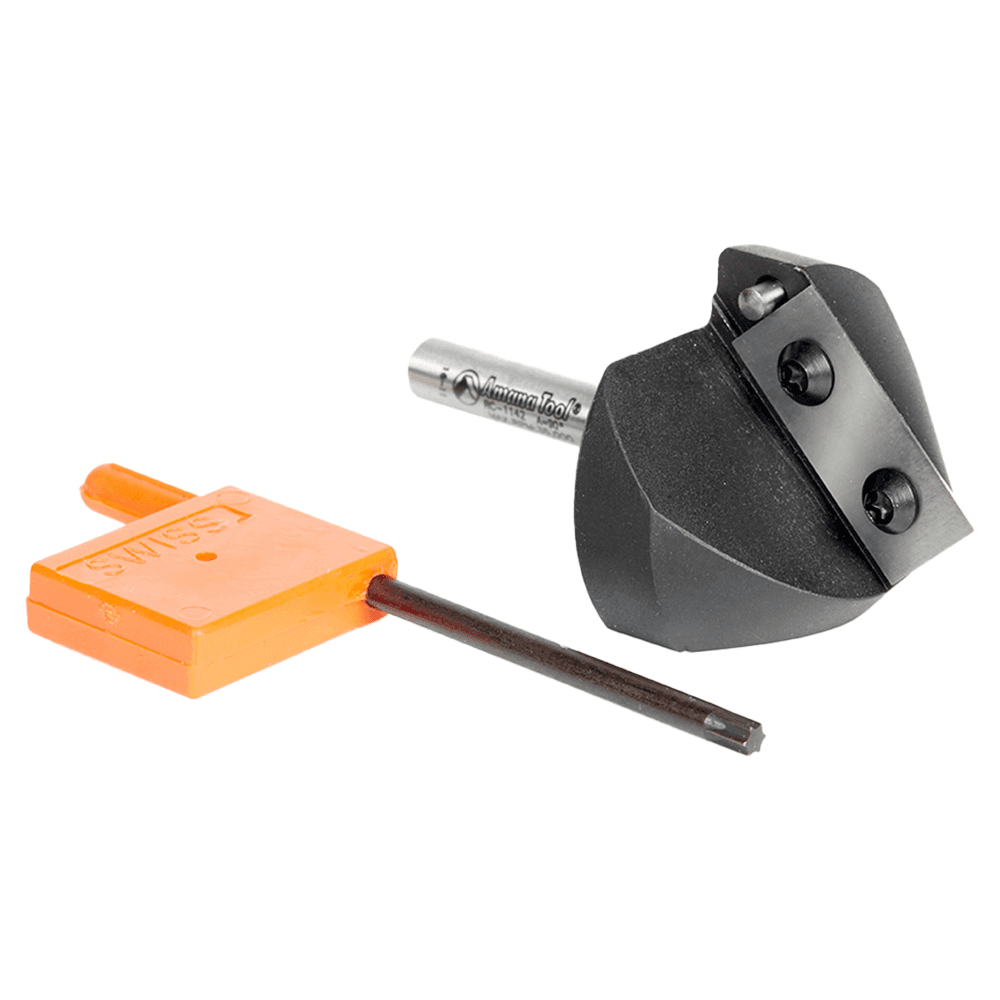

• Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife
• When using on small, hobby type CNC machines, set RPM to 12,000 RPM with 30% slower feed rate
• Cutting Edges: 2"
• Max RPM: 35,000
• No of knives: 1

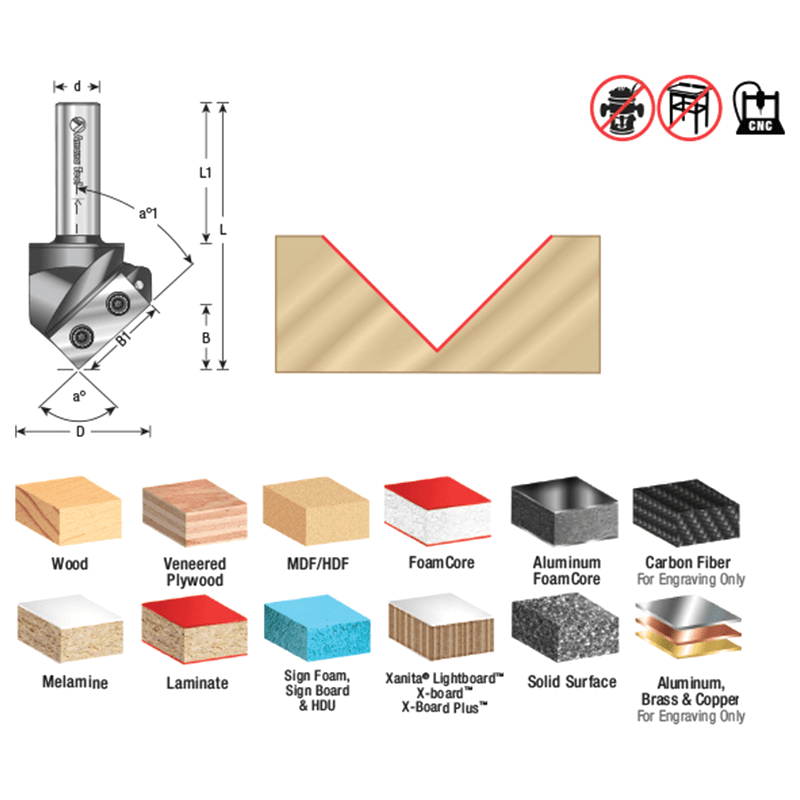

Excellent for Cutting:

• Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber (Engraving Only)
• Acrylic/Plastic
• Composites
• Composite Decking
• Epoxy (Epoxy Resins)
• Foam
• High Density Polyethylene (HDPE)
• Laminate
• Melamine
• MDF/HDF
• PVC
• Sign Board
• Solid Surface
• Veneered Plywood
• Wood
• Xanita Board
• 20lbs High Density Urethane

Advantages of Insert Tooling:
• Long lasting insert knives provide superior smooth quality cuts every time
• Quick and precise replacements of dull knives
• Due to insert accuracy tool life is extended
• Insert tooling allows for harder grades of carbide
• Special carbide grades for special applications
• Cost effective solution compared to replacing brazed router bits
