1-3/4" Dia x 15/32" Insert Carbide Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler/Surface Planer 1/8" Radius, 1/2" Shank
Product Details

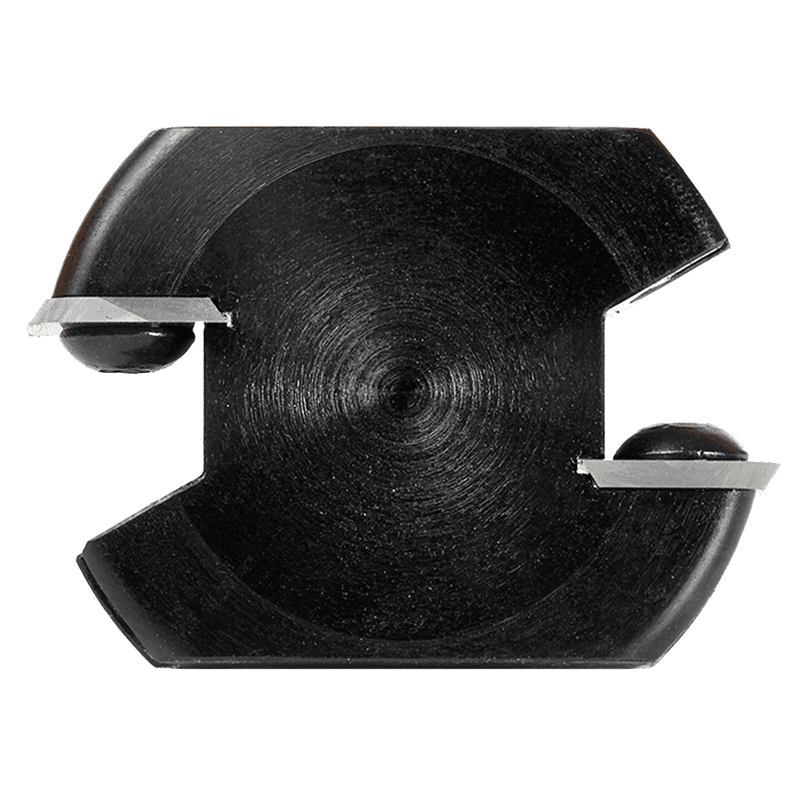

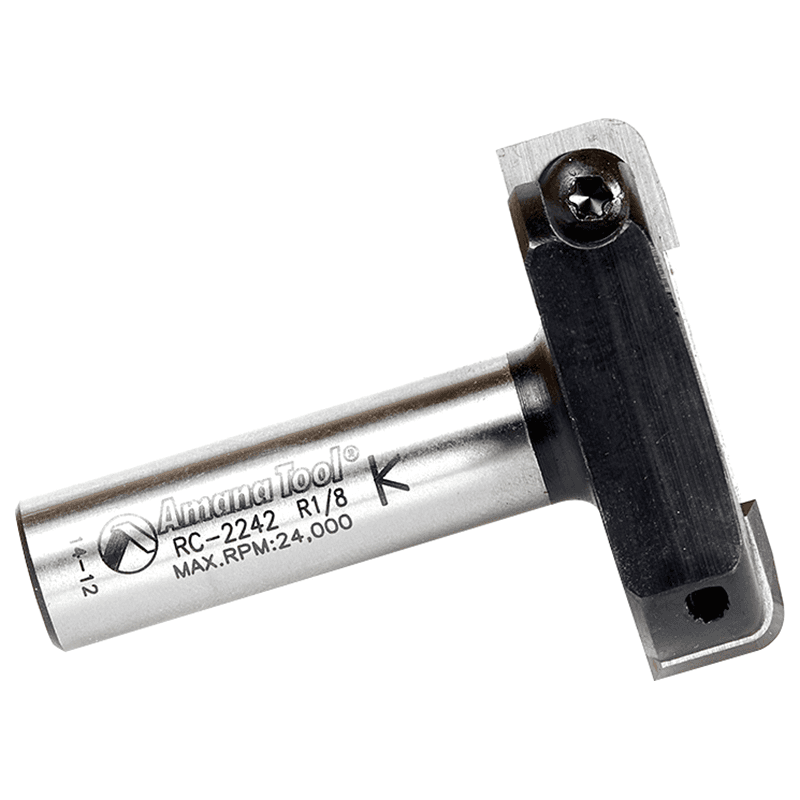

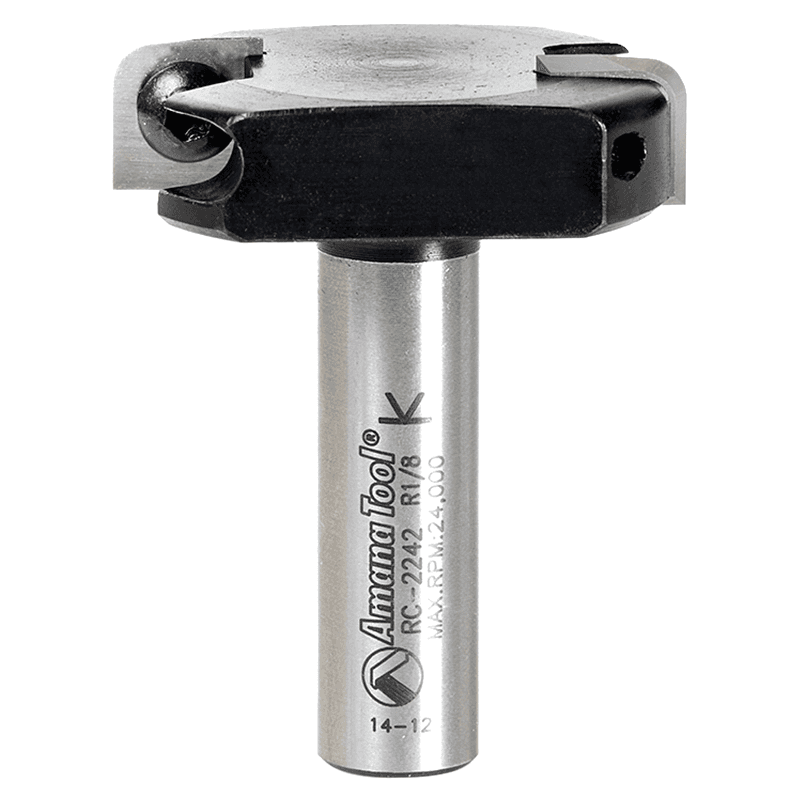

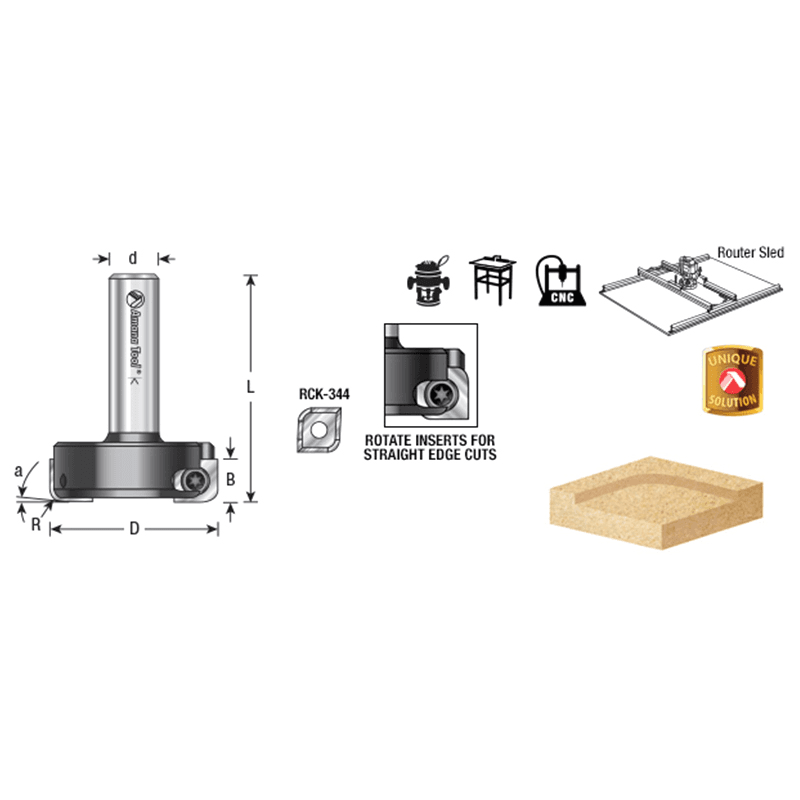

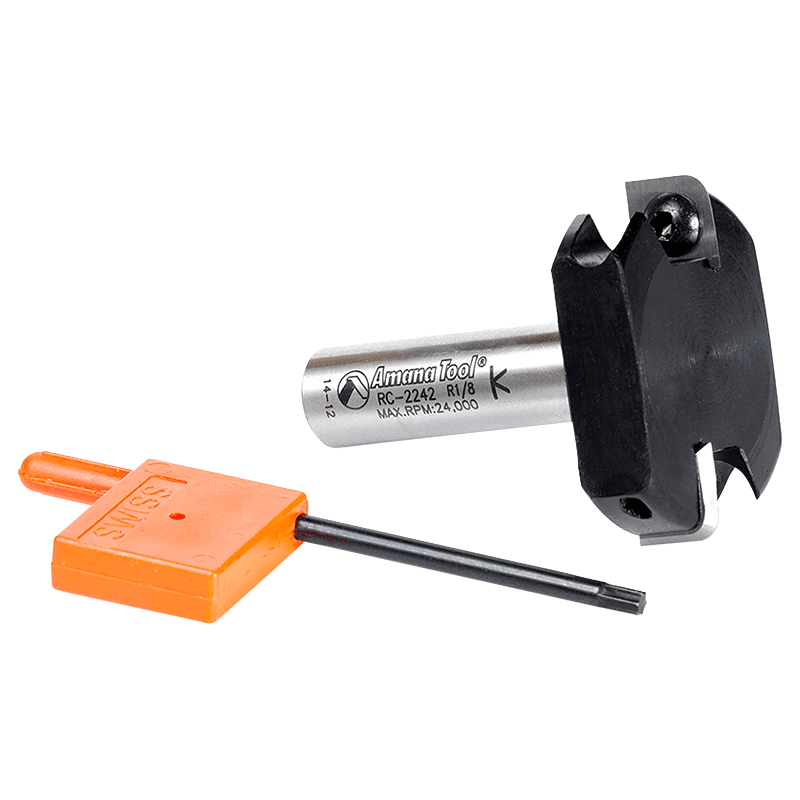

New radius edge cutter RC-2242 is best recommended to be used for surface planing/flattening in surfaces of large solid wood slabs with a handheld router in router sleds. Features a 1/8" radius bevel making this tool unique compared to other spoilboard bits. A great tool for fast removal of materials over a large surface area. These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools. Features: • 1-3/4" dia x 15/32" insert carbide spoilboard surfacing, rabbeting, flycutter, slab leveler/surface planer 1/8" radius, 1/2" shank router bit • 4-sided solid carbide insert knives • Exclusive carbide grade for highest quality of cut • Maximum cutting efficiency • Faster material removal process • Also suitable for router sled machines, Make sure that your router sled is fully stable and squared • Proper torques rating to tighten down screws is 2-3Nm Torques • Note: Not to be used for slot cutting • Replacement Knives: RCK-344 • Max RPM: 28,000 Perfect for: • Resurfacing spoilboards using CNC • Planing large glued up panels using CNC • Surfacing and finishing wood using timber slab machines • Rabbeting Designed for Planing/Rabbeting the Following Materials: • Fiberboard • HDF/LDF • MDF
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 15/32" |
| Width | |
| Cutting Diameter | 1-3/4" |
| Application | |
| Material | |
| Product Type | Router Bit |
| Length | 2-1/4" |
| Degree of Cut | 5° |
| Shank Diameter | 1/2" |
