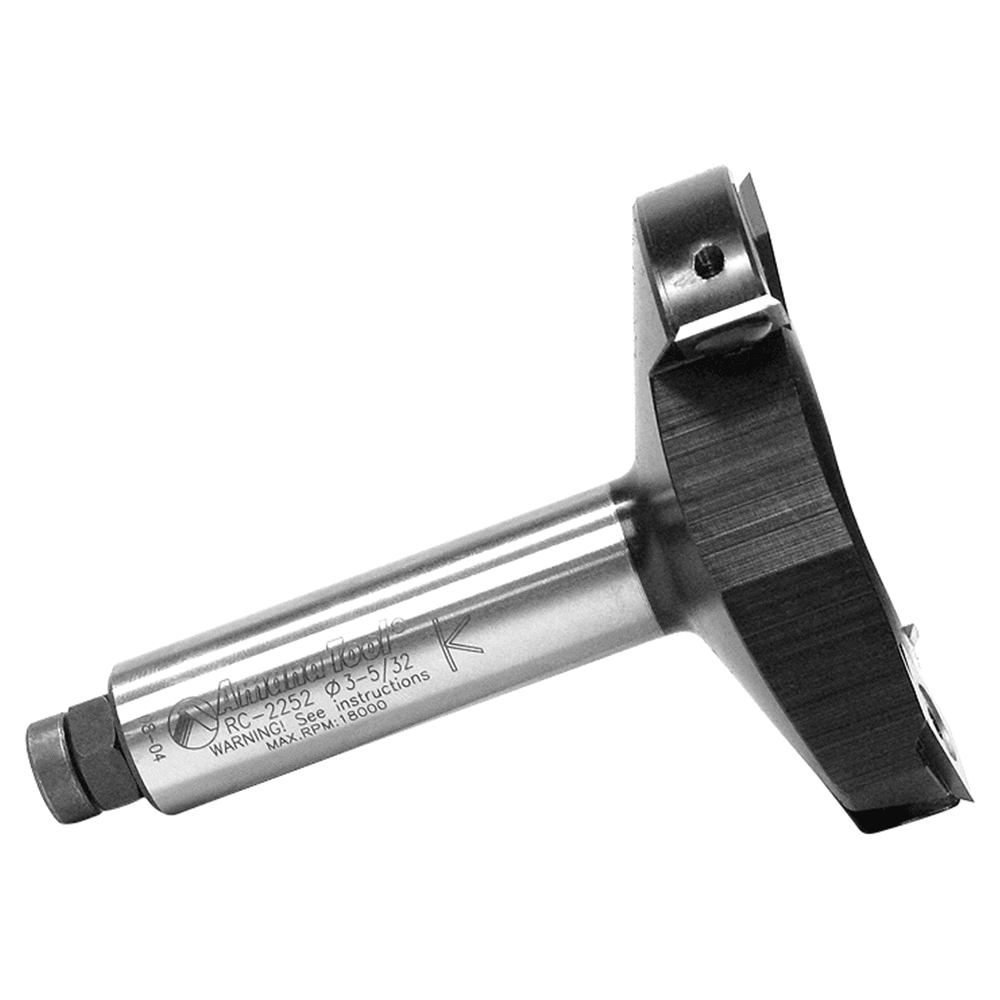

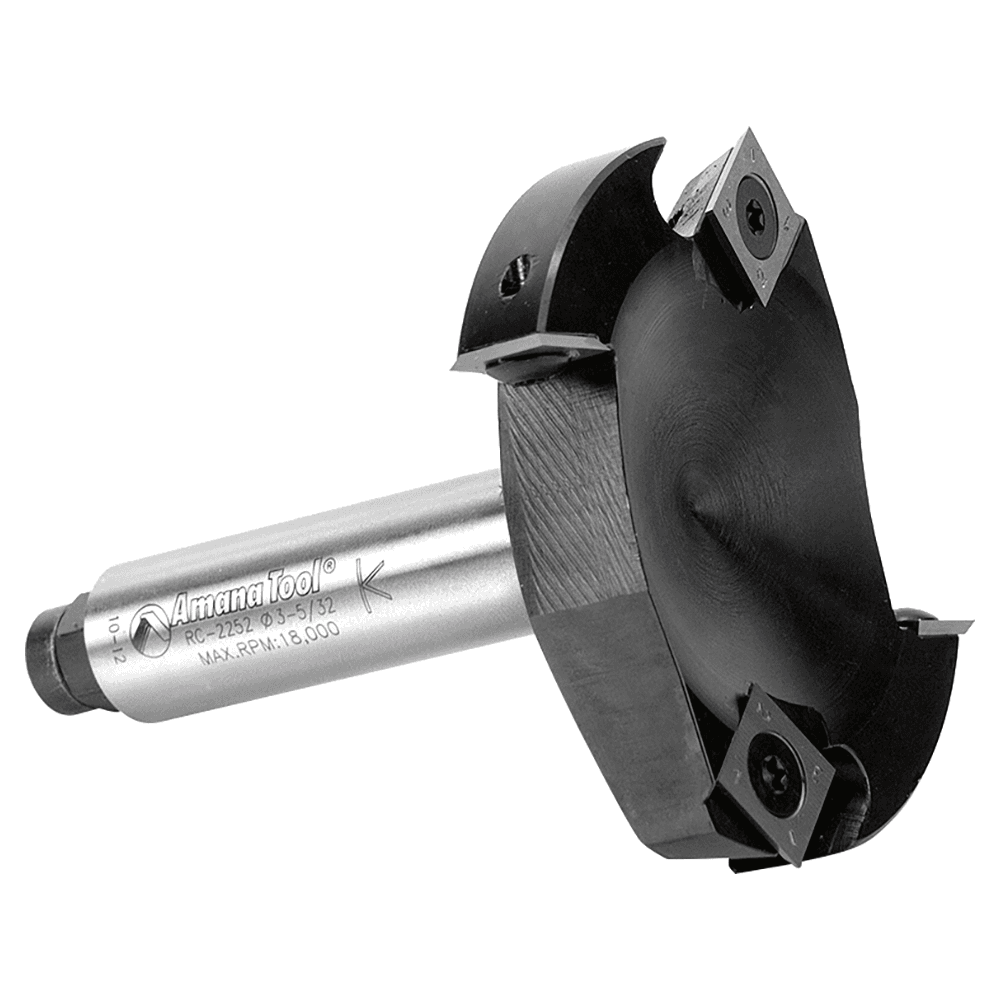

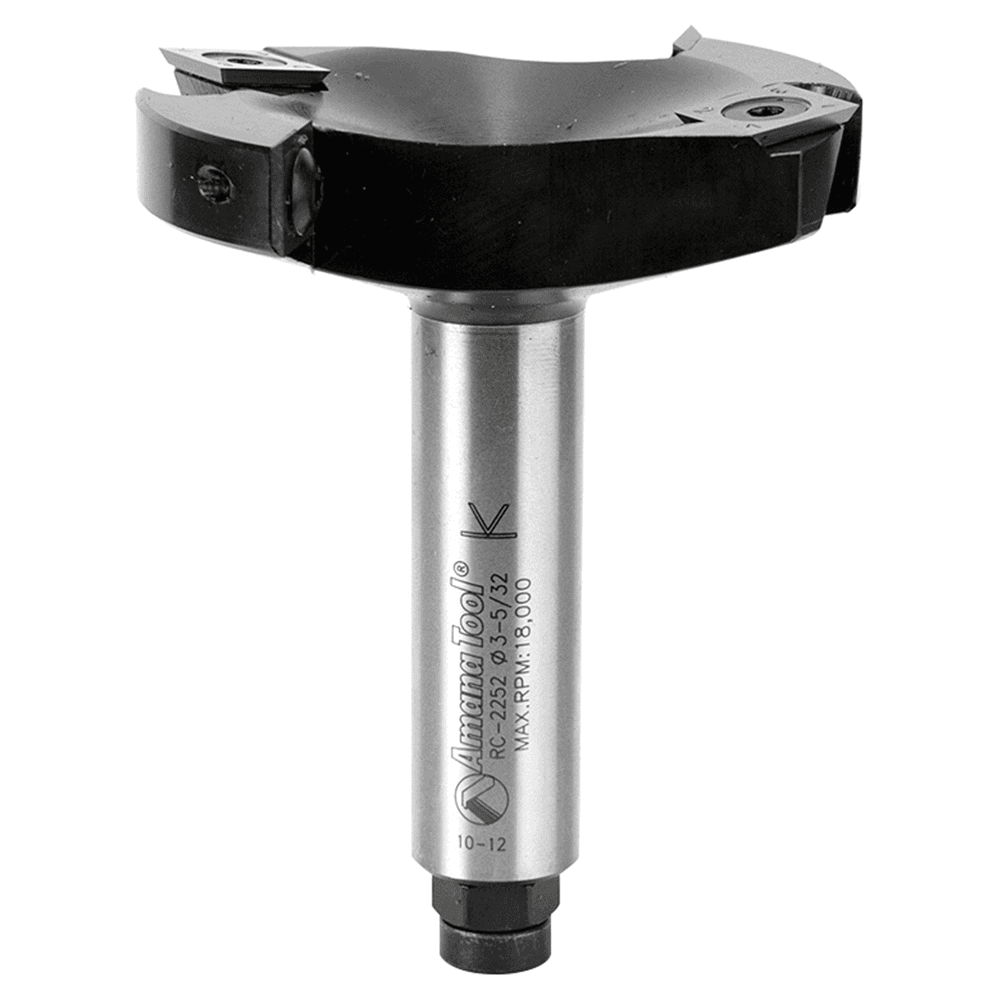

3-5/32" Dia x 15/32" CNC Insert Carbide Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler/Surface Planer 2+2 Flute, Design, 3/4" Shank
Product Details

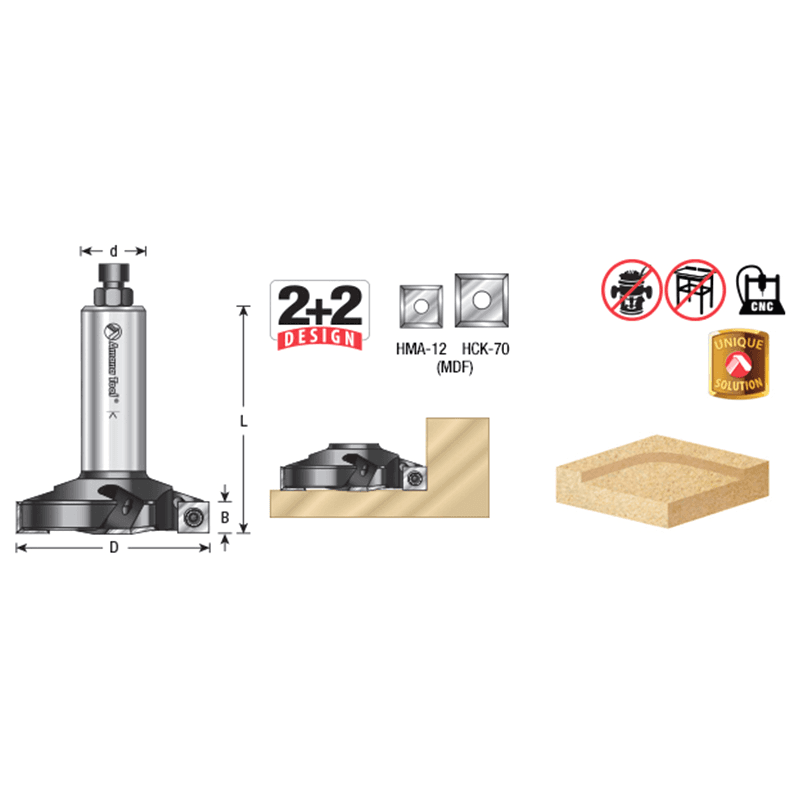

Features unique 2+2 insert knife design that contains two cutting flutes and two up-shear scorers, which provide a smoother finish at the bottom of the cut than traditional two-knife style router bits. A great tool for fast removal of materials over a large surface area. The scorer leaves an improved finish at the bottom of the cut. Great for surface planing. These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools. Features: • 2+2 design • 4-sided solid carbide insert knives • Exclusive carbide grade for highest quality of cut • Maximum cutting efficiency • Faster material removal process • For optimal results and maximum insert life, replace inserts with optional general purpose knives #AMA-12 and #RCK-70 (sold separately) • Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool • Recommendations: For surfacing solid woods it is recommended to remove both bottom scorers • Proper torques rating to tighten down screws is 2-3Nm Torques • Max RPM: 18,000 Perfect for: • Resurfacing spoilboards using CNC • 2+2 spoilboards contain two bottom scorers for better performance, finer surface finish and better clearance for 90° corners. • Planing large glued up panels using CNC • Surfacing and finishing wood using timber slab machines • Rabbeting or slotting Designed for Planing/Rabbeting the Following Materials: • MDF • Fiberboard • HDF/LDF • Balsa Core • Epoxy (Epoxy Resins) • High Density Urethane (HDU Board) • Plastic/Acrylic • Plywood/Chipboard • Hardwood/Softwood • Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 15/32" |
| Width | |
| Cutting Diameter | 3-5/32" |
| Application | |
| Material | |
| Product Type | Router Bit |
| Length | 3-35/64" |
| Degree of Cut | |
| Shank Diameter | 3/4" |
