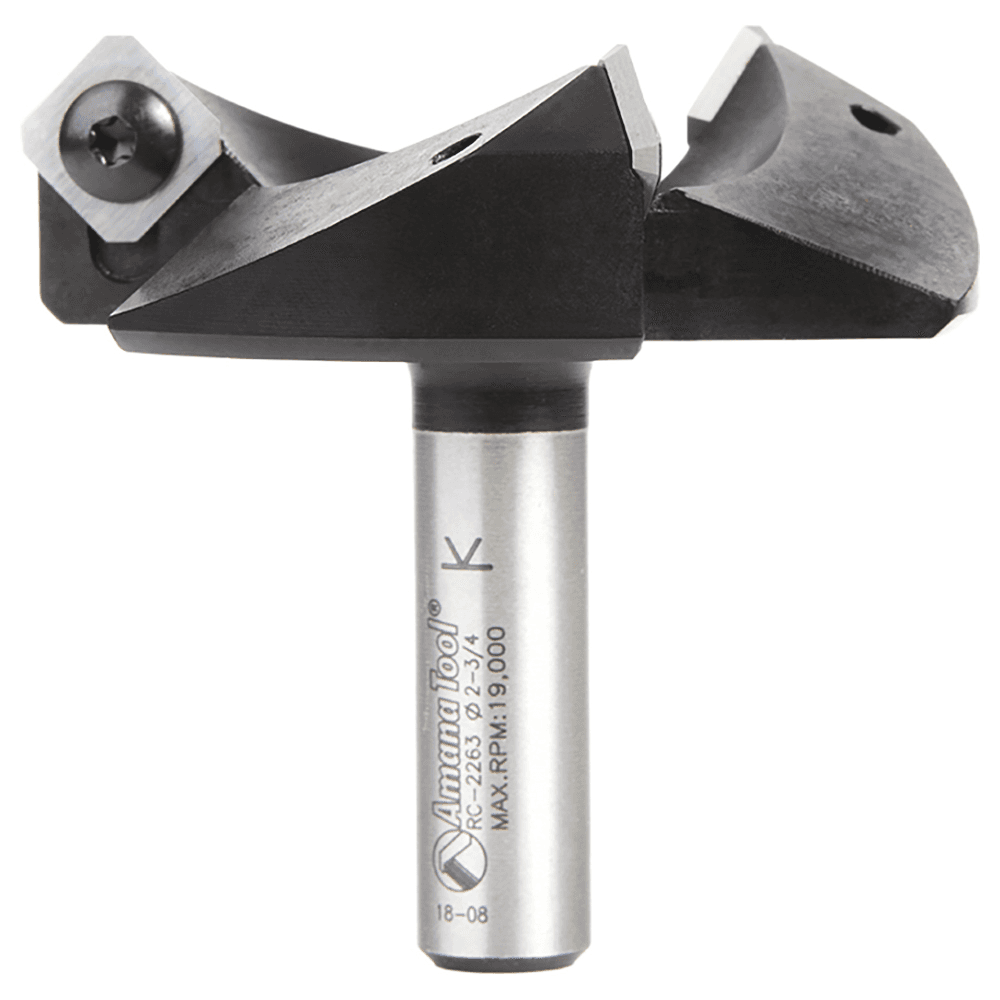

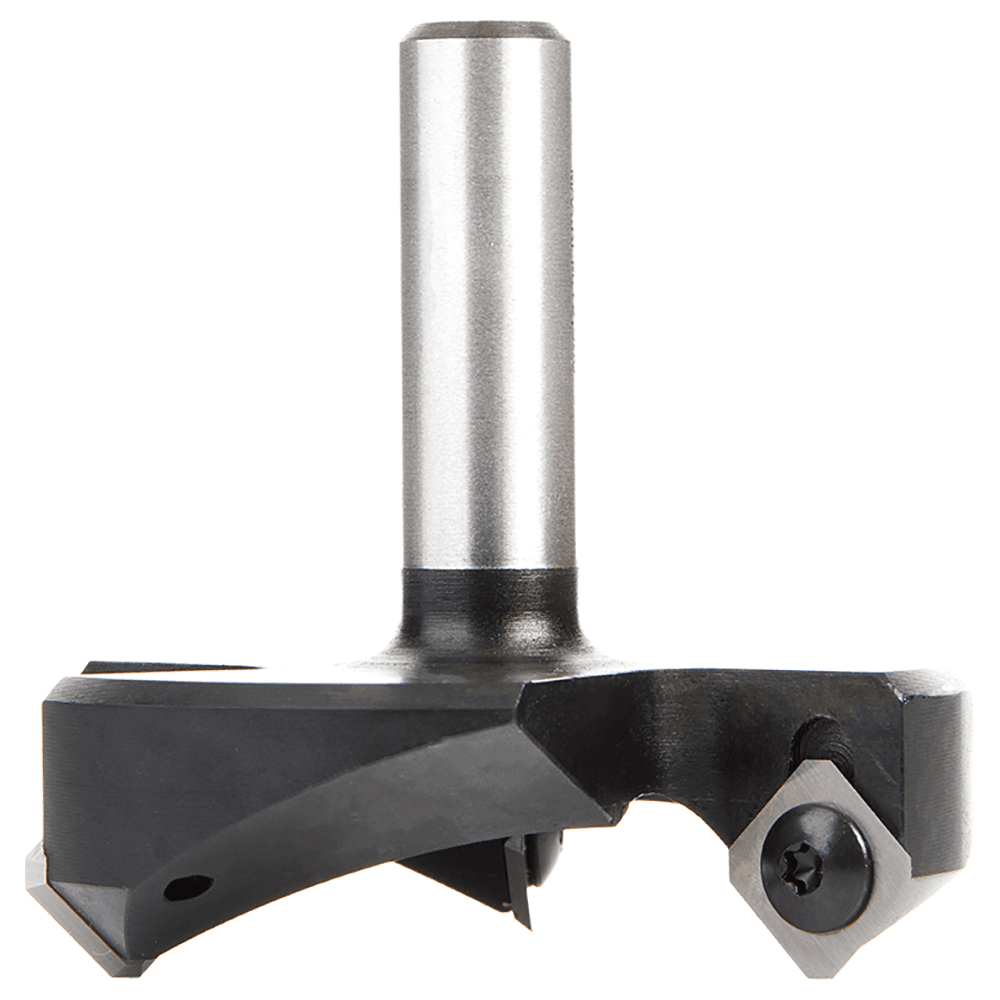

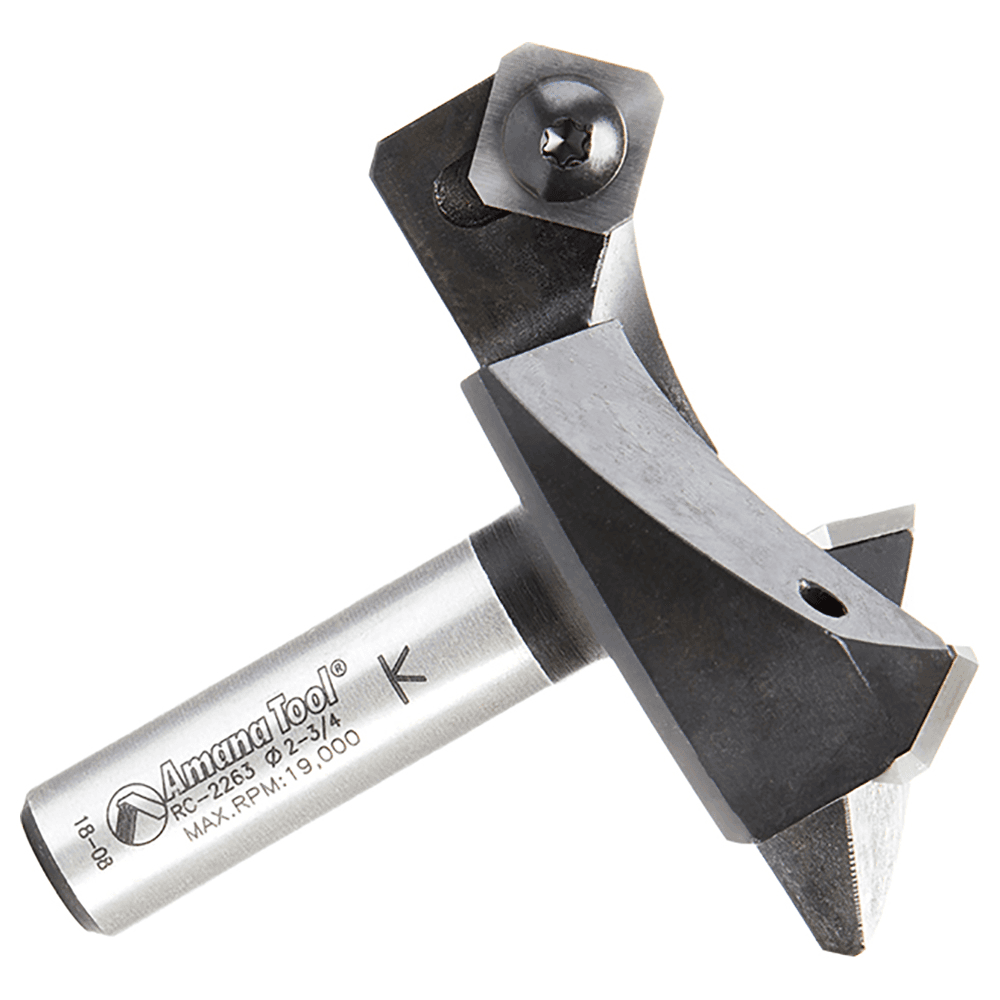

RC-2263 2-3/4" x 53/64" CNC Insert Carbide 3 Wing/Flute, Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter/Slab Leveler Router Bit, 1/2" Shank
Product Details

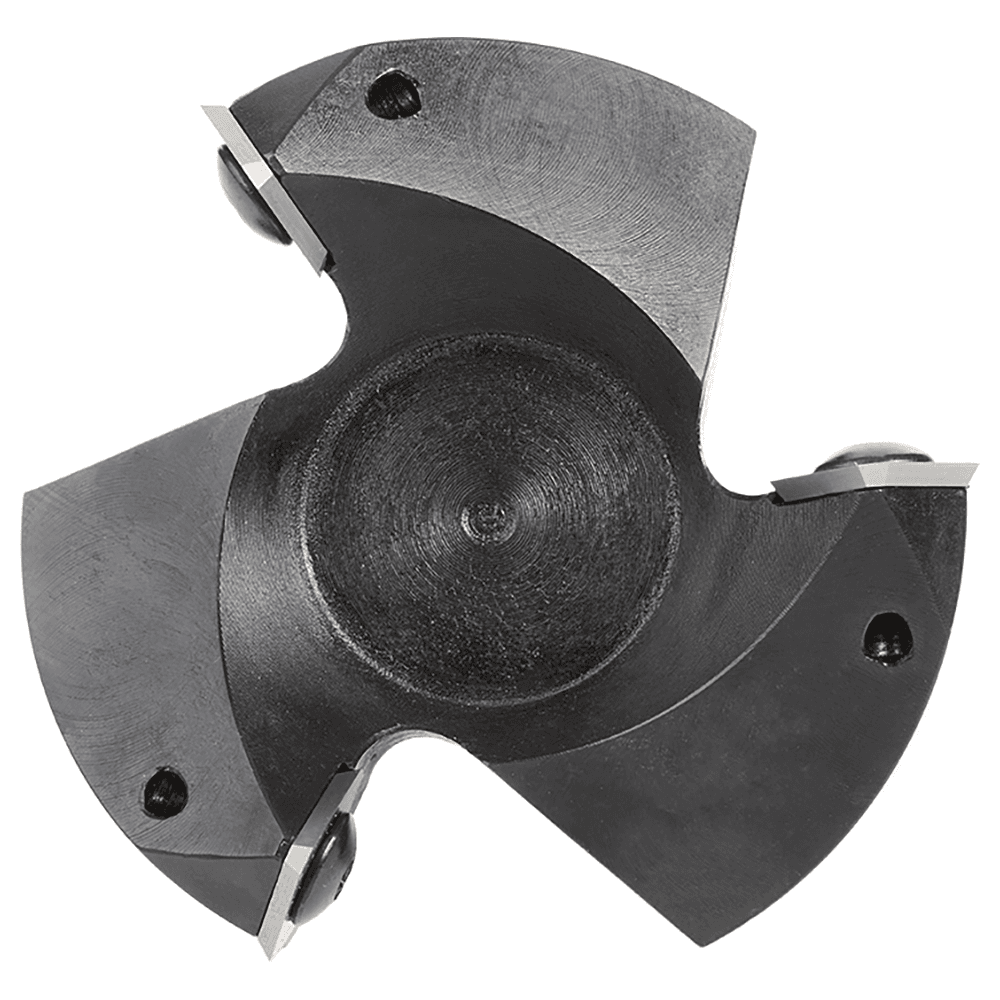

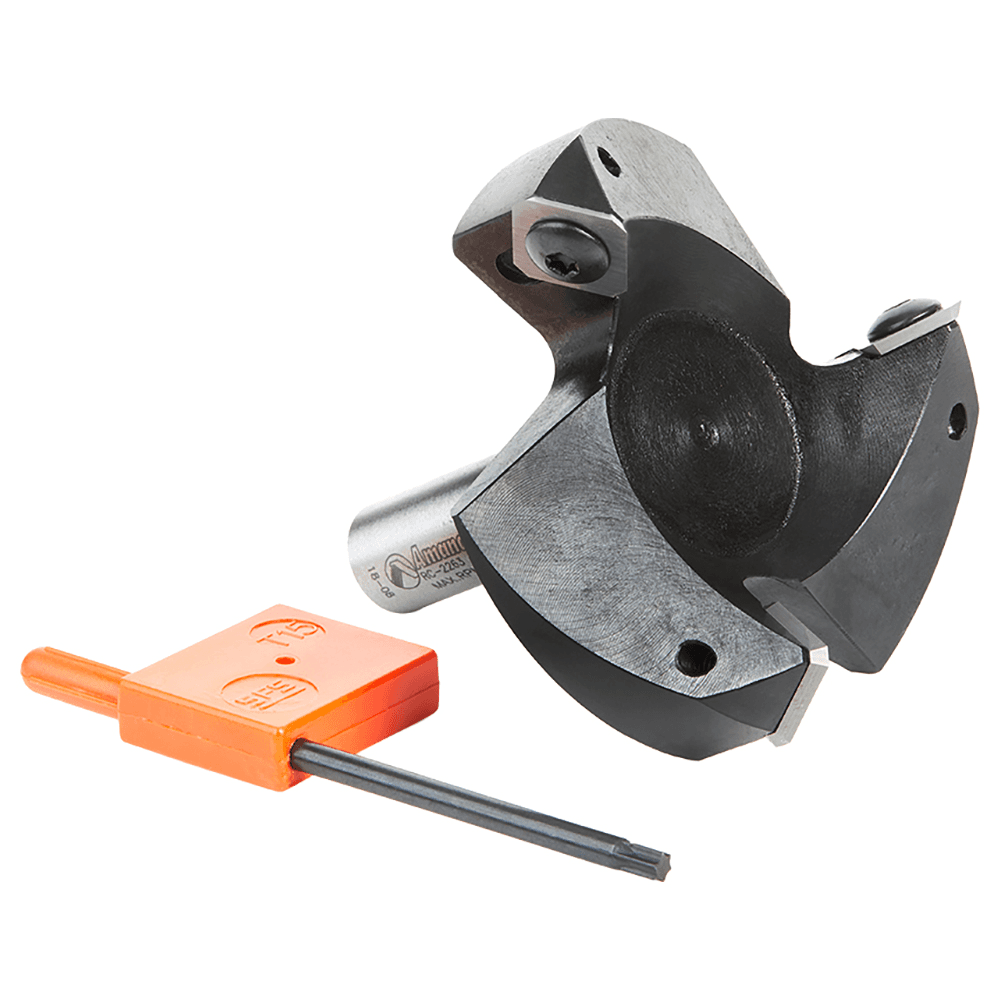

Insert carbide spoilboard surfacing & chamfering router bit, great for planing large surface areas. Perfect for removing fine layers of materials. Higher number of teeth allows for higher feed rate. Also suitable for router sled machines. These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools. Features: • 4-sided solid carbide insert knives • Exclusive carbide grade for highest quality of cut • Maximum cutting efficiency • Faster material removal process • Tool can plunge up to a maximum depth of 6mm (1/4"), then start resurfacing • Tool capable of removing very thin layers of material, less than 0.001" per pass • The unique chamfer corner insert design, creates a flawless surface • The 3 wing design, resulting in a more balanced tool while running • Warning: Make sure that your router sled rails are fully stable and squared • Warning: Proper torques rating to tighten down screws is 2-3Nm Torques Perfect for: • Resurfacing spoilboards using CNC • Planing large glued up panels using CNC • Surfacing and finishing wood using timber slab machines • Rabbeting or slotting Designed for Planing/Chamfering the Following Materials: • MDF • Fiberboard • HDF/LDF • Balsa Core • Epoxy (Epoxy Resins) • High Density Urethane (HDU Board) • Plastic/Acrylic • Plywood/Chipboard • Hardwood/Softwood • Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood

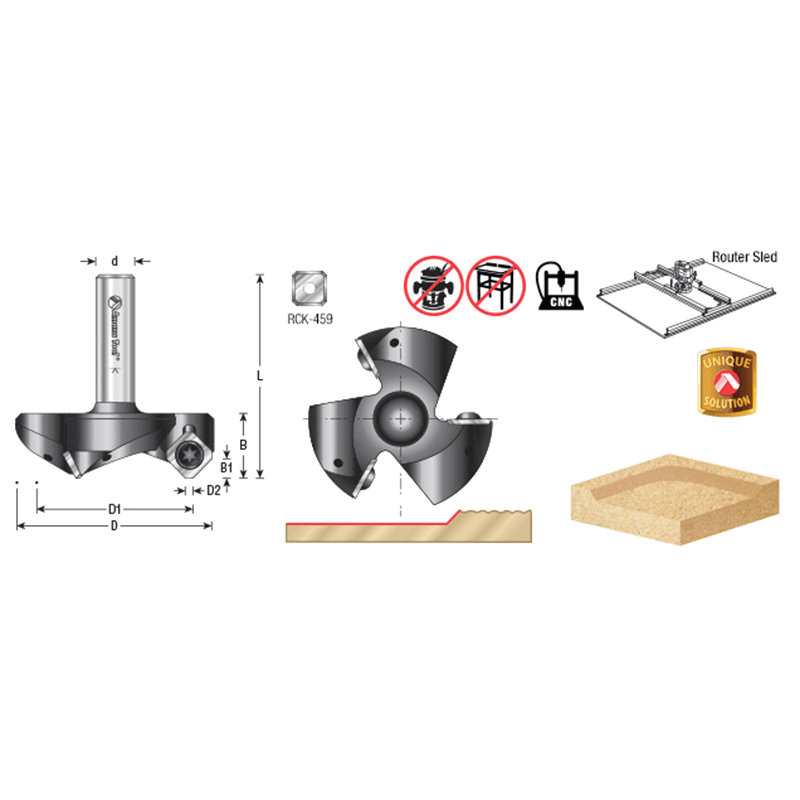

Specifications
| Box Quantity | 1 |
| Height | 53/64" |
| Width | |
| Cutting Diameter | 2-3/4" |
| Application | |
| Material | Carbide |
| Product Type | Router Bit |
| Length | 2-19/32" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
