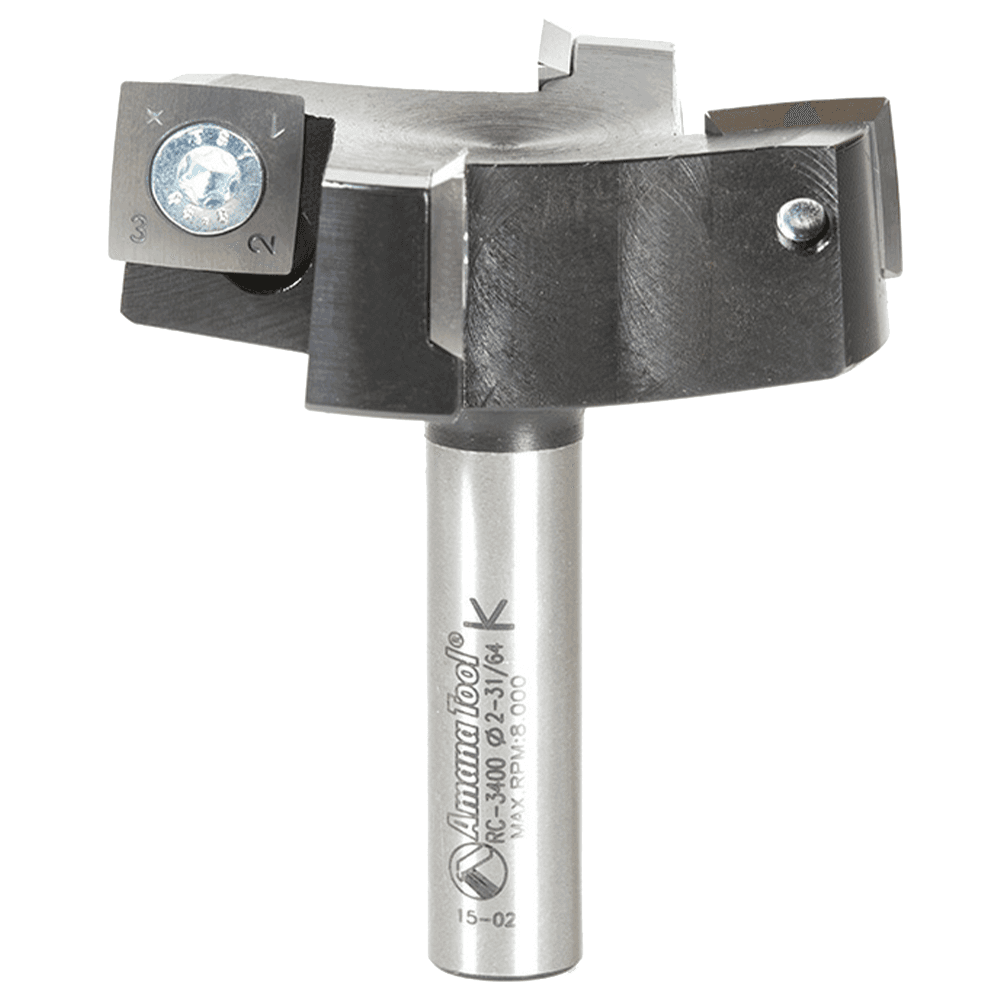

2-31/64" Dia x 15mm Insert Face Milling, Flattening Aluminum End Mill/Router Bit, 4-Flute, 1/2" Shank
Product Details

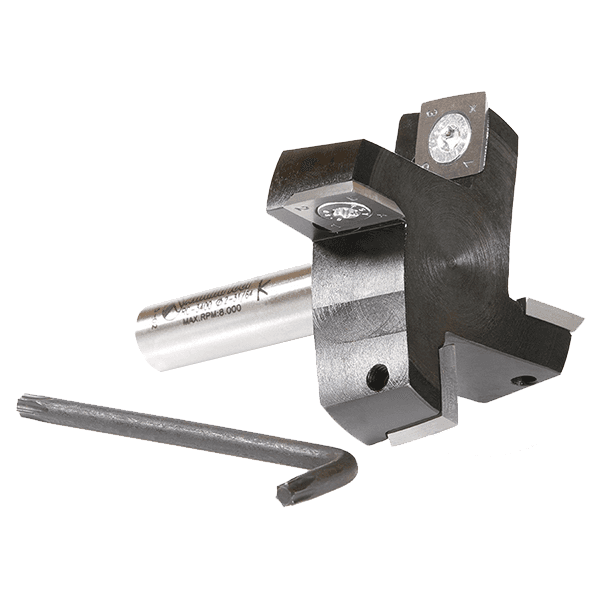

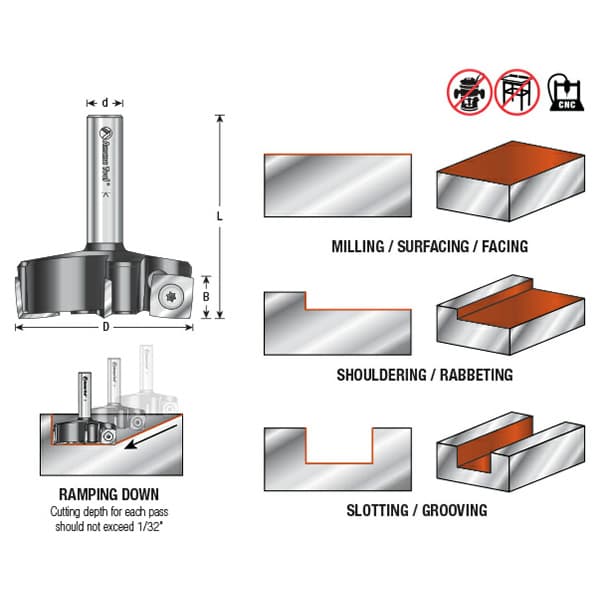

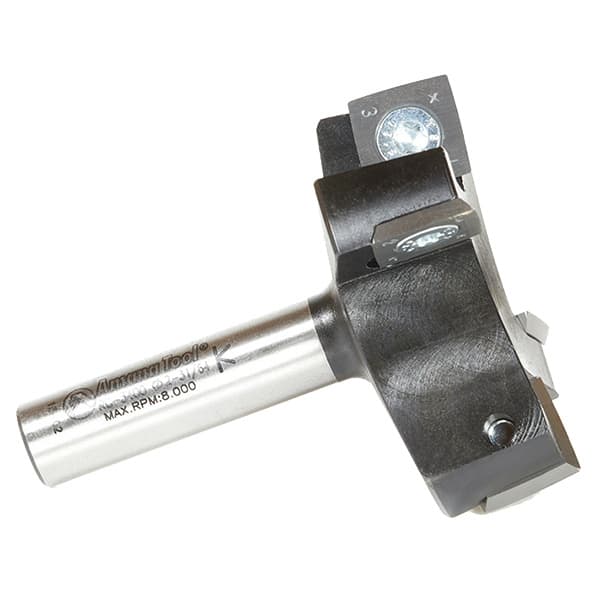

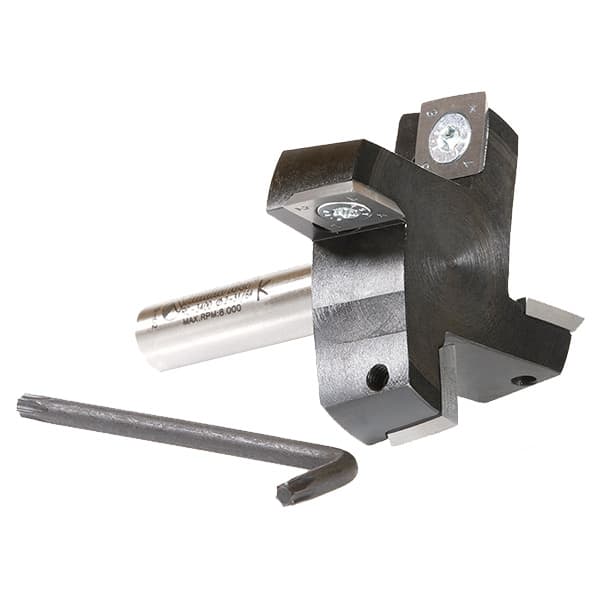

The replaceable tips end mill/router bit tool body made from alloy steel with 4 solid carbide cutting inserts for maximum feed and stability specially made for CNC and milling machines. Each tip is made from micrograin carbide for maximum tool life and has 4 cutting rounded corners that can be rotated. Features: • 2-31/64 Dia x 15mm insert face milling, flattening aluminum end mill/router bit, 4-flute, 1/2" shank • Use "Ramp Down" technique. Feed Rate: 25"/min - 63"/min • Chip load per tooth: 0.0008" - 0.002" • Maximum RPM: 8 000 RPM • Warning - Maximum recommended material depth in one pass 1/32" (1.0mm) Excellent for Cutting: • Aluminum • Aluminum 5052 • Bronze • Copper • Fomex with Aluminum Face Applications: • Milling/Surfacing/Facing • Flattening • Shouldering/Rabbeting • Slotting/Grooving
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 15mm |
| Width | |
| Cutting Diameter | 2-31/64" |
| Application | |
| Material | |
| Product Type | End Mill/Router Bit |
| Length | 2-53/64" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
