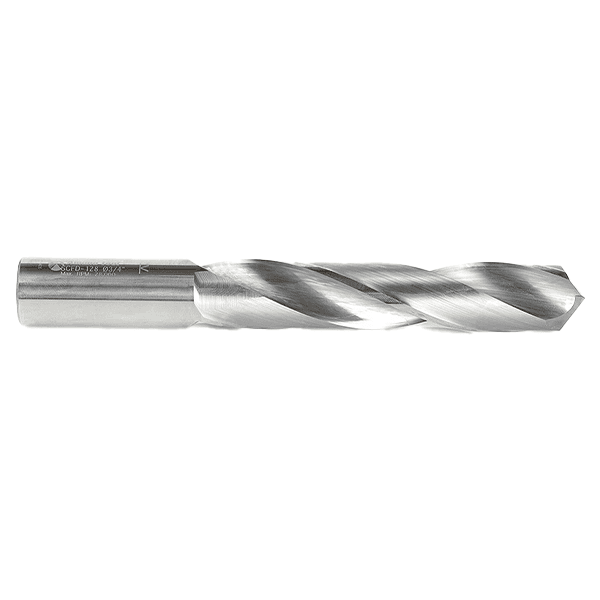

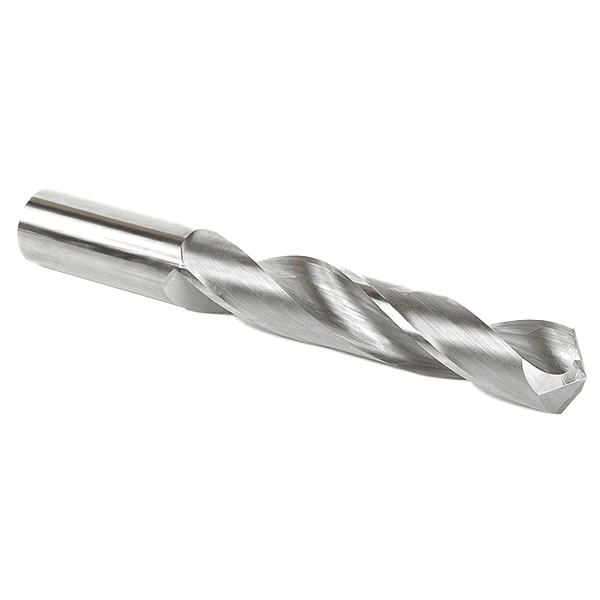

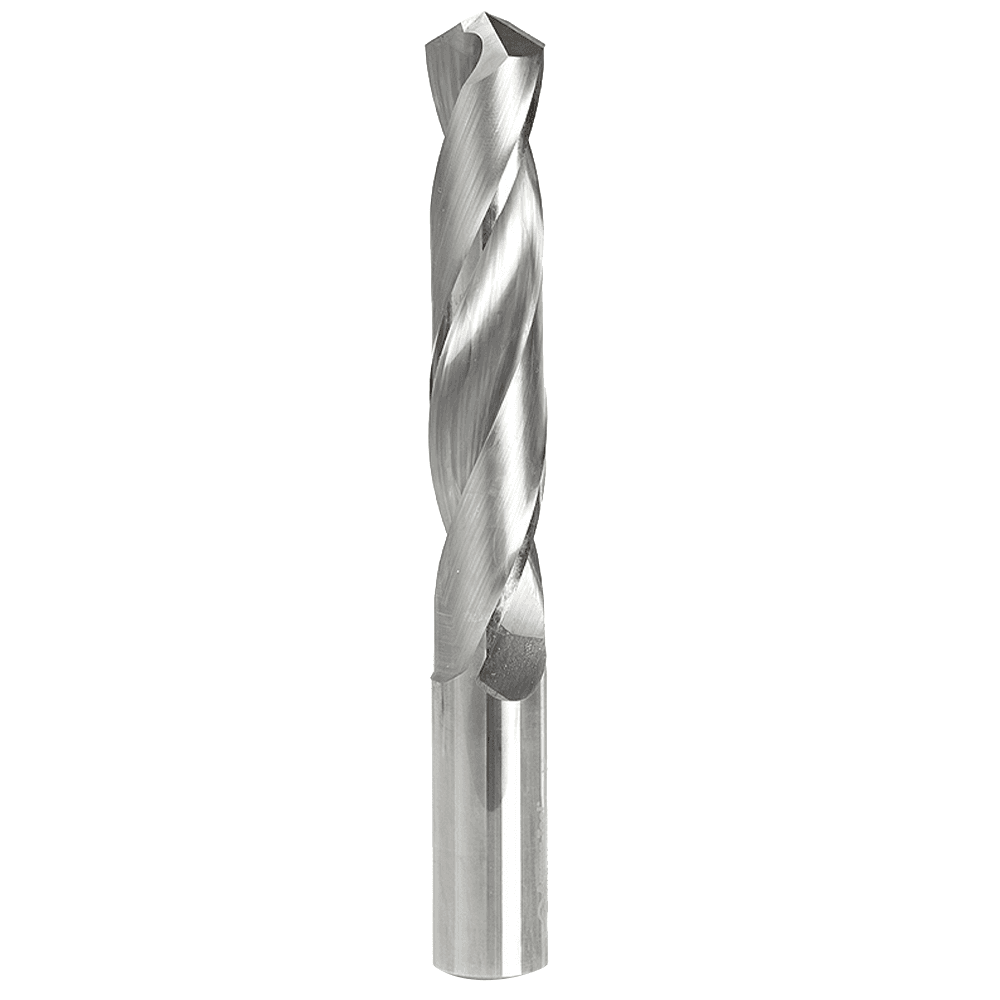

3/4" Dia x 4" CNC 4 Facet 118° Drill Point Bit, 3/4" Shank
Product Details

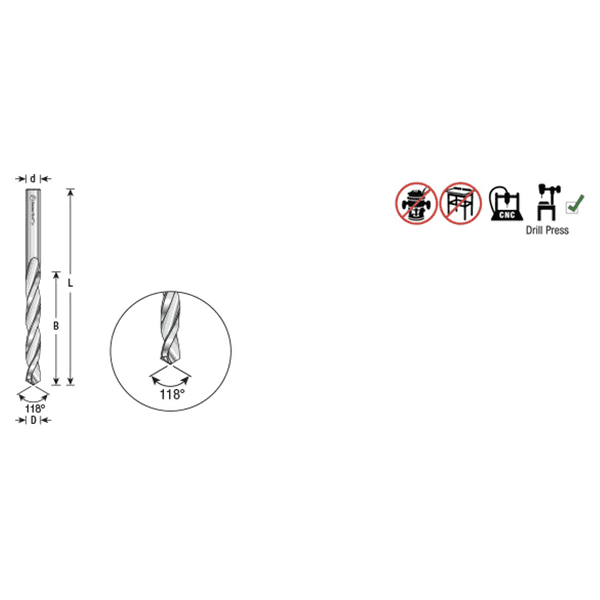

The 4 facet jobber length fractional drills consist of 2 cutting edges with 2 facets per cutting edge. The facets consist of the lip relief and the lip clearance angle. Multi-faceted drill geometries translate into improved centering accuracy, thereby producing rounder, precise holes less likely for "bell mouthing." Our premium grade carbide substrate insures increased tool life by a minimum factor of 10X′s over HSS coated bits, all while often eliminating the need for a prior center punch or spotting procedure. Also good for drill press. More sizes and types (Letter, Number and Metric) available upon request. Excellent for: • Aluminum • Aluminum 5052 • Aluminum Alloys • Aluminum Alloyed Si > 10% • ACM • Brass • Bronze • Copper • Copper Alloys • Fomex with Aluminum Face • Steels • Tool Steels • Free Machining Stainless Steels • Soft Cast Irons • Medium Cast Irons • Malleable Cast Irons • Magnesium • Nickel Alloys • Low Carbon Steels • Medium Carbon Steels • High Tensile (35-45 Rc) Steels • High Tensile (45+ Rc) Steels • Soft Titanium • Titanium Alloys Hard Titanium
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Application | |
| Cutting Diameter | 3/4" |
| Length | 6" |
| Material | |
| Product Type | Drill Point Bit |
| Screw Size | |
| Shank Diameter | 3/4" |
| Rotation | 118° |
