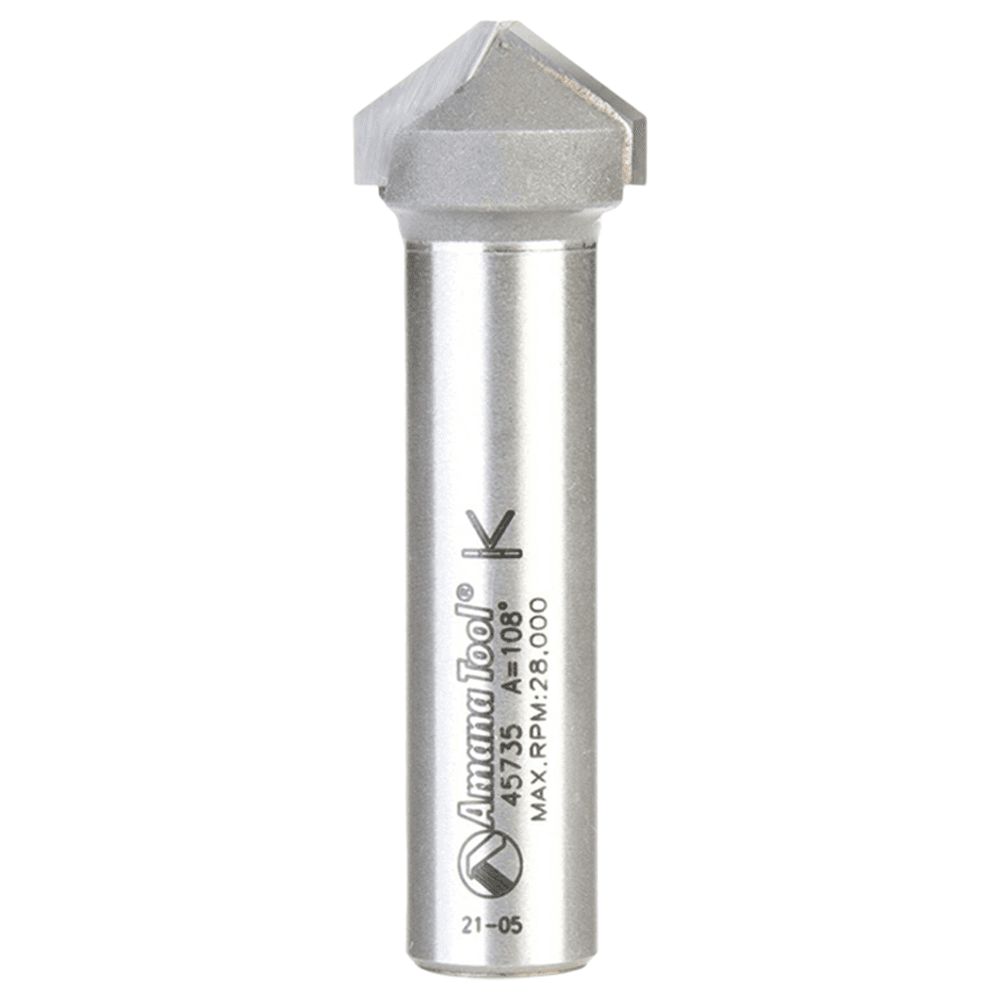

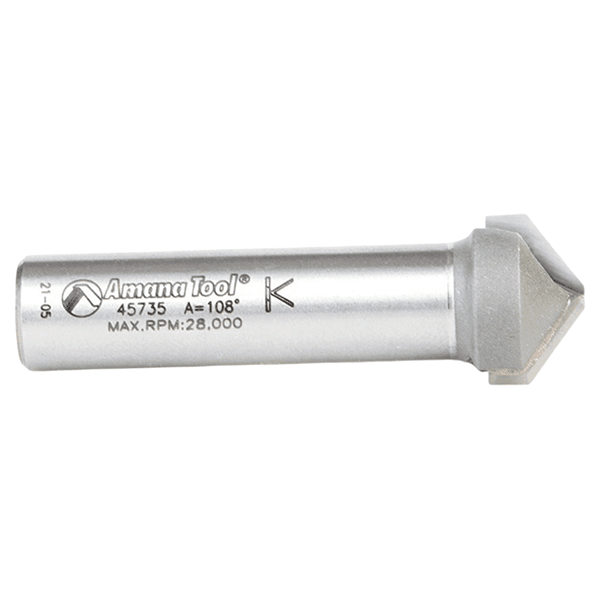

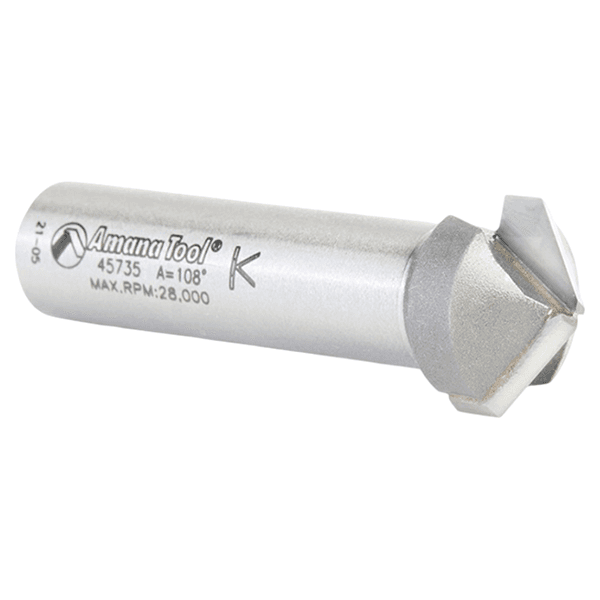

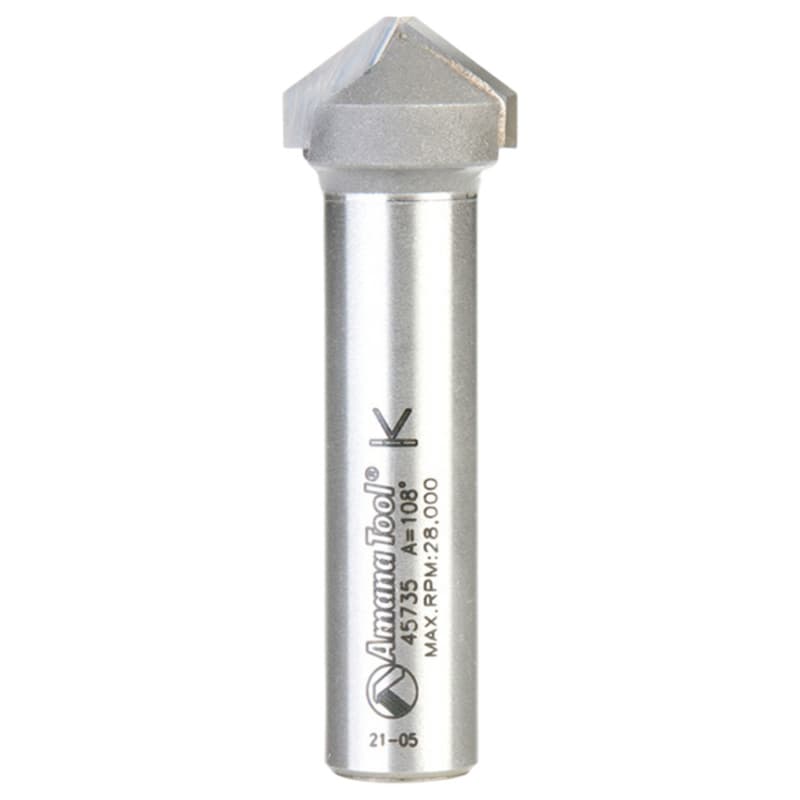

3/4" Dia x 15/64" 108° Double Edge Folding V-Groove Bit, 1/2" Shank
Product Details

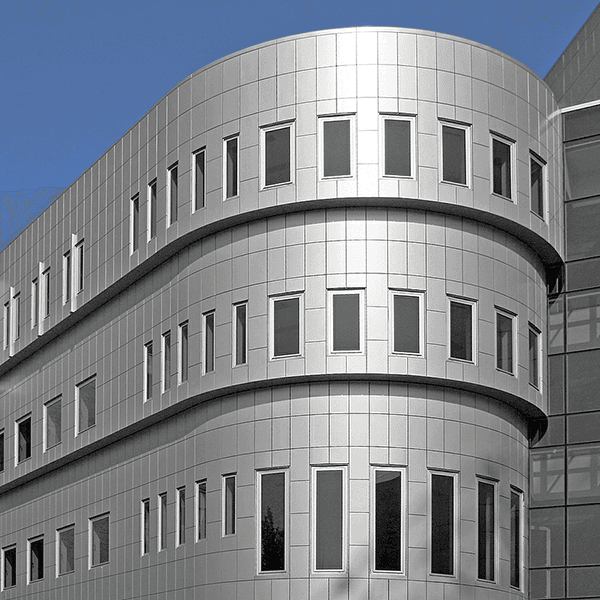

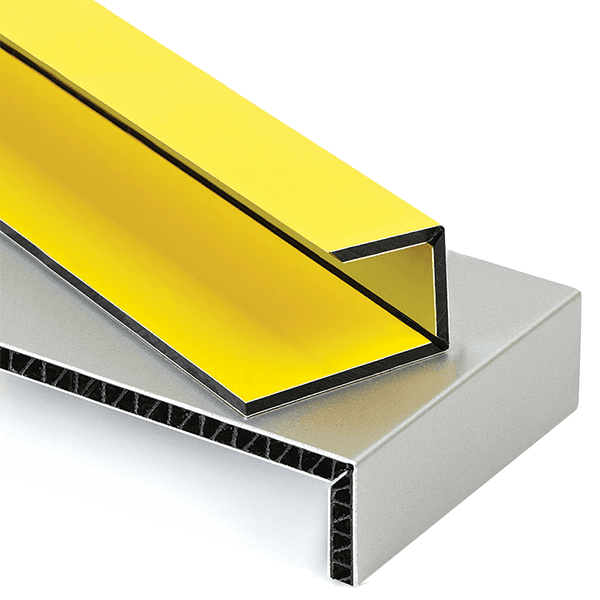

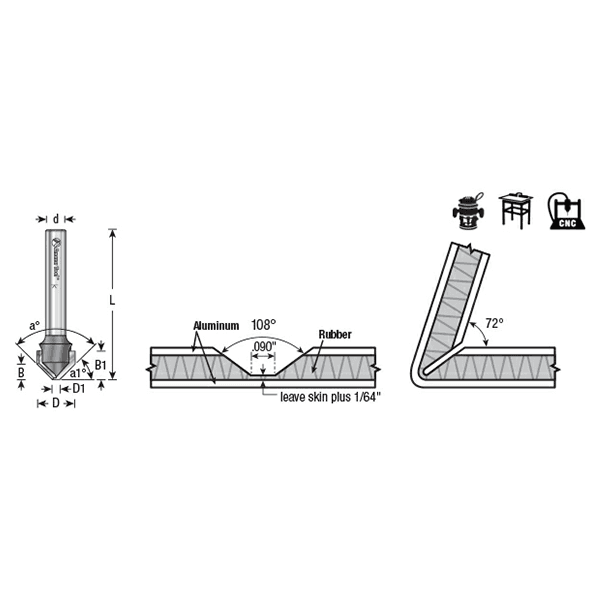

Designed for shaping Aluminum Composite (sandwich) Materials (ACM) with 108° angle V-grooves with flat bottoms. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Ideal for wall panel fabrication. ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc. Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration. Designed for Cutting and Scoring Aluminum Sandwich Materials Including: • Acetate • Aluminum, Brass, Bronze, Clay, Zinc and Wood Composite Panels • Aluminum 5052 • Aluminum Composite Materials (ACM) • Aluminum Composite Panel (ACP) • ALPOLIC Copper Composite Material (CCM) • Alucobond • Alupanel • Bakelite • Dibond • Durabond • e-panel • Etalbond • Nylon • PE and FR Cores • Phenolics • Plastic/Acrylic • Plexiglas • PVC • Thermoplastics • Titanium Composite Material (TCM) • Wood
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 15/64" |
| Width | |
| Cutting Diameter | 3/4" |
| Application | |
| Material | |
| Product Type | V-Groove Bit |
| Length | 2-3/8" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
