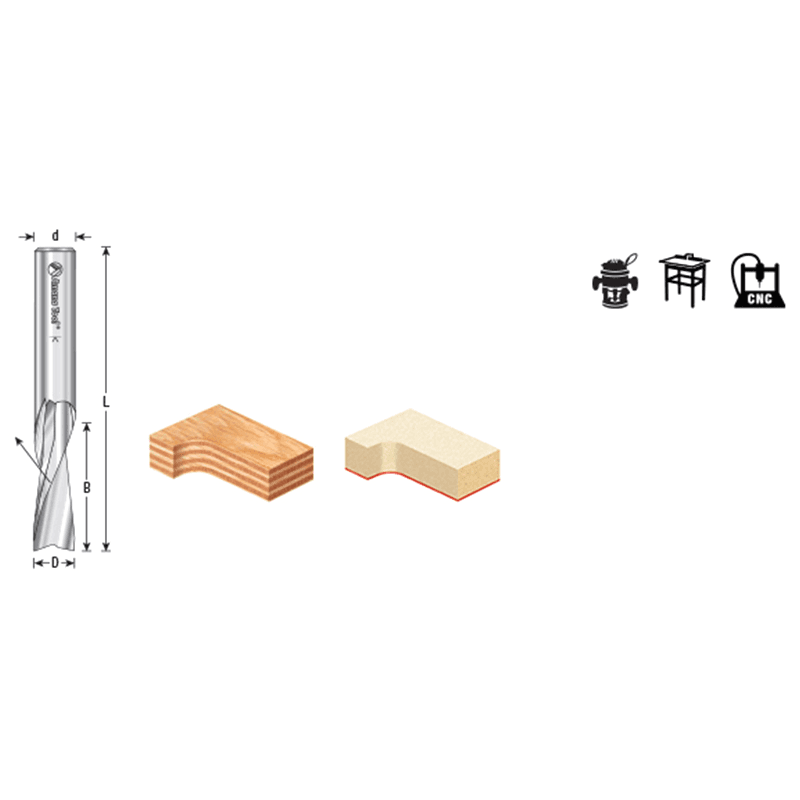

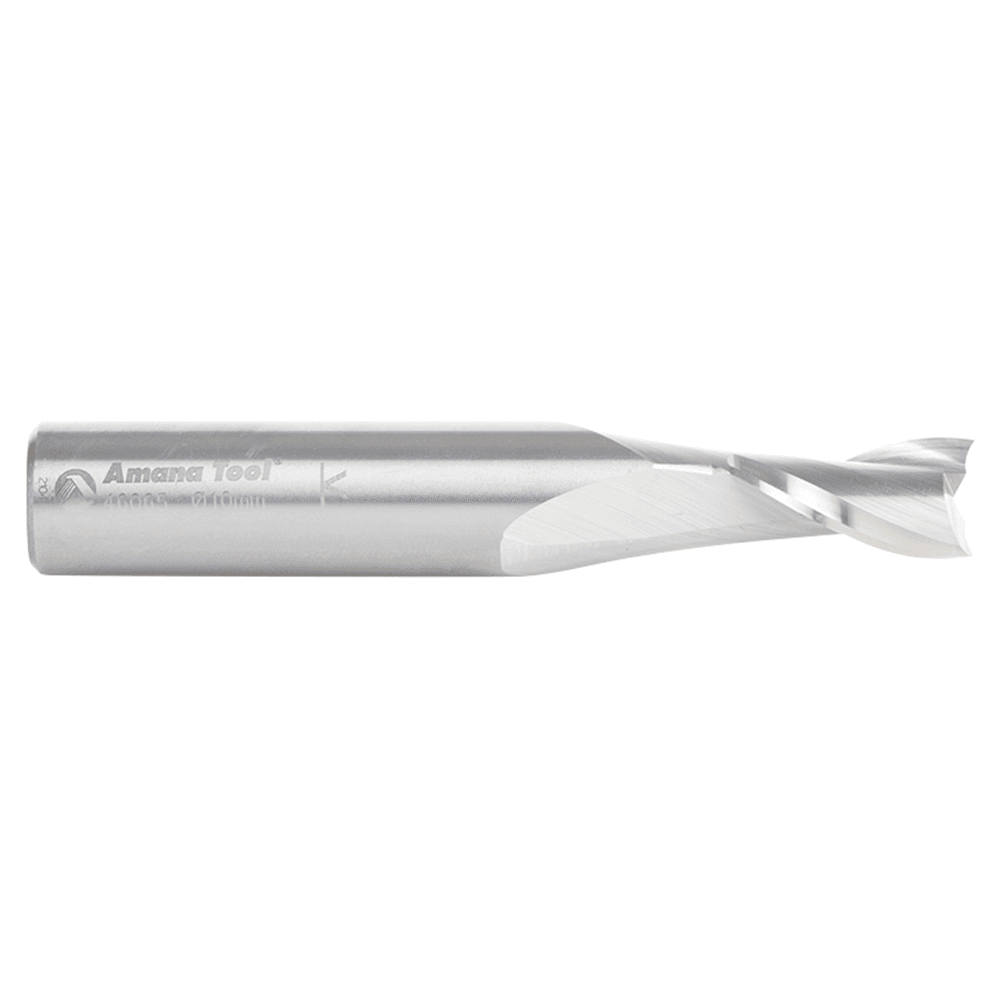

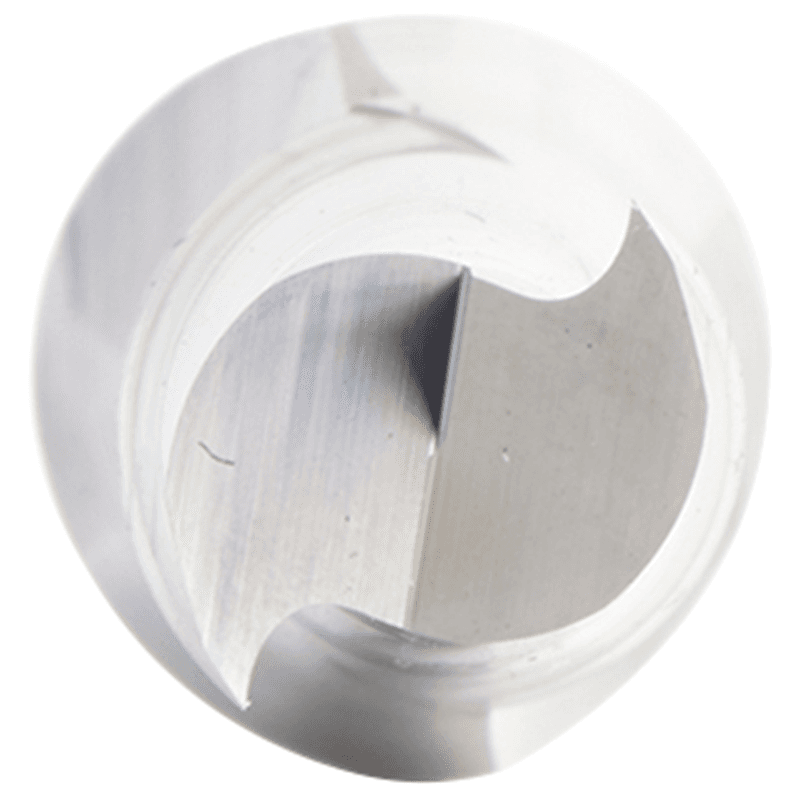

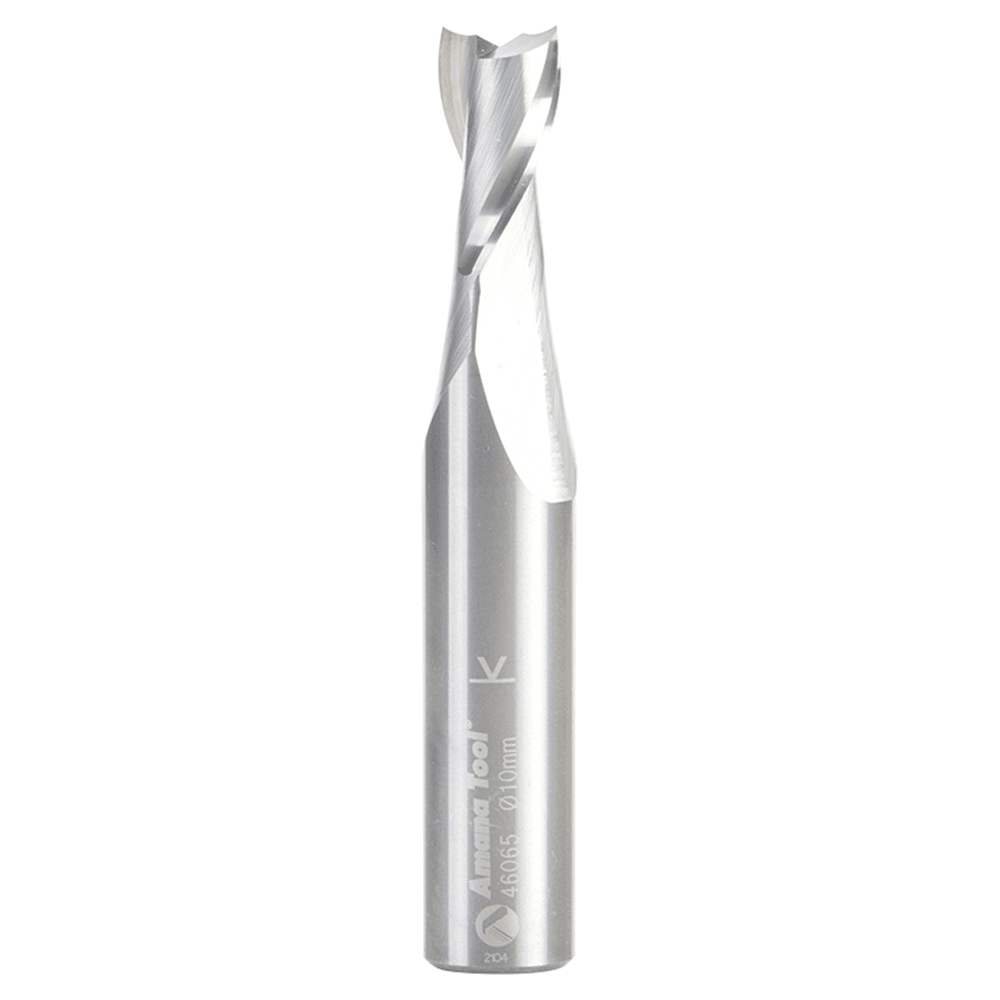

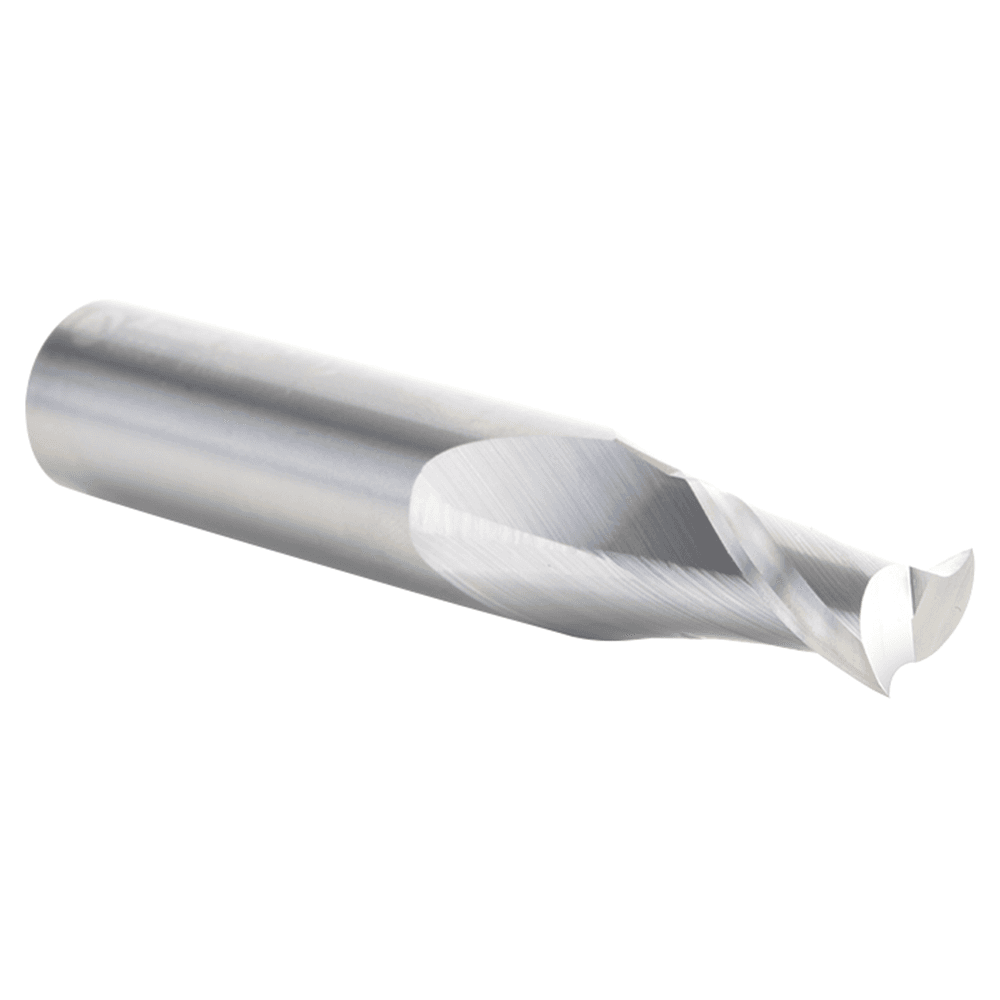

25/64" Dia x 3/4" Solid Carbide Up-Cut Spiral Plunge Bit, 1/2" Shank
Product Details
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers. Features: • 25/64" dia x 3/4" solid carbide spiral plunge, 1/2" shank up-cut • Flutes: 2
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 3/4" |
| Width | |
| Cutting Diameter | 10mm |
| Application | |
| Material | |
| Product Type | Spiral Plunge Bit |
| Length | 3" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
