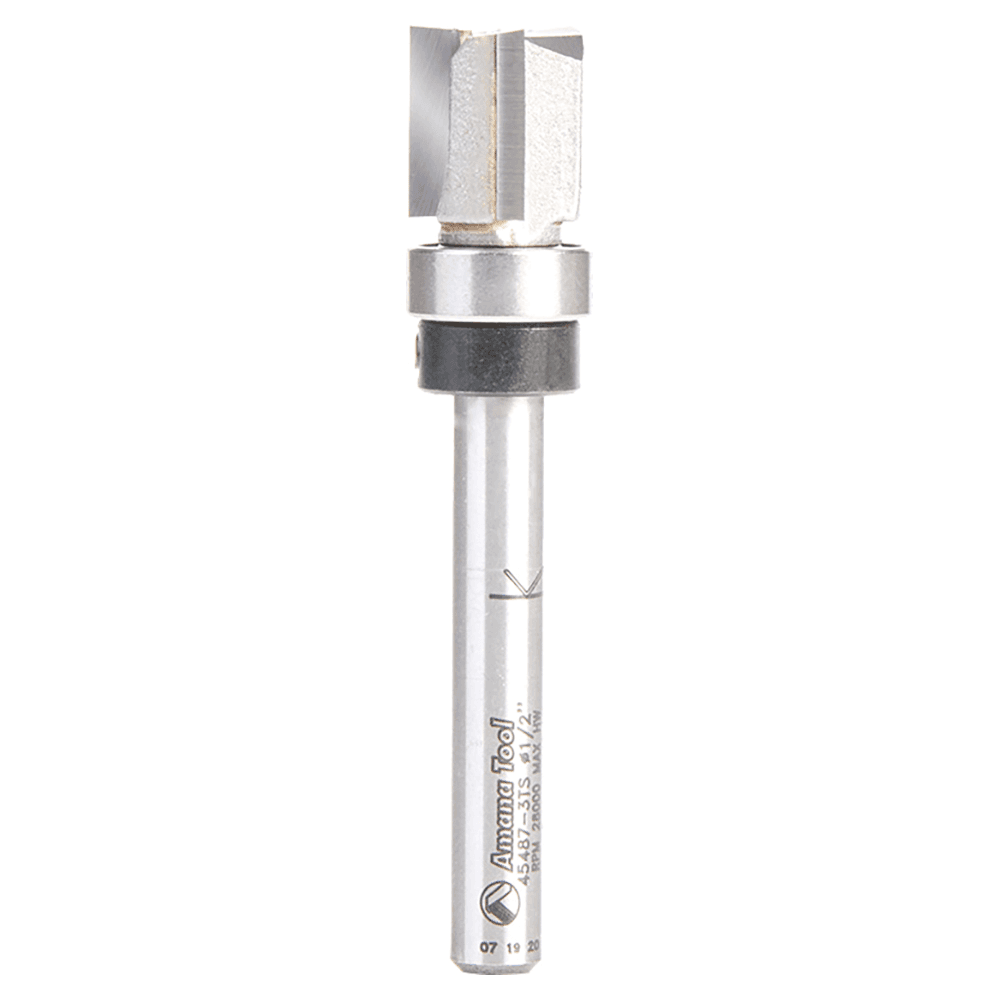

Name: 1/2" Dia x 1/2" Carbide Tipped Flush Trim Plunge Template, 1/4 Shank with Upper BB 3 Flute, Router Bit
Brand: Amana Tool
Availability: BackOrder

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.

Features:
• 1/2" Dia x 1/2" Carbide Tipped Flush Trim Plunge Template, 1/4 Shank with Upper BB 3 Flute Router Bit
• Replacement Collar: 47724
• Replacement Bearing: 47701
• Flutes: 3

Box Quantity	1
Diameter (in)	1/2 in
Shank Diameter (in)	1/4 in
Cutting diameter (mm)	1/2 in
Product Type	Flush Trim Plunge
Overall Length (in)	2-1/2 in
Material Type	Carbide

Box Quantity	1
Diameter (in)	1/2 in
Shank Diameter (in)	1/4 in
Cutting diameter (mm)	1/2 in
Product Type	Flush Trim Plunge
Overall Length (in)	2-1/2 in
Material Type	Carbide
