1/8" Dia x 7/8" CNC Solid Carbide Spektra Extreme Tool Life Coated 'O' Compression Spiral Bit, 1 Flute, 1/4" Shank

Item # AN46155-K
Mfr # 46155-K

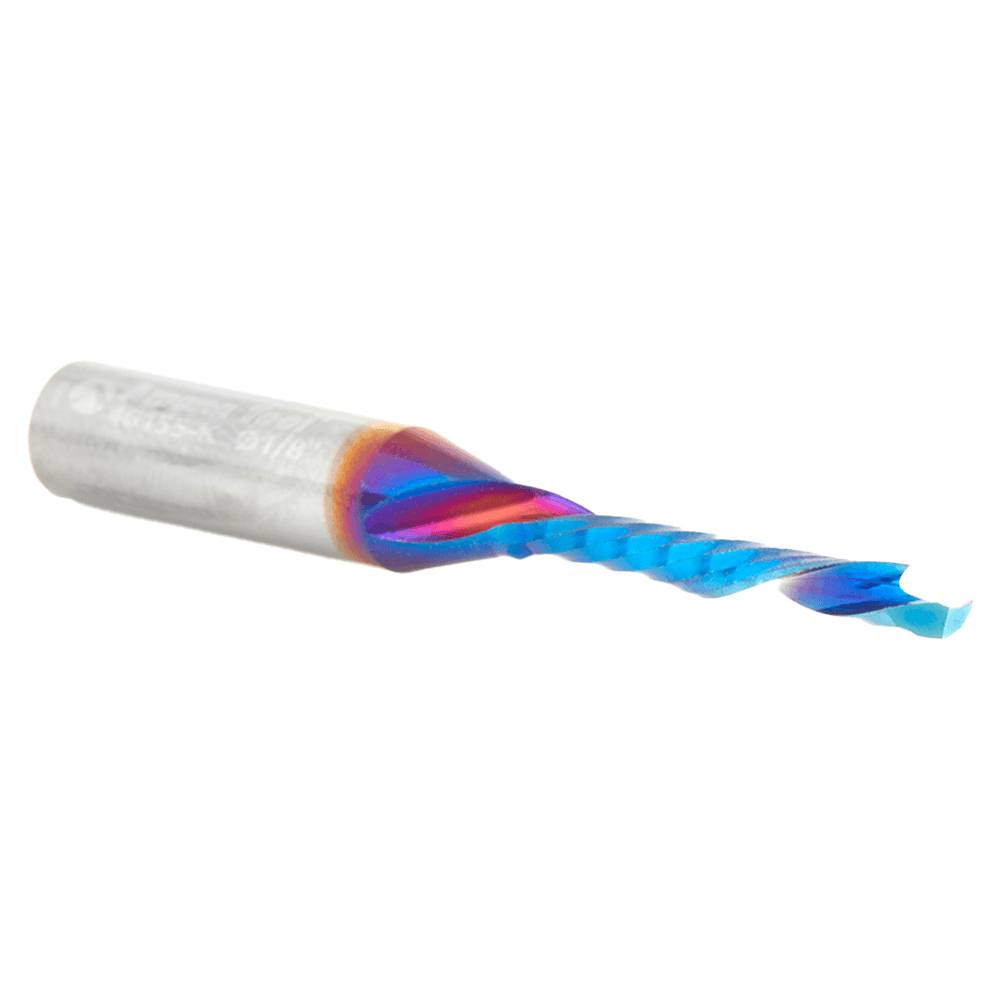

1/8" Dia x 7/8" CNC Solid Carbide Spektra Extreme Tool Life Coated 'O' Compression Spiral Bit, 1 Flute, 1/4" Shank Main - Image

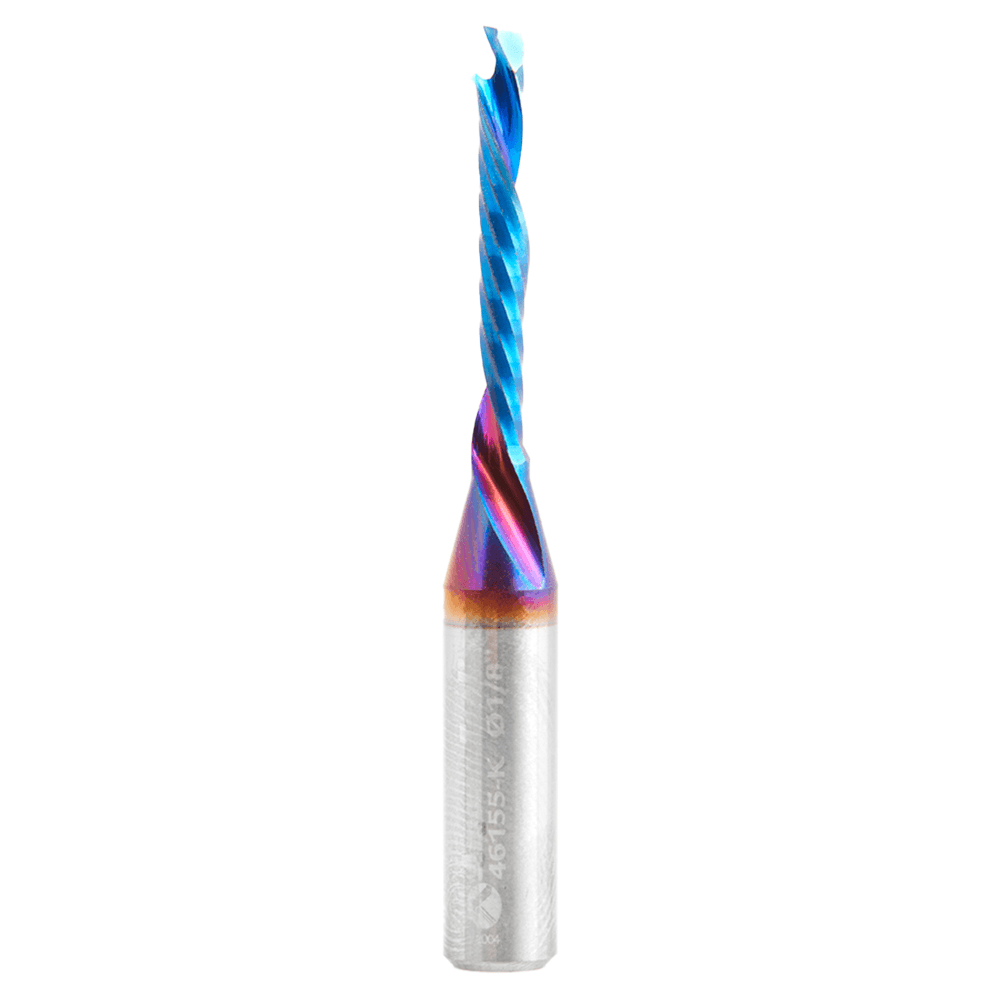

1/8" Dia x 7/8" CNC Solid Carbide Spektra Extreme Tool Life Coated 'O' Compression Spiral Bit, 1 Flute, 1/4" Shank Alt 1 - Image

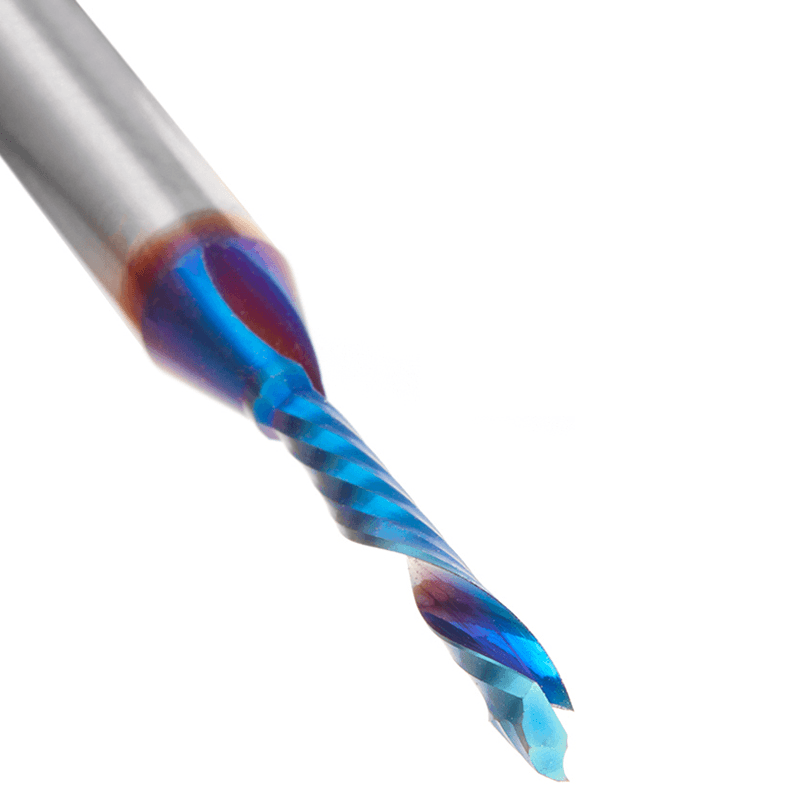

1/8" Dia x 7/8" CNC Solid Carbide Spektra Extreme Tool Life Coated 'O' Compression Spiral Bit, 1 Flute, 1/4" Shank Alt 2 - Image

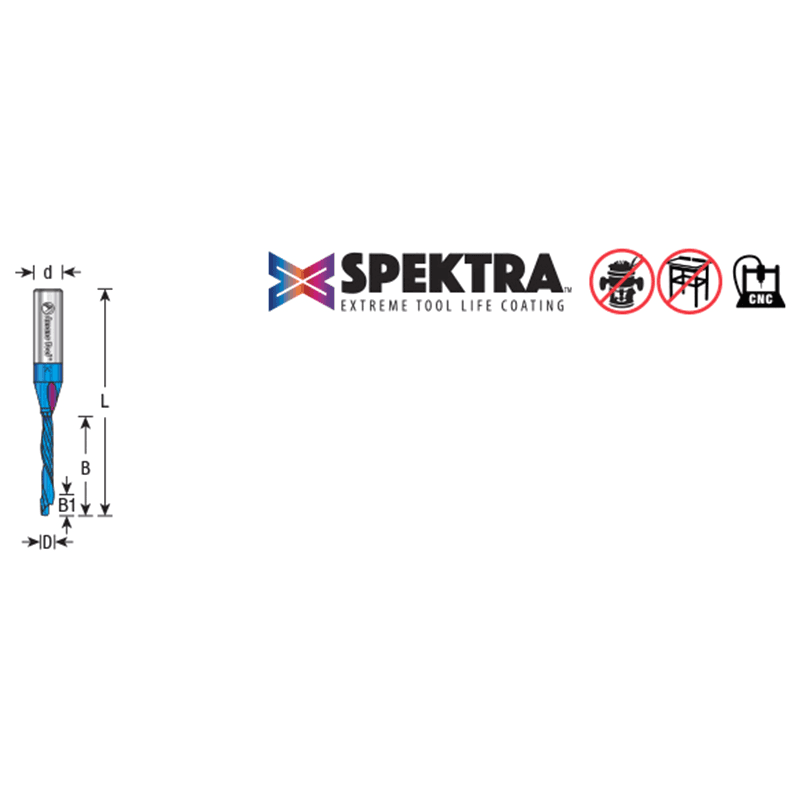

1/8" Dia x 7/8" CNC Solid Carbide Spektra Extreme Tool Life Coated 'O' Compression Spiral Bit, 1 Flute, 1/4" Shank Alt 3 - Image

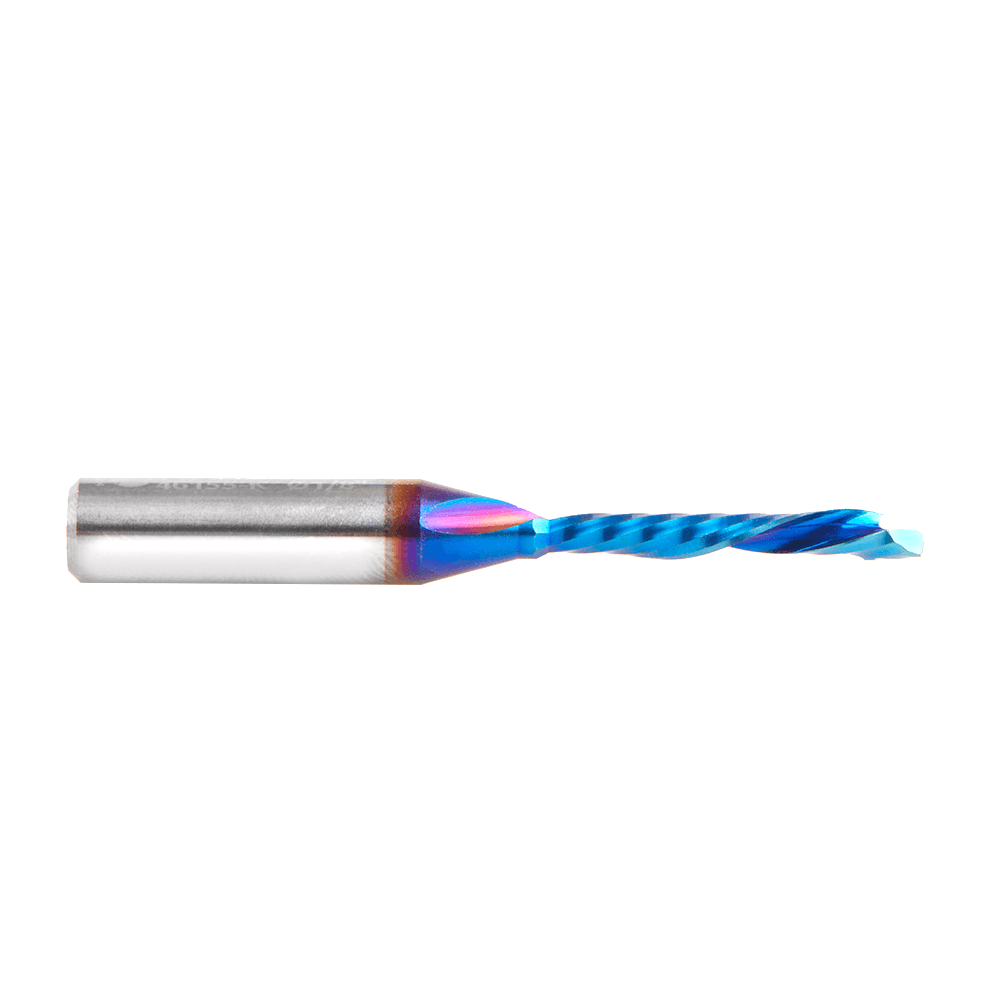

1/8" Dia x 7/8" CNC Solid Carbide Spektra Extreme Tool Life Coated 'O' Compression Spiral Bit, 1 Flute, 1/4" Shank Alt 4 - Image

Product Details

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material. Flawless compression cuts. Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

Features:
• nACo coating is a micro-thin ceramic coating which enables the tool′s cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
• Coating prevents high heat and oxidation which is detrimental to cutting tool performance
• Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
• nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
• Oriented Strand Board is an engineered wood particle board
• Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off


Excellent for Cutting:
• Cork
• MDF
• Veneered Plywood

Specifications

Box Quantity1
Height7/8"
Width
Cutting Diameter1/8"
Application
Material
Product TypeCompression Spiral Bit
Length2"
Degree of Cut
Shank Diameter1/4"
