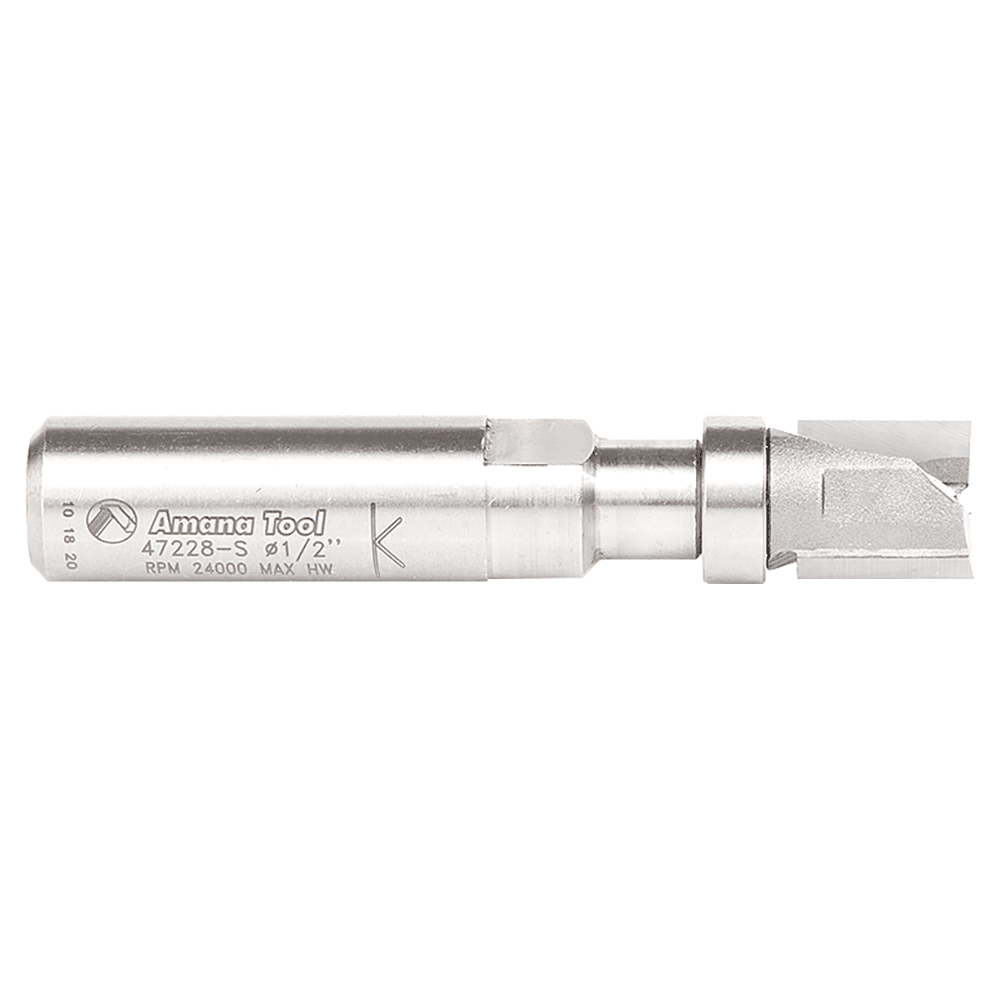

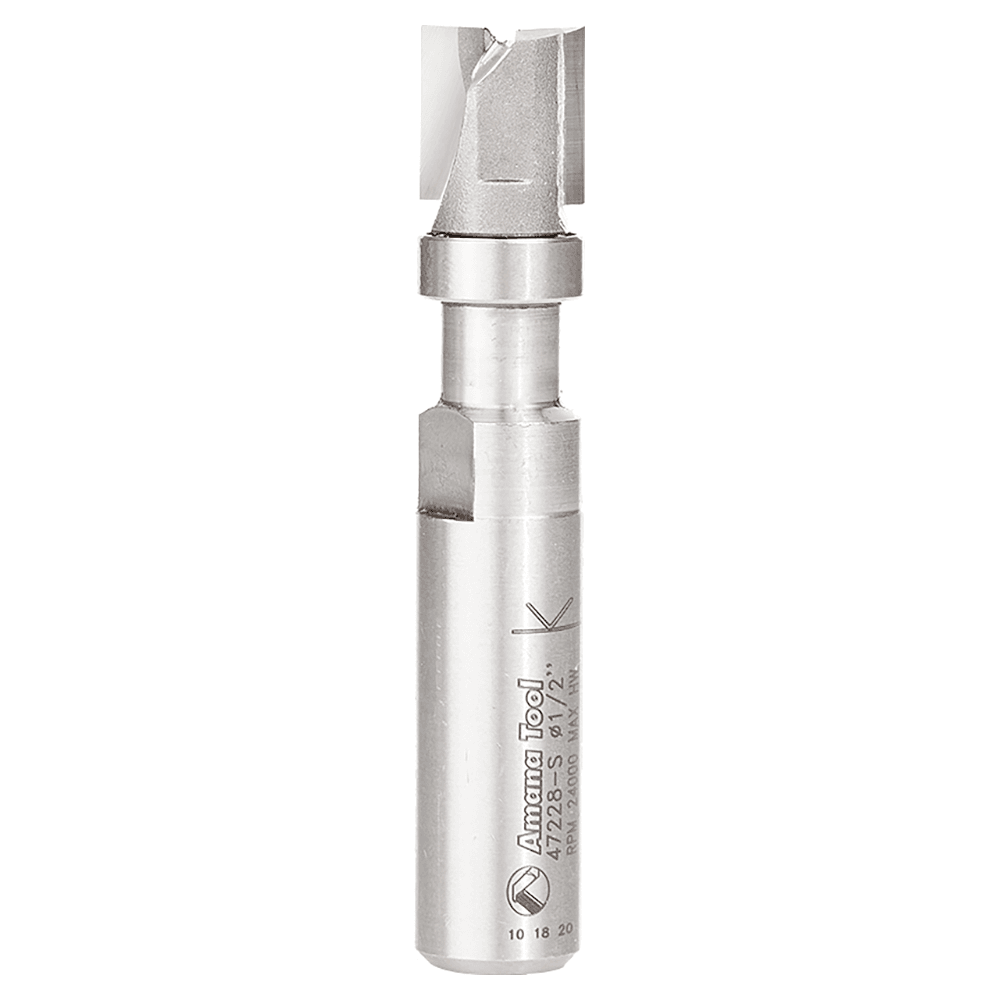

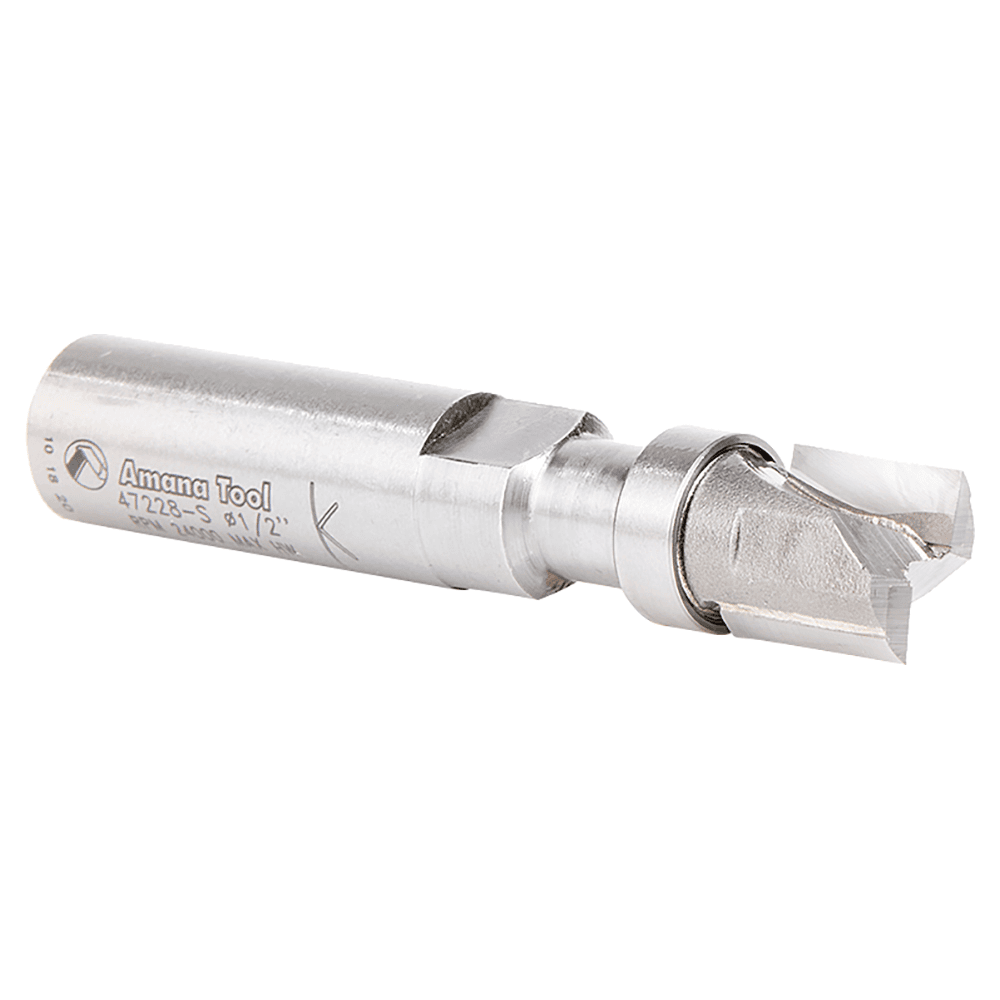

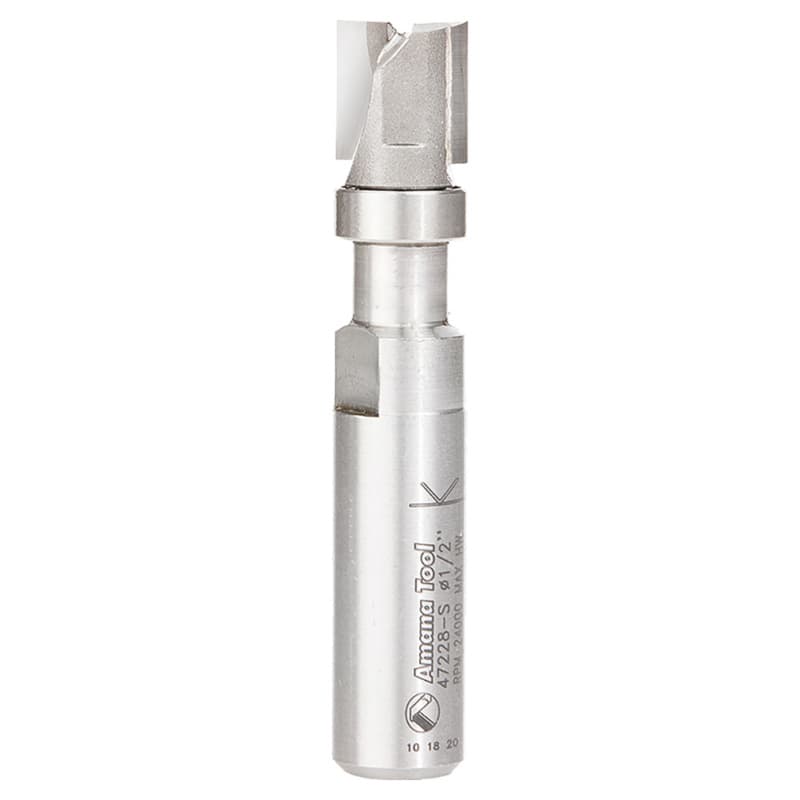

1/2" Dia x 1/2" Carbide Tipped Flush Trim Plunge Template, 1/2" Shank with Upper Ball Bearing Router Bit
Product Details

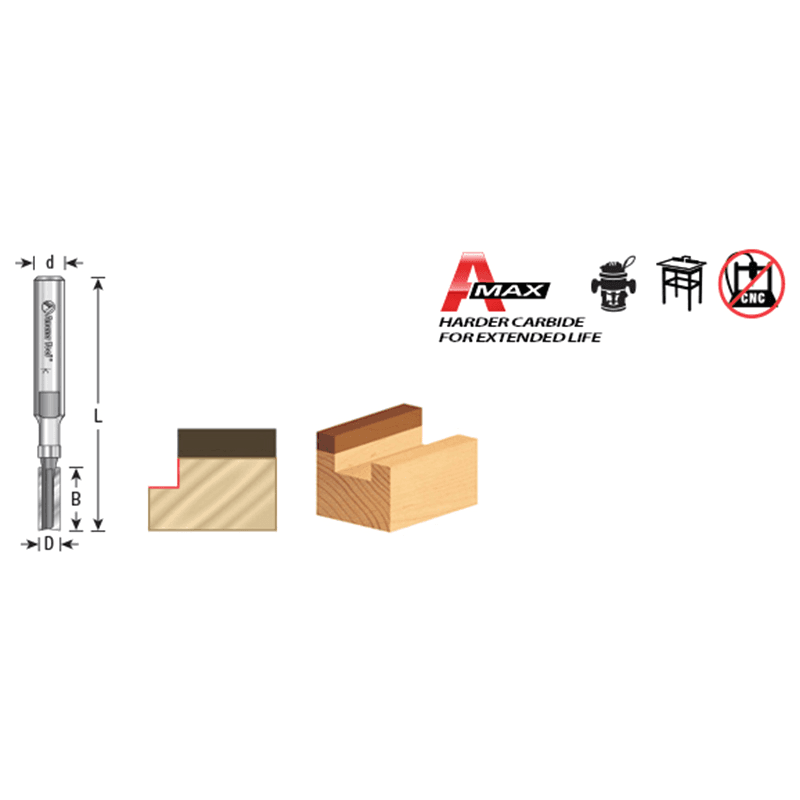

This bit is essentially a plunge-cutting straight with a shank mounted ball-bearing pilot. It is a versatile bit, useful for template/pattern routing of parts, joints, and internal cuts. It can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work. Features: • 1/2" Dia x 1/2" Carbide Tipped Flush Trim Plunge Template, 1/2" Shank with Upper Ball Bearing Router Bit • Replacement Bearing: 47701 • Flutes: 2
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1/2" |
| Width | |
| Cutting Diameter | 1/2" |
| Application | |
| Material | Carbide Tipped |
| Product Type | Flush Trim Plunge |
| Length | 2-3/4" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
