Powerful. Versatile. With four gears for every application. And with the best gear change you have ever operated. Whether you are working on wood, metal or masonry - thanks to the axial hammer feature that can be switched on: The TPC is extremely durable and, thanks to its brushless EC-TEC motor, has extreme resilience and endurance. The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled hammer drill for a wide range of possible uses. Maintain control with our intelligent Kickbackstop which helps to minimize the risk of the drill twisting out of your hand. We are confident that this is the best drill that Festool has ever built
Features:
• Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
• Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
• Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
• For an even wider range of applications: Hammer function that can be activated for drilling into masonry
• The QUADRIVE with four gears for every working situation: From screwdriving with 442.5"-lbs (50 Nm) torque in first gear to precise drilling at 3600 rpm in fourth gear
• Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular driving
• The depth stop and eccentric adapter also enable depth-limited screwdriving and screwdriving close to edges
• Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution. The 5.0 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications. Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs

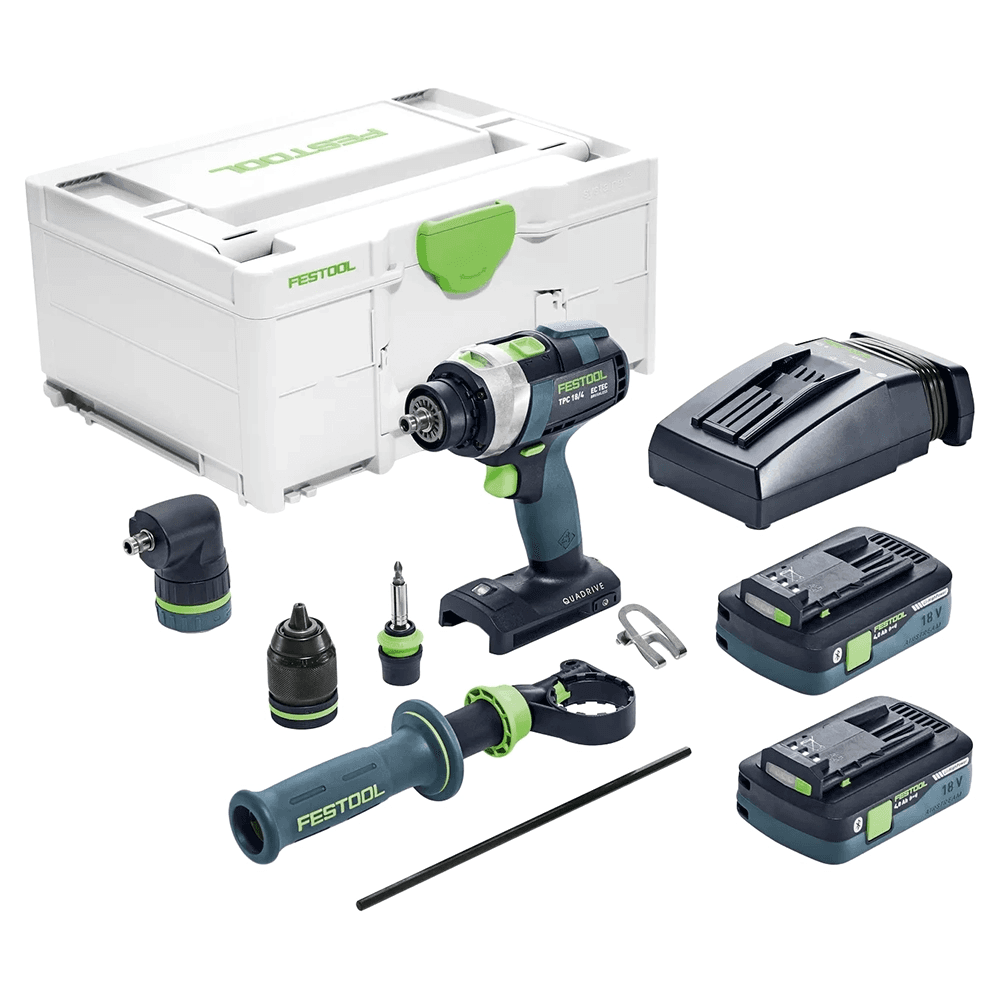

• Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated along with other Systainer-based products for easy carry or fitted to a CT Mobile Dust Extractor, MW 1000 Mobile Workcenter, SYS-Cart, or SYS-Roll
• Production of wooden substructures, frame structures
• Installation of doors and windows
• Drilling and screwdriving in wood, metal and plastic
• Drive screws into wood up to 3/8" x 11-13/16" (10x300 mm)
• Drilling in wood up to 2-3/4" (70 mm) with Forstner drill bits
• Drilling with hammer-mode in brickwork or masonry
• Gears: 4
• Idling Speed, 1st/2nd Gear: 0-500/0-800 RPM
• Idling Speed, 3rd/4th Gear: 0-2350/0-3600 RPM
• Max. Number of Strokes: 57,600.00 RPM
• Drilling Diameter in Brickwork: 3/8" (10 mm)
• Battery Capacity: 4.00 Ah
• Drive Type: Battery
• Min. Drilling Diameter, Steel: 1/2" (13 mm)
• Weight: 2.87 lbs. (1.2 kg)
• Torque Adjustment 1st/2nd Gear: 17.7 in-lb. - 177 in-lb. (2 - 20 Nm) / 17.7 in-lb. - 177 in-lb. (2 - 20 Nm)
• Max. Torque, Wood/Steel: 442.5 in-lb. / 663.8 in-lb. (50/75 Nm)
