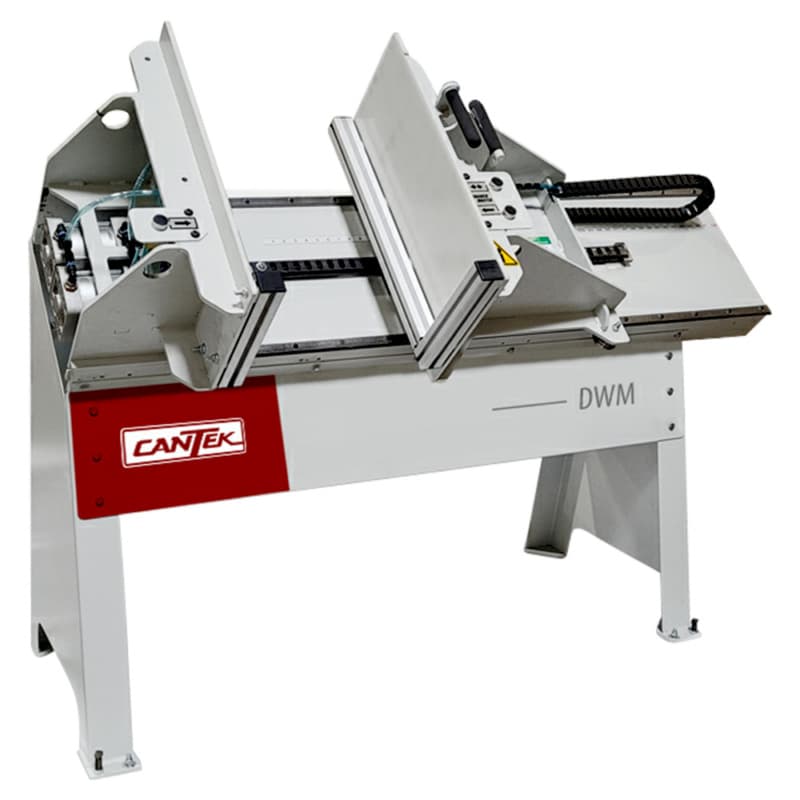

DWM Drawer Master Assembly Clamp
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details

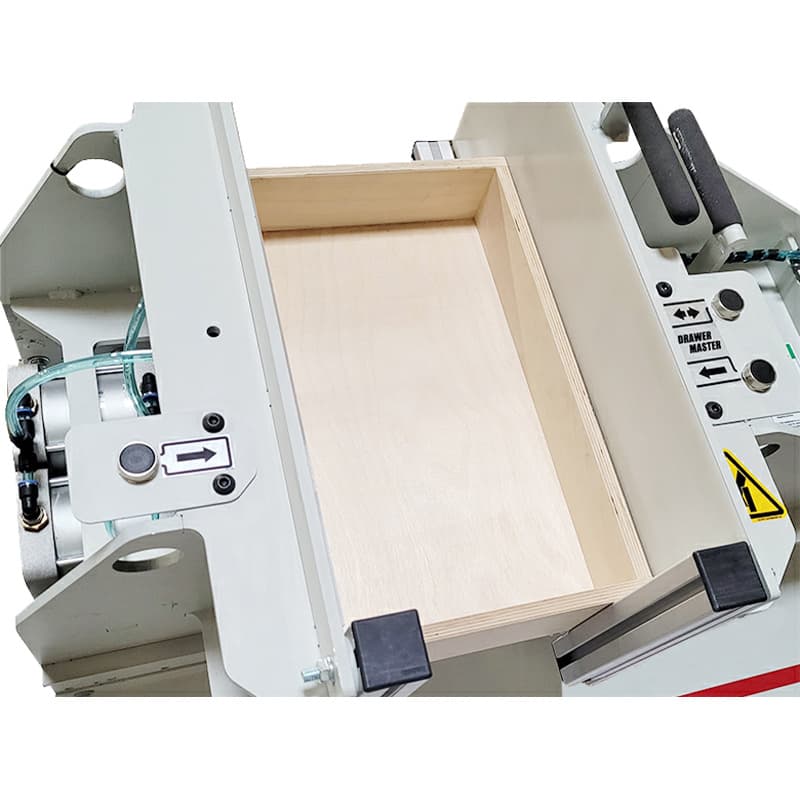

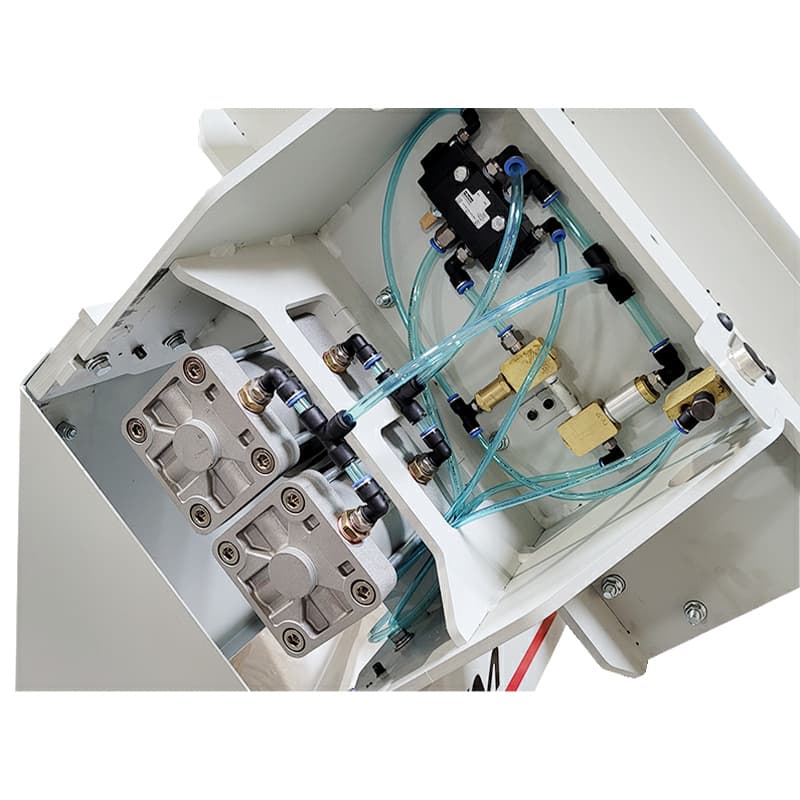

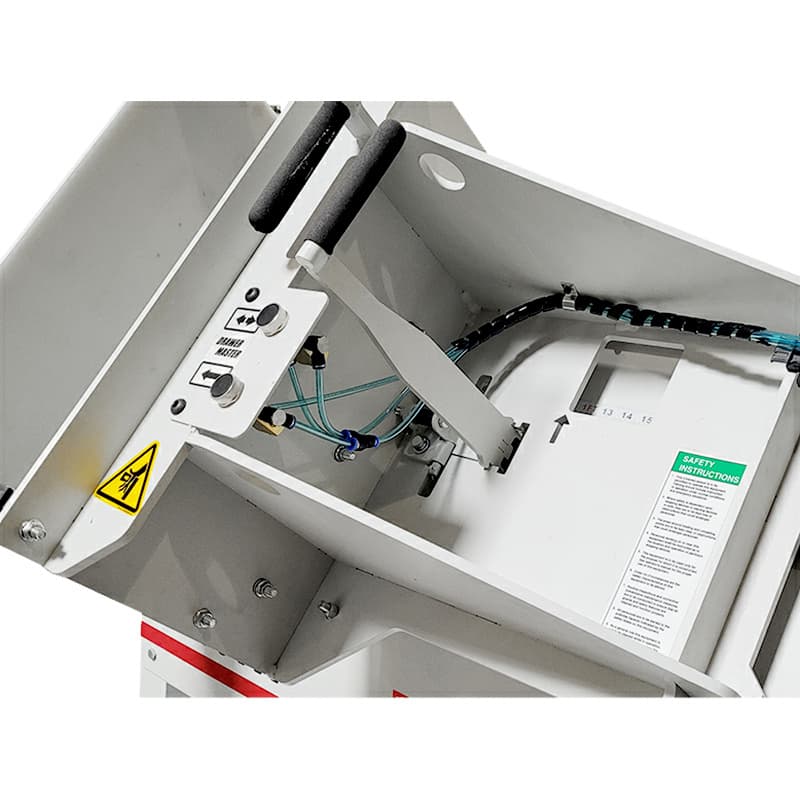

Ideal for custom and volume production runs, the Cantek DWM Drawer Master assembly clamp offers the rugged construction and ease of set-up of high production machines at a fraction of the price. Quickly clamp your drawer boxes precisely and square ever time. The DWM Drawer Master assembly clamp mobile clamping surface is supported by a large triangular structure that is designed to apply the lateral compression evenly over the full height of your drawer boxes. The opening and closing of the clamp for different drawer widths is done by releasing a simple latch. The Drawer Master assembles drawers with standard finger type dovetails, sliding type dovetails, bored and doweled drawers and tongue and dado box joints. The Drawer Master features an ergonomic workstation suitable for assembly of your boxes directly in the clamp. An optional support stand allows you to assemble your drawers with the bottom plate on the topside of the clamp. The riser bar option also enables you to assemble drawers with lipped fronts. It is equipped with double acting air cylinders that can apply compression progressively, allowing for easy fitting of the bottom plate in the lateral grooves. The Progressive Compression Mode operates as a jog button. It offers the operator total control and flexibility in the executive of the assembly process. The Drawer Master′s two-hand control keeps your operator′s fingers away from the danger zone during the compression cycle. Rapid Width Adjustment: The opening and closing of the clamp for different widths is done by releasing a simple latch. Powerful Pneumatic Clamping Cylinders: Double acting air cylinders that can apply compression progressively, allowing for easy fitting of the bottom panel in the lateral grooves Precise Square Clamping: Assembles drawers with standard finger-type dovetails, sliding-type dovetails, bored and doweled drawers, and tongue and dado box joints. Clamping Modes: The Progressive Compression Mode operates as a jog button. It offers the operator total control and flexibility in the execution of the assembly process. Its two-hand control keeps your operator′s fingers away from the danger zone during the compression cycle. Features: • Capable of clamping a wide range of drawer types: dovetail, dowel, tongue and groove, and dado • 10" H x 24" D x 36" W clamping capacity • Fast changeover between various drawer widths with the rapid change clamp • Ergonomic workstation on an angle to improve production output • Double acting air cylinders can apply pressure progressively allowing for easy fitting of the bottom panel in the lateral grooves • The Progressive Compression Mode operates as a jog button. It offers the operator total control and flexibility in the execution of the assembly process. • Two-hand control keeps your operator′s fingers away from the danger zone during the compression cycle • Universal drawer box clamp with fixed left jaw • Manually adjustable right hand jaw • Rapid set jaw opening - no tools needed for set up • Suitable for dovetail or dowel construction drawers • "Quick" or "progressive compression" modes • Two-hand push-button operation safety feature
Specifications
| Product Type | Drawer Assembly Clamp |
| Length | 24" |
| Width | 36" |
| Height | 10" |
| Suitable For | Dovetail, Dowel, Tongue & Groove, and Dado |
| Assembly Modes | Progressive Compression, Quick |
