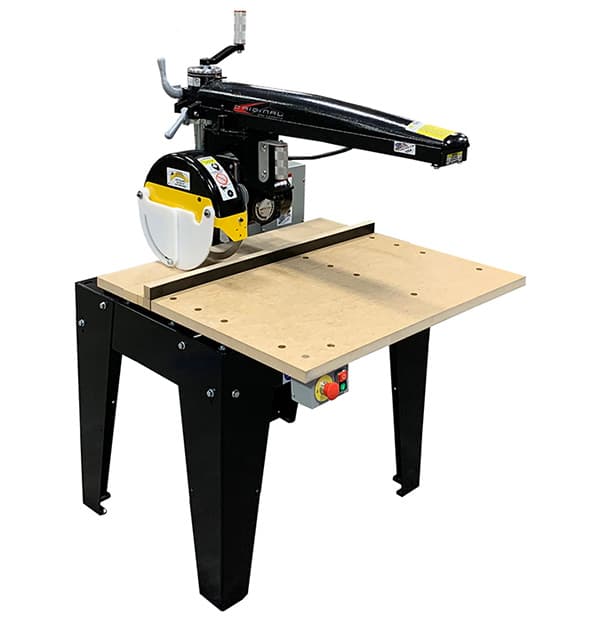

Original Saw 3512-01 12" Contractor Duty Radial Arm Saw 3HP Single Phase
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The Contractor Series Radial Arm Saws continue to be a workhorse with a TEFC motor and internal automatic brake and a durable powder coated finish. This radial arm saw has the best cut quality in its class and is a precise cutting machine with repeatable accuracy that you can depend on day after day for years to come. The machines are fully assembled and tested in our facility and then packaged with the legs boxed on the skid. This makes setup a snap. Simply lift up the machine and install the legs. Then run power into the electrical enclosure and install the saw blade of your choice.
Series Specific Highlights:
- 3 hp 1 phase 208/220 volt TEFC motor 60 Hz (3512-01)
- Automatic blade braking system
- 24” crosscut standard on all machines in series
- Precision carriage riding on 4 tight-tolerance, horizontally mounted convex bearings
- Over sized MDF table top
- E-Stop
- Powder coated heavy gauge steel frame and legs
- Standard worktable height 32”
- Arbor nut and precision ground arbor collars
- Wrench kit (includes Allen arbor wrench and flat arbor wrench)
| Blade Size | 12" |
| HP | 3 |
| Phase | 1 |
| Hertz | 60 |
| Volts | 208/230 |
| Brake | Automatic |
| Arbor | 1" X 2-3/4" |
| Max Cross Cut 3/4" Stock | 24" |
| Max Miter 45 Deg 3/4" Stock | 22-1/2" |
| Max Depth of Cut | 3" |
| Max Depth of Cut 45 Deg Bevel | 1-1/4" |
| Machine Height | 53" |
| Machine Depth | 37-1/4" |
| Table Height | 31" |
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
