Superfici Mini Plus Automatic Spray Machine
Product Details
Automatic Spray Machine Mini "Plus" with paper protective system for belt conveyor.
Conveying System and Paper Protection Device
- In-feed & out-feed driven roller conveyor system
- Central belt conveyor with protective paper device to absorb oversray

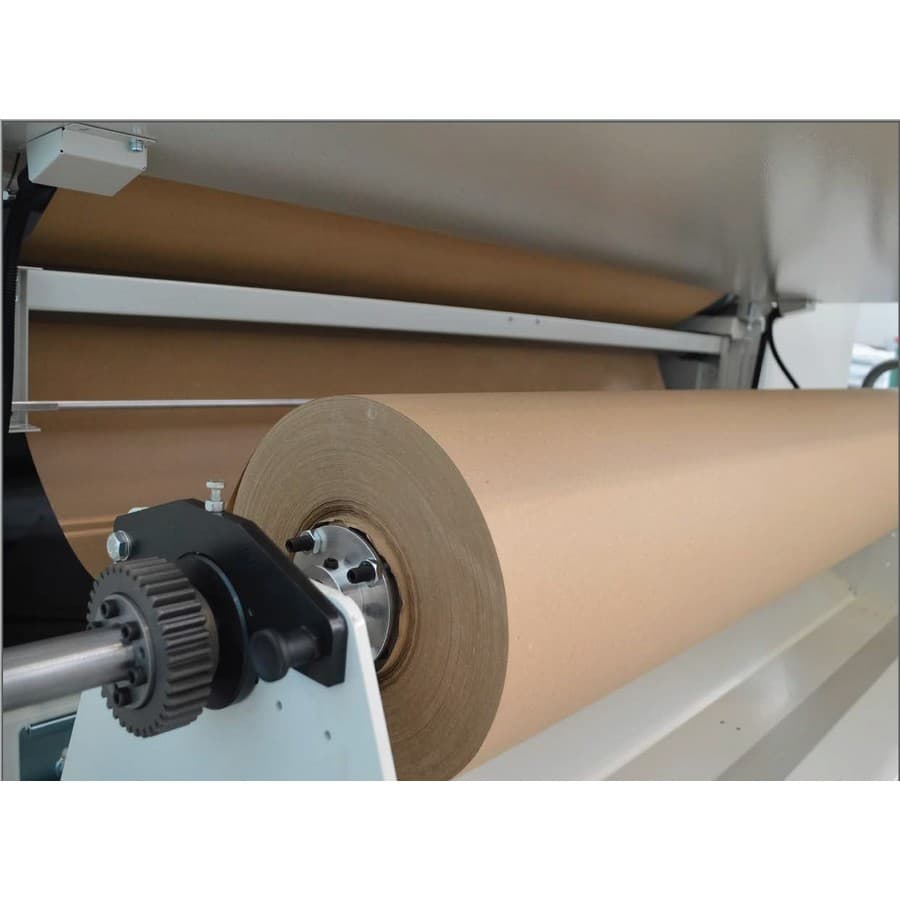

- Paper roll unwinding system at in-feed and rewinding at out-feed
- Paper roll width: 1600mm
- Max. paper roll diam: 300mm
GENERAL DESCRIPTION

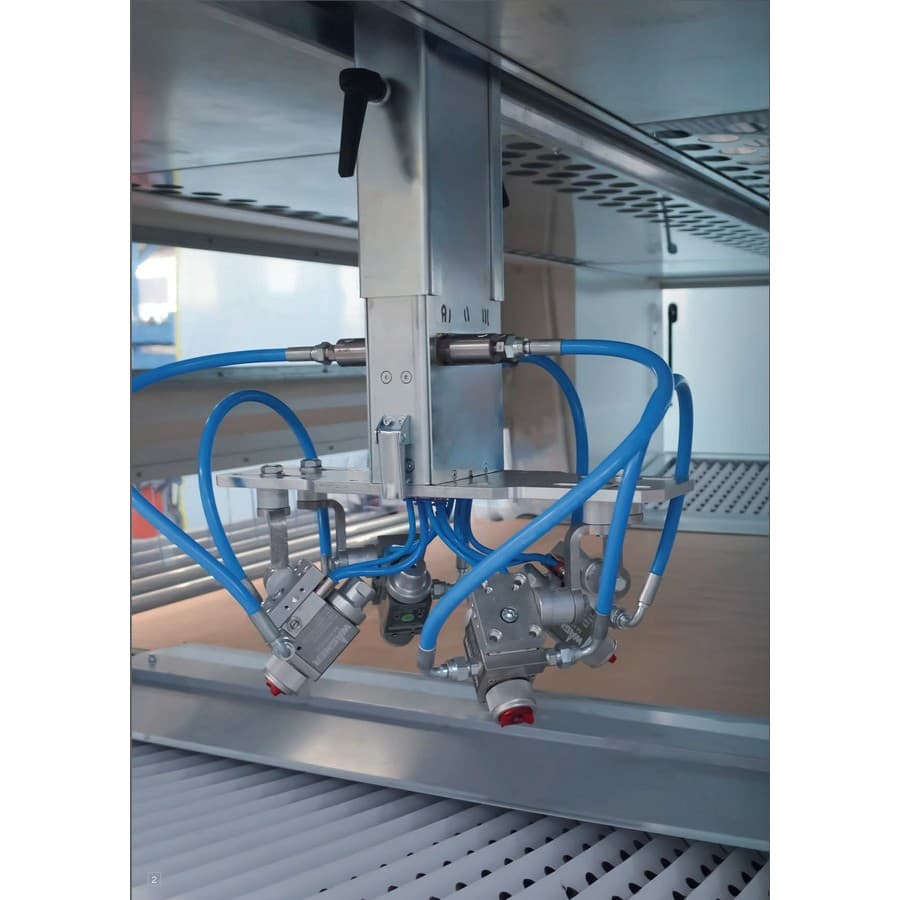

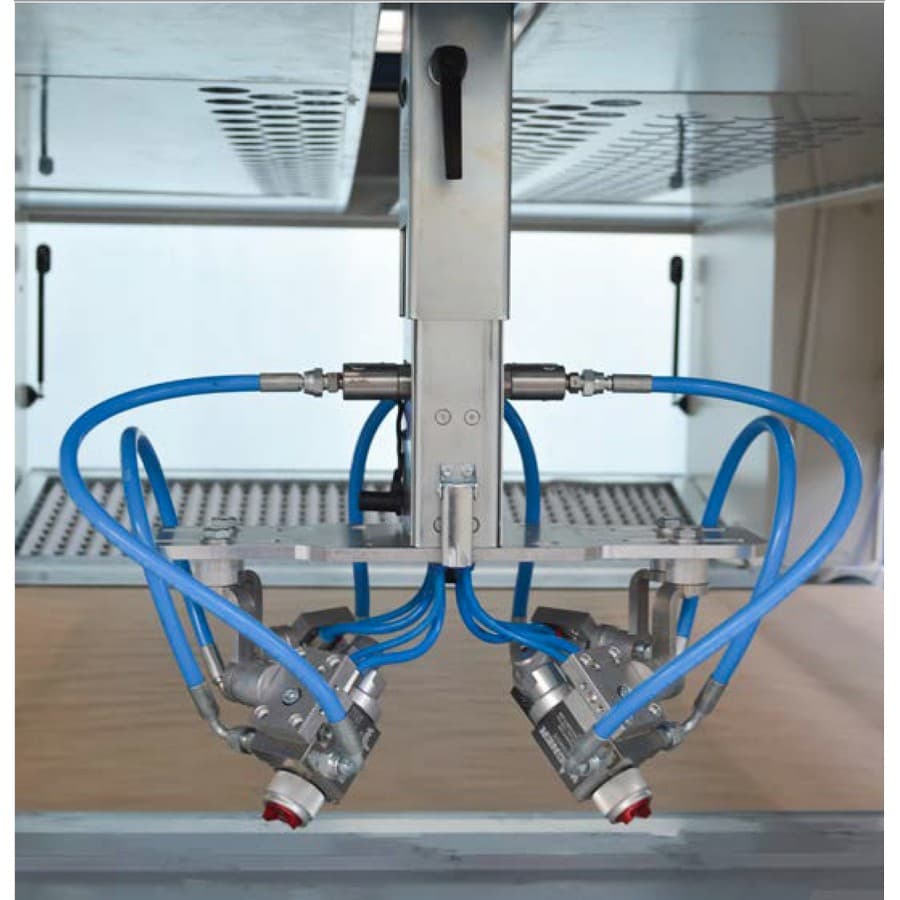

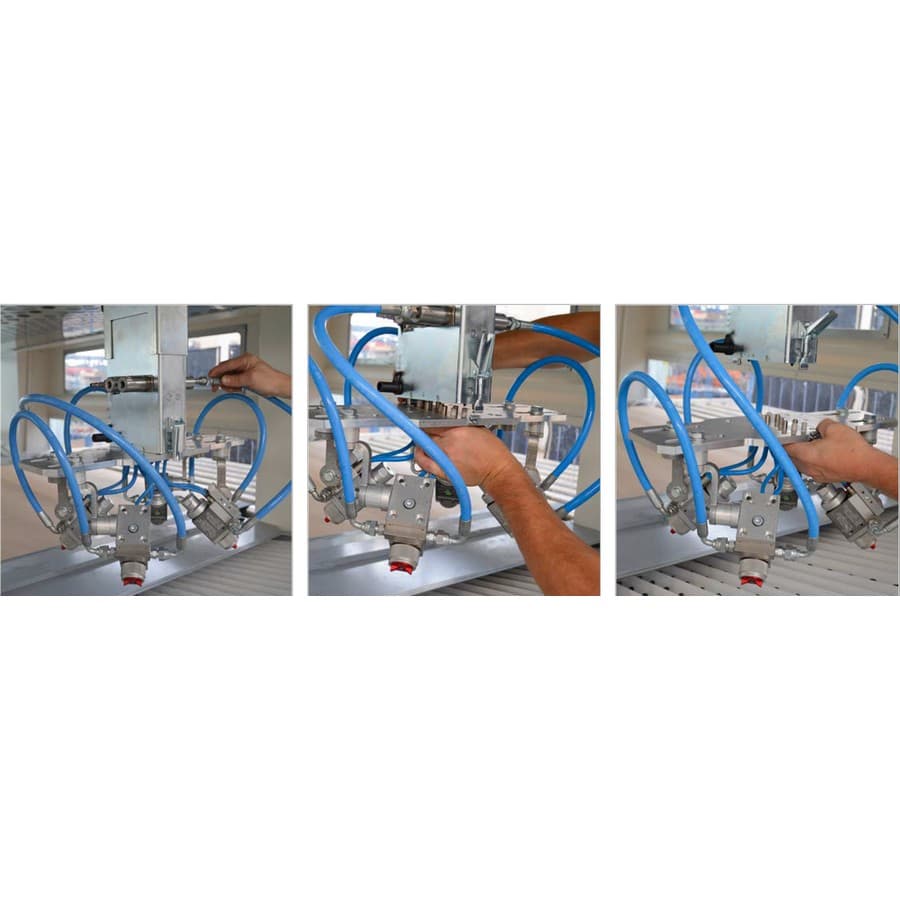

The automatic through-feed spraying machine mod. MINI achieves the advantages of automatic spraying process with a limited investment. SPRAYING ARM AND LACQUER CIRCUITS Lacquer application system consisting of a reciprocator with single arm driven by brushless motor and sliding on a high precision linear guide. Accurate motion guaranteed by high precision reducer. The arm is equipped with guns holder supporting up to max four guns, with two lacquer circuits. To achieve a higher level of flexibility, the MINI features, as standard, the QUICK-CHANGE system for the guns holder.

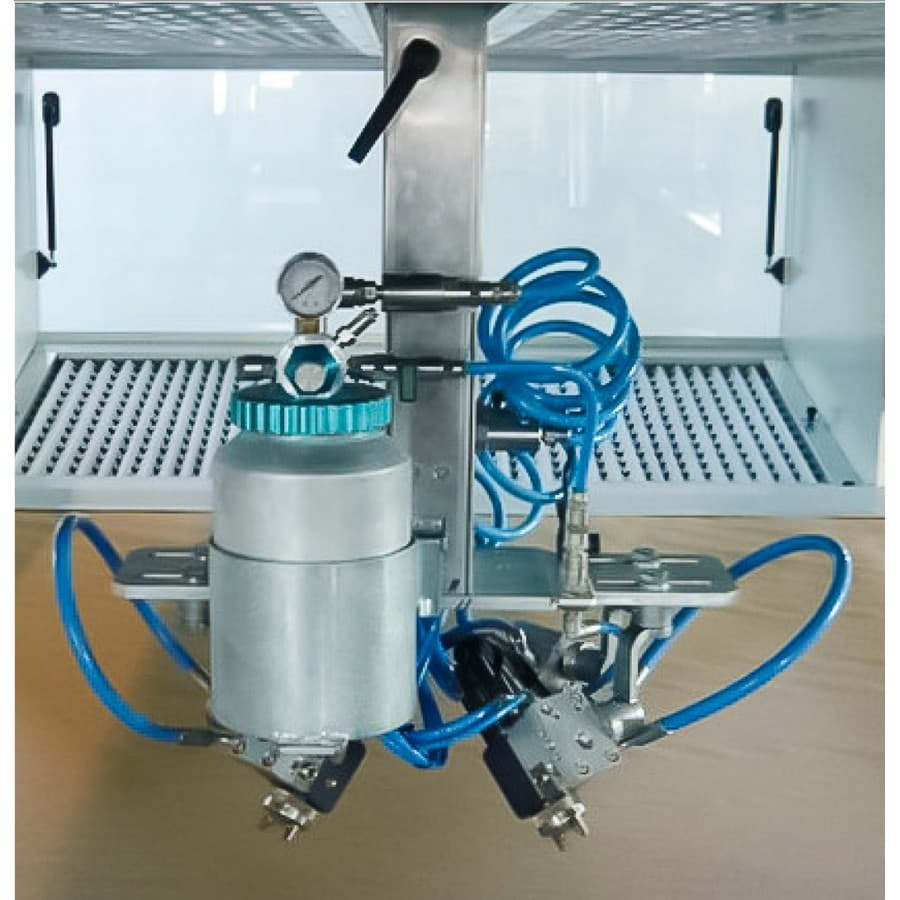

2 atomizing manometers placed on the outside of the cabin, each to control 2 guns. Based on the type of product as well as the grammage to be applied, it is possible to use three different types of guns (not included in the supply): - Low pressure guns - Airmix guns - Airless guns
ENCLOSING CABIN

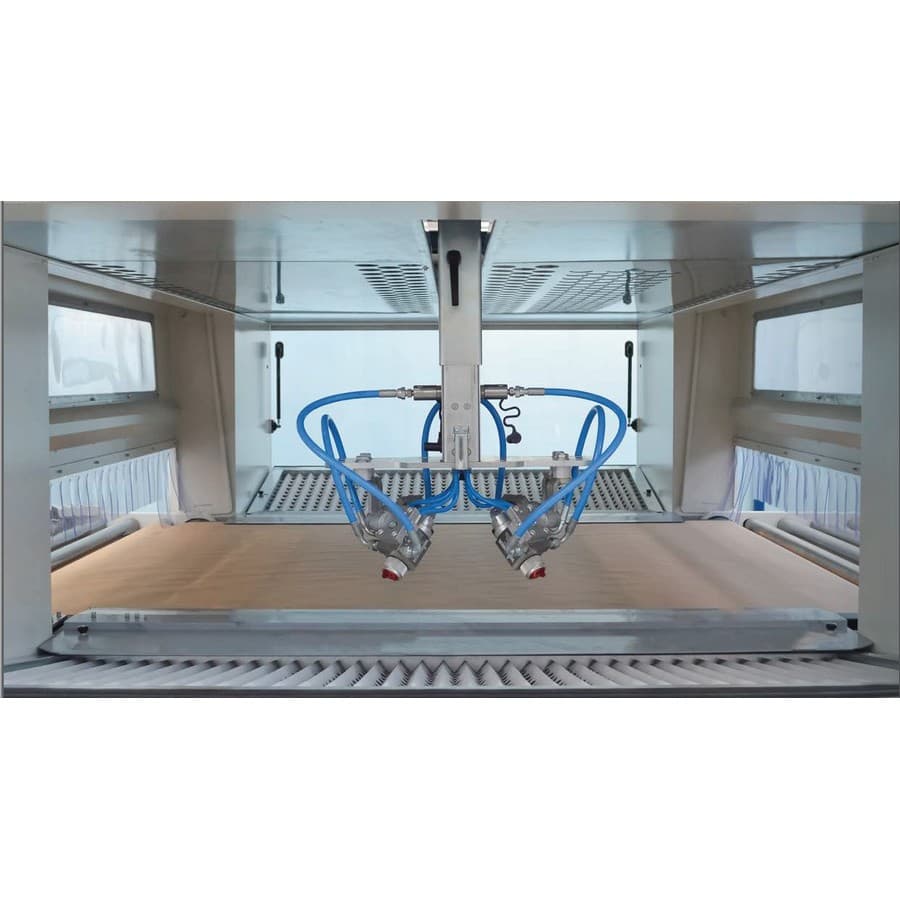

Controlled spraying environment thanks to the enclosing cabin with a highly efficient double side air suction system with dry filters. Perfectly balanced suction air flow thanks to separate exhausts for the left and right filter tanks. Filtration by means of double stage dry filters. The cabin is also equipped with an inspection window on the workpiece infeed and out-feed. The machine structure integrates all necessary items: control cabinet, exhaust fans, pump support.
PRESSURIZATION SYSTEM-PLC CONTROLLED

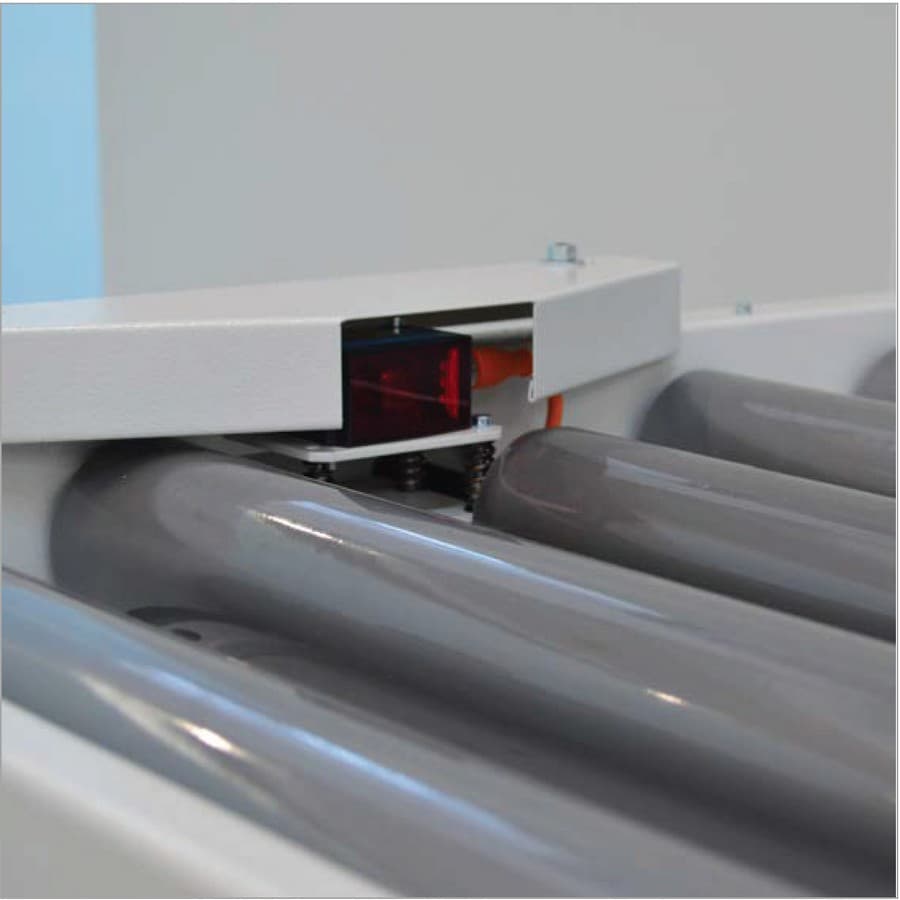

The automatic detection of the required working width along with the PLC control allow the reduction of lacquer consumption and achieves consistency in the quality results. - "B&R" PLC control with 5,7” colour touch screen mounted on board of the machine, to set and control the automatic spray guns opening and closing in agreement with the conveying speed and with the recognised necessary working width. - Easy to use control software OPTISPRAY
TECHNICAL FEATURES
- Working width 1300 mm
- Max. work-piece thickness 120 mm
- Working table height 900 +/- 20 mm
- Feed speed 1-3 m/min
- Compressed air consumption approx. 1800 Nl/min. (with 4 airmix guns)
- Exhaust air volume 8000 m3/H
- Installed power 9 kW
- Colour grey RAL 9002
- Operating side right hand (left by request)
- Infeed roller conveyor length 676 mm
- Outfeed roller conveyor length 707 mm
- Cabin height 2157 mm
- Cabin width 3670 mm
- Cabin length 2150 mm
- Total machine length 3533 mm
