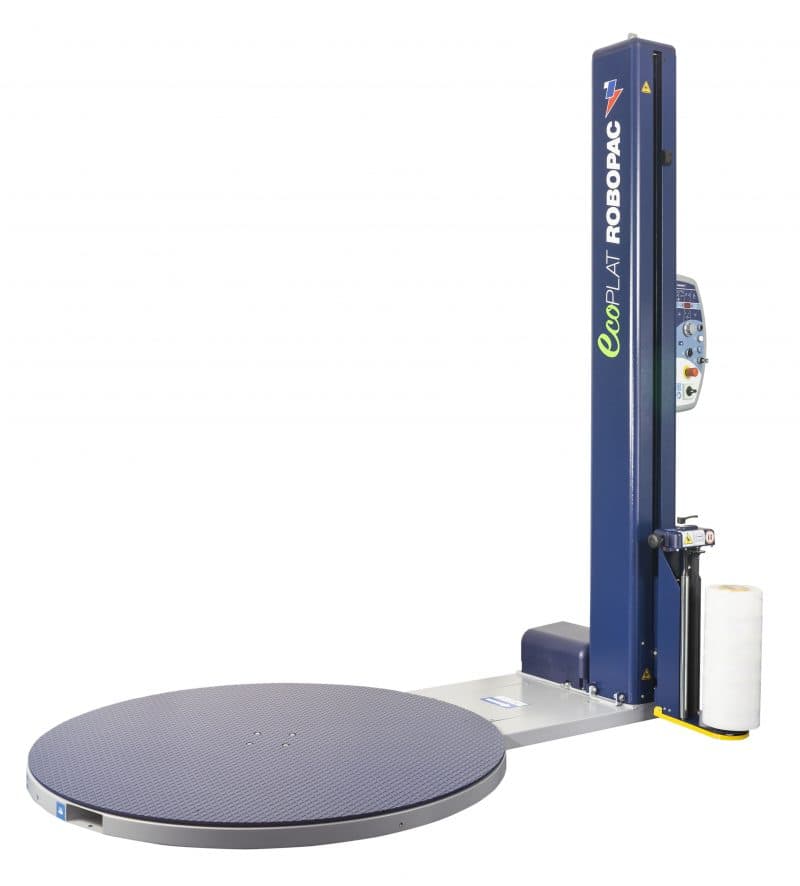

Robopac Ecoplat Semi-Automatic Turntable Stretch Wrapper 110" Wrap Height
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The Ecoplat semi-automatic turntable stretch wrapper wraps up to 25 loads per hour. This pallet wrapper is R-connect ready, which allows you to monitor and improve your packaging performance through remote assistance.
Performance
| Production Rate | Up to 25 loads per hour |
| Turnable Weight Capacity | 4400lb standard, 5500 lbs optional |
| Max Load Dimensions | 40" L X 110" H |
| Temperature Operating Range | Between 41°F and 104°F |
Wrapping
| R-Connect Ready | Remote Machine Monitoring and Film Consumption Tracking. Eliminate Downtime by Troubleshooting your Machines. Programmed Diagnostic: 24 hours a day, 7 days a Week. |
| Load Height Sensing | Automatic Height Detection via Photocell for Light Loads |
Operator Interface
| Control Panel | LED Display and JOG Dial Programmable Selector |
| Wrapping Menu | 3 Fixed Menus and 1 Operator Programmable Menu |
| E-Stop | Emergency Stop on Control Panel |
| Film Carriage Speed and Positioning | Variable Up/Down, with Manual Up/Down Jog Capability |
| Wrap Counters | Top/Bottom separately, and Reinforcement Wraps |
| Turntable Speed | 4-10 rpm |
Turntable Design
| Turntable Size | 65" |
| Turntable Top Thickness | 3/8" Diamond Shaped plated steel |
| Turntable Support | 28 x 1-5/8” UHMW covered support casters |
| Turntable Drive | 4-10 rpm |
Mast
| Effective Load Wrap Height | 110" |
Film Delivery
| Film Delivery System | Frictioned Roller Device (FRD) with Core Brake |
| Warp Patterns | Customizable with up to 5 Programs |
Specifications
| Electrical Requirements | 120V, 10A, 50Hz, 1-phase |
| Installed Dimensions | 104" L x 71" X x 127" H |
| Shipping Dimensions | 126" (L) x 89" (W) x 28" (H) |
| Shipping Weight | 1276 lbs |
| Base Fabrication | Cold formed steel frame |
| Fork Truck Portability | Front and rear |
| Mast Construction | Cold formed steel with rounded corners |
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
