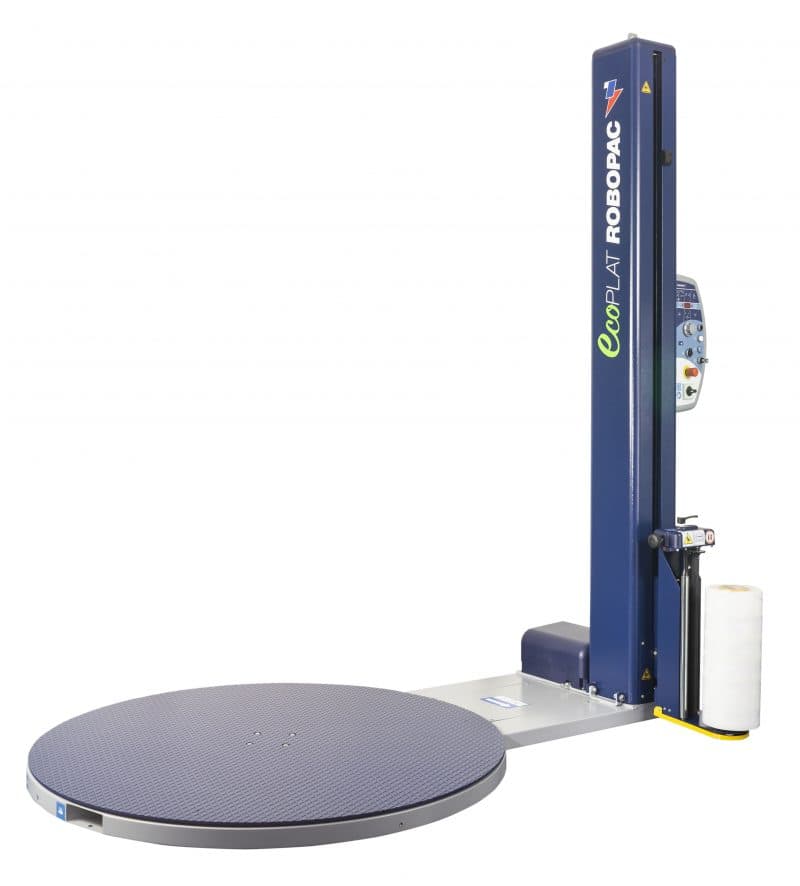

Robopac Ecoplat Semi-Automatic Turntable Stretch Wrapper 86" Wrap Height
This item may incur additional shipping costs and lead times.
Product Details
The Ecoplat semi-automatic turntable stretch wrapper wraps up to 25 loads per hour. This pallet wrapper is R-connect ready, which allows you to monitor and improve your packaging performance through remote assistance.
Performance
| Production Rate | Up to 25 loads per hour |
| Turnable Weight Capacity | 4400lb standard, 5500 lbs optional |
| Max Load Dimensions | 40" L X 86" H |
| Temperature Operating Range | Between 41°F and 104°F |
Wrapping
| R-Connect Ready | Remote Machine Monitoring and Film Consumption Tracking. Eliminate Downtime by Troubleshooting your Machines. Programmed Diagnostic: 24 hours a day, 7 days a Week. |
| Load Height Sensing | Automatic Height Detection via Photocell for Light Loads |
Operator Interface
| Control Panel | LED Display and JOG Dial Programmable Selector |
| Wrapping Menu | 3 Fixed Menus and 1 Operator Programmable Menu |
| E-Stop | Emergency Stop on Control Panel |
| Film Carriage Speed and Positioning | Variable Up/Down, with Manual Up/Down Jog Capability |
| Wrap Counters | Top/Bottom separately, and Reinforcement Wraps |
| Turntable Speed | 4-10 rpm |
Turntable Design
| Turntable Size | 65" |
| Turntable Top Thickness | 3/8" Diamond Shaped plated steel |
| Turntable Support | 28 x 1-5/8” UHMW covered support casters |
| Turntable Drive | 4-10 rpm |
Mast
| Effective Load Wrap Height | 86" |
Film Delivery
| Film Delivery System | Frictioned Roller Device (FRD) with Core Brake |
| Warp Patterns | Customizable with up to 5 Programs |
Specifications
| Electrical Requirements | 120V, 10A, 50Hz, 1-phase |
| Installed Dimensions | 104" L x 71" X x 103" H |
| Shipping Dimensions | 126" (L) x 89" (W) x 28" (H) |
| Shipping Weight | 1276 lbs |
| Base Fabrication | Cold formed steel frame |
| Fork Truck Portability | Front and rear |
| Mast Construction | Cold formed steel with rounded corners |
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
