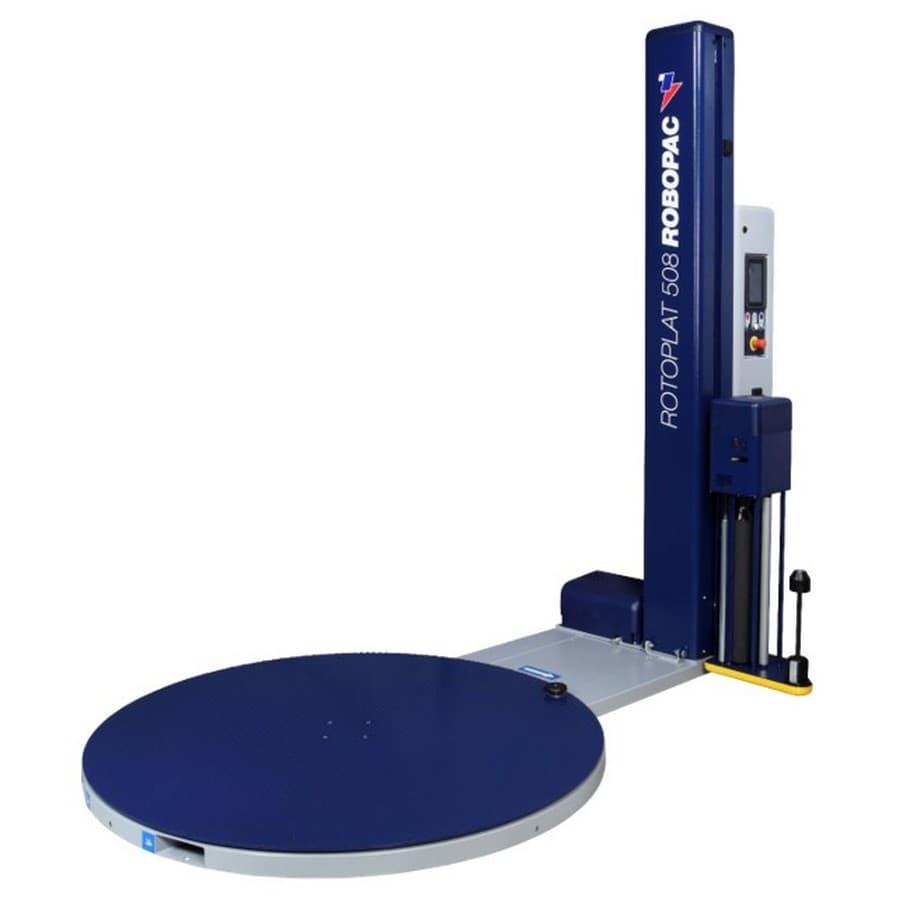

Robopac Roboplat 508 Semi-Automatic Strethc Wrapper
This item may incur additional shipping costs and lead times.
Product Details
ROTOPLAT 508 SEMI-AUTOMATIC STRETCH WRAPPER
The Rotoplat 508’s intuitive seven (7) inch color touchscreen makes it easy to set up the correct parameters for wrapping each of your loads. You control containment force, rotation speed, roping and banding at nine (9) levels on each load.
- Save 30-55% on film with Cube Technology
- Rconnect ready • Save 12 unique load configurations
- 65” turntable with 28 support bearings
- 4400 lbs. weight capacity
- 110” standard wrap height
Performance Criteria
| Production Speed | Up to 40 LPH |
| Turntable Speed | 5-12 RPM |
| Turntable Drive | 1 HP VAC |
Load Handling System
| Turntable Size | 65" Dia |
| Maximum Load Weight | 4400 lbs |
| Maximum Load Height | 110" |
Film Delivery System
- Standard Pre-stretch: Variable 0 – 250%
- Containment Force: Multi-Level Variable
- Film Carriage Motor: ½ HP VAC
- Height Sensing: Automatic via photocell
- Film Threading: Patented S-Pattern
- Corner Compensation: Load Cell
Safety Features
- Anti-fall device on carriage
- Pressure activated safety stop on carriage
- CE Compliant, UL, CUL
Utilities
- 115V, 20 amps, 60 Hz, 1 PH
Warranty
- 5 Years
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
