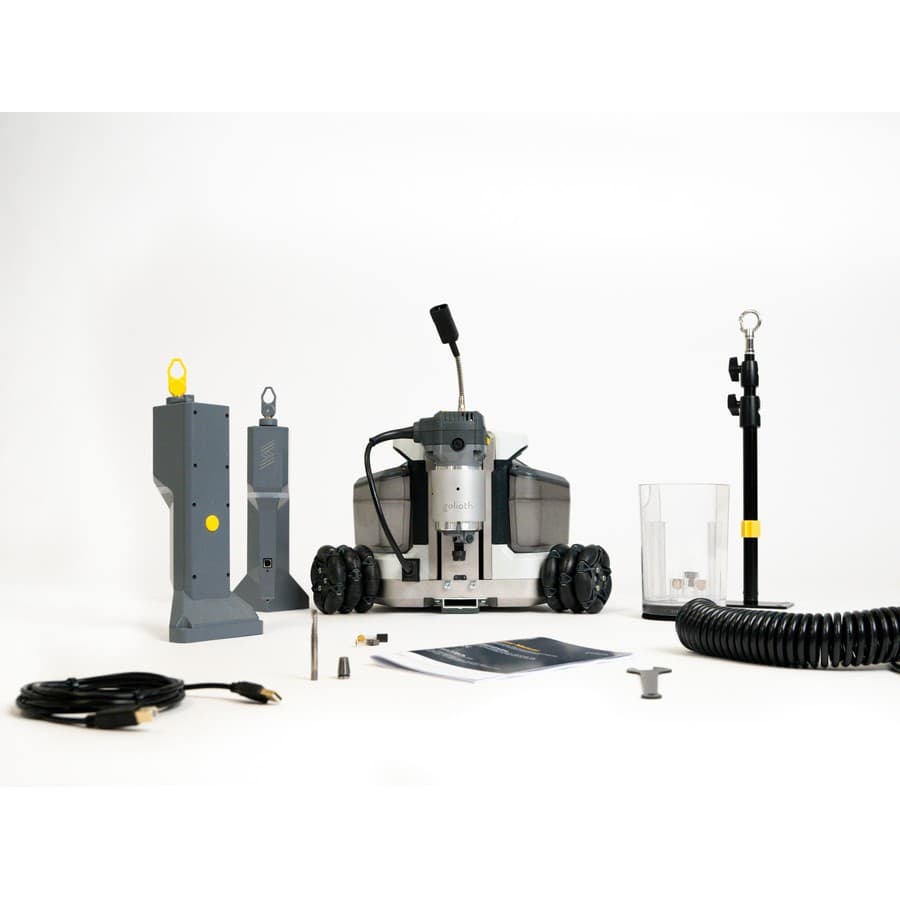

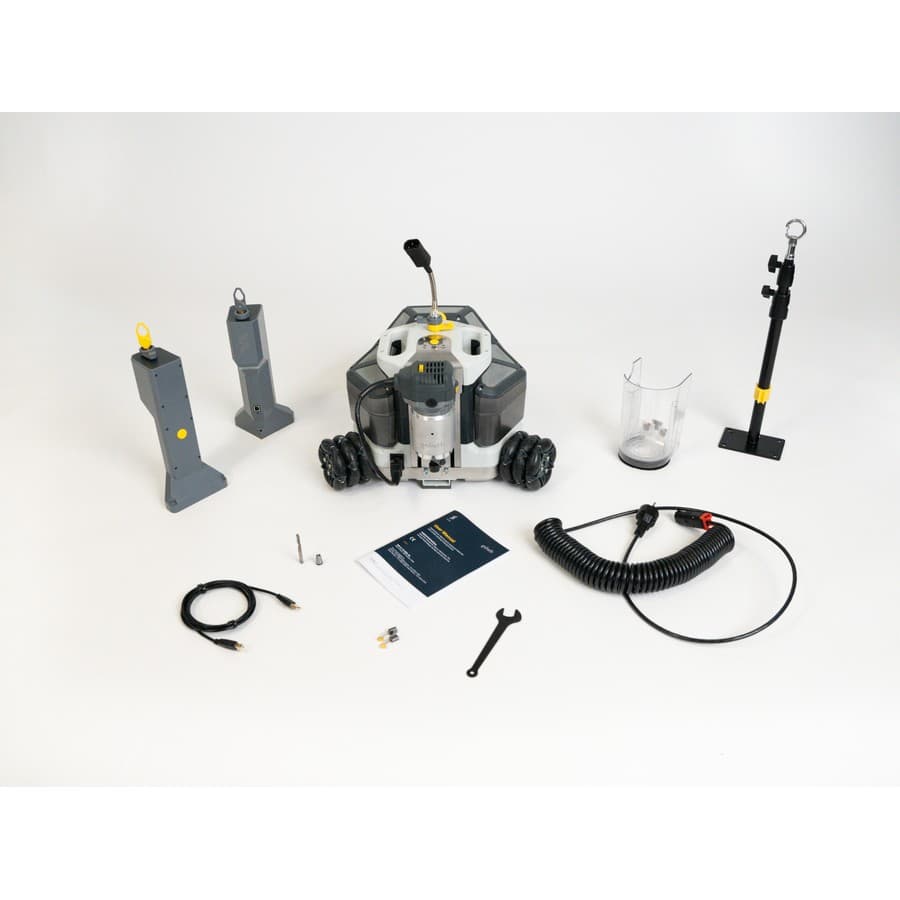

Goliath CNC Portable Router

Bring digital fabrication wherever you want.

• Portable - Thanks to its small size and low weight Goliath allows you to create from small to large designs anywhere you like.

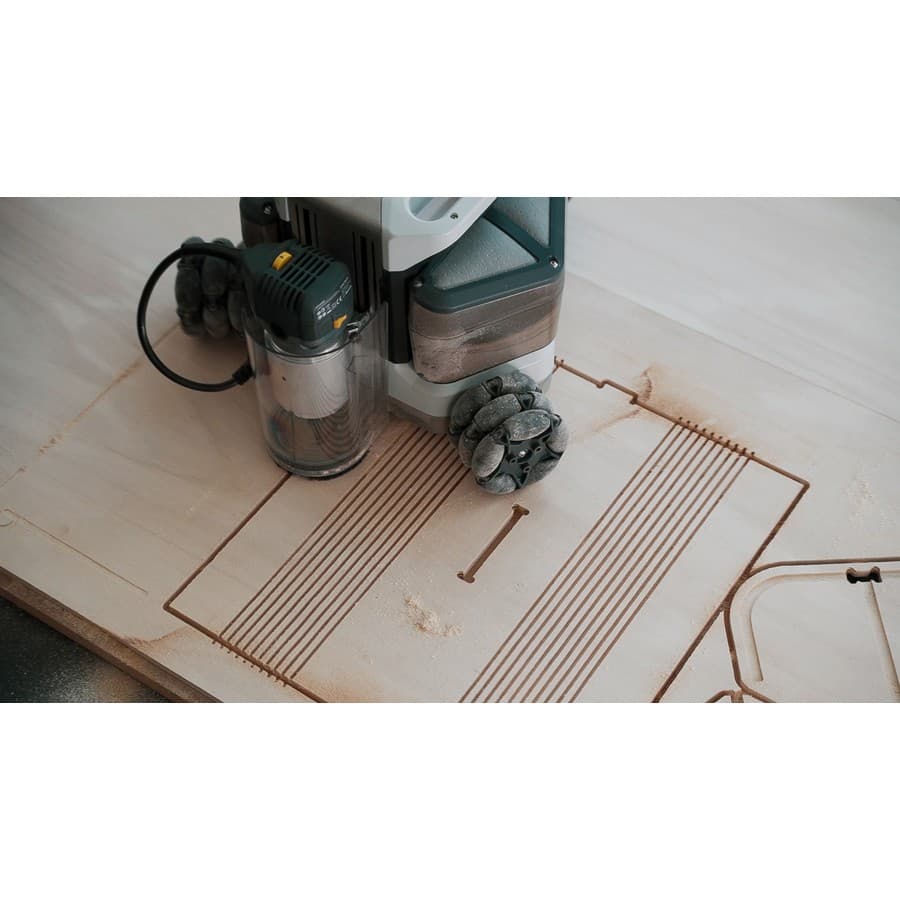

• Autonomous - The three omnidirectional wheels allow the robot to move freely. Two wheel rollers are always in contact with your workpiece so the routers movement is not affected by profiles that have already been cut.
• Large Work Area - No work area limits due to Goliaths sensor system. Both sensors and robot can be repositioned multiple times to replicate the work area without limit.
• Precise - Goliath comes with a patented sensor system which continually updates its position on the workpiece.
• Integrated Dust Collector - Integrated dust collection system removed debris and dust from the workpiece to keep the wheels clean and the cuts precise.

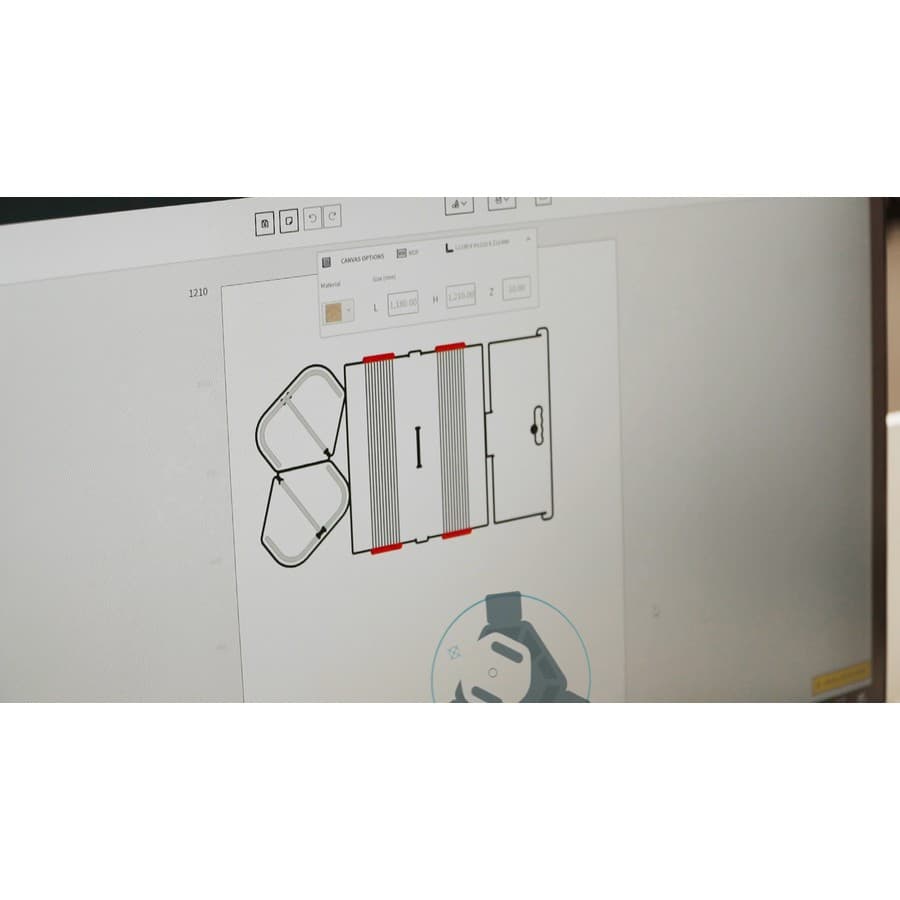

• Connected and User Friendly - Design or download projects then easily upload to Goliath.

• Goliath Dimensions

   15.75" L X 15.75" W X 11.82" H

• Goliath Weight

   33 lbs

• Usable Z Axis Range

   58mm (2.3")

• Spindle Power

   710W

• Spindle RPM Range

   13-33 RPM

• Collet

   ER11 collet, included 1 nut, 6mm and ¼ in collets. Compatible with collets up to 8mm

• Power

   1.200W Available in 120V and 230V AC version

• Dust Collector

   5L capacity (169fl oz)

• Sensors Dimensions

   5.9" L X 5.9" W X 14.1" H

• Sensors Weight

   1.4 lbs

• Sensors Battery Life

   10 Hours

• Sensors Wires

   137.7" Long

• Goliath Ports

   USB type B for firmware update and expandability

• Sensors Ports

   USB type B for charging, firmware update and expandability

• Wi-Fi

   2.4 GHz

• Sensors Goliath Communication

   2.4GHz RF
