20-1/8" Chain Mortiser
Product Details

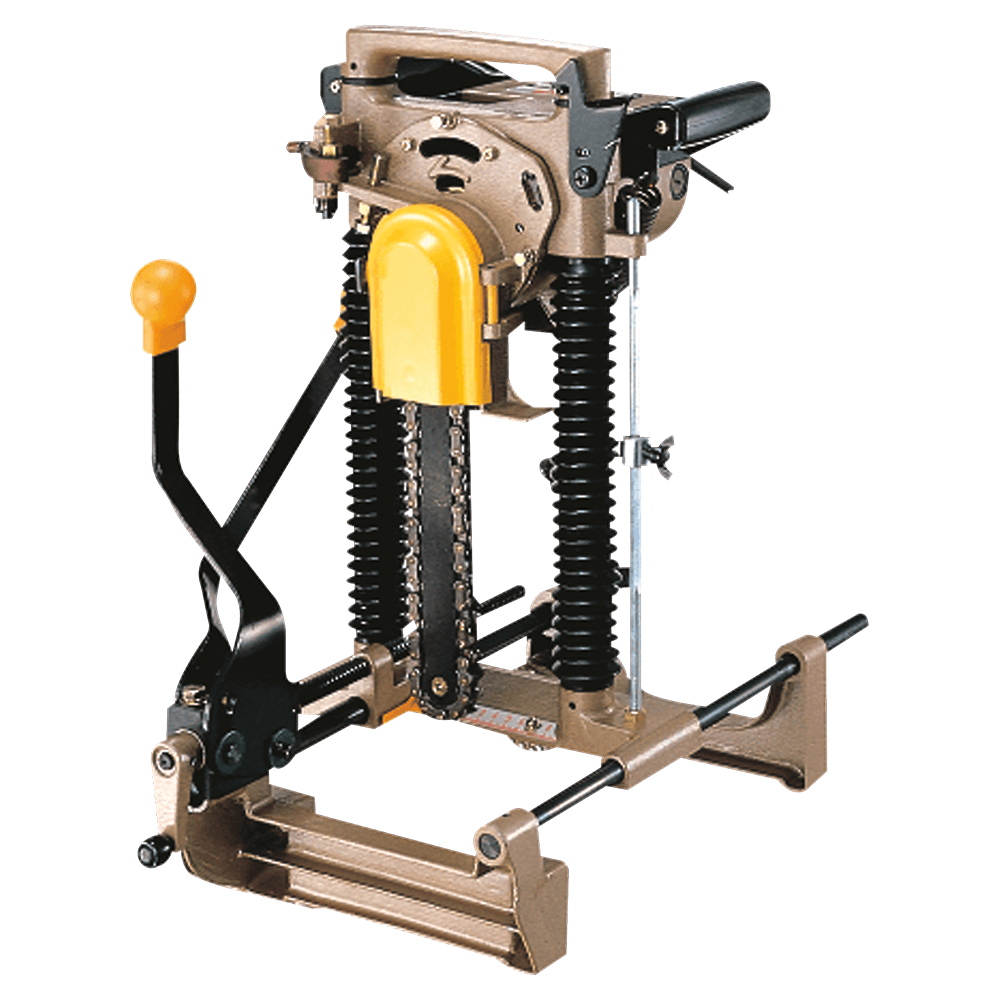

The 7104L Chain Mortiser is engineered with power and accuracy features and is ideal for timber framing and log home building. The 10.5 AMP motor delivers 3,200 RPM to quickly notch or cut holes in thick wood stock, and will cut lap joints up to 5-1/8" in. The razor sharp chain is engineered for clean and accurate cutting, with a large adjustable vise and knob for increased versatility. It weighs only 38.1 lbs. for increased portability. Features: • Razor sharp chain for clean, accurate cutting • Extremely portable at only 38.1 lbs. • Powerful 10.5 AMP motor (3,200 RPM) to quickly notch or cut holes in thick wood stock • Cuts lap joints up to 5-1/8" • Large adjustable vise and knob for attaching firmly onto logs 3-1/8" to 12-1/8" thick • Innovative power tool notches or cuts through-holes in thick wood stock quickly, neatly and accurately • Sliding rear clamp adjustable to desired width with a quick adjust tension knob • Clamp tension lever for a firm hold on log • Plunge depth adjustment in 1/8" increments • Cutting line indication plate • Adjust knob for re-adjusting position of chain across the log • Quick horizontal chain lever for widening holes • Chain tension adjustment cover with snap action • Durable plastic boot protects twin steel rails • Externally accessible carbon brushes for greater serviceability • Built-in carrying handle for ease of transportation • Ideal for timber framing or log home building • Includes: 21/32" Mortiser Chain (A-16570), Wrench (781204-0), Bar and Chain Oil, 100 cc (182229-1)
Specifications
| Box Quantity | 1 |
| Wiring Remarks | |
| Spindle Travel (In.) | |
| Chisel Center to Fence (In.) | |
| Bushing Size (In.) | |
| Prewired Voltage (V.) | |
| Chuck Distance to Base (In.) | |
| Maximum Work Piece Height (In.) | |
| Chuck Distance to Table (In.) | |
| Motor Current (Amps) | 10.5 |
| Motor Power (HP) | |
| Table Size Fully Extended (L x W) (In.) | |
| Stand Height (In.) | |
| Motor Phase | |
| Chuck Size (In.) | |
| Spindle Speed (RPM) | |
| Chisel Stroke (In.) | |
| Fence Size (L x H) (In.) | |
| Chisel Stroke Maximum (In.) | |
| Chisel Shank Capacity (In.) | |
| Swing (In.) | |
| Recommended Circuit Size (Amps.) | |
| Motor Voltage (V.) | |
| Table Tilt (Deg.) | |
| Head Travel (Front to Back) (In.) | |
| Table Size (L x W) (In.) | |
| Style (Type) | |
| Spindle Taper | |
| Spindle Distance to Base (In.) | |
| Column Diameter (In.) | |
| Base Size (In.) | |
| Under Hold-Down (In.) | |
| Table Travel - Longitudinal (In.) | |
| Table Travel - Cross (In.) | |
| Drilling Capacity (In.) | |
| Chisel Capacity (In.) | |
| Head Travel (Left to Right) (In.) | |
| Spindle Distance to Table (Max.) (In.) | |
| Warranty | |
| Horsepower | |
| Phase | |
| Product Type |
