SC 350 Precision Hardware Drilling
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details
Precise Design:

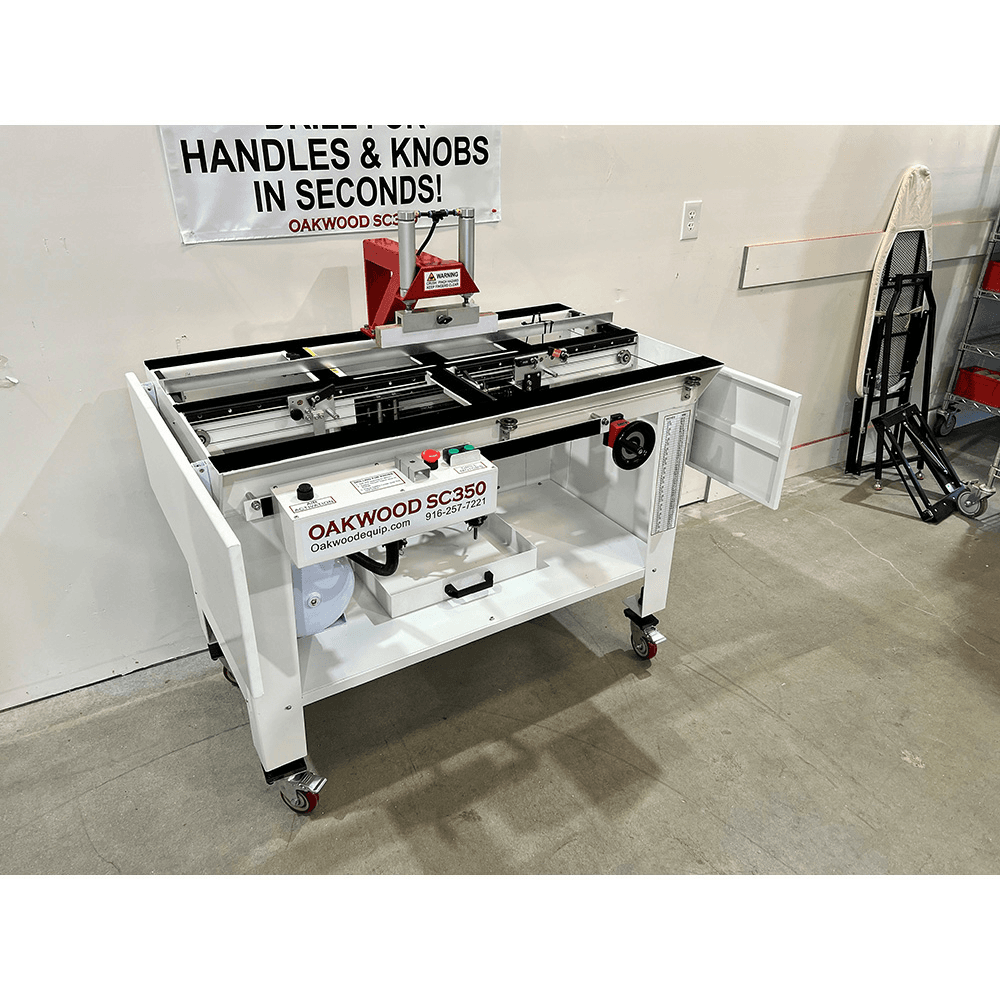

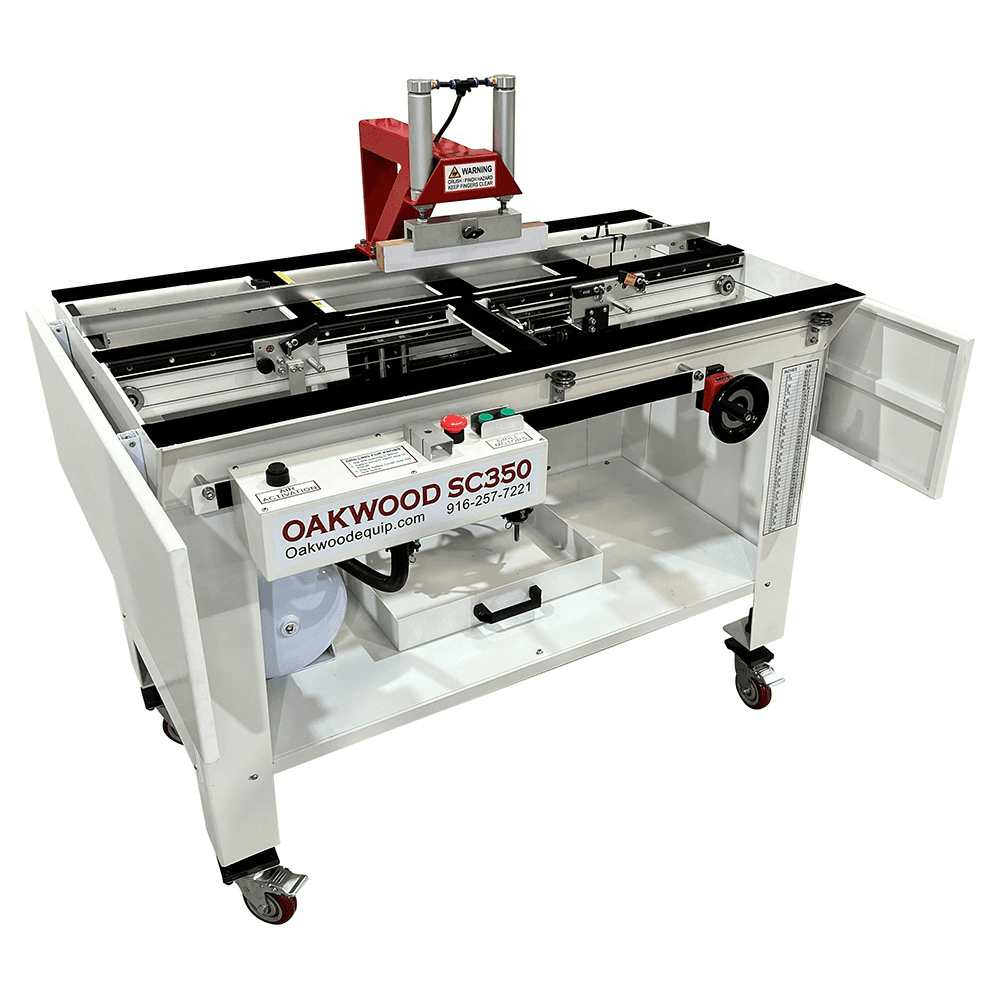

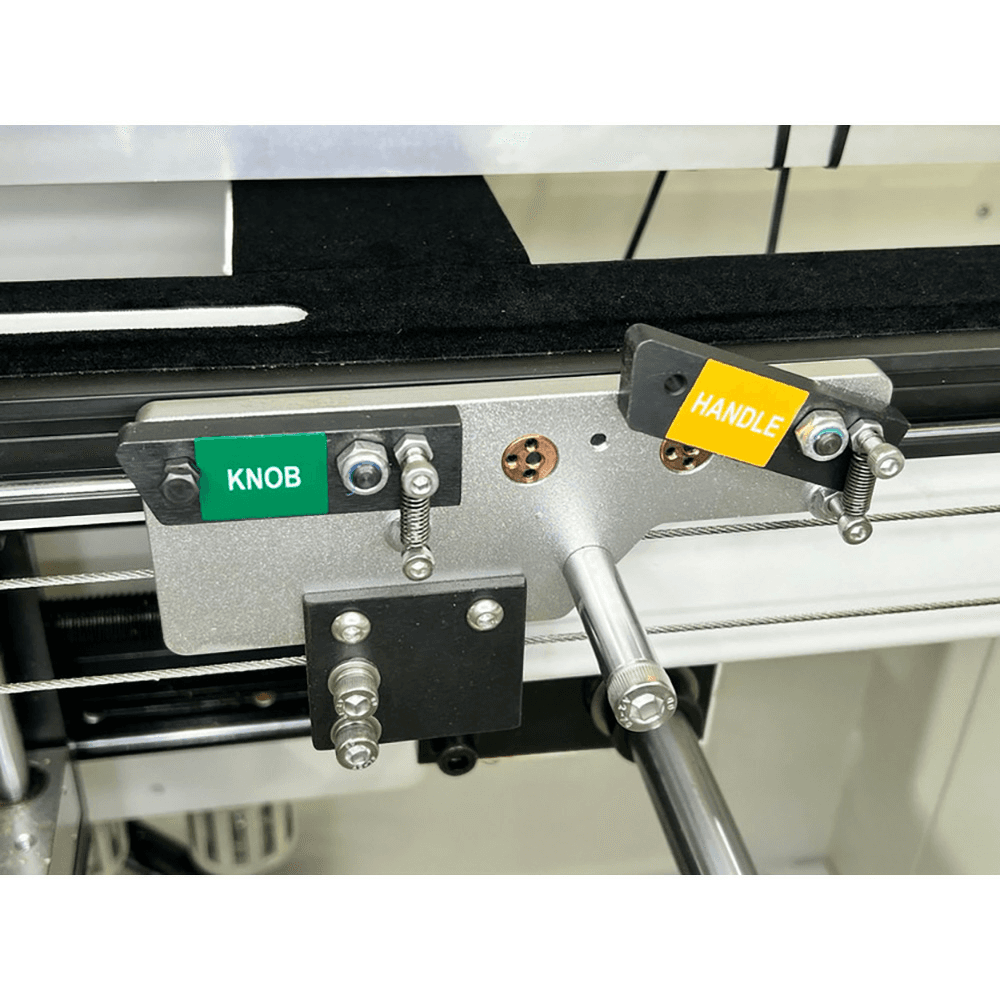

The SC 350 features a unique, self centering fence system that centers the front perfectly every time for drilling of knob or handle holes. Allows for centered placement of handles or knobs on fronts as small as 4.5" x 8"w to as large as 14" x 36"w / 115mm x 204mm to 355mm x 914mm.
Simple Measuring:
No need to adjust jigs OR mark fronts with a tape measure OR do math to figure out handle placement! Requires no tools or tape measures for regular set ups and adjustments.
No Power Needed:

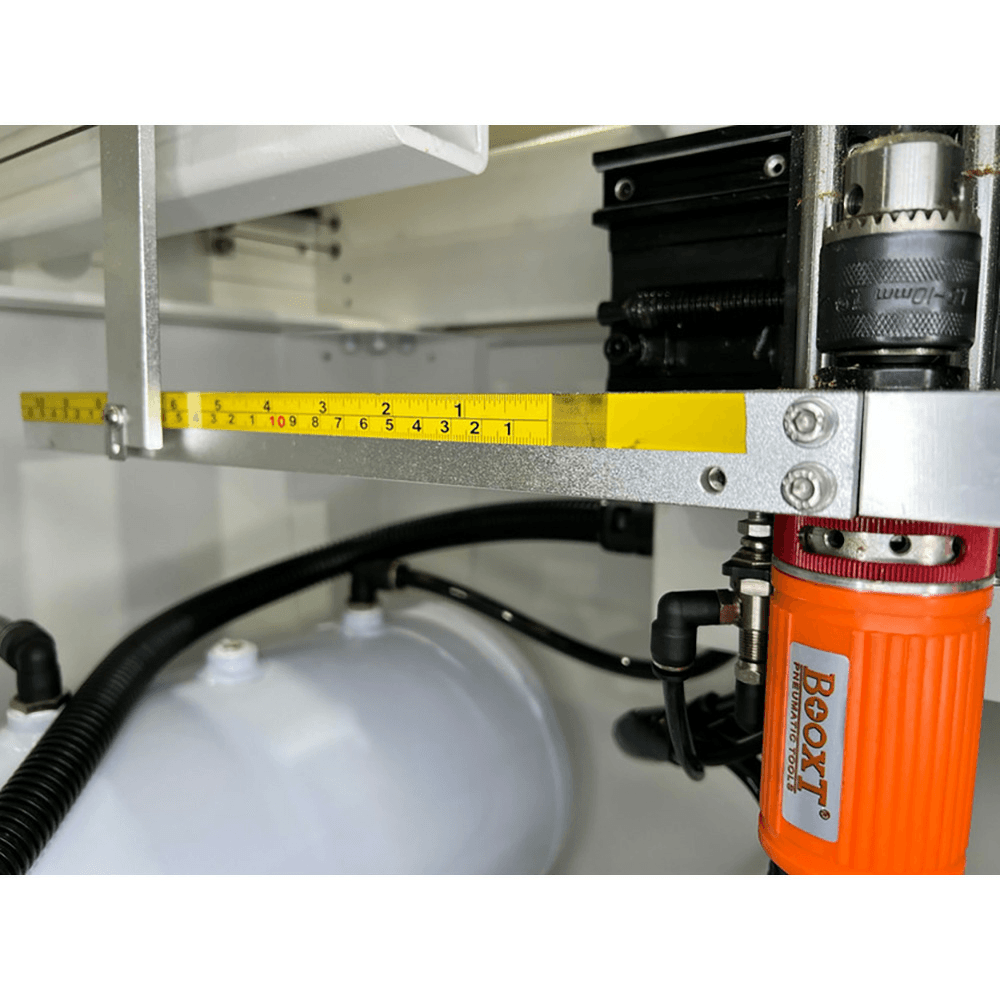

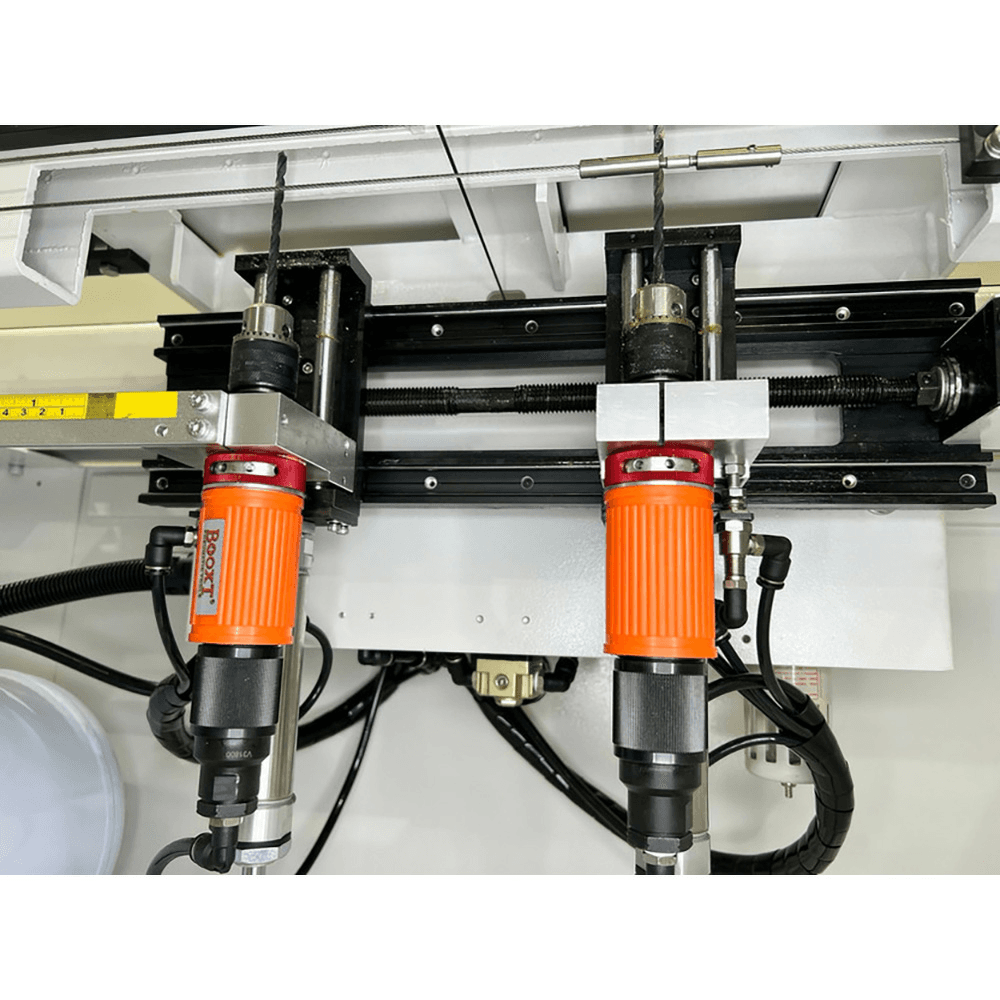

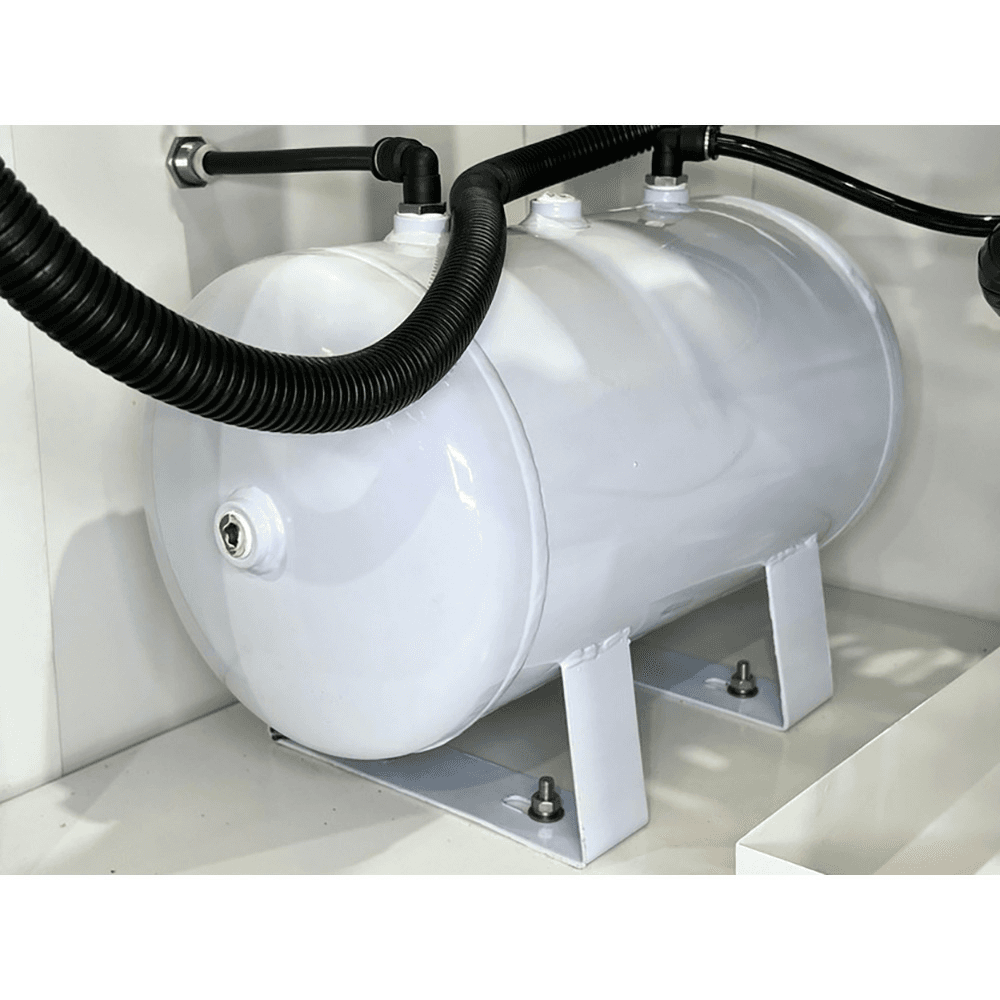

Drills are air operated and require only a standard air hose for operation. An on-board air tank ensures air drills have sufficient volume of air to operate smoothly during normal use cycles.
Flexible Setup:

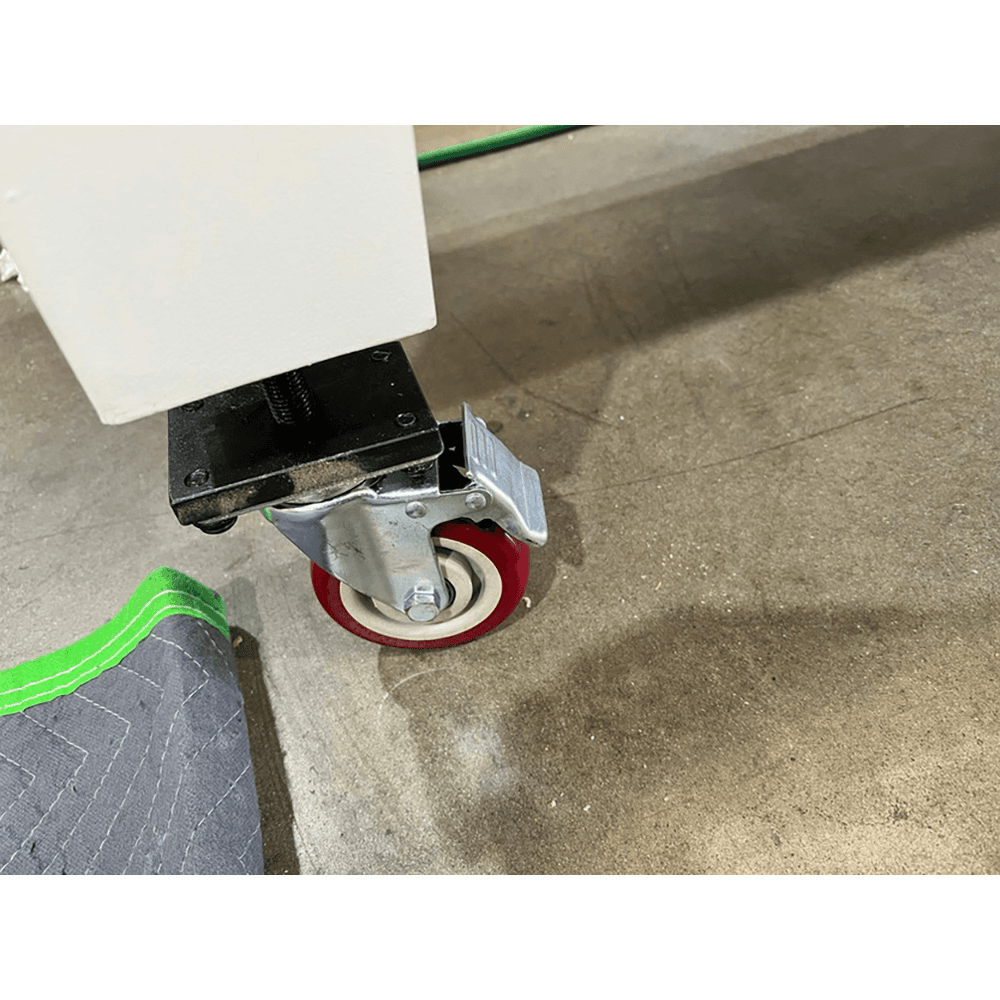

Comes standard with 4" caster wheels with 2 locking wheels so it can be easily moved anywhere in shop. Table Height is adjustable from 35-39". Steel side tables create a U-shaped work cell for efficient handling of parts during processing. Tables fold down to save space when not in use.
Features:

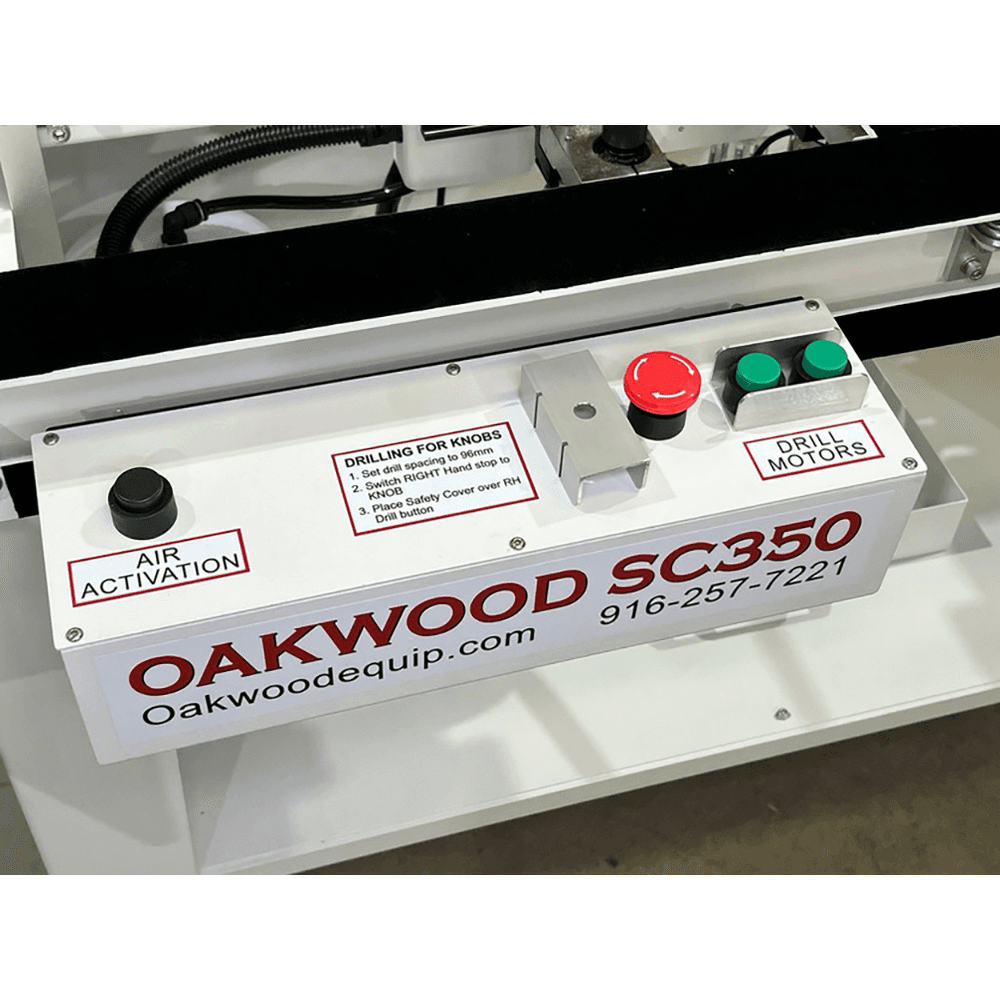

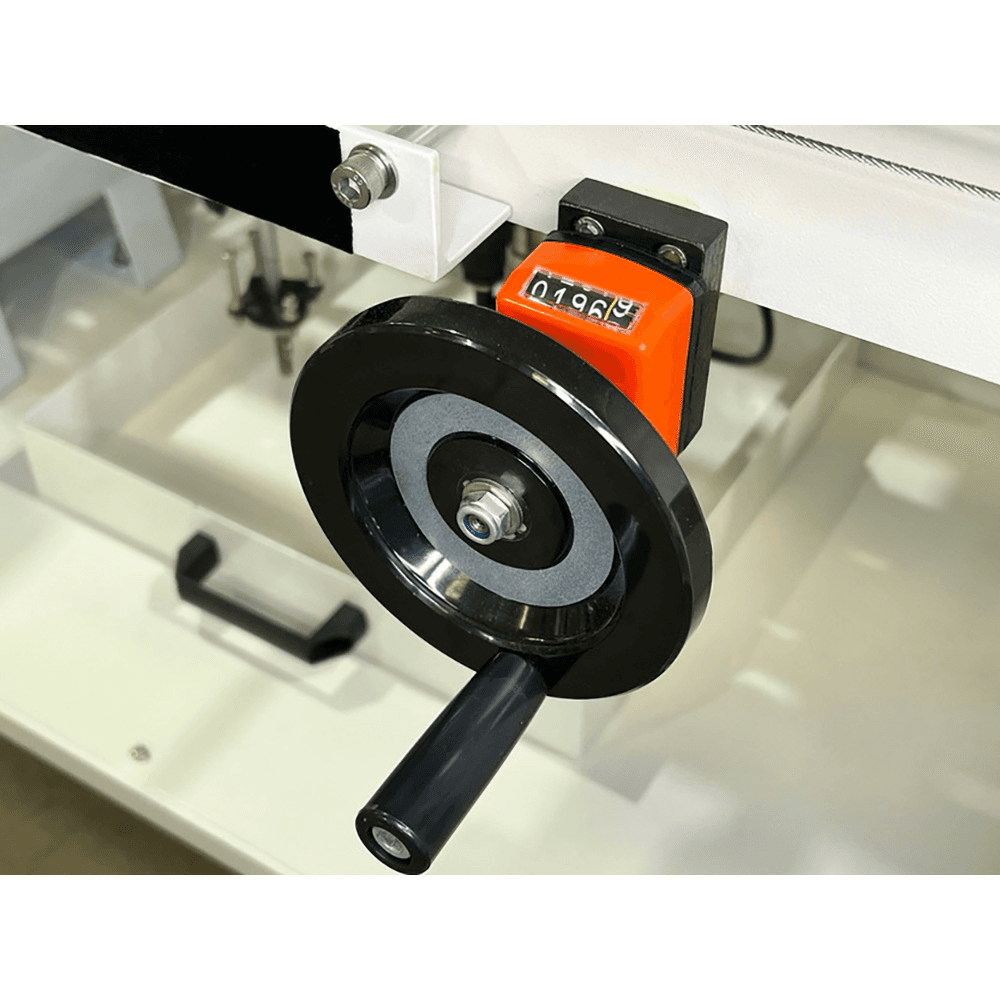

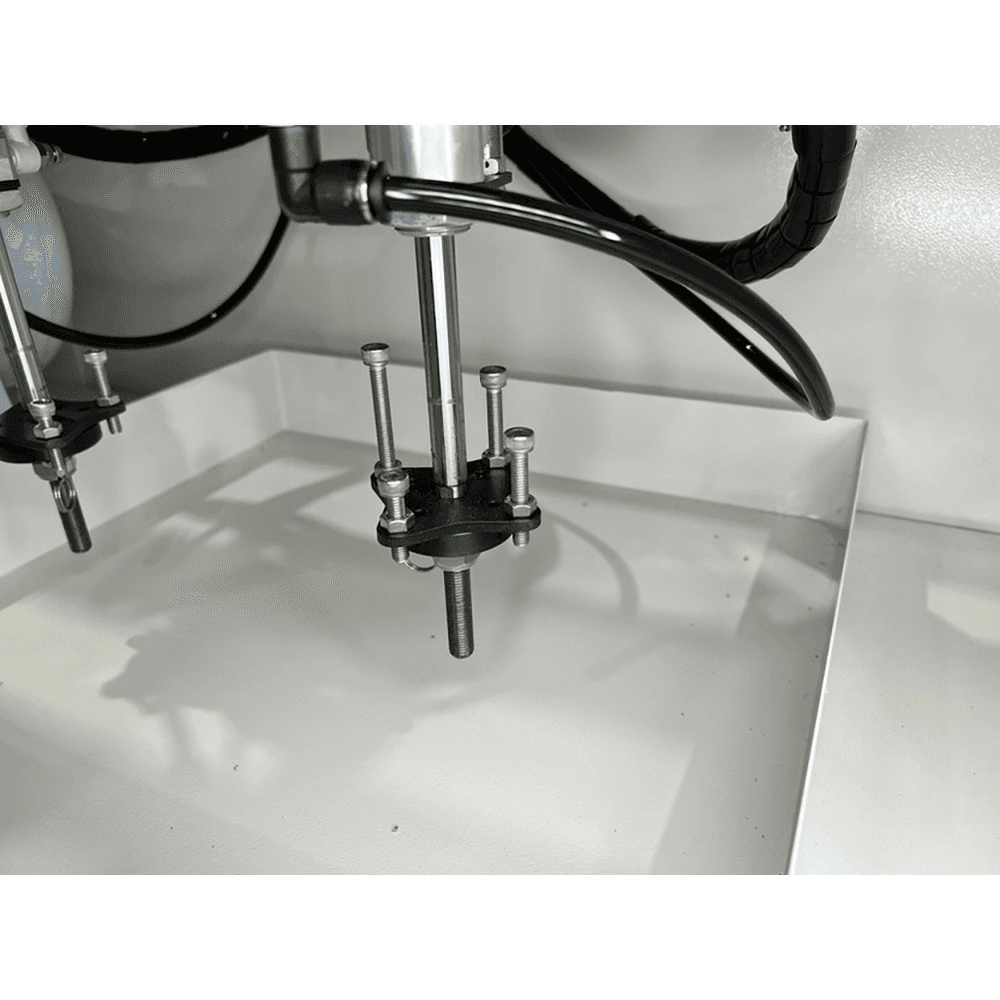

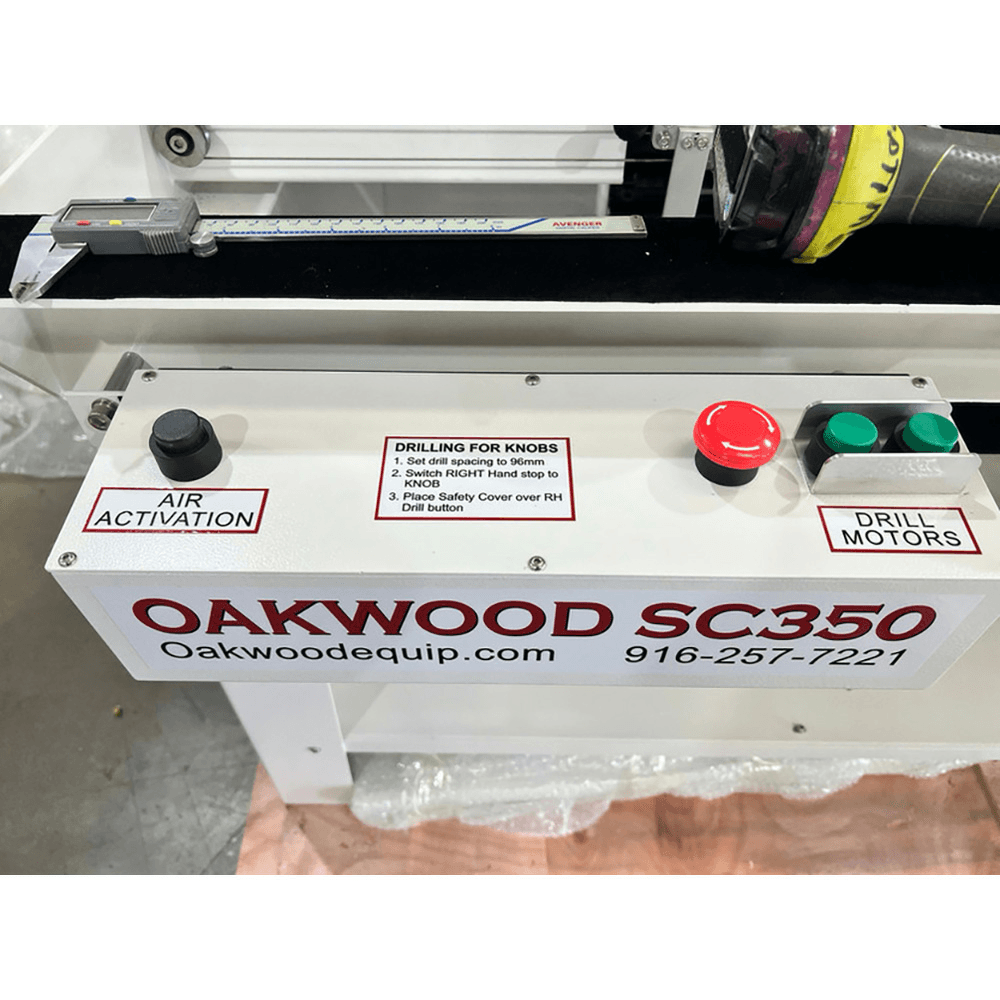

• Self-Centering fence stop system • Part Size 4.5" x 8"w to 14" x 36"w / 115mm x 204mm to 355mm x 914mm • Max drilling thickness 1.5"/39mm • Minimum drawer box inside clearance 8"/210mm when drilling boxes • Center to Center drill spacing 65mm to 350mm/ 2.5" to 13.75" • Back fence to drill center 1" /25mm minimum • Drill spacing adjustable with front mounted wheel with metric digital indicator • 2 air operated drills, each drill operated by its own activation button • Automatic oiler for air drills • 4 position drill depth stops • Movable button console for clearance on larger parts • 2 handed operation for safety • 5mm brad point bits standard • On board air tank with standard compressed air connection • Removable/replaceable hold down drill stop • 4" wheels, 2 with lock • Folding steel side tables • Adjustable height approximate 35"-39"Specifications
| Cross Slide Travel | |
| Spindle Bore | |
| Range of Inch Threads (TPI) | |
| Product Type | Precision Hardware Drilling |
| Motor Voltage (V.) | |
| Motor Power (HP) | |
| Motor Phase | |
| Distance Spindle to Column (Max.) | |
| Distance Between Centers | |
| Tailstock Spindle Travel |
