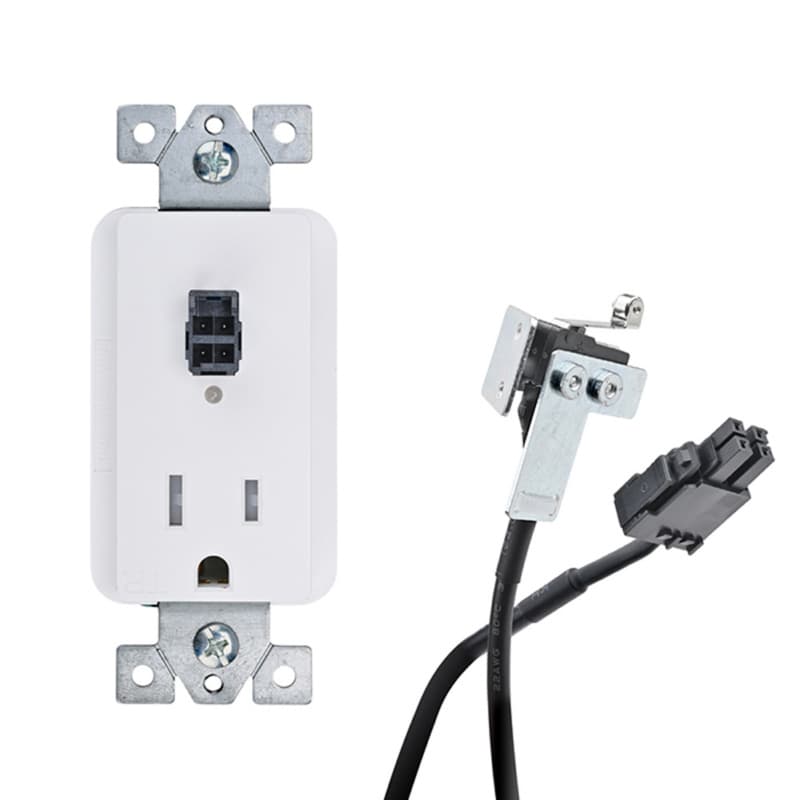

Docking Drawer 15-amp Safety Interlock Outlet with Blade Limit Switch, White

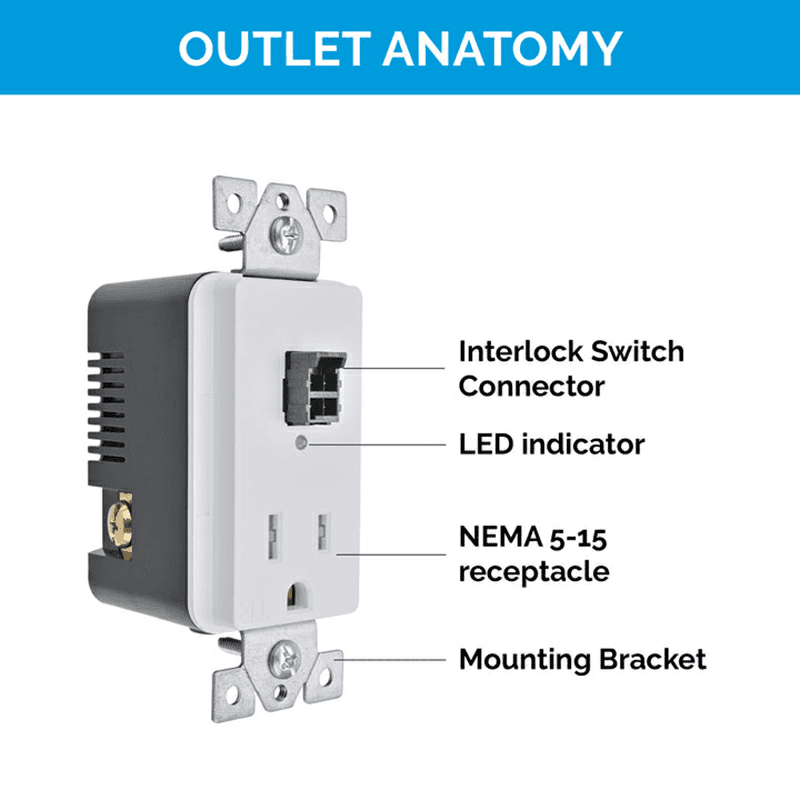

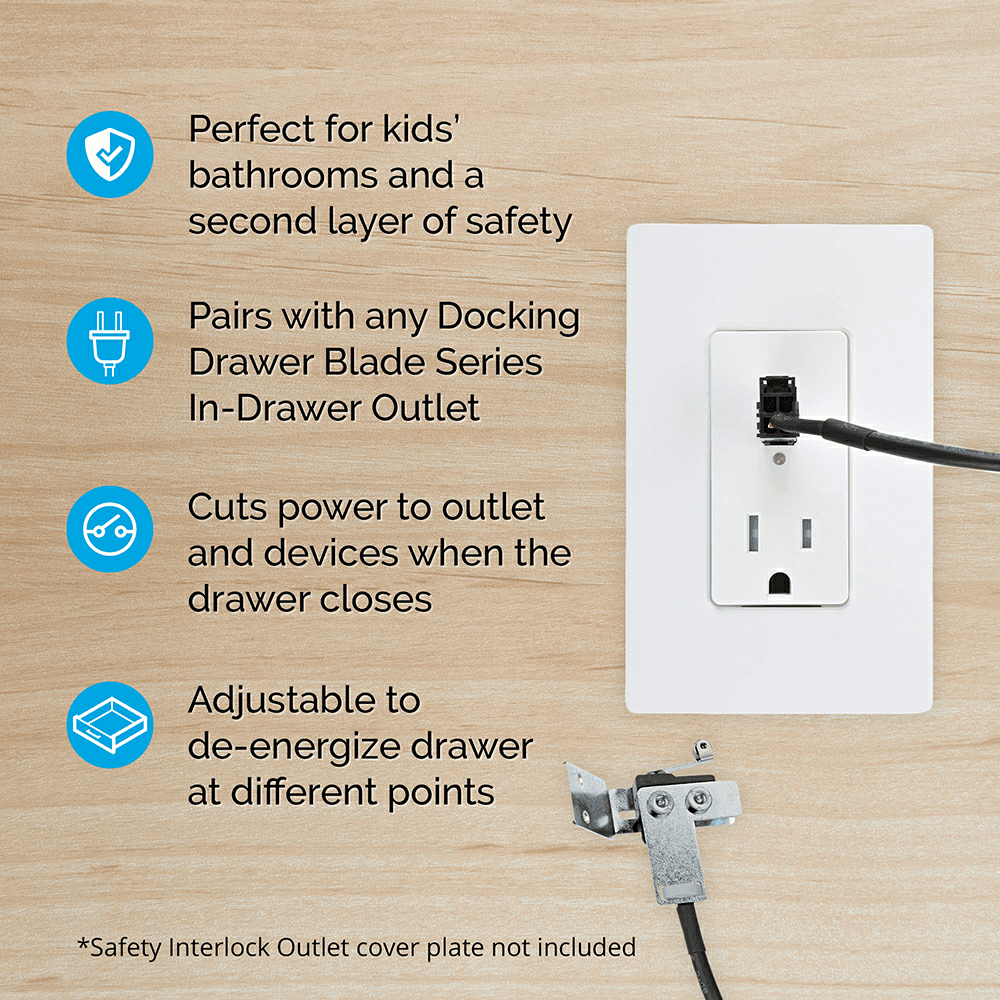

15 amp Safety Interlock Outlet is a single gang electrical outlet featuring one NEMA 5-15 receptacle and one interlock switch connector. Blade Series Limit Switch mounts to any 15 amp Docking Drawer Blade Series outlet to detect the drawer position and will de-energize the outlet when the drawer starts to close.

Features:
• 15-amp safety interlock outlet
• Pairs with any 15-amp Docking Drawer blade outlet

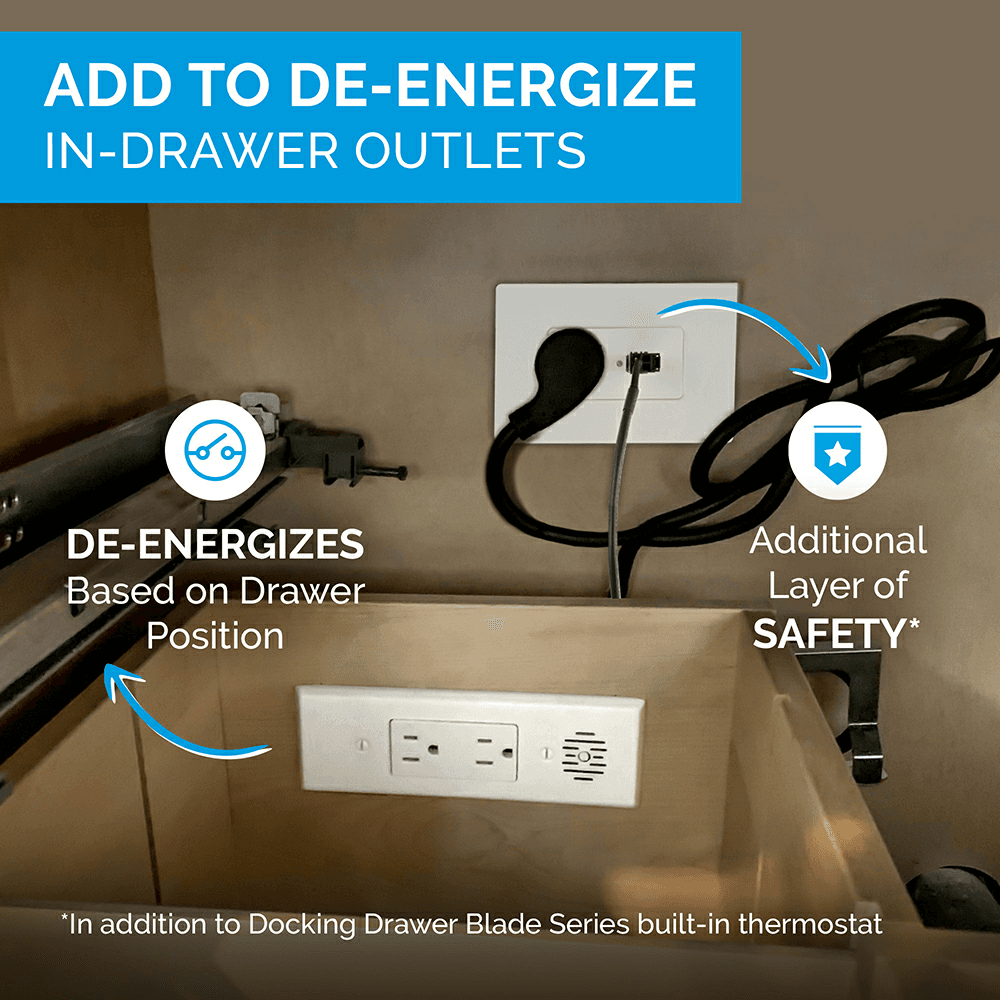

• Provides an additional layer of safety for in-drawer power, guaranteeing devices are never left powered on inside the drawer box

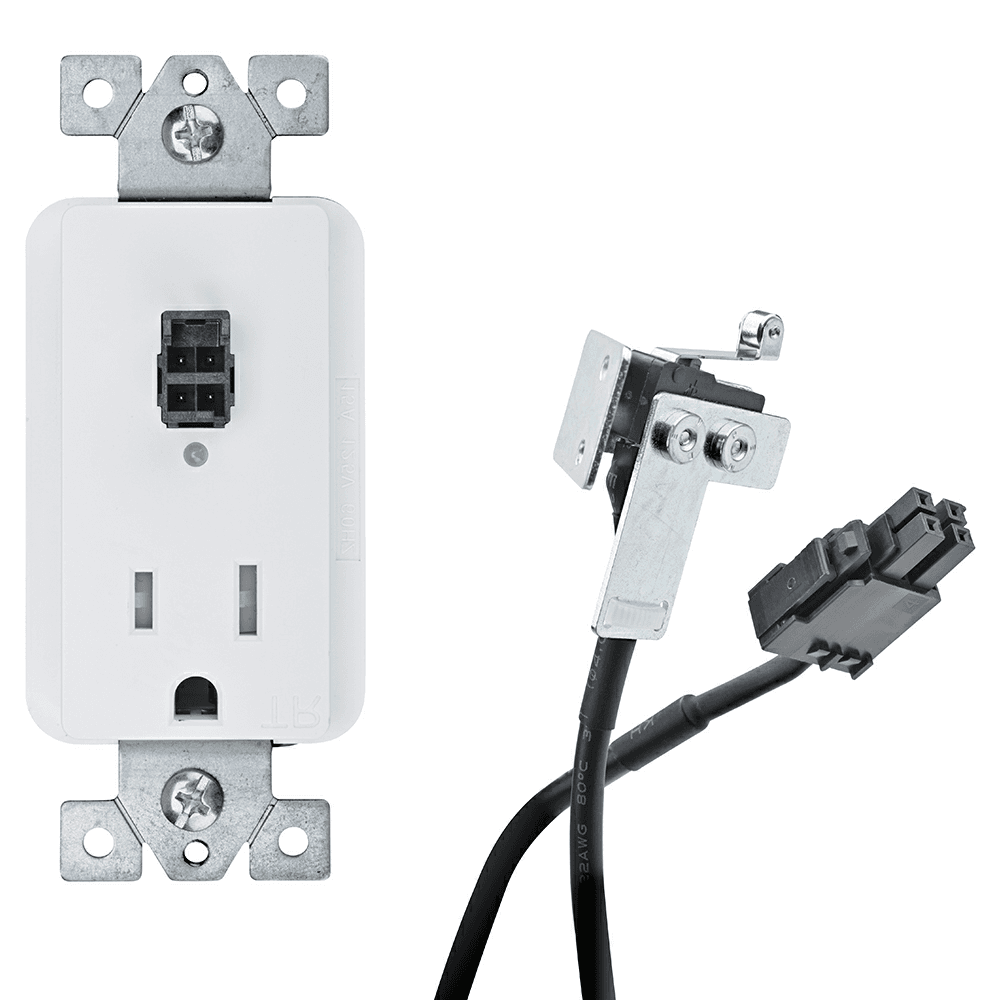

• Product includes (1) Safety Interlock Outlet and (1) Blade limit switch

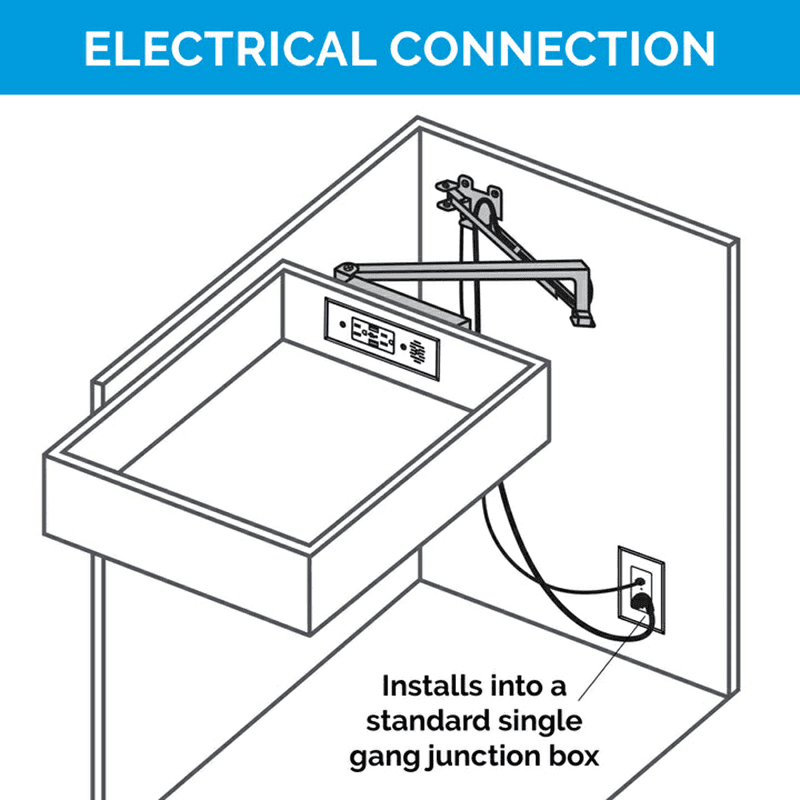

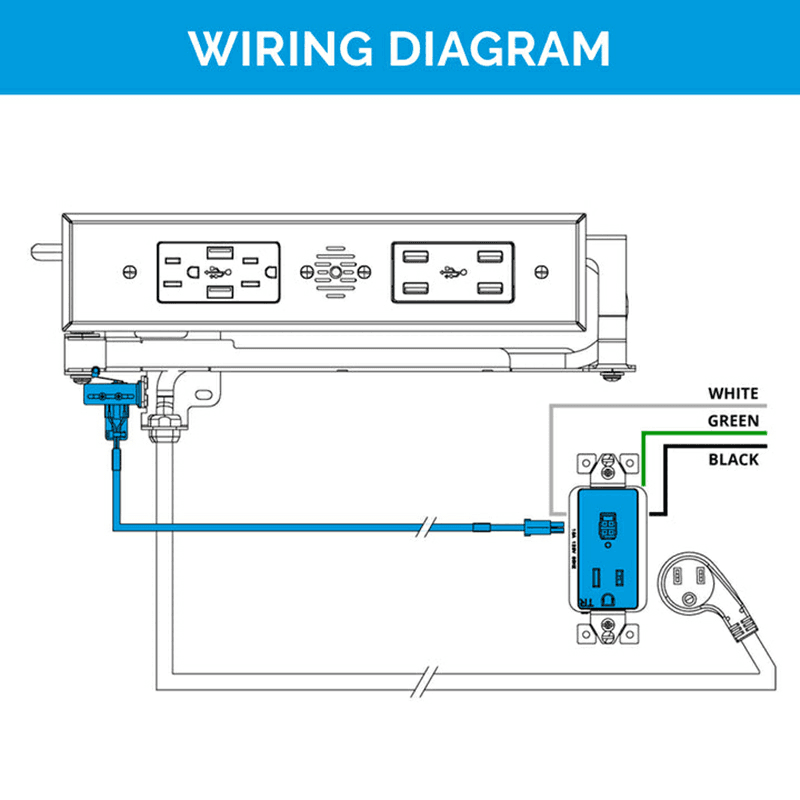

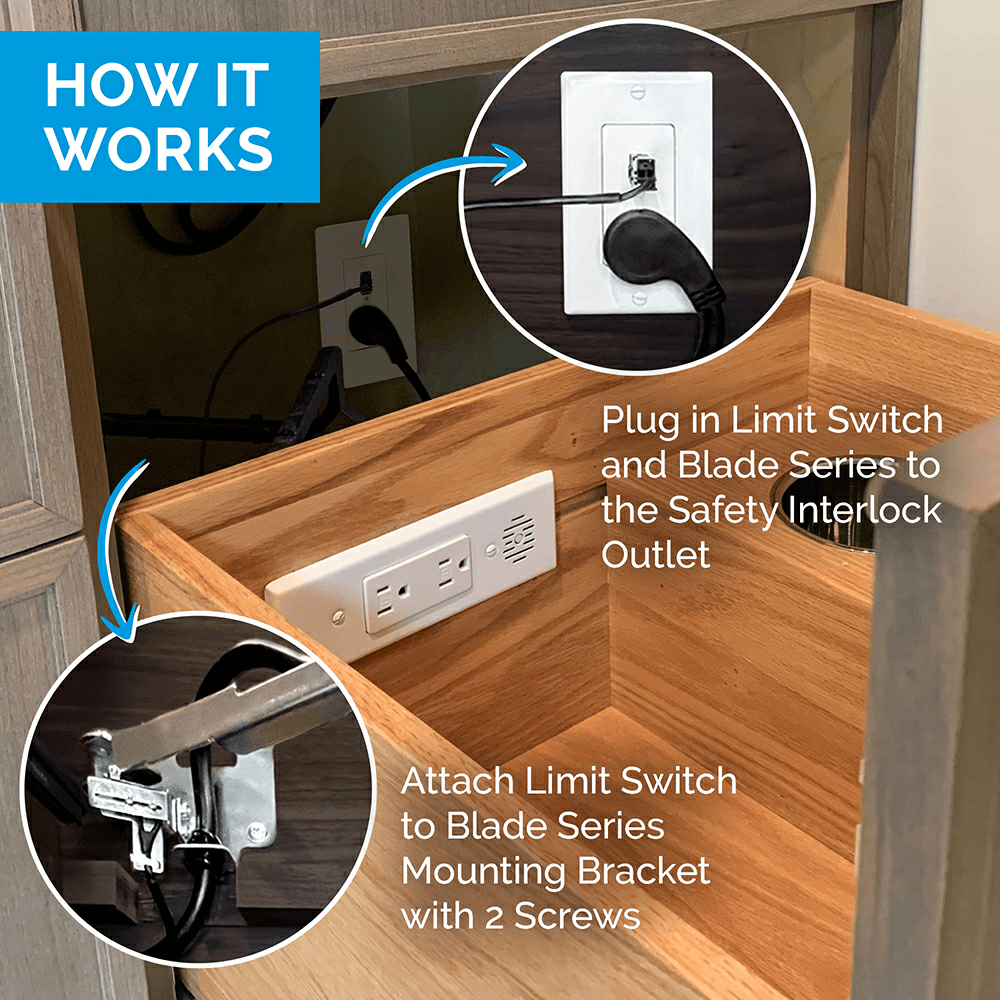

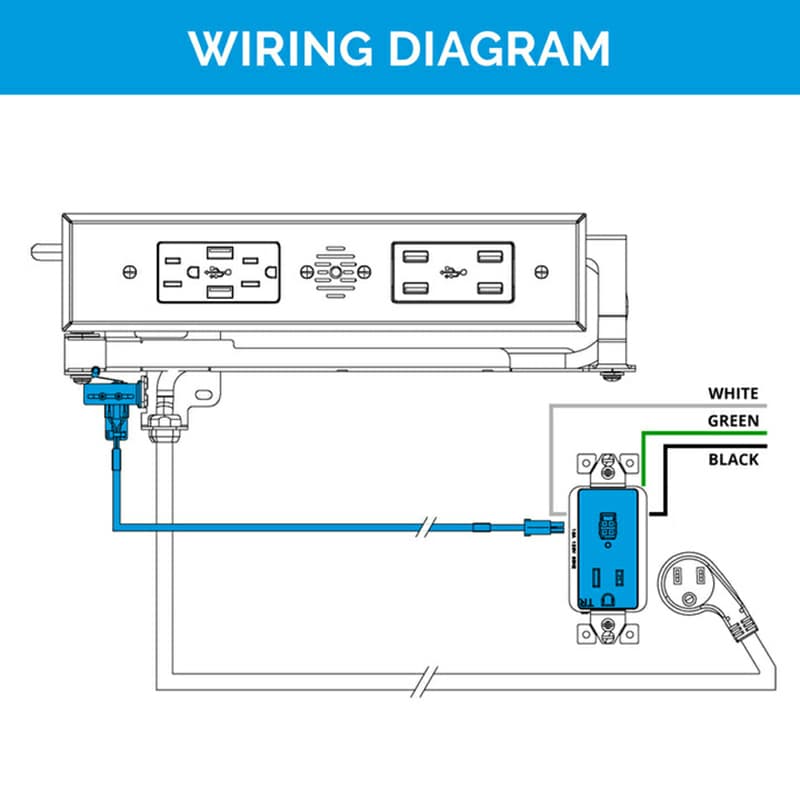

• The Safety Interlock Outlet replaces the single gang junction box that will power your Docking Drawer outlet, while the limit switch detects the drawer™s position and de-energizes the Docking Drawer outlet as the drawer begins to close
• ETL Listed, NEC and CEC compliant solution

15-amp Outlet Specifications:
• Input: 100 - 125 VAC, 50/60 Hz
• AC Output: 15A@125VAC, 1875 VA MAX, 1/2 HP
• DC Output: 24VDC @ 100mA MAX
• DC Power Supply: IEC Class II
• Number of Receptacles: (1) NEMA 5-15R
• Tamper Resistant
• LED Indicator

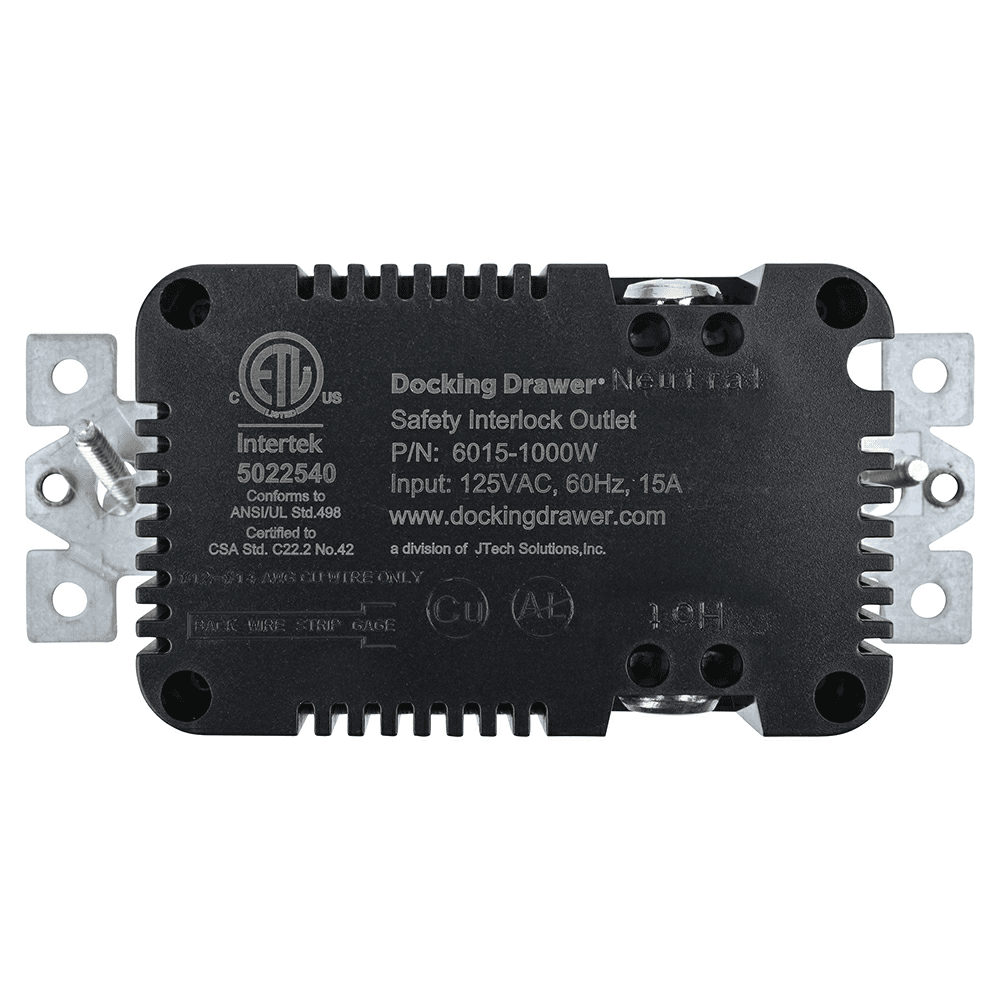

• Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
• Environmental: -10C to +50C, non condensing
• 2 Years Warranty

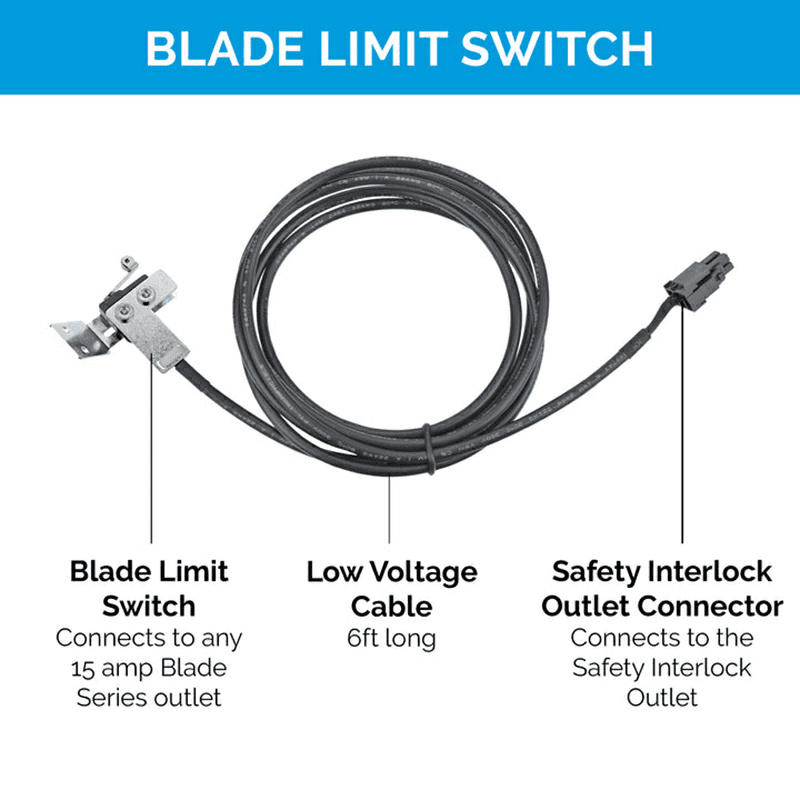

Limit Switch Specification:
• Type of Limit Switch: blade Limit Switch
• Limit Switch Cable: 6 ft low voltage cable

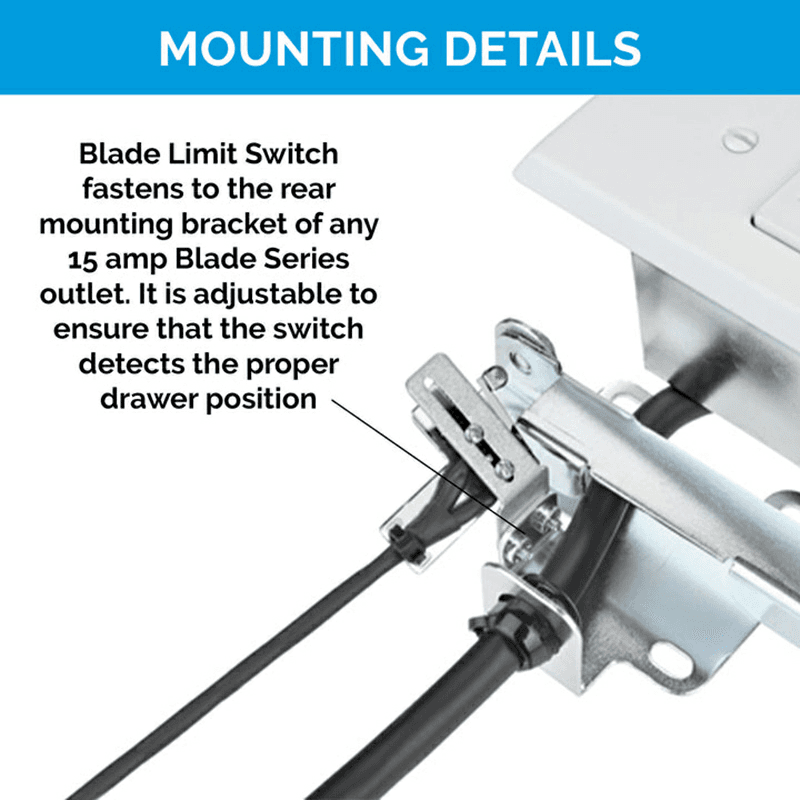

• Mounting Details: Fastens to the rear mounting bracket of any 15-amp blade outlet
• Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
