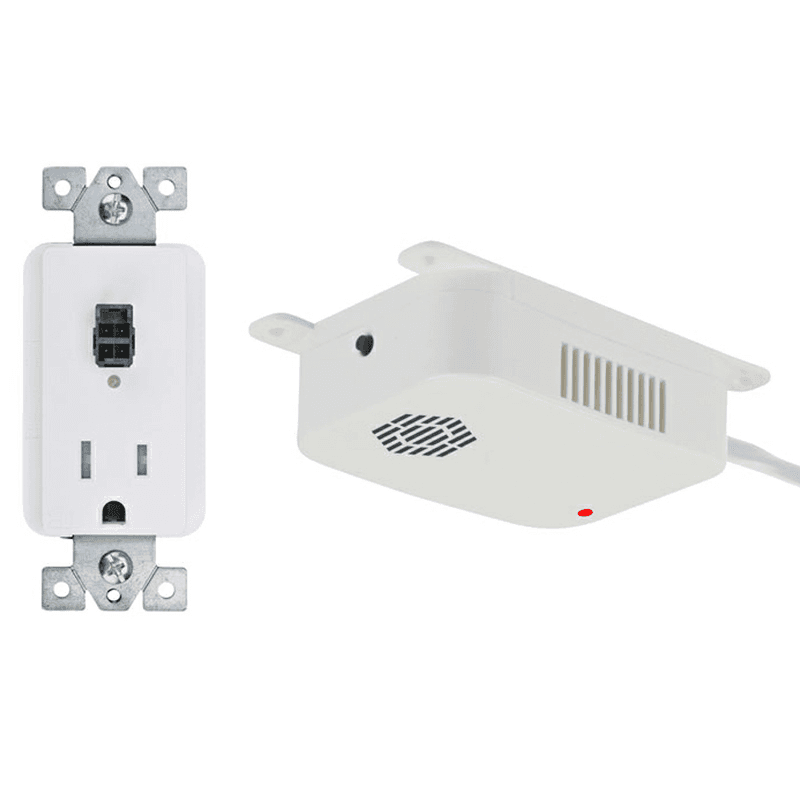

Docking Drawer 15-amp Fire Guard Outlet, White

Features:
• 15-amp Fire guard outlet in white finish
• Proactive protection
• Simple installation
• Versatile application

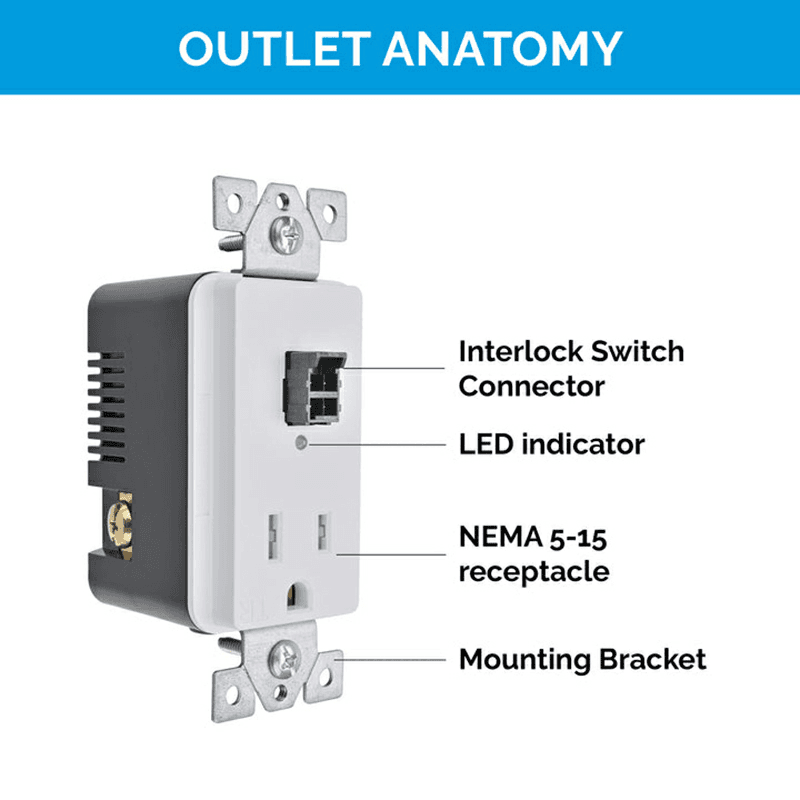

15-amp Outlet Specifications:
• Input: 100 - 125 VAC, 50/60 Hz
• AC Output: 15A@125VAC, 1875 VA MAX, 1/2 HP
• DC Output: 24VDC @ 100mA MAX
• DC Power Supply: IEC Class II
• Number of Receptacles: (1) NEMA 5-15R
• Tamper Resistant: Yes
• LED Indicator: Yes
• Conformance: UL60730, UL498, EN61558, EN60730, EN62386, CSA C22.2#42
• Environmental: -10C to +50C, non condensing
• 2 Years Warranty

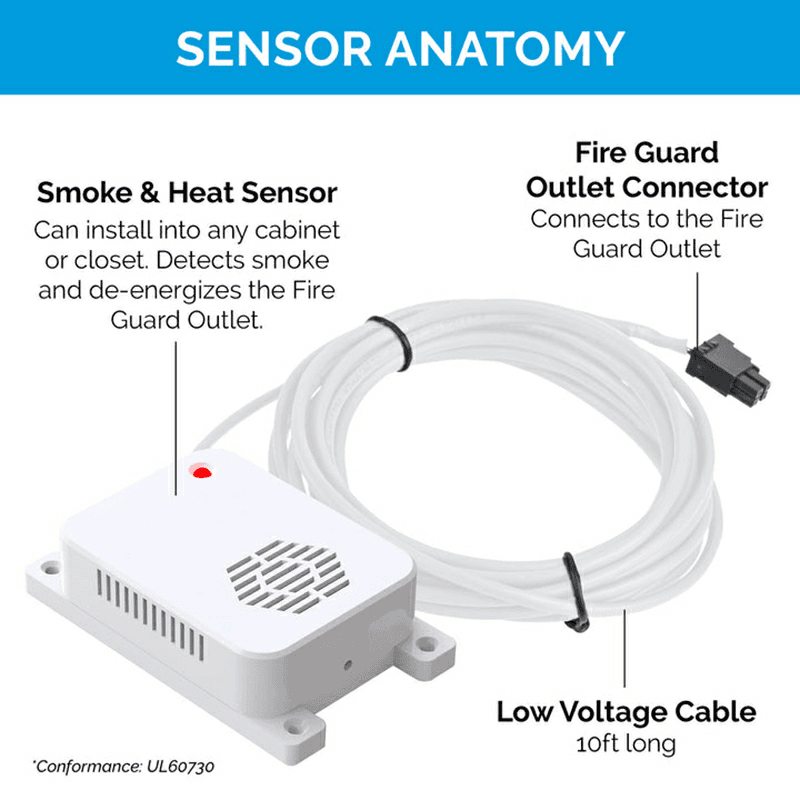

Sensor Specifications:

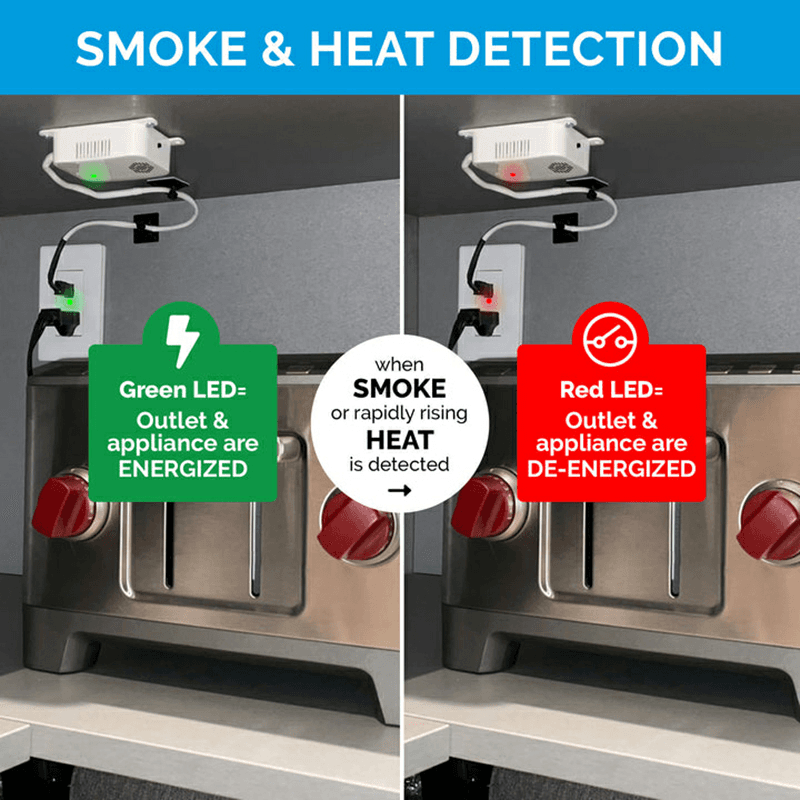

• Type of Sensor: Smoke and Heat Sensor
• Cable: 10 ft low voltage cable
• Sensor Length: between mounting holes: 3.4" (86.1mm)
• Sensor Width: between mounting holes: 1.8" (46.5mm)
• Sensor Height: 1" (25.4mm)
• Smoke Sensitivity: 1.06 ± .26% per foot

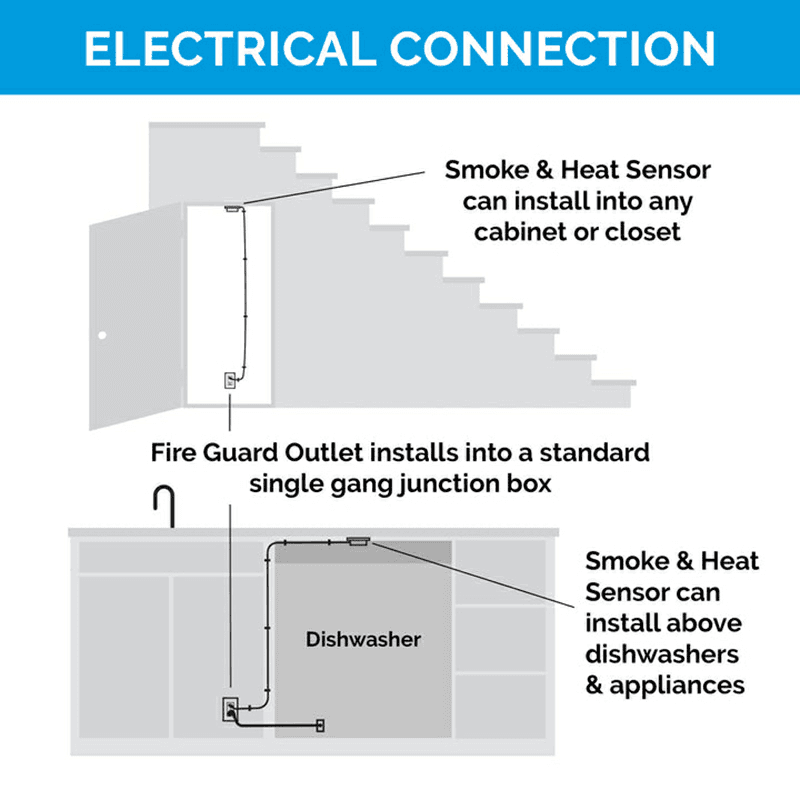

• Mounting Details: Use 4 screws to mount near the appliance or device that will generate smoke or heat, positioning as high up as possible or above the smoke or heat source
• Audible Alarm: Yes
• LED: Yes
• Temperature Alarm: Fixed set point 54°C ± 2°C (129°F ± 4°F) and ≥10°C (18°F) per minute temperature rise
• Conformance: UL/CSA 60730-2-9 (control and heat sensing only). The smoke sensing function is not listed to any UL or CSA standard. This product cannot be used as a substitute for a Listed smoke alarm or smoke detector as required by code.
• 2 Years Warranty
