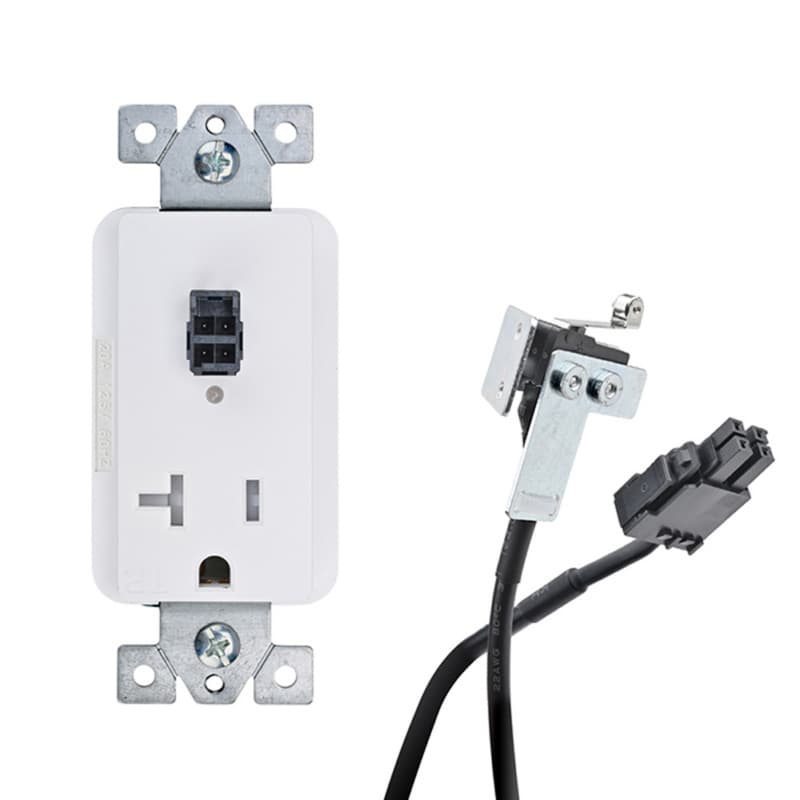

Docking Drawer 20-amp Safety Interlock Outlet with Blade Limit Switch, White

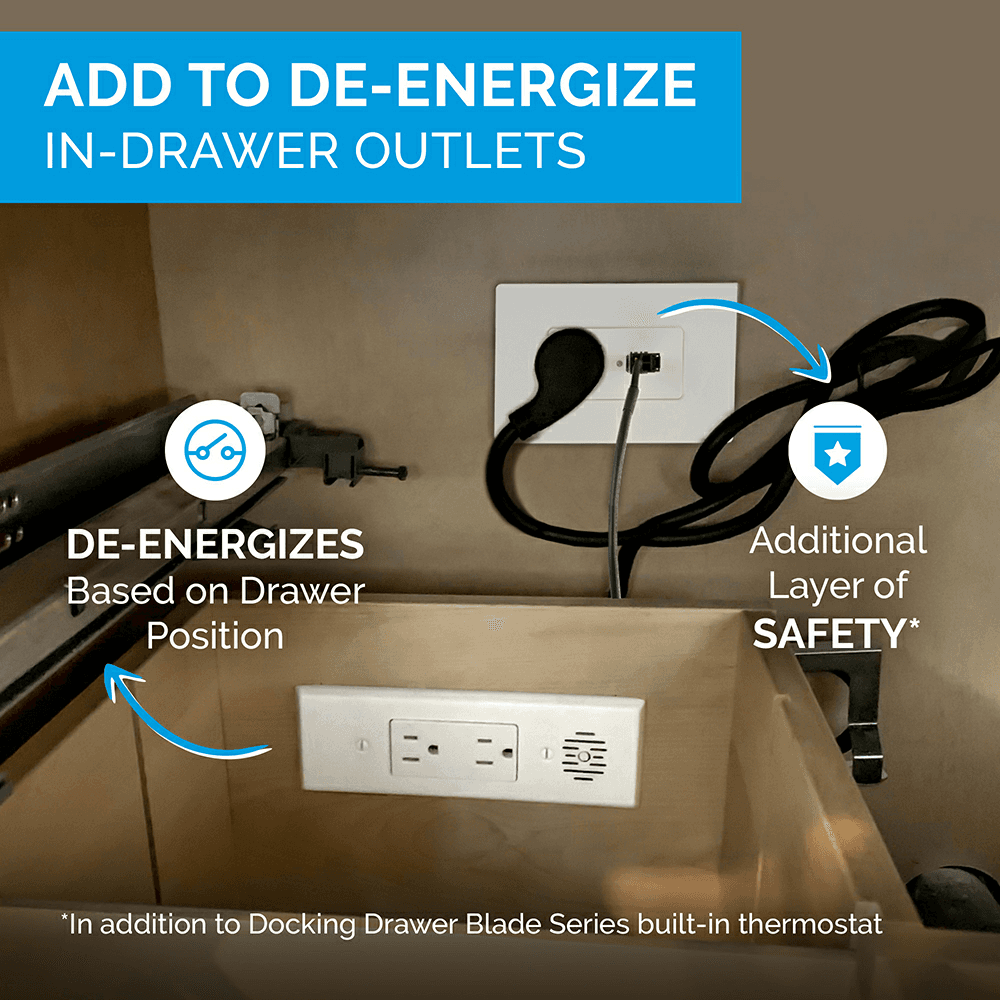

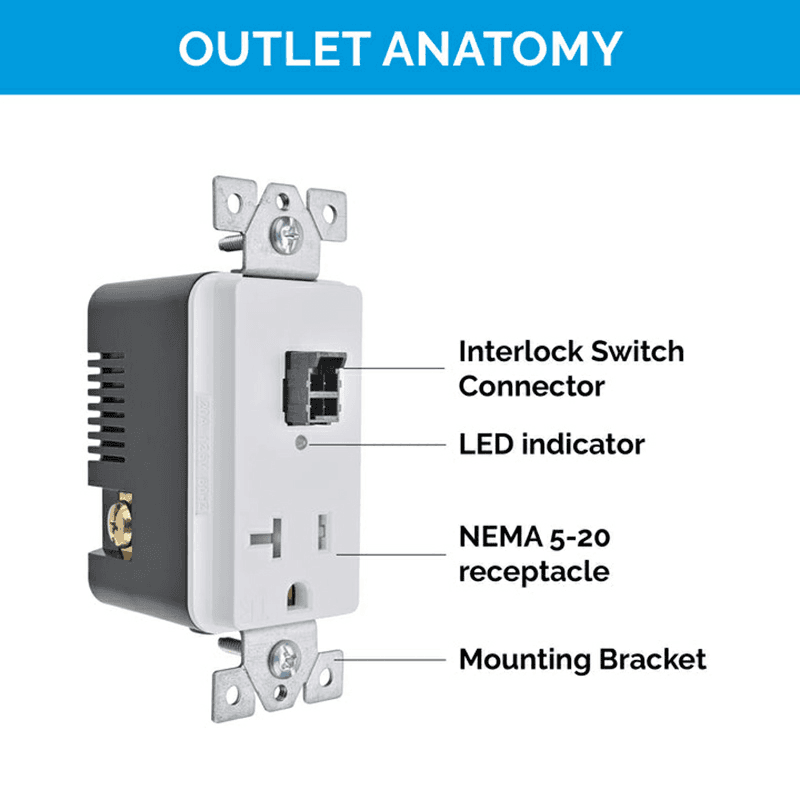

20 amp Safety Interlock Outlet is a single gang electrical outlet featuring one NEMA 5-20 receptacle and one interlock switch connector. Blade Series Limit Switch mounts to any 20 amp Docking Drawer Blade Series outlet to detect the drawer position and will de-energize the outlet when the drawer starts to close.

Features:
• 20-amp safety interlock outlet with blade limit switch

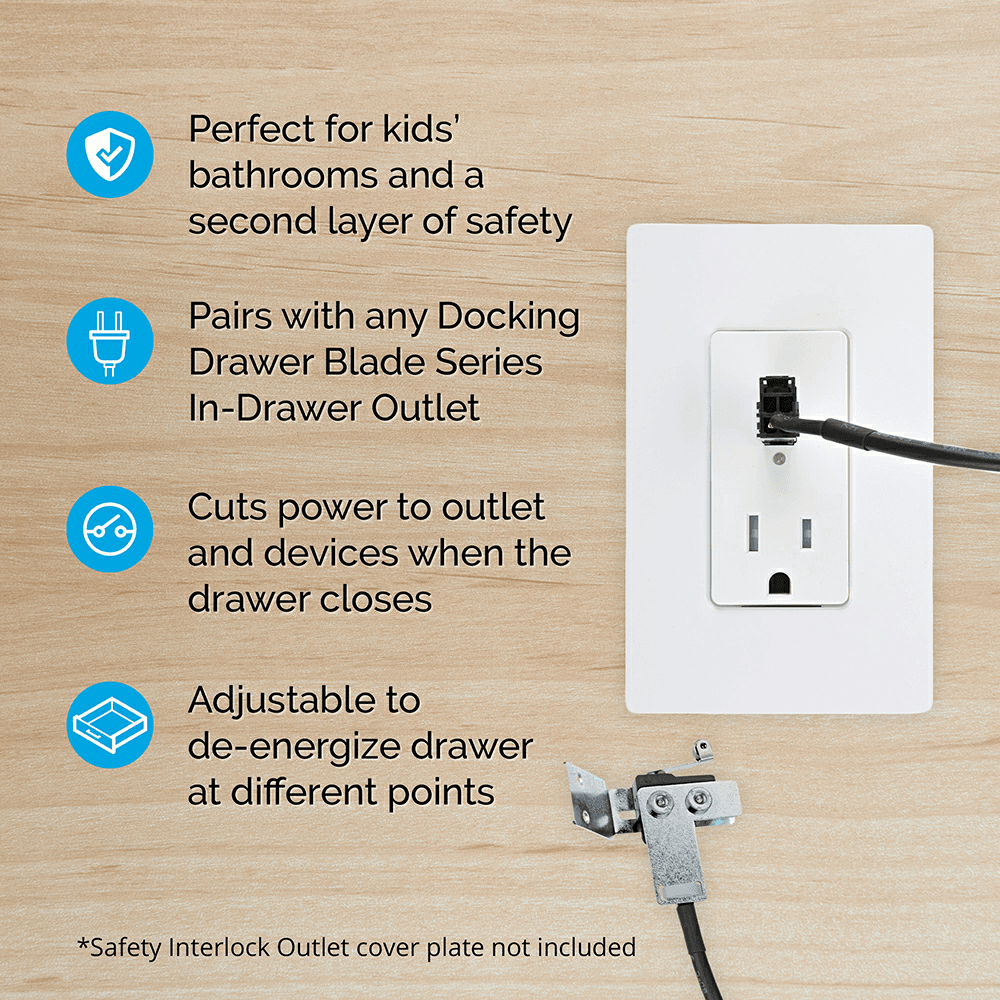

• Pairs with any 20-amp Docking Drawer blade outlet
• Provides an additional layer of safety for in-drawer power, guaranteeing devices are never left powered on inside the drawer box

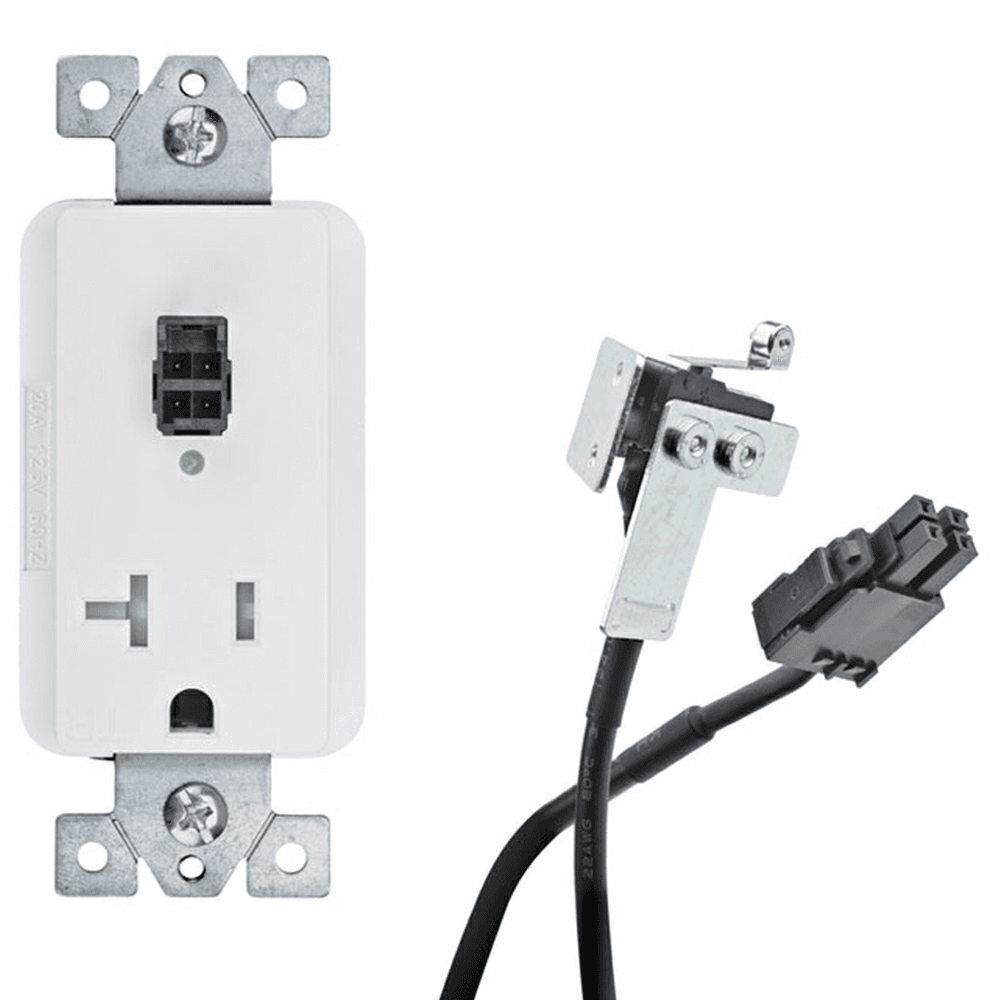

• Product includes (1) Safety Interlock Outlet and (1) Blade limit switch

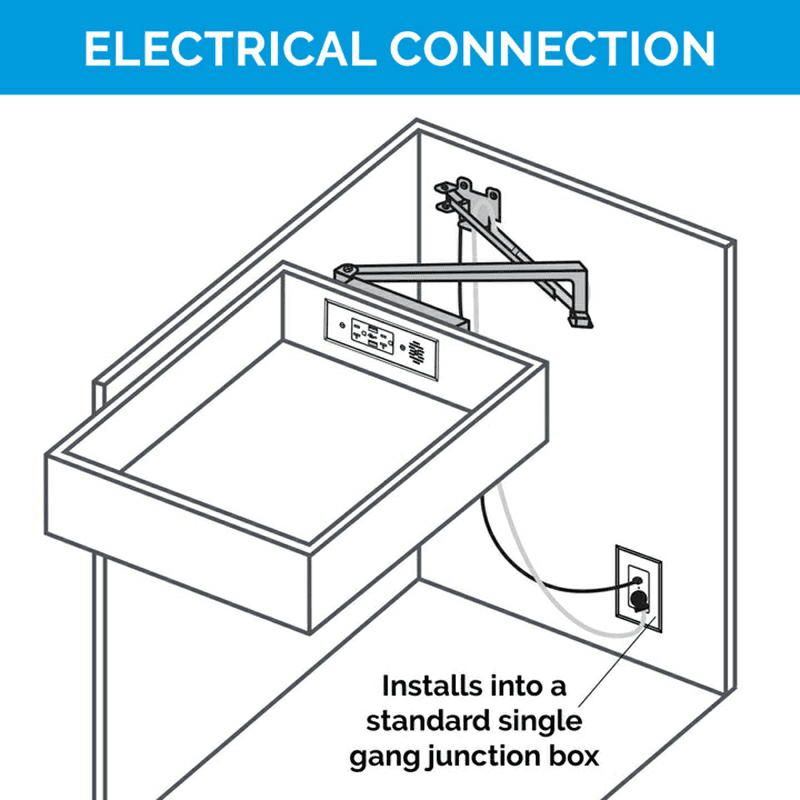

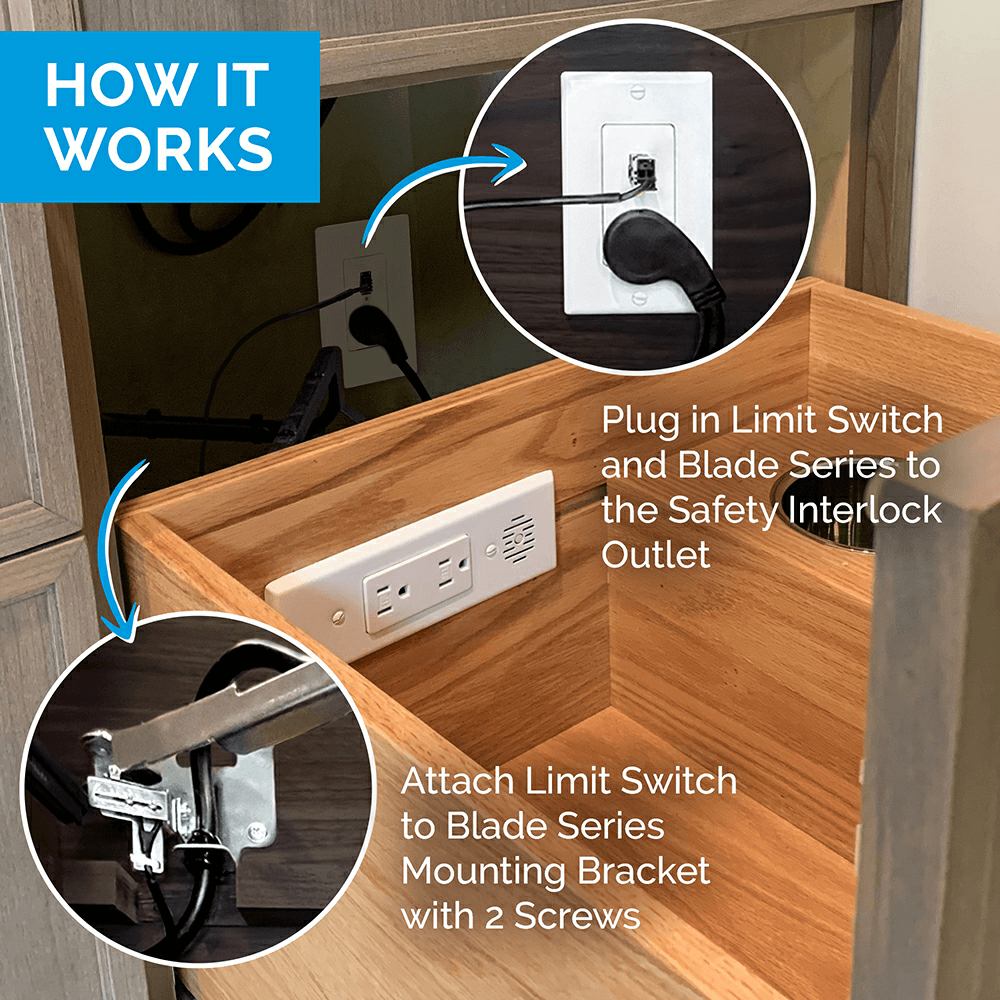

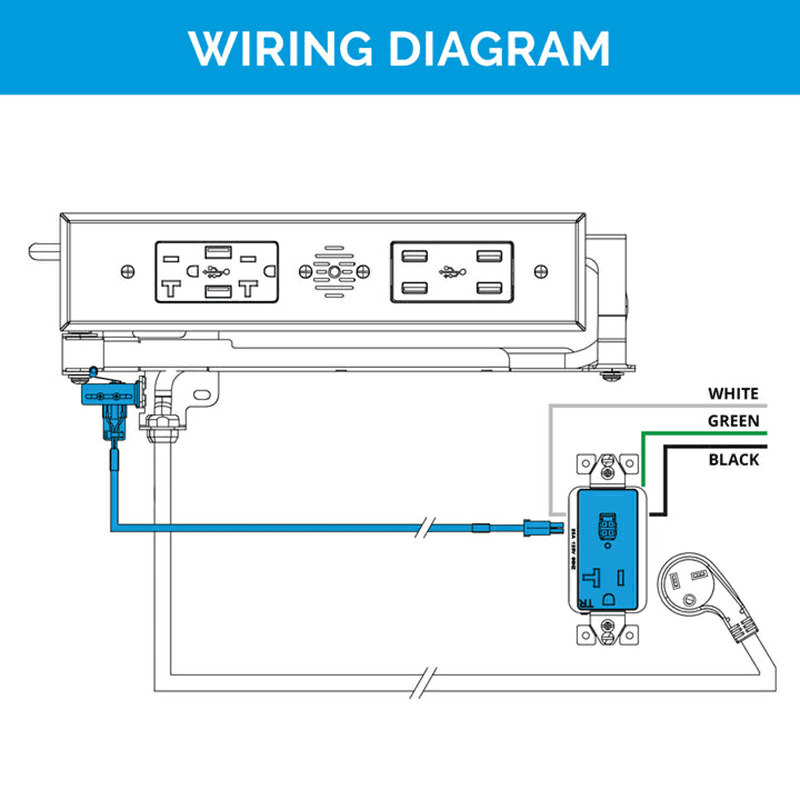

• The Safety Interlock Outlet replaces the single gang junction box that will power your Docking Drawer outlet, while the limit switch detects the drawer’s position and de-energizes the Docking Drawer outlet as the drawer begins to close
• ETL Listed, NEC and CEC compliant solution

20-amp Outlet Specifications:
• Input: 100 - 125 VAC, 50/60 Hz
• AC Output: 20A@125VAC, 2500 VA MAX, 1/2 HP
• DC Output: 24VDC @ 100mA MAX
• DC Power Supply: IEC Class II
• Number of Receptacles: (1) NEMA 5-20R
• Tamper Resistant: Yes
• LED Indicator: Yes
• Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
• Environmental: -10C to +50C, non condensing
• 2 Years Warranty

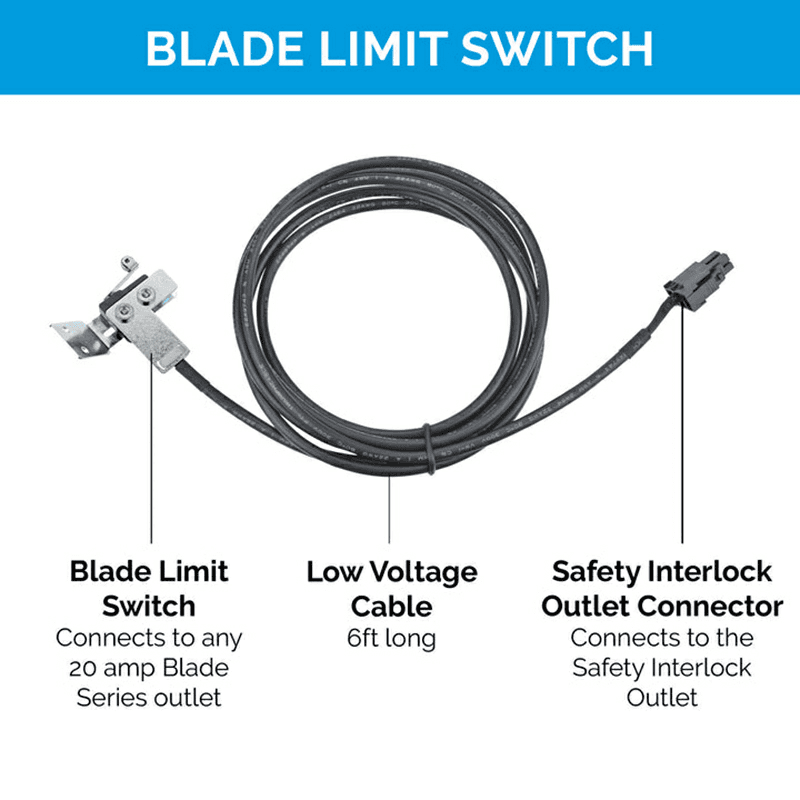

Limit Switch Specification:
• Type of Limit Switch: blade Limit Switch
• Limit Switch Cable: 6 ft low voltage cable
• Mounting Details: Fastens to the rear mounting bracket of any 15-amp blade outlet
• Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
