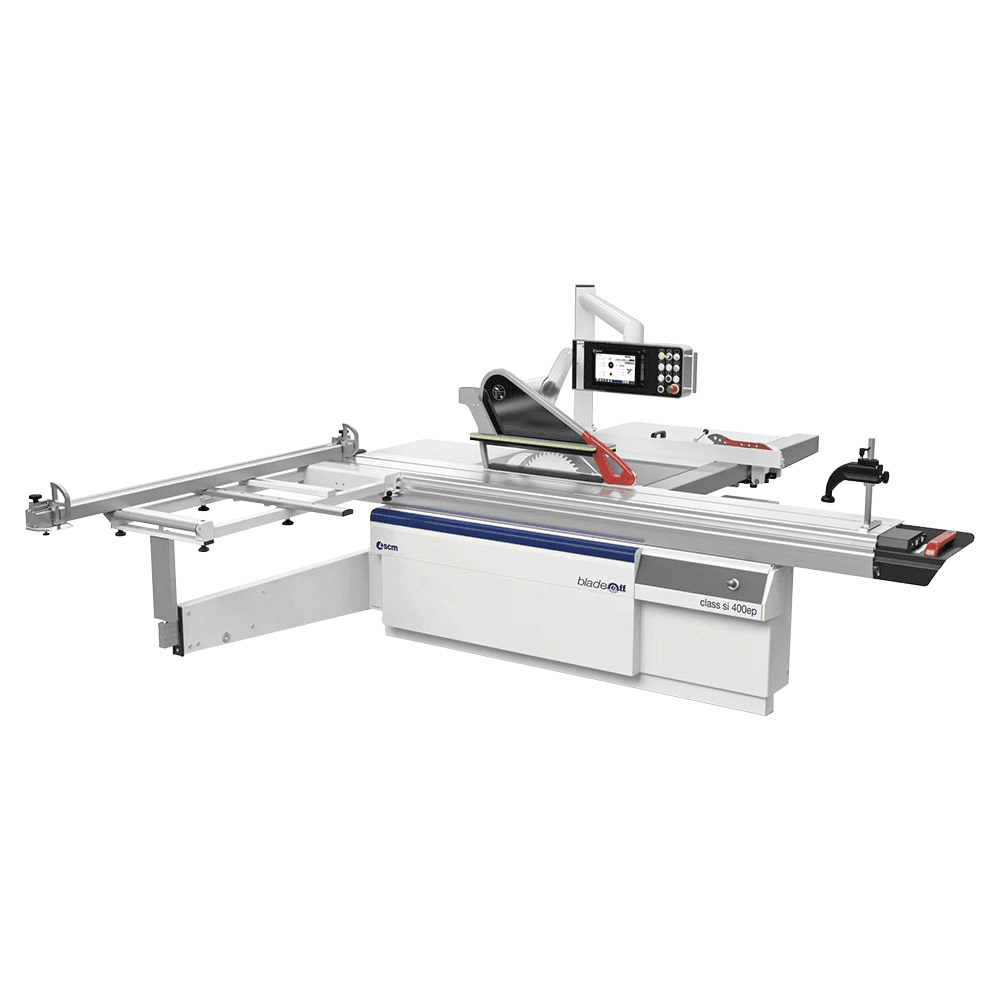

Class SI 400EP Blade Off Sliding Table Saw
This item may incur additional shipping costs and lead times.
Product Details
The blade off system prevents any accidental contact with the blade thanks to an intelligent system that using smart sensors, can recognise the human body and trigger the system even before the operator gets too close to the blade, protecting the danger zone around it, at all times and in all environmental conditions. The system automatically excludes the blade in a rapid, repeatable and non-distructive way, activating in a few milliseconds, avoiding contact between the blade cutting edge and the human body even at high feed speeds of up to 2 m/s. Moreover, in the event of an intervention, the system can be rearmed without affecting the accuracy and the performance of the machine. Advantages: Smart Solution: • Due to the detection type, blade off activates regardless of the hand position and any other part of the human body inside the danger zone • The system operates despite of the personal protective equipment the operator wears; in fact, it also performs perfectly with any type of glove worn Saftey and Ergonomics: • The new system for circular saws is the innovative technological solution designed by SCM to work in total safety • The essential design ensures movement freedom related to overall dimensions and aesthetics impact Repeatability and Reliability Over Time: • The system provides the possibility of quick reset without compromising the machine quality and stability over time. Expanded Protection: • The protection is guaranteed on the 3 areas next to the blade (work-piece infeed and side areas) to prevent any possible contact even caused by inappropriate or accidental movements. Technical Data: • Squaring Capacity with 2200mm Carriage: 2200 x 3200mm • Squaring Capacity with 3200mm Carriage: 3200 x 3200mm • Squaring Capacity with 3800mm Carriage: 3800 x 3200mm • Main Blade Rotating Speed (with standard inverter): 3000 ÷ 5000 RPM • Scoring Blade Rotating Speed: 8500 RPM
Specifications
| Box Quantity | 1 |
| Product Type | Sliding Table Saw |
| Maximum Cutting Length | |
| Table Height | |
| Height | |
| Width | |
| Number of Teeth | |
| Length | |
| Horsepower | |
| Voltage | |
| Blade Diameter | |
| Arbor | |
| Phase | |
| Maximum Tilt | |
| Table Size (In.) | |
| Table Height from Floor (In.) | |
| Style | |
| Distance Between Sliding Table and Blade (In.) | |
| Prewired Voltage (V.) | |
| Maximum Diameter of Dado (In.) | |
| Speed | |
| Maximum Rip Left of Blade (In.) | |
| Maximum Width of Dado (In.) | |
| Motor Power | 9/1.3 kW |
| Saw Blade Diameter | |
| Table Type | |
| Maximum Rip Right of Blade (In.) | |
| Motor Voltage (V.) | |
| Dust Port Outside Diameter (In.) | |
| Miter Gauge Type | |
| Table Size with Full Extensions (In.) | |
| Table T-Slot (In.) | |
| Motor Phase | |
| Arbor Diameter (In.) | |
| Recommended Circuit Size (Amps.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Motor Current (Amps) | |
| Table Size with Extensions (In.) | |
| Maximum Depth of Cut at 90 Degrees (In.) | 120mm |
| Maximum Depth of Cut at 45 Degrees (In.) | 89mm |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | |
| Warranty | |
| Cutting Height | |
| Main Saw Blade Change | |
| Saw Blade Thickness | |
| Cutting Width | 1500mm |
| Sliding Table Length | |
| Control | Push-Button |
| Display Resolution | |
| Control Panel | Mobile |
| Cutting angle/height | |
| Cutting Width Control | |
| Extraction Connection | |
| Saw Blade Tilting Range |
