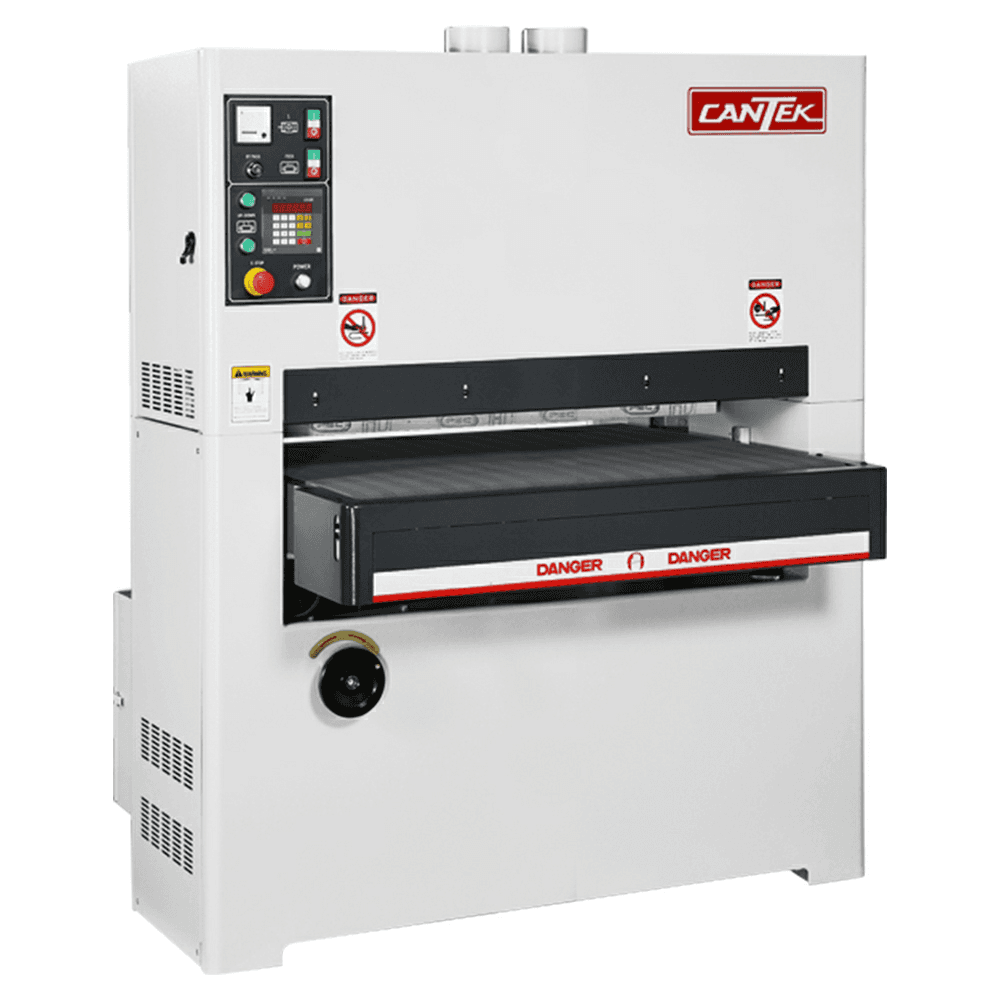

Cantek S431 44" x 60" Wide Belt Sander 3PH 20HP
Product Details

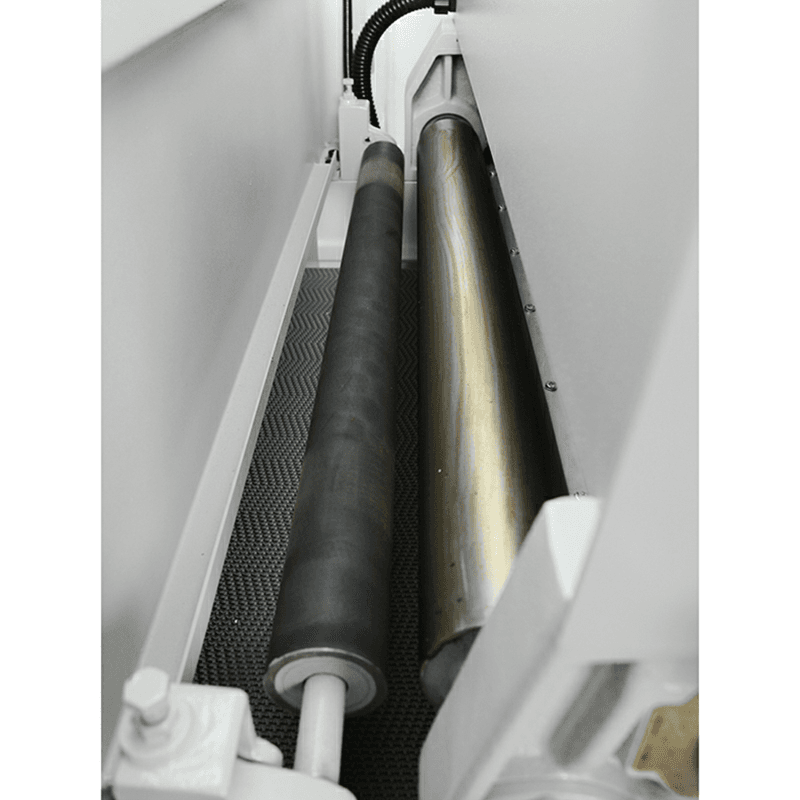

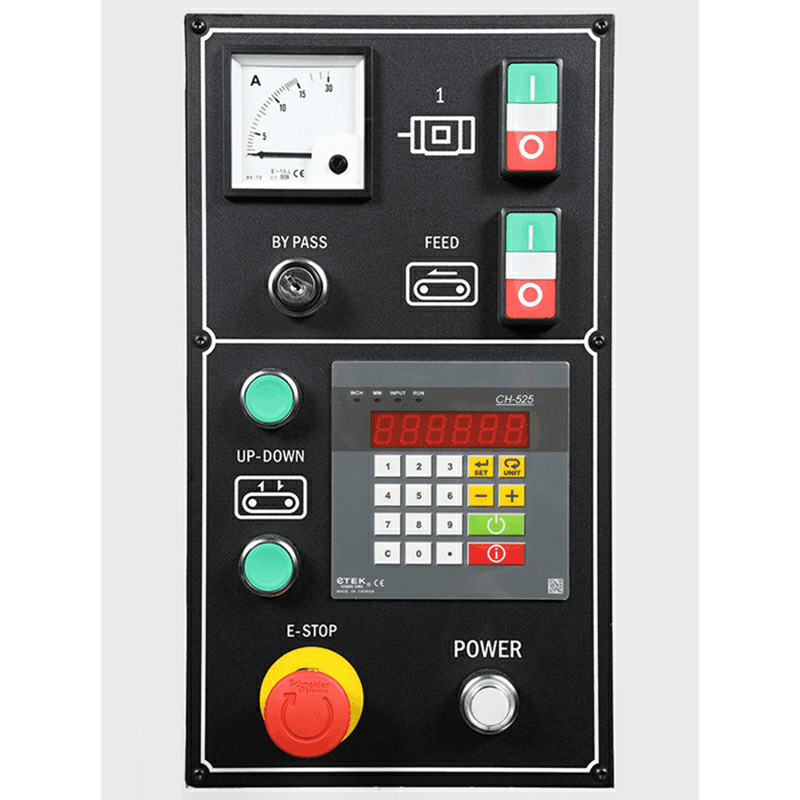

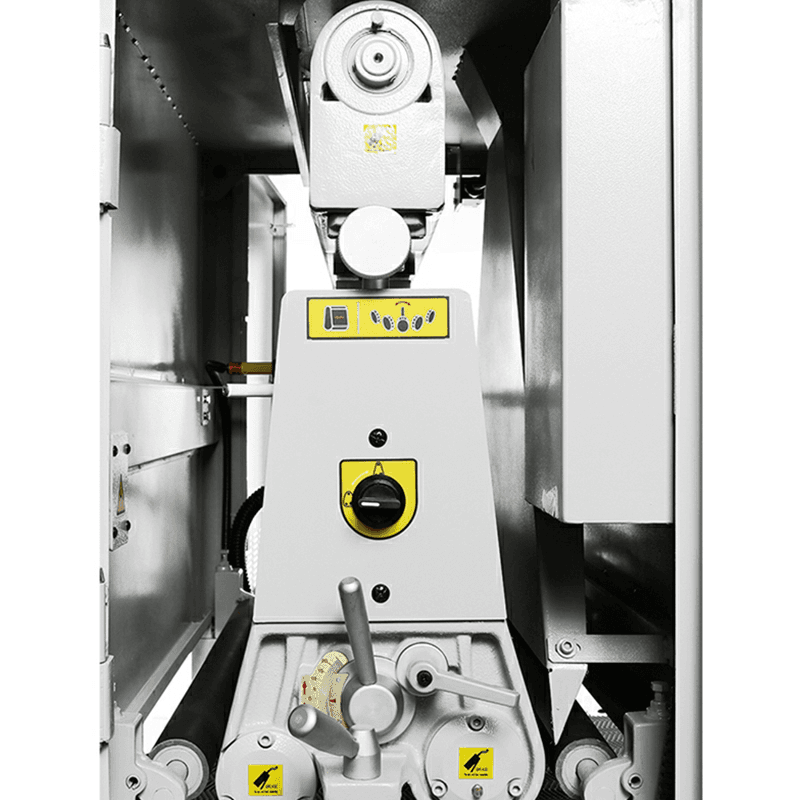

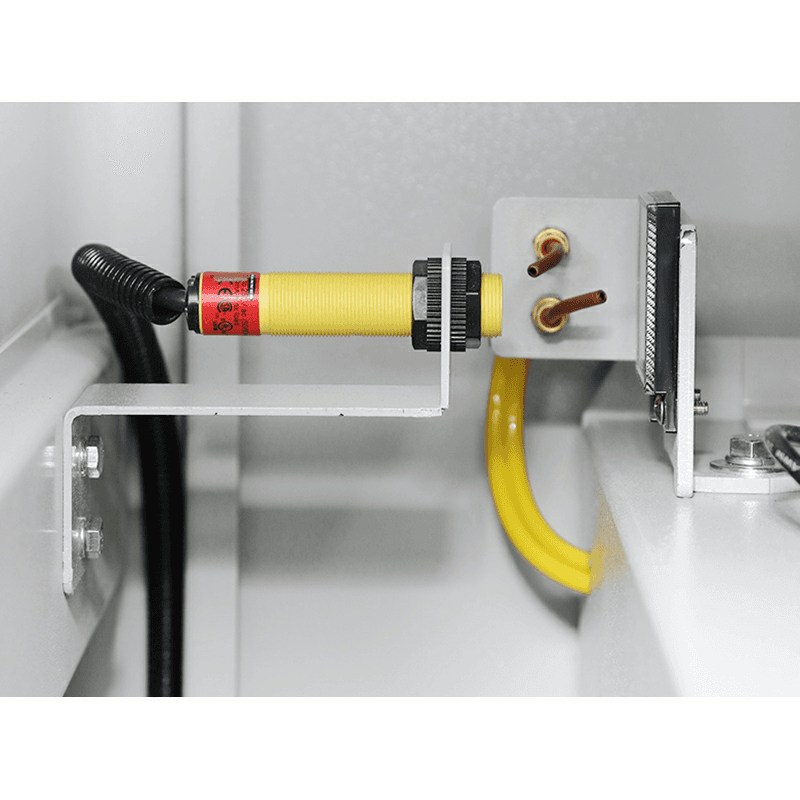

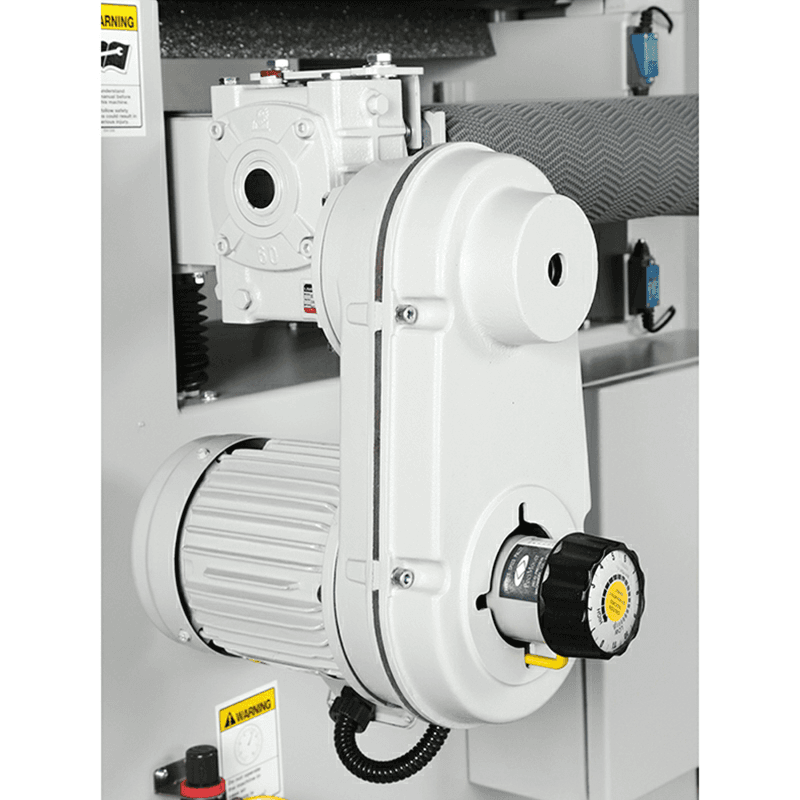

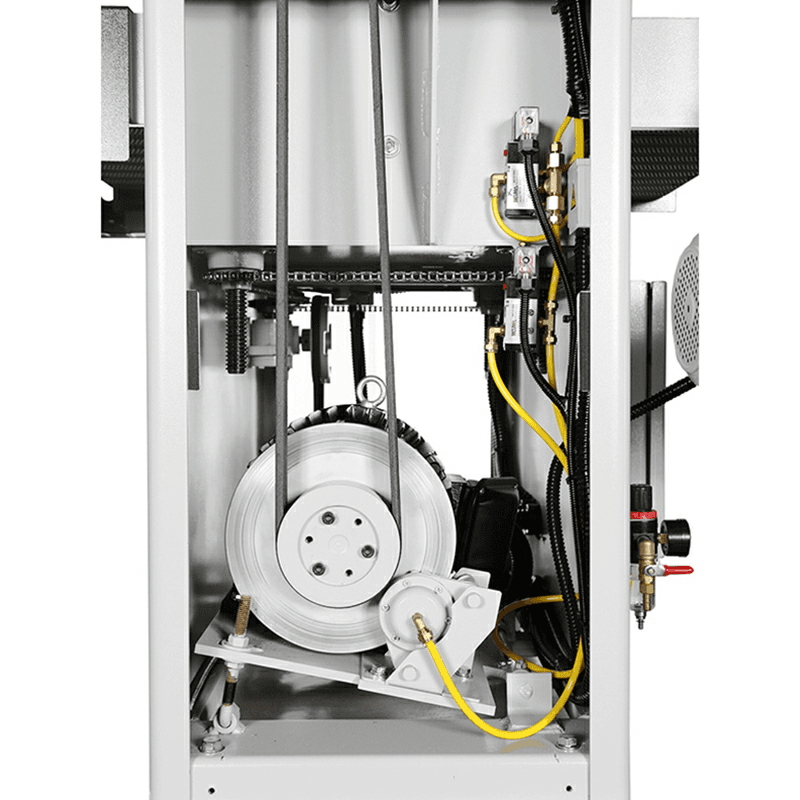

The 44" Wide Belt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and best of class design ensures optimum sanding results. Equipped with motorized thickness adjustment with digital thickness control for fast and accurate table adjustment. Features: • Combination sanding unit with 5" rubber contact drum and 2" wide adjustable sanding platen for a wide range of sanding applications • Accurate digital thickness control with both Inch and Metric settings allows the operator to key in the desired thickness, and the table will automatically move into position • Small footprint • Variable feed speed for optimal sanding results • Electronic belt tracking for optimum belt life and sanding results • Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit • Disc brake on the main motor allows for faster belt changes • Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes • Table raising jackscrews • Interlocks are located on all access doors
Specifications
| Box Quantity | 1 |
| Product Type | Wide Belt Sander |
| Voltage | 230V |
| Belt Size | 44" x 60" |
| Phase | 3 |
| Drive Motor | 3PH |
| Horsepower | 20HP |
| Feed Motor Power (HP) | 2HP |
| Sanding Belt Speed (FPM) | |
| Drum Diameter (In.) | |
| Minimum Board Thickness (In.) | |
| Style (Type) | Wide Belt |
| Motor Power (HP) | 20HP |
| Motor Phase | 3 |
| Table Lift Motor Power | |
| Table Size (L x W) (In.) | |
| Sanding Belt Size (In.) | 44" x 60" |
| Electrical Controls | |
| Table Height from Floor (In.) | |
| Maximum Board Thickness (In.) | |
| Maximum Board Width (In.) | |
| Prewired Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | 2118 CFM |
| Recommended Circuit Size (Amps.) | |
| Wiring Remarks | |
| Motor Current (Amps) | |
| Dust Port Outside Diameter (In.) | 4 @ 5" |
| Air Required | |
| Table Tilt (Deg.) | |
| Motor Voltage (V.) | 230 |
| Minimum Board Length (In.) | |
| Feed Rate (FPM) | 15 to 60 FPM |
| Platen Size (In.) | |
| Warranty |
