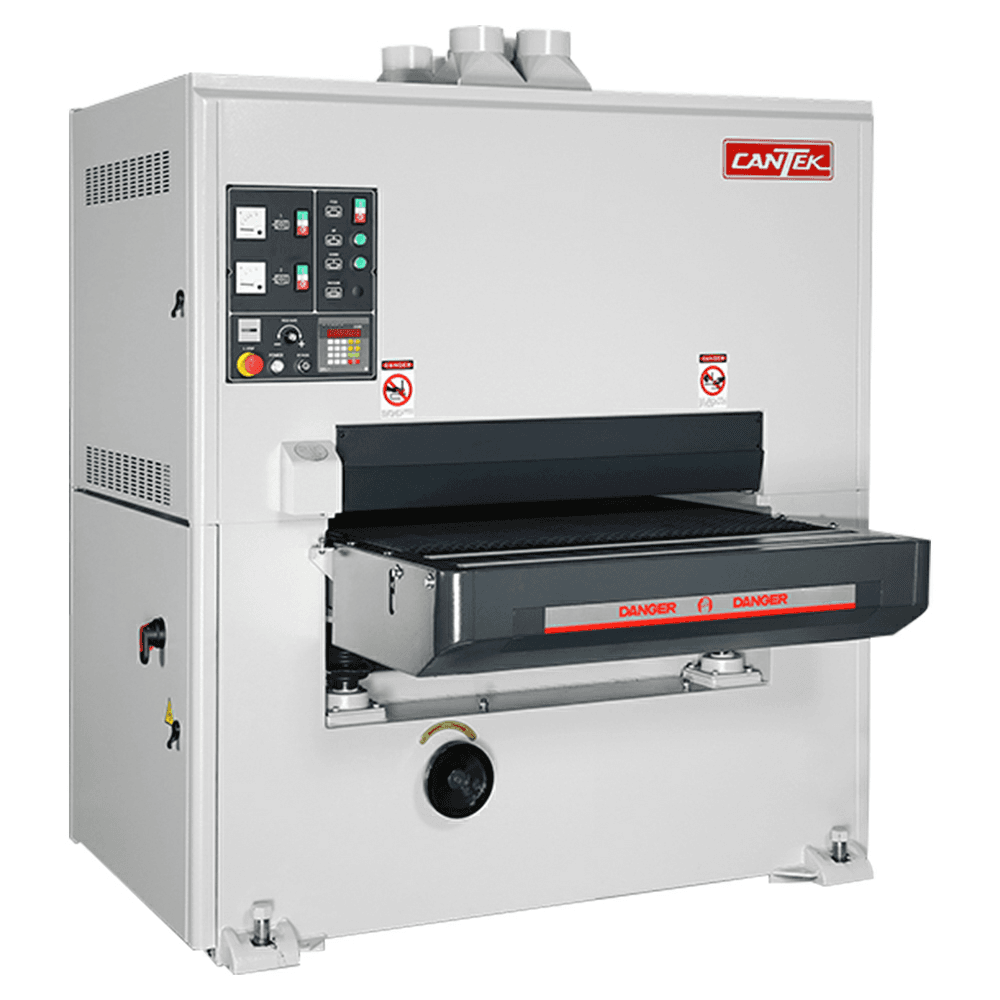

Cantek SR37 37" x 75" Two Head Wide Belt Sander 3PH 20HP/15HP
Product Details

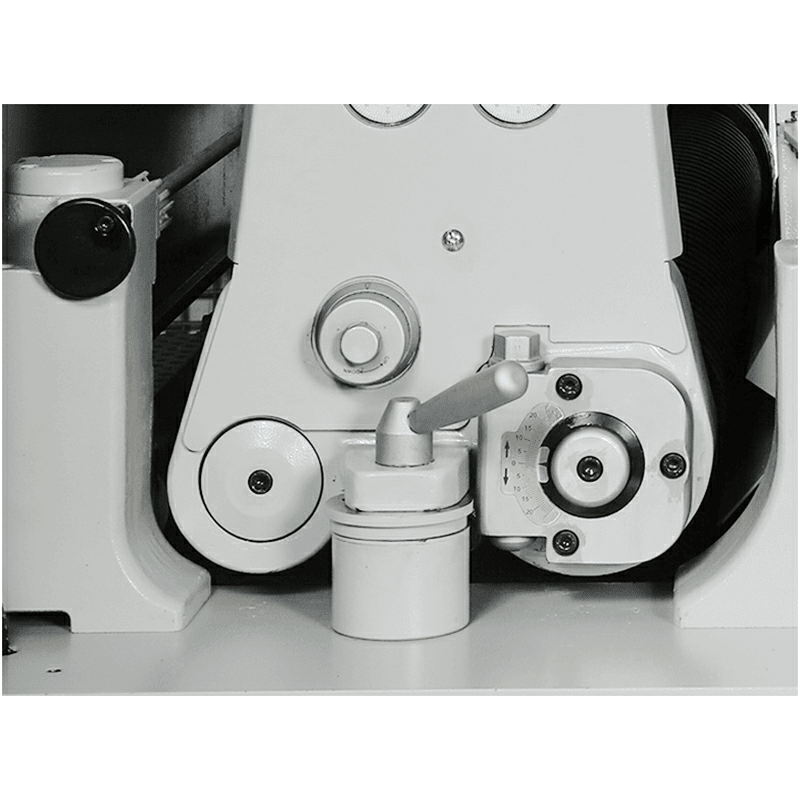

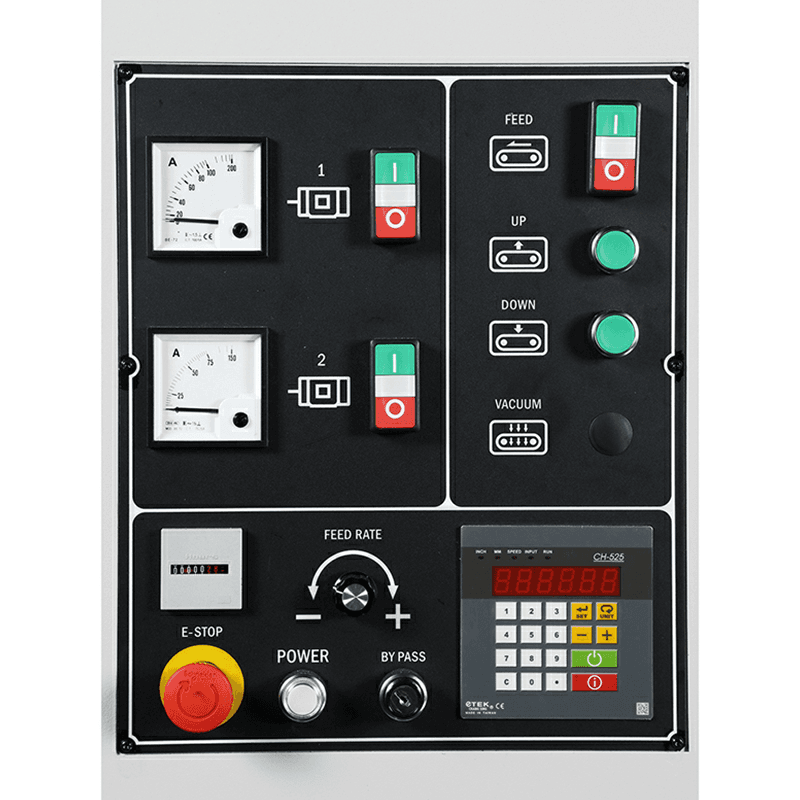

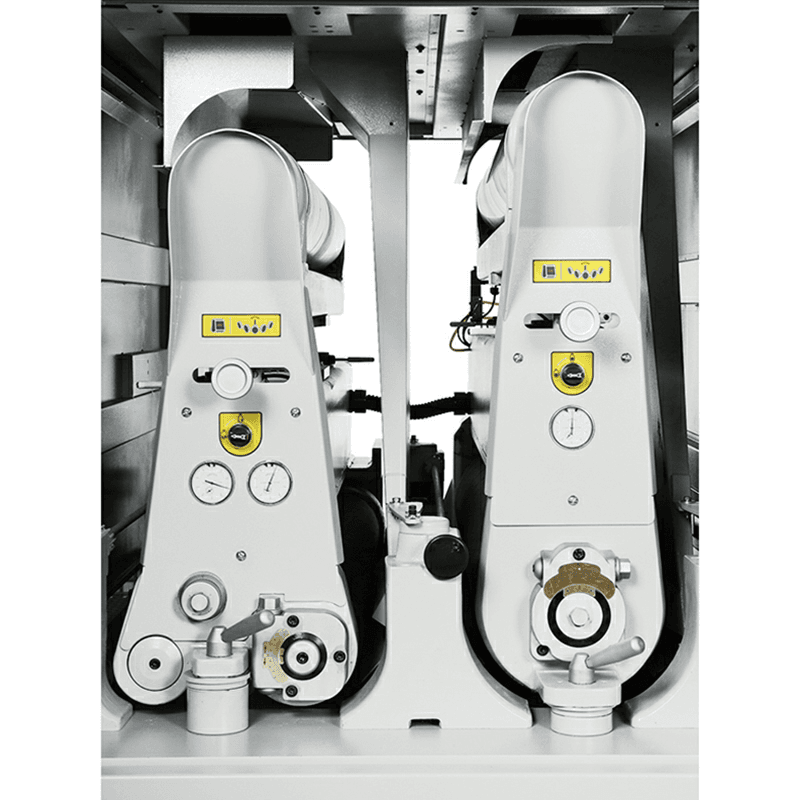

The 37" Two Head Wide Belt Sander combines a solid machine frame with unparalleled machine features resulting in superior sanding quality & reliability. The dual sanding heads result in less passes through the sander resulting in increased efficiency and throughput. The first sanding head is a steel contact drum with superior calibration capacities and durability. The second head consists of a versatile combination head with rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits. The 75" long belts allow for longer runs between belt changes. The quick setting digital thickness control allows for accurate, automatic table adjustment for precise sanding results. Features: • Heavy-duty construction with upgraded horsepower for production use • Dual sanding heads for increased productivity • The first sanding head is hard rubber for calibration results, while the second head is a combination unit with adjustable platen for calibration and finish sanding capabilities • Accurate digital thickness control to 0.001" (0.026mm) resolution • Micro sanding drum height adjustments with dial indicators • Caliper thickness setting unit for fast setup to your workpiece • Heavy-duty welded steel frame with cast iron sanding head assemblies for vibration-free sanding • Dual rubber-covered pressure rollers on infeed and outfeed for consistent material hold down • High-quality rubber conveyor with automatic pneumatic belt tracking • The table is adjusted using heavy-duty jackscrews driven by a robust chain system • Automatic caliper thickness setting • Electronic sanding belt tracking • Pneumatic belt tensioning & quick release outboard support for fast belt changes • Automatic disc brakes for the sanding heads allow for fast belt changeover • Safety switches on all access doors • High-quality Schneider electrical controls and pneumatic valves
Specifications
| Box Quantity | 1 |
| Product Type | Wide Belt Sander |
| Voltage | 230V |
| Belt Size | 37" x 75" |
| Phase | 3 |
| Drive Motor | 3PH |
| Horsepower | 20HP/15HP |
| Feed Motor Power (HP) | 3HP |
| Sanding Belt Speed (FPM) | |
| Drum Diameter (In.) | |
| Minimum Board Thickness (In.) | |
| Style (Type) | Wide Belt |
| Motor Power (HP) | 20HP/15HP |
| Motor Phase | 3 |
| Table Lift Motor Power | |
| Table Size (L x W) (In.) | |
| Sanding Belt Size (In.) | 37" x 75" |
| Electrical Controls | |
| Table Height from Floor (In.) | |
| Maximum Board Thickness (In.) | |
| Maximum Board Width (In.) | |
| Prewired Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | 4002 CFM |
| Recommended Circuit Size (Amps.) | |
| Wiring Remarks | |
| Motor Current (Amps) | 102 |
| Dust Port Outside Diameter (In.) | 6 @ 5" |
| Air Required | |
| Table Tilt (Deg.) | |
| Motor Voltage (V.) | 230 |
| Minimum Board Length (In.) | |
| Feed Rate (FPM) | 13 to 59 FPM |
| Platen Size (In.) | |
| Warranty |
