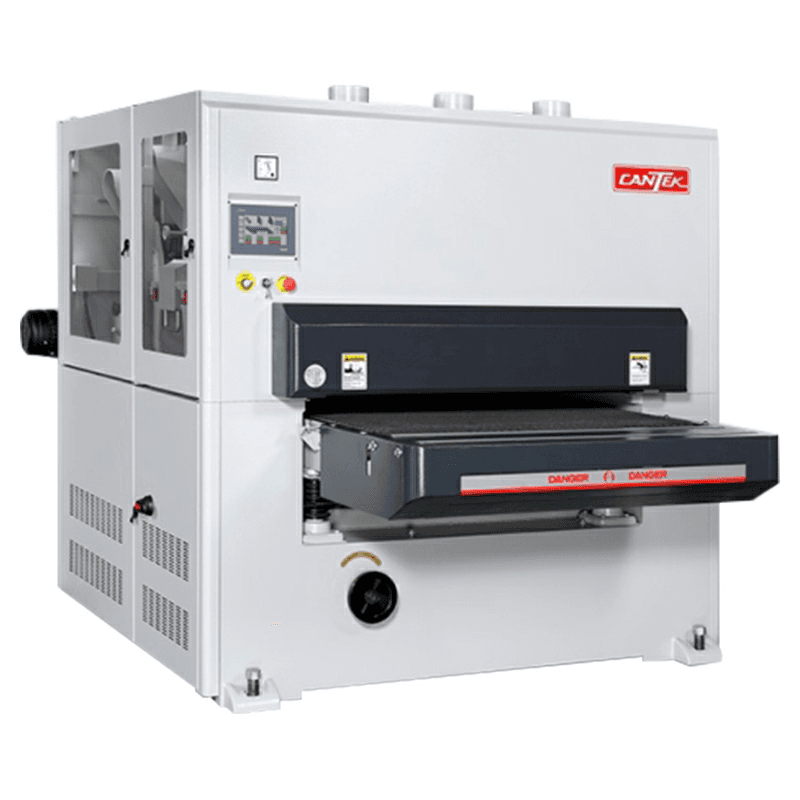

Cantek SR37 SR Series 43" x 75" Three Head Wide Belt Sander 3PH 30HP/25HP/20HP

The 43" three head Wide Belt sander combines a solid machine frame with unparalleled machine features resulting in superior sanding quality and reliability. The three sanding heads result in fewer passes through the sander resulting in increased efficiency and throughput. The first sanding head is a robust steel contact drum with calibration capacities and durability. The second head consists of a versatile rubber contact drum. The third head is a combination head with a rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits. The 75" long belts allow for longer runs between belt changes. The quick setting digital thickness control allows for accurate, automatic table adjustment for precise sanding results.

Features:
• Robust machine structure with cast iron head assemblies for superior sanding results
• Dual sanding heads for increased productivity

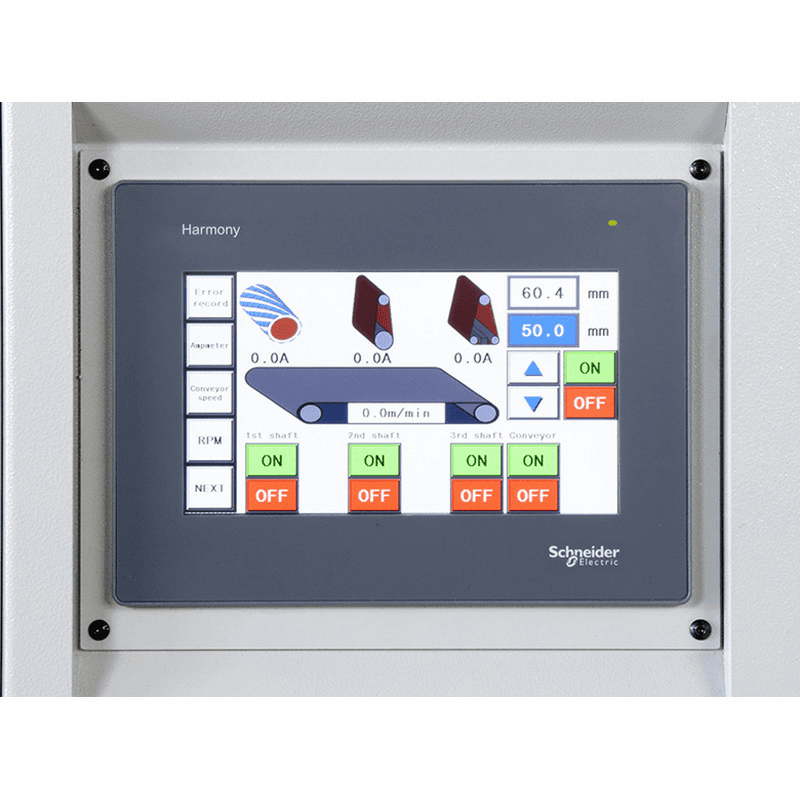

• Accurate digital thickness control with both Inch and Metric settings allows the operator to key in the desired thickness and the table will automatically move into position
• Caliper thickness setting unit for fast setup to your workpiece

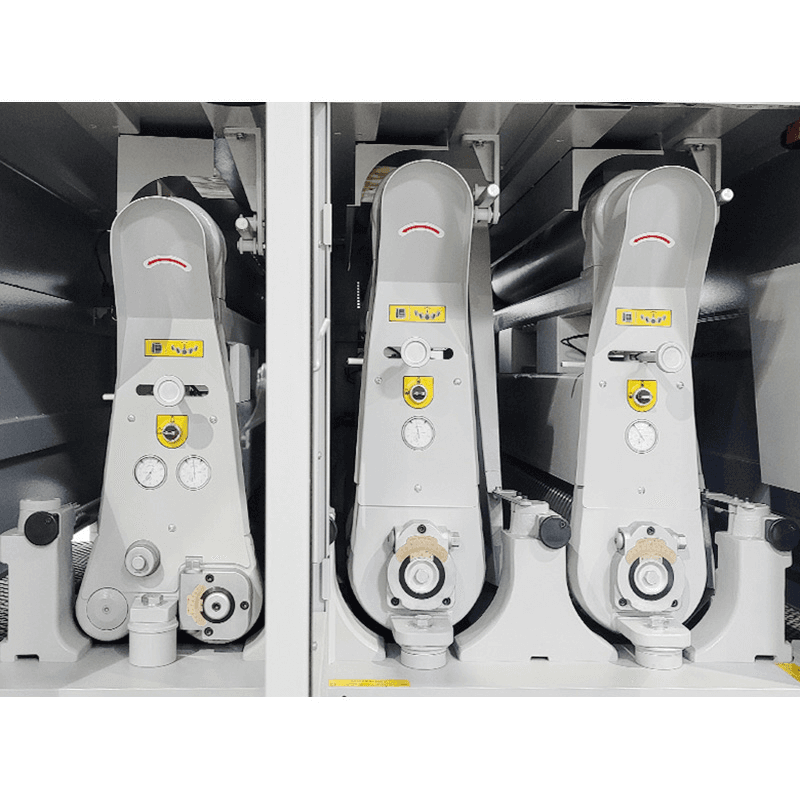

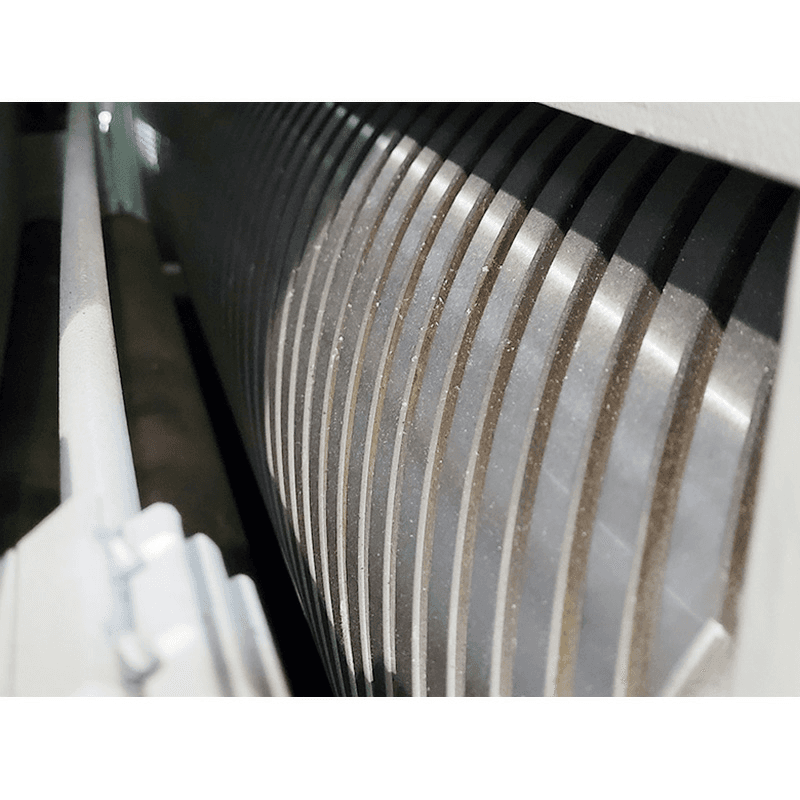

• "D" sanding unit= 10" diameter steel contact drum
• "D" sanding unit = 10" diameter 75 durometer contact drum available in Rubber
• "A" Sanding Unit = 5 1/2" diameter 65 durometer Combination head with rubber contact drum and adjustable 3" sanding platen ideal for calibrating and finish sanding
• Heavy-duty welded steel frame with cast iron sanding head assemblies for vibration-free sanding
• Dual rubber-covered pressure rollers on infeed and outfeed for consistent material hold down

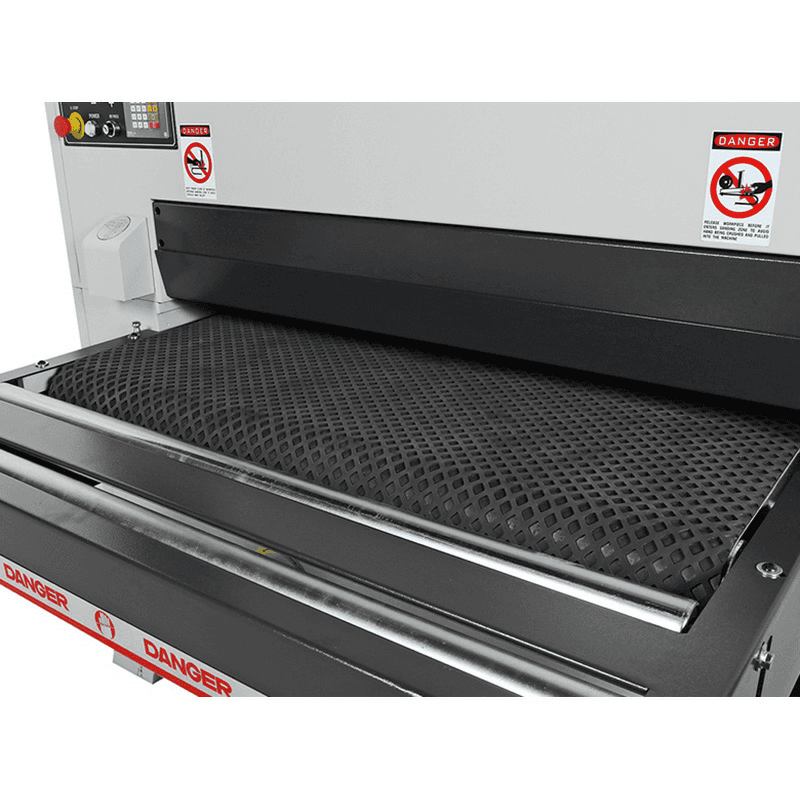

• High-quality rubber conveyor with automatic pneumatic belt tracking

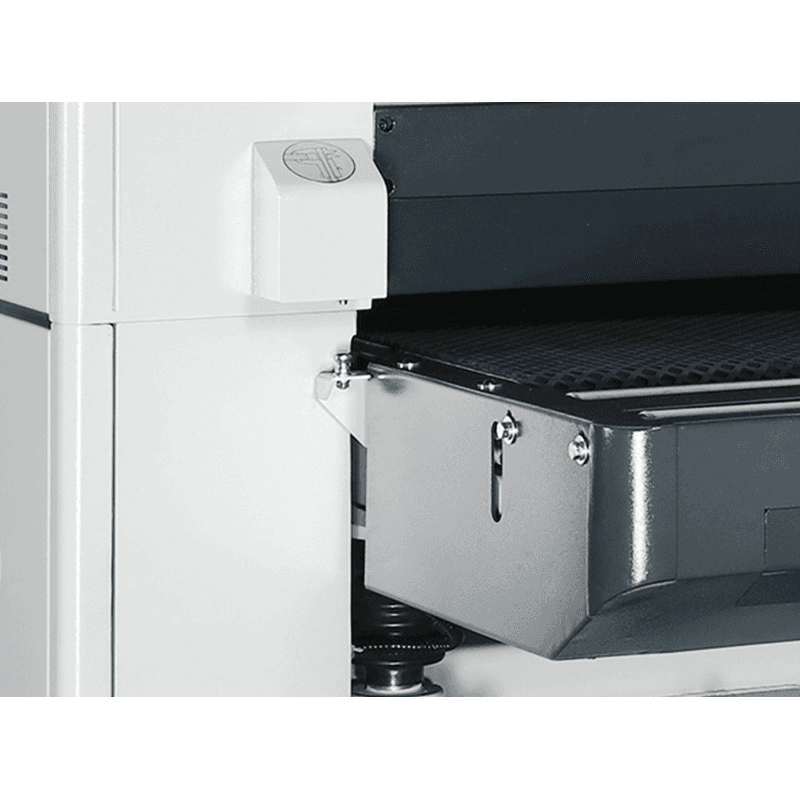

• Extended infeed bed with two table rollers

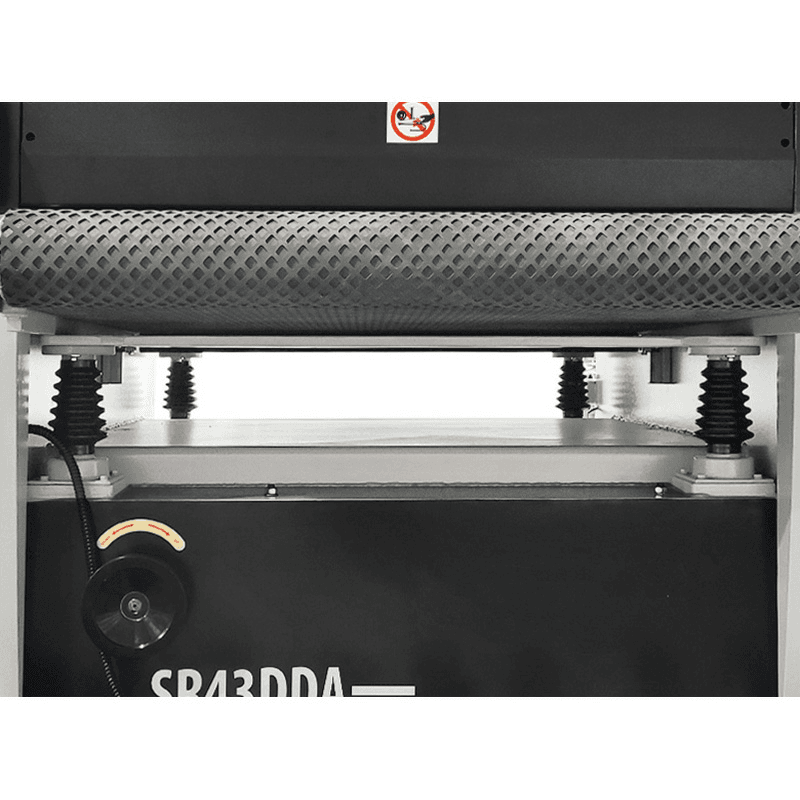

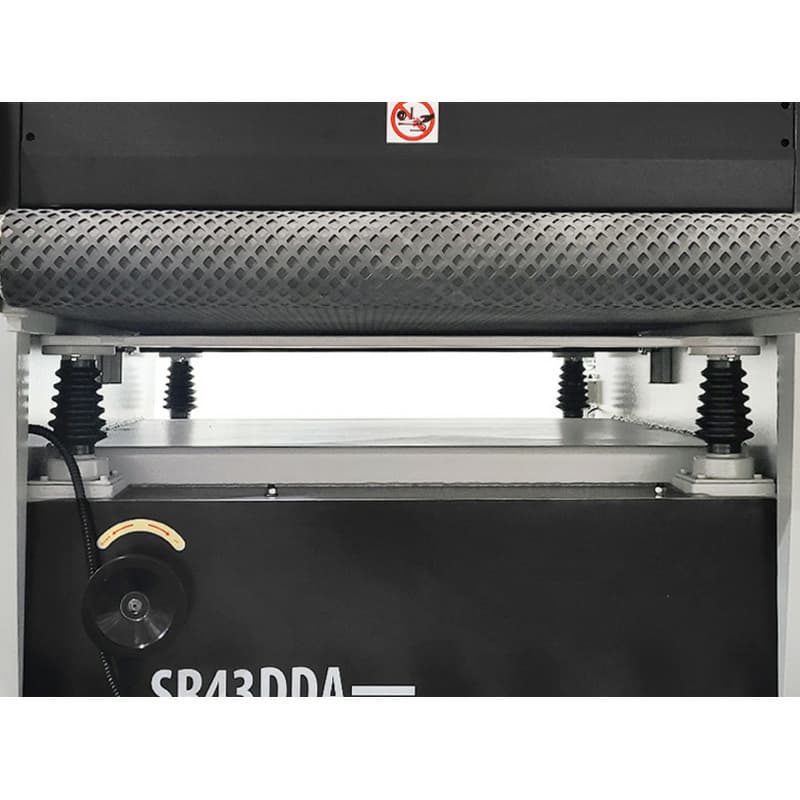

• The table is adjusted using four heavy-duty jackscrews driven by a robust chain system
• Automatic caliper thickness settin

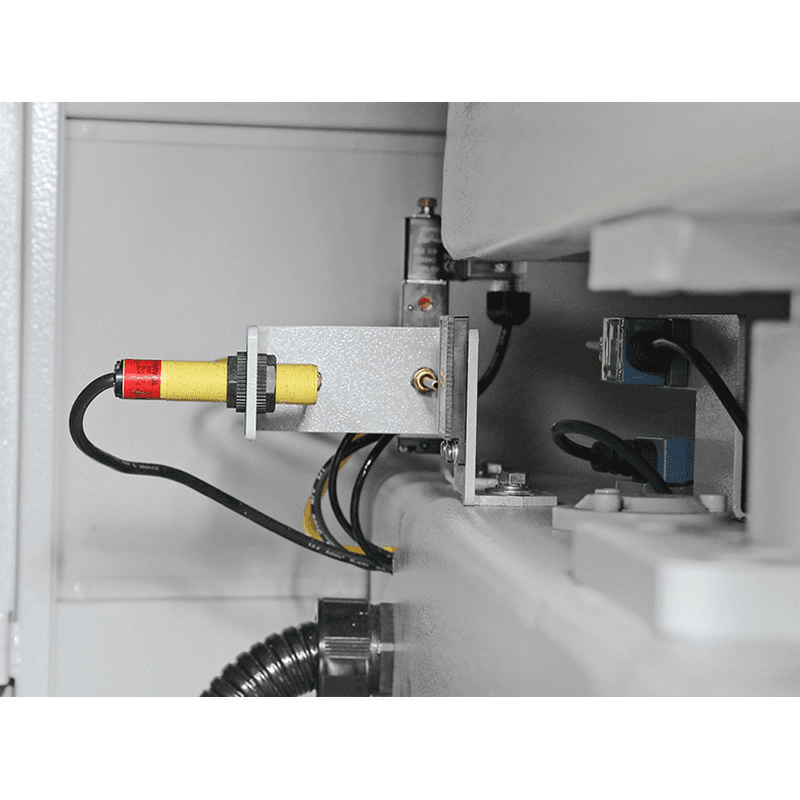

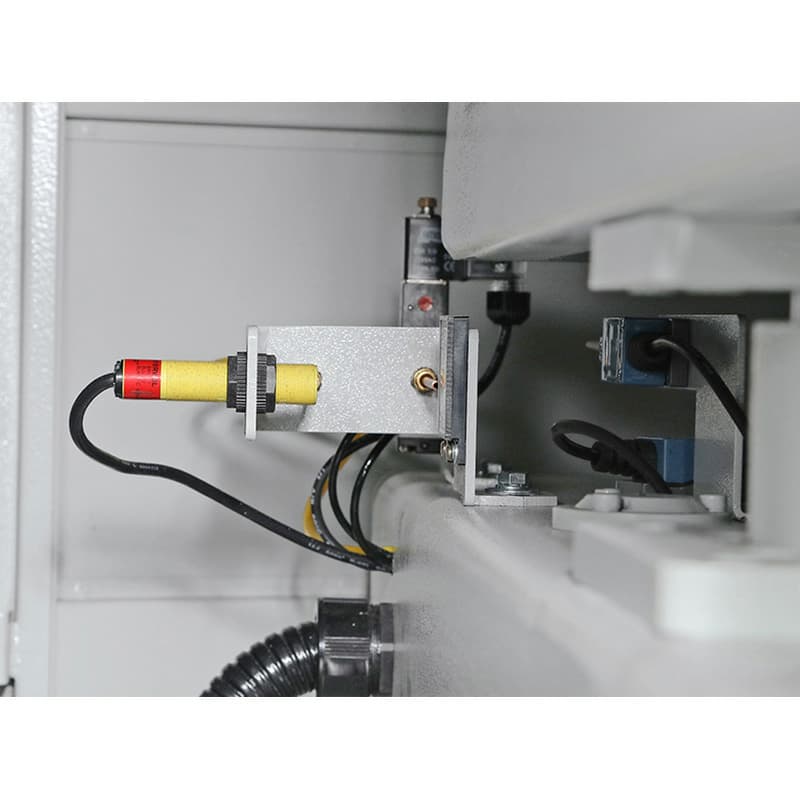

• Electronic sanding belt tracking
• Pneumatic belt tensioning & quick release outboard support for fast belt changes

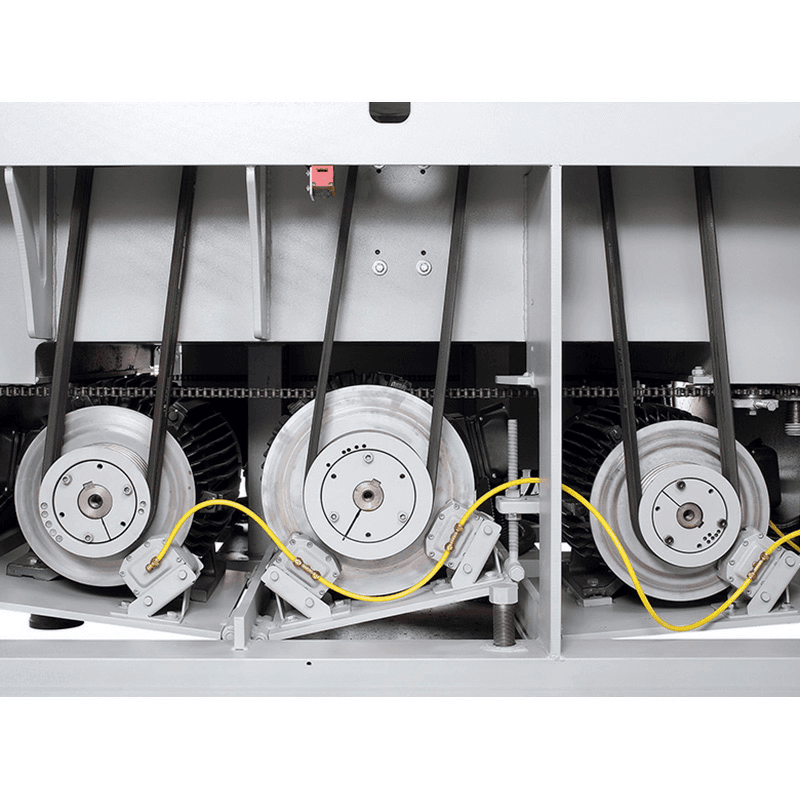

• Automatic disc brakes for the sanding heads allow for fast belt changeover
• Safety switches on all access doors
• High-quality Schneider electrical controls and top quality pneumatics
