Cantek SR37 SR Series 52" x 75" Two Head Wide Belt Sander 3PH 25HP/20HP
Product Details

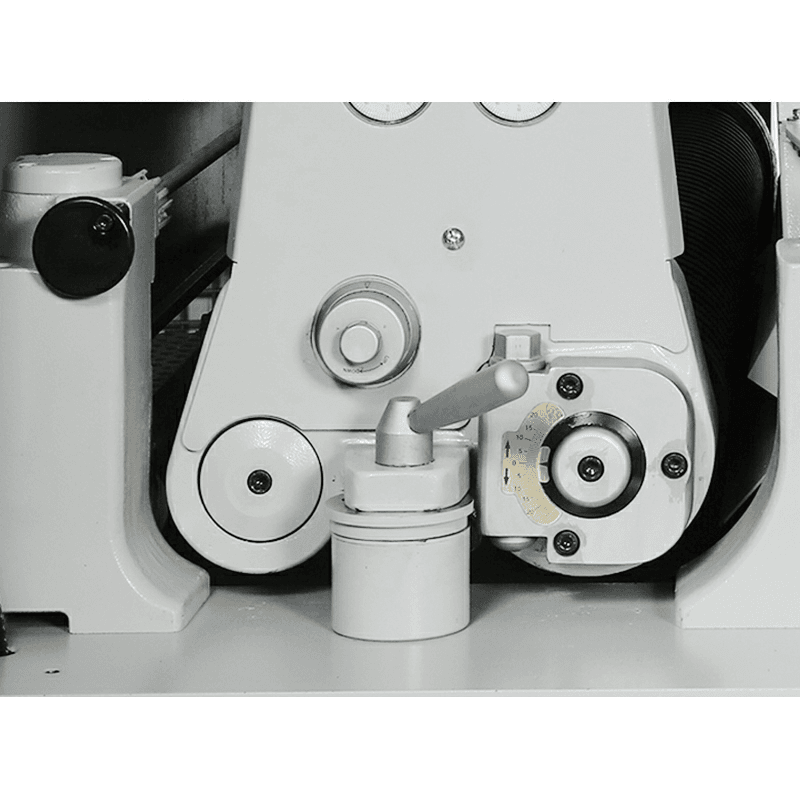

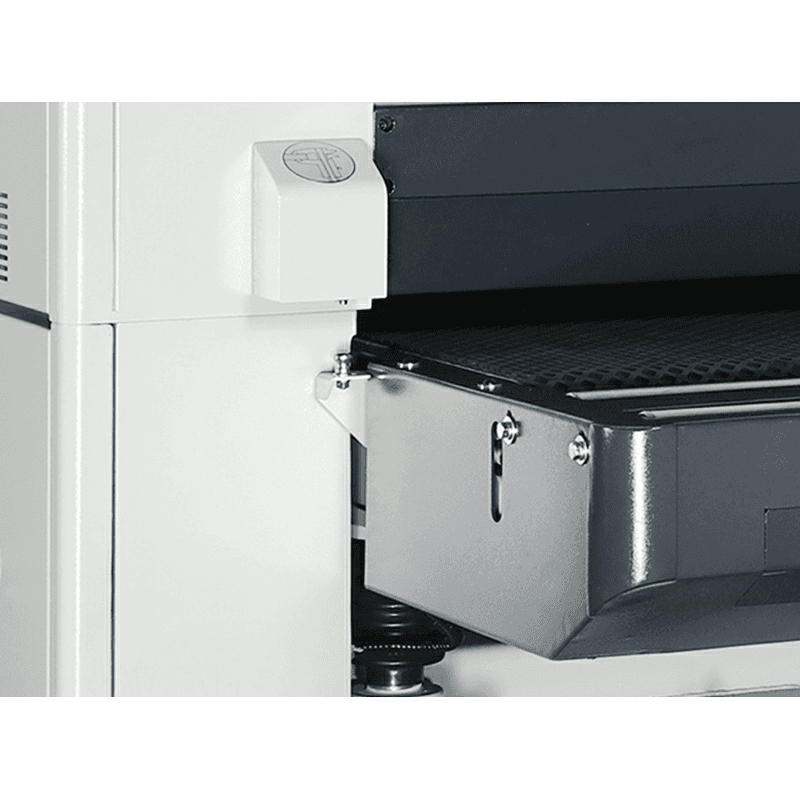

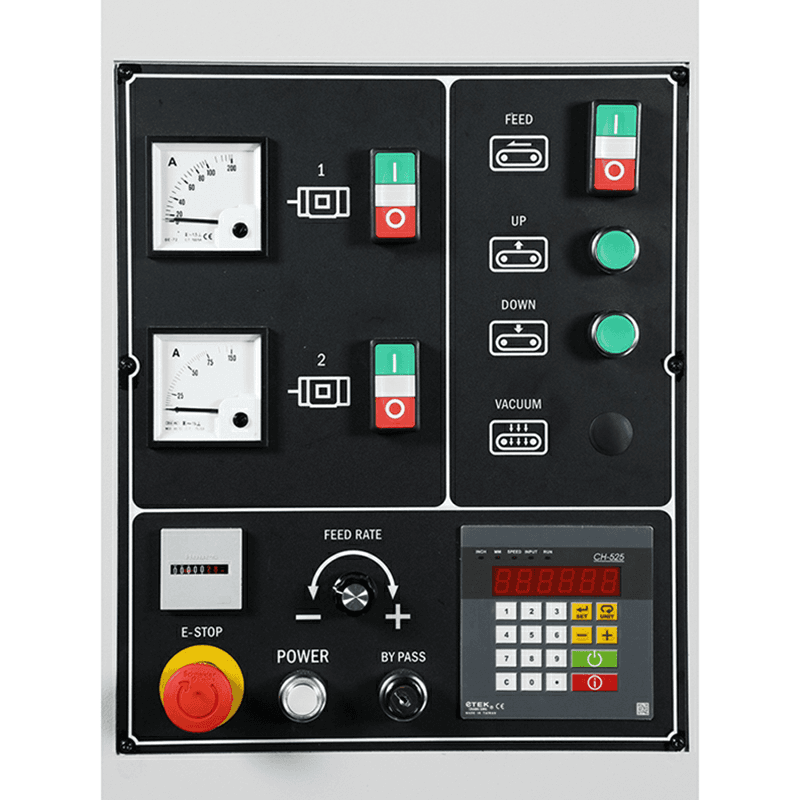

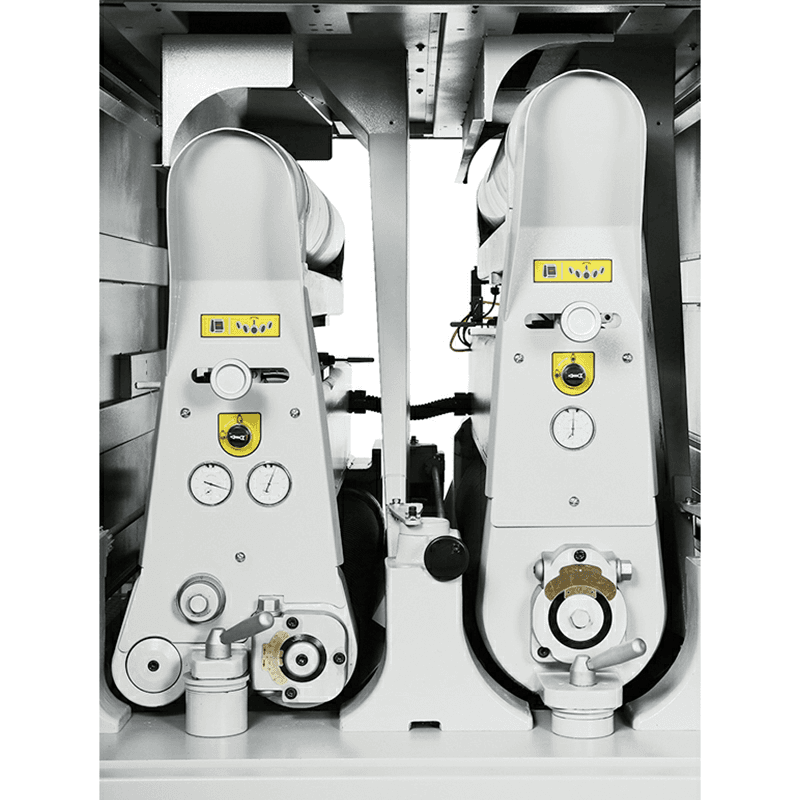

The 52" two head Wide Belt sander combines a solid machine frame with unparalleled machine features resulting in superior sanding quality and reliability. The dual sanding heads result in fewer passes through the sander resulting in increased efficiency and throughput. The first sanding head is a rubber contact drum with calibration capacities and durability. The second head consists of a versatile combination head with a rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits. The 75" long belts allow for longer runs between belt changes. The quick setting digital thickness control allows for accurate, automatic table adjustment for precise sanding results. Features: • Robust machine structure with cast iron head assemblies for superior sanding results • Dual sanding heads for increased productivity • Accurate digital thickness control with both Inch and Metric settings allows the operator to key in the desired thickness and the table will automatically move into position. • Caliper thickness setting unit for fast setup to your workpiece • "D" sanding unit = 10" diameter rubber contact drum • "A" Sanding Unit = 5 1/2" diameter Combination head with rubber contact drum and adjustable 3" sanding platen ideal for calibrating and finish sanding. • Heavy-duty welded steel frame with cast iron sanding head assemblies for vibration-free sanding • Dual rubber-covered pressure rollers on infeed and outfeed for consistent material hold down • High-quality rubber conveyor with automatic pneumatic belt tracking • Extended infeed bed with two table rollers • The table is adjusted using four heavy-duty jackscrews driven by a robust chain system • Automatic caliper thickness setting • Electronic sanding belt tracking • Pneumatic belt tensioning & quick release outboard support for fast belt changes • Automatic disc brakes for the sanding heads allow for fast belt changeover • Safety switches on all access doors • High-quality Schneider electrical controls and top quality pneumatics
Specifications
| Box Quantity | 1 |
| Product Type | Wide Belt Sander |
| Voltage | 230V |
| Belt Size | 52" x 75" |
| Phase | 3 |
| Drive Motor | 3PH |
| Horsepower | 25HP/20HP |
| Feed Motor Power (HP) | 3HP |
| Sanding Belt Speed (FPM) | |
| Drum Diameter (In.) | |
| Minimum Board Thickness (In.) | |
| Style (Type) | Wide Belt |
| Motor Power (HP) | 25HP/20HP |
| Motor Phase | 3 |
| Table Lift Motor Power | |
| Table Size (L x W) (In.) | |
| Sanding Belt Size (In.) | 52" x 75" |
| Electrical Controls | |
| Table Height from Floor (In.) | |
| Maximum Board Thickness (In.) | |
| Maximum Board Width (In.) | |
| Prewired Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | 5356 CFM |
| Recommended Circuit Size (Amps.) | |
| Wiring Remarks | |
| Motor Current (Amps) | |
| Dust Port Outside Diameter (In.) | 8 @ 5" |
| Air Required | |
| Table Tilt (Deg.) | |
| Motor Voltage (V.) | 230 |
| Minimum Board Length (In.) | |
| Feed Rate (FPM) | 13 to 59 FPM |
| Platen Size (In.) | |
| Warranty |
