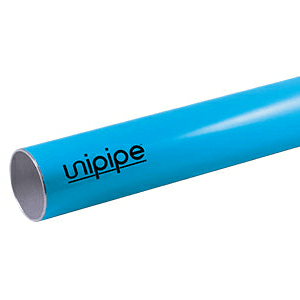

25mm x 19' Pipe for Compressed Air, Blue
Size: 25mm x 19'
Product Details
Features: • 25mm x 19′ Pipe for Compressed Air, Blue • 19′ Section • Weight: 2.9 lb • For Compressed Air (also rated for oils and coolants) • Max Working Pressure 232 PSI (16 bar) • Wall Thickness: 1.1mm • Plant Testing Pressure 1 hour at 20°C: 348 PSI (24 bar) • Quality Testing Pressure 1 hour at 20°C: 928 PSI (64 bar) • Continuous Working Temperature: From -4°F to 212°F (-20°C up to 100°C) • Max Working Temperature: From -22°F Up to 266°F (-30°C Up to 130°C) • Thread Standard: NPT National Pipe Thread complying to ANSI B1.20.1 • Aluminum Pipe Mechanical Resistance: According to EN-755-2/2008 standards • Pipe Material: Aluminum Alloy EN AW 6060 - T5 according to EN 755-2/2008 • Aluminum Fittings Material: Aluminum Alloy EN Aw 6061 T6 • O-Ring & Lip Gasket Material: HNBR 65°/75° Shore A • Clamp Ring Material: AISI 304 Stainless Steel
Specifications
| Box Quantity | 1 |
| Product Type | Pipe |
| Gauge | |
| Size | 25mm x 19' |
