| Box Quantity | 1 |
| Opening Angle | 105 Degree |
| Overlay (in) | Overlay |
| Motion Technology | Soft-close |
| Mount Type | Screw-on |
| Product Type | Concealed Long Arm European Hinges |
| Manufacturer Series | Veosys |

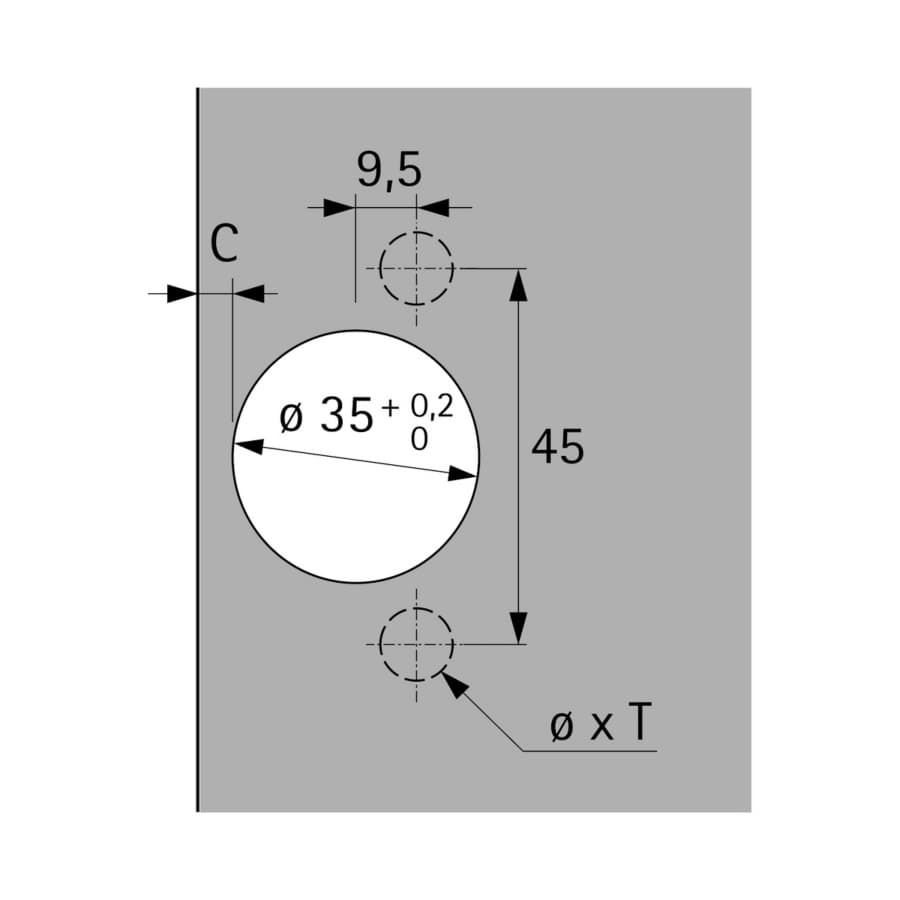

| Boring Pattern | 45 mm |
| Arm Style | Straight |
| Cabinet Type | Face-frame, Frameless |
| Cup Diameter (mm) | 35 mm |
| Side Adjustment | +/- 2.5 mm |
| Minimum Door Thickness (in) | 9/16 in |
| Minimum Door Thickness (mm) | 14 mm |
| Maximum Door Thickness (mm) | 22 mm |
| Maximum Door Thickness (in) | 7/8 in |
| Color/Finish | Stainless Steel |
| Cup Depth(mm) | 11.5 mm |
| Material Type | Stainless steel |





| Box Quantity | 1 |
| Opening Angle | 105 Degree |
| Overlay (in) | Overlay |
| Motion Technology | Soft-close |
| Mount Type | Screw-on |
| Product Type | Concealed Long Arm European Hinges |
| Manufacturer Series | Veosys |
| Boring Pattern | 45 mm |
| Arm Style | Straight |
| Cabinet Type | Face-frame, Frameless |
| Cup Diameter (mm) | 35 mm |
| Side Adjustment | +/- 2.5 mm |
| Minimum Door Thickness (in) | 9/16 in |
| Minimum Door Thickness (mm) | 14 mm |
| Maximum Door Thickness (mm) | 22 mm |
| Maximum Door Thickness (in) | 7/8 in |
| Color/Finish | Stainless Steel |
| Cup Depth(mm) | 11.5 mm |
| Material Type | Stainless steel |
Features:

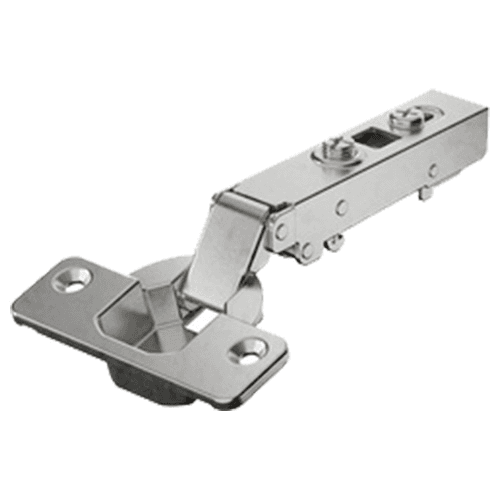

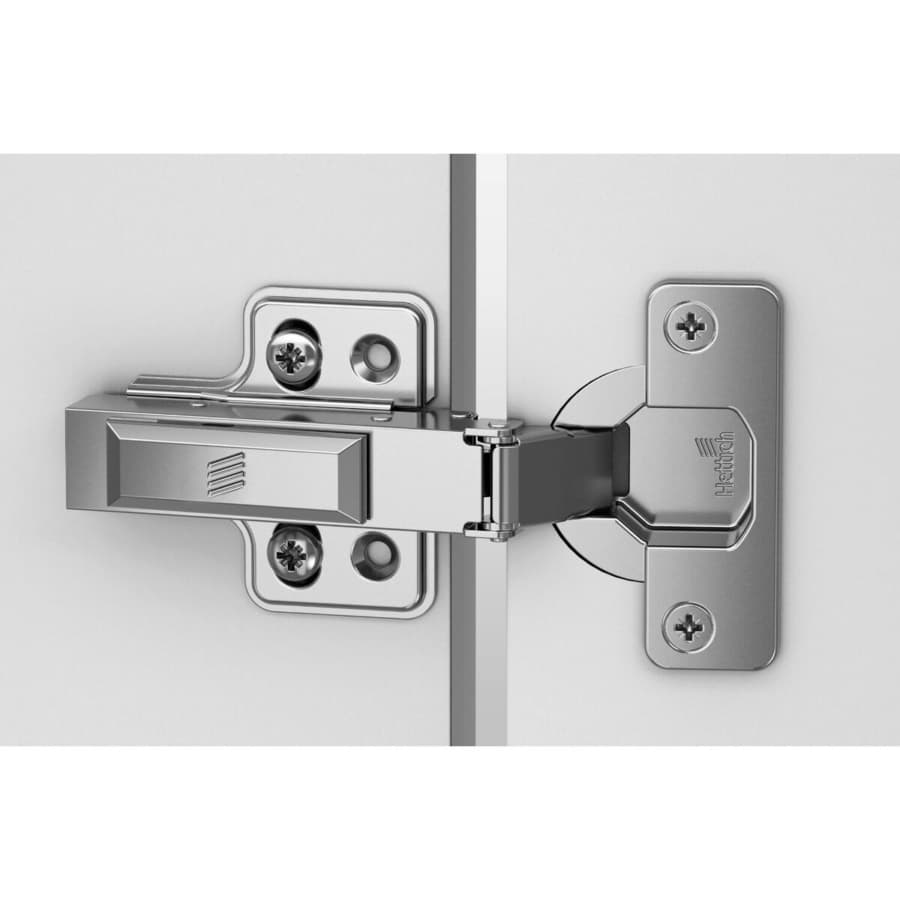

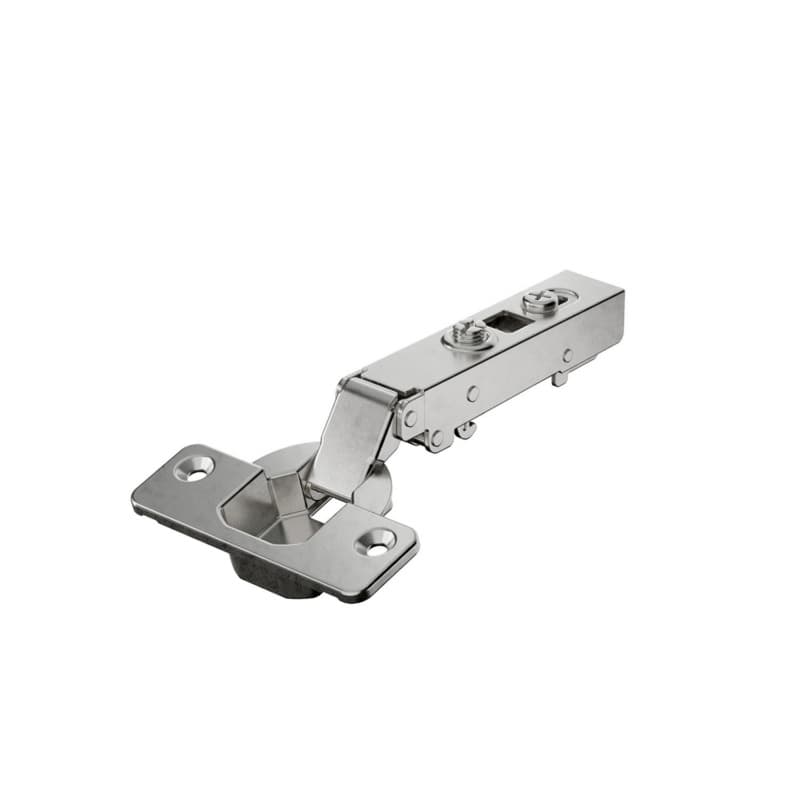

• Veosys stainless steel 105° opening Hinge
• Concealed hinge with clip on installation and integrated Silent System
• Quality classification under EN 15570, Level 2
• Corrosion resistant, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
• For door thickness of 14 - 22mm
• Cup diameter 35mm
• Cup depth 11.5mm
• Integrated overlay adjustment + 2.5mm / - 2.5mm
• Integrated depth adjustment + 2mm / - 1.5mm

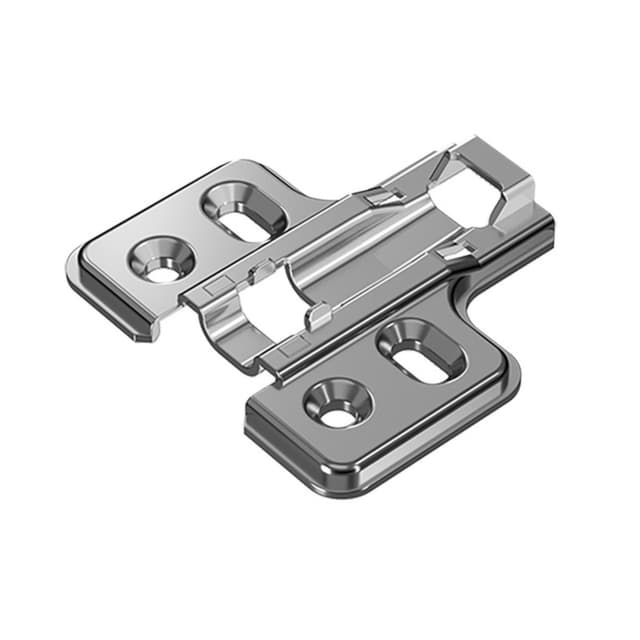

• Height adjustment at mounting plate
Features:
• Veosys stainless steel 105° opening Hinge
• Concealed hinge with clip on installation and integrated Silent System
• Quality classification under EN 15570, Level 2
• Corrosion resistant, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
• For door thickness of 14 - 22mm
• Cup diameter 35mm
• Cup depth 11.5mm
• Integrated overlay adjustment + 2.5mm / - 2.5mm
• Integrated depth adjustment + 2mm / - 1.5mm
• Height adjustment at mounting plate
