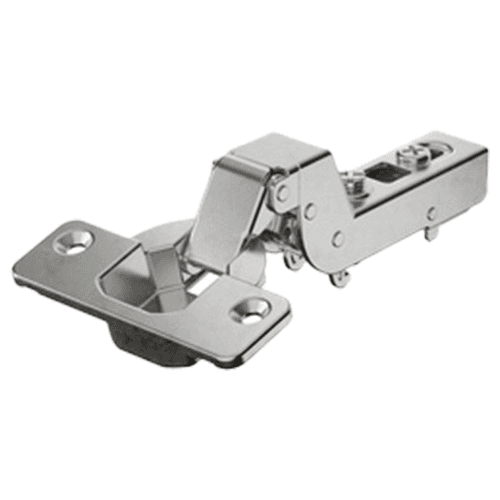

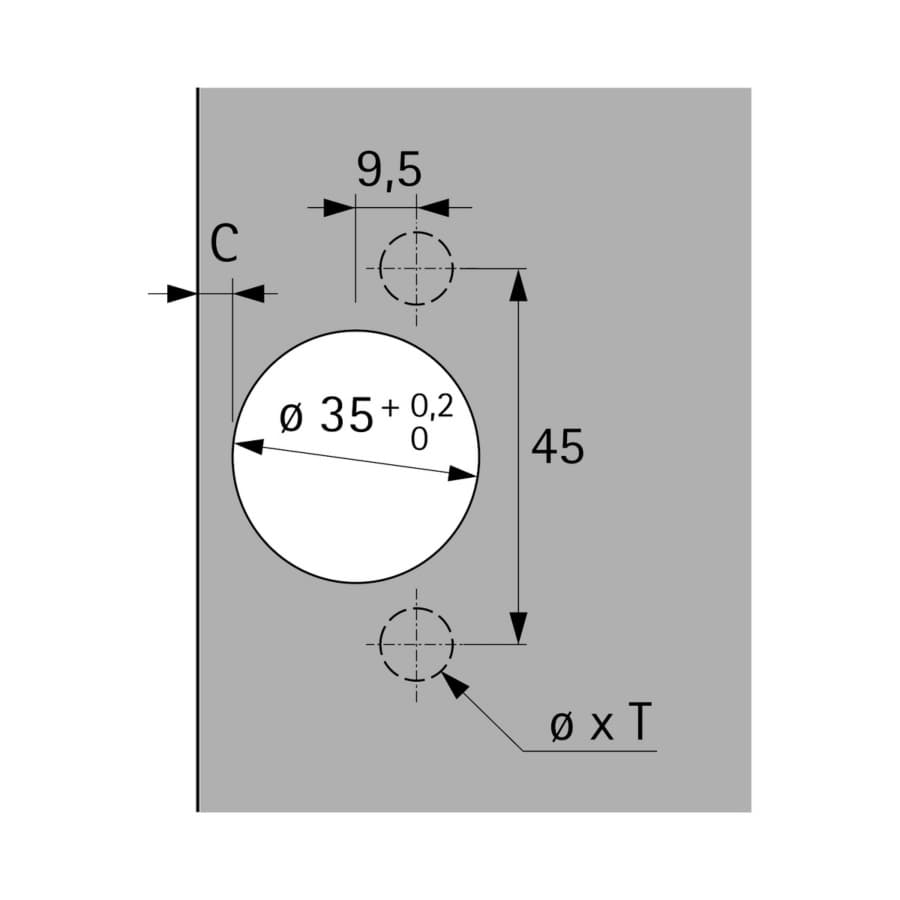

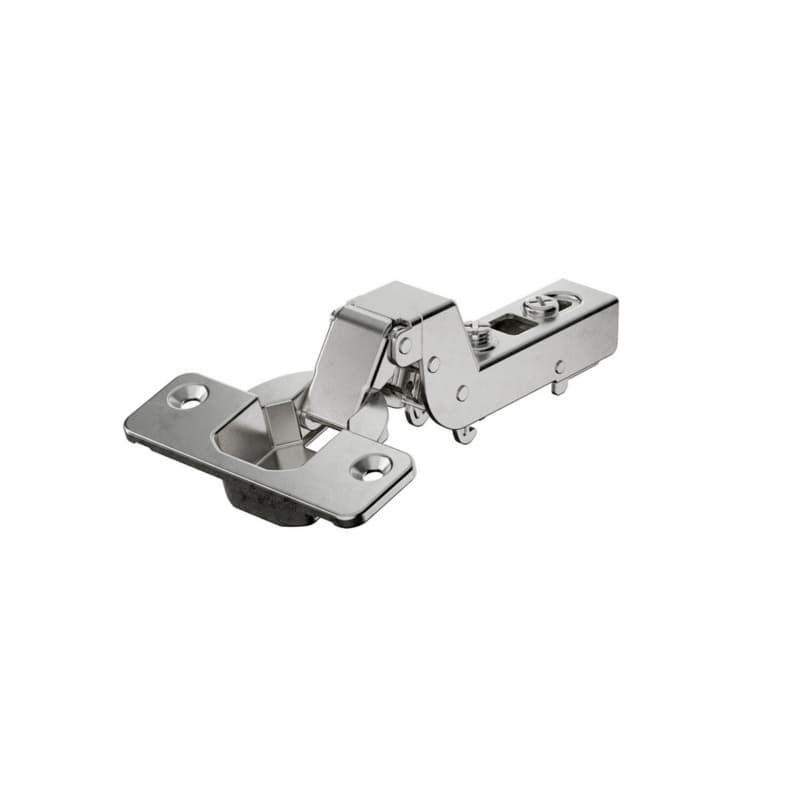

Veosys Stainless Steel 105° Opening Hinge, 45 x 9.5mm TB-Drilling Pattern, Soft-Closing, Inset, Screw-On
200 items
Product Details
Features: • Veosys stainless steel 105° opening Hinge • Concealed hinge with clip on installation and integrated Silent System • Quality classification under EN 15570, Level 2 • Corrosion resistant, 120h NSS (neutral salt spray test) to DIN EN ISO 9227 • For door thickness of 14 - 22mm • Cup diameter 35mm • Cup depth 11.5mm • Integrated overlay adjustment + 2.5mm / - 2.5mm • Integrated depth adjustment + 2mm / - 1.5mm • Height adjustment at mounting plate
Specifications
| Box Quantity | 1 |
| Product Type | |
| Hinge Type | Stainless Steel Hinge |
| Overlay | Inset |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Mounting Type | Screw-On |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Cabinet Type | |
| Door Thickness | 14-22mm |
