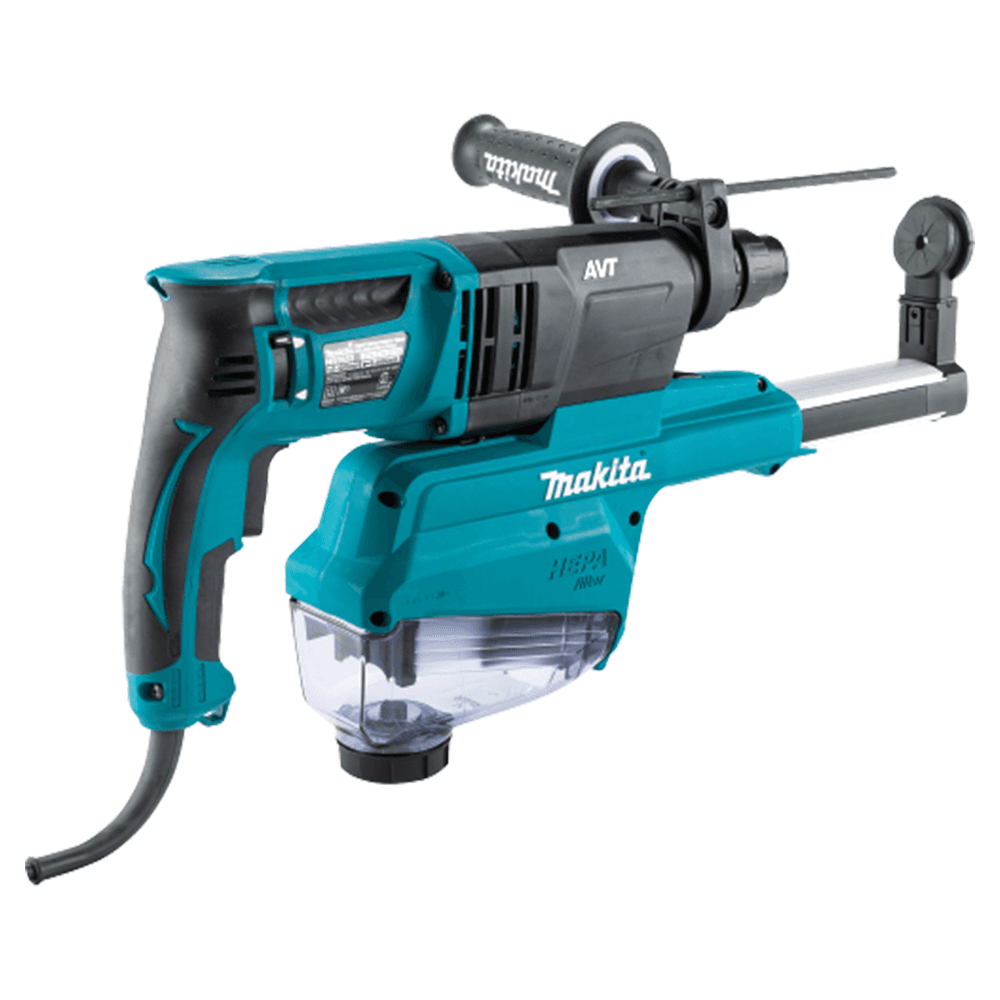

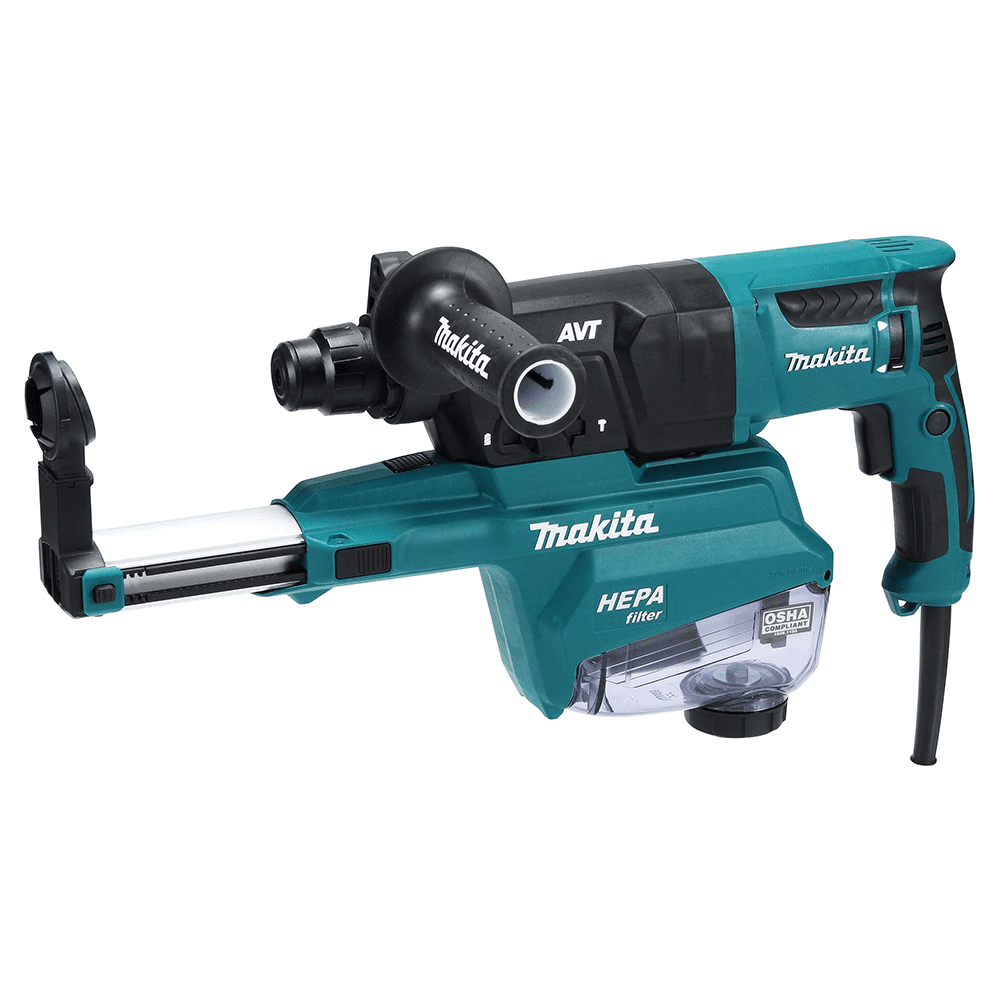

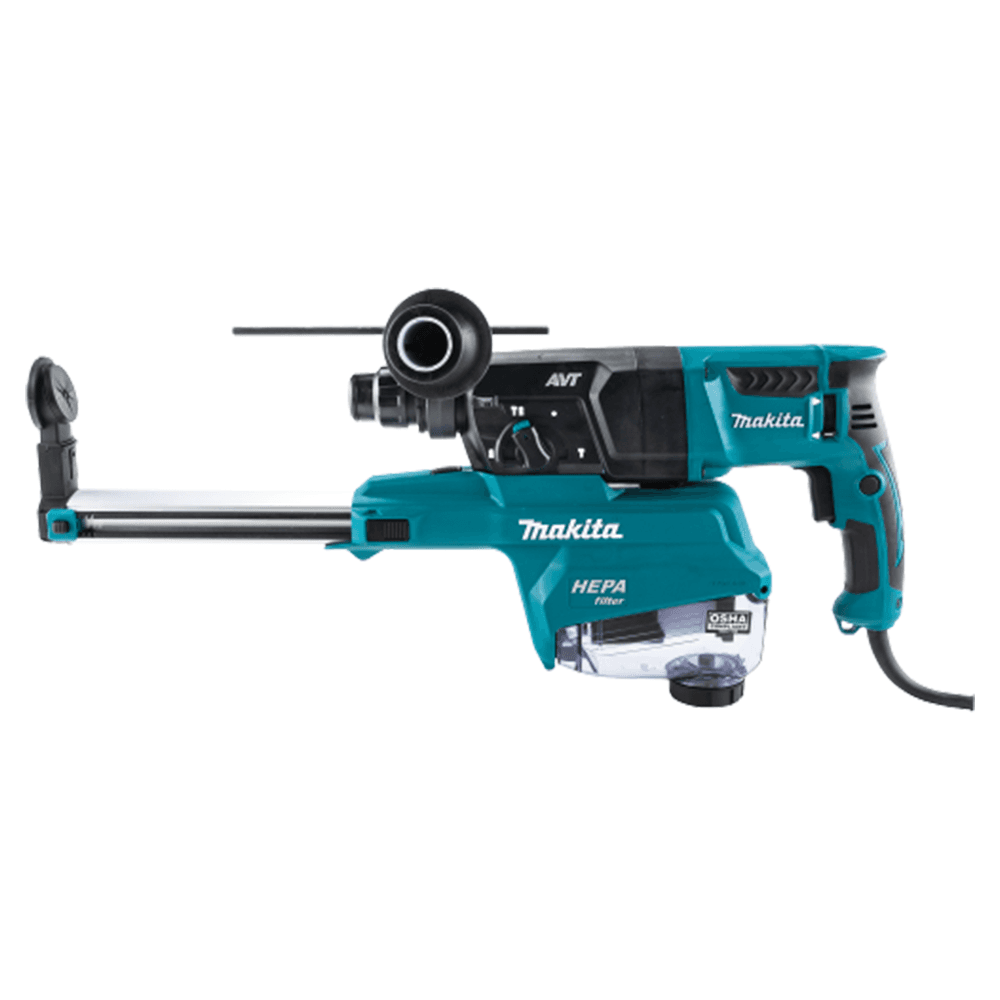

1" SDS‑PLUS AVT Pistol Grip Rotary Hammer with HEPA Dust Extractor

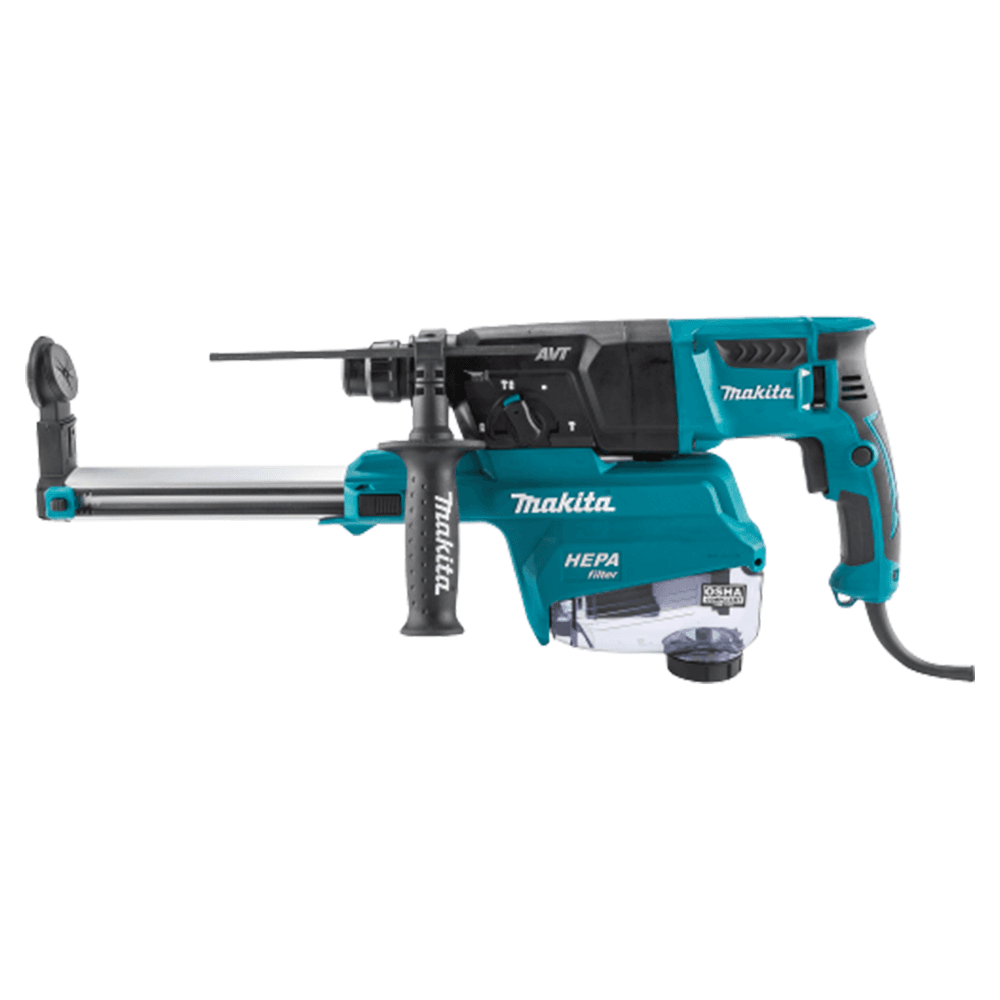

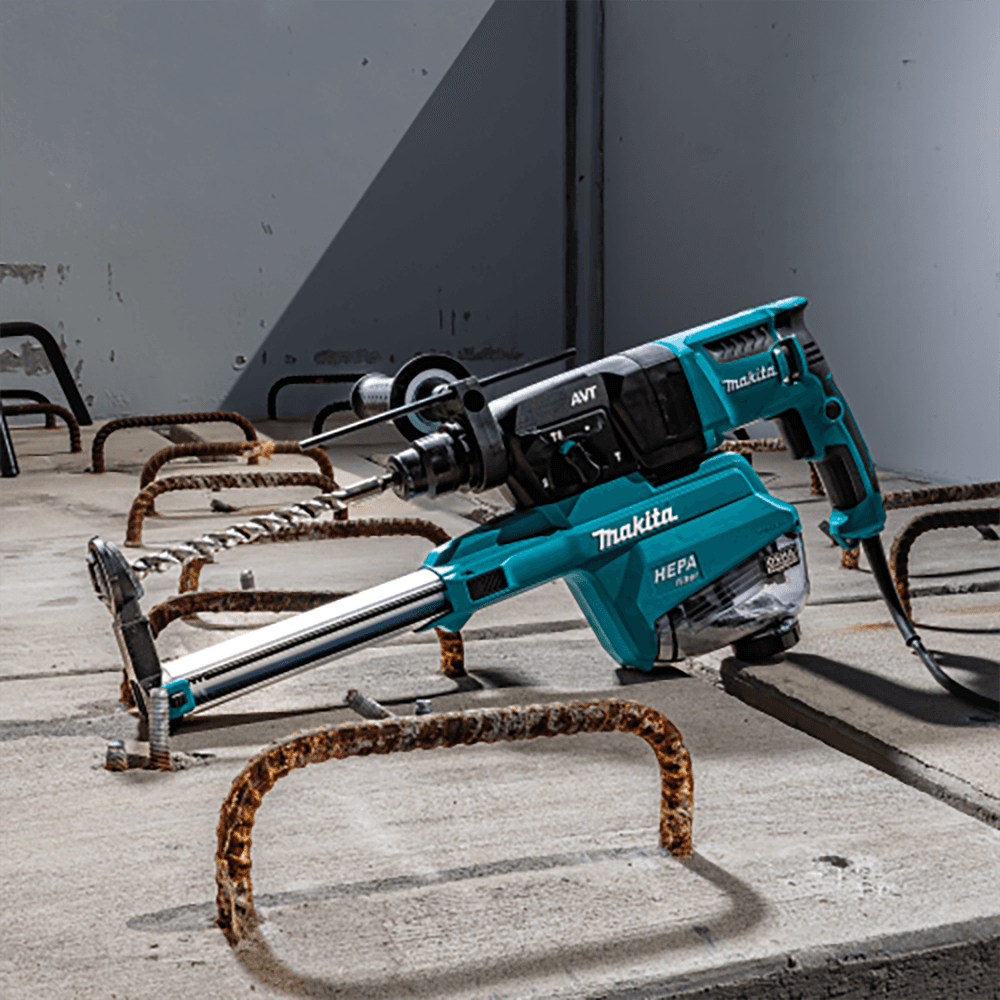

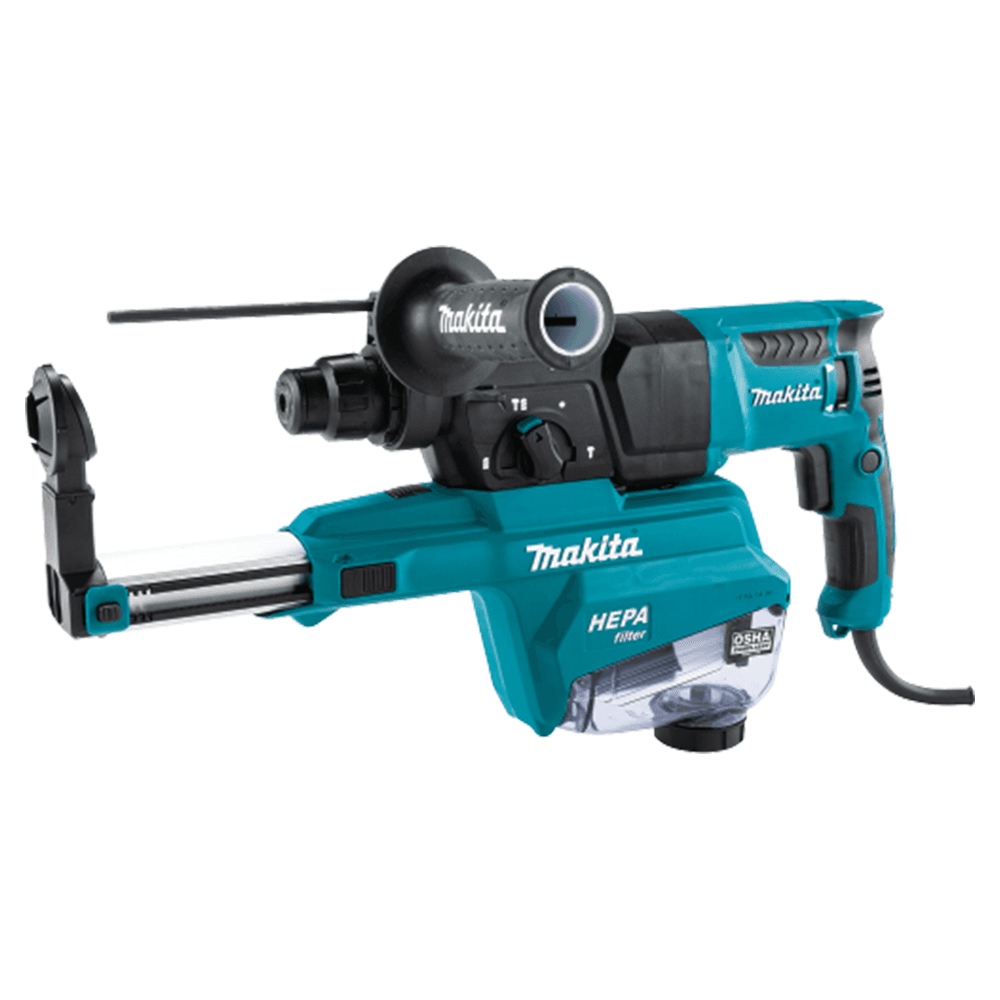

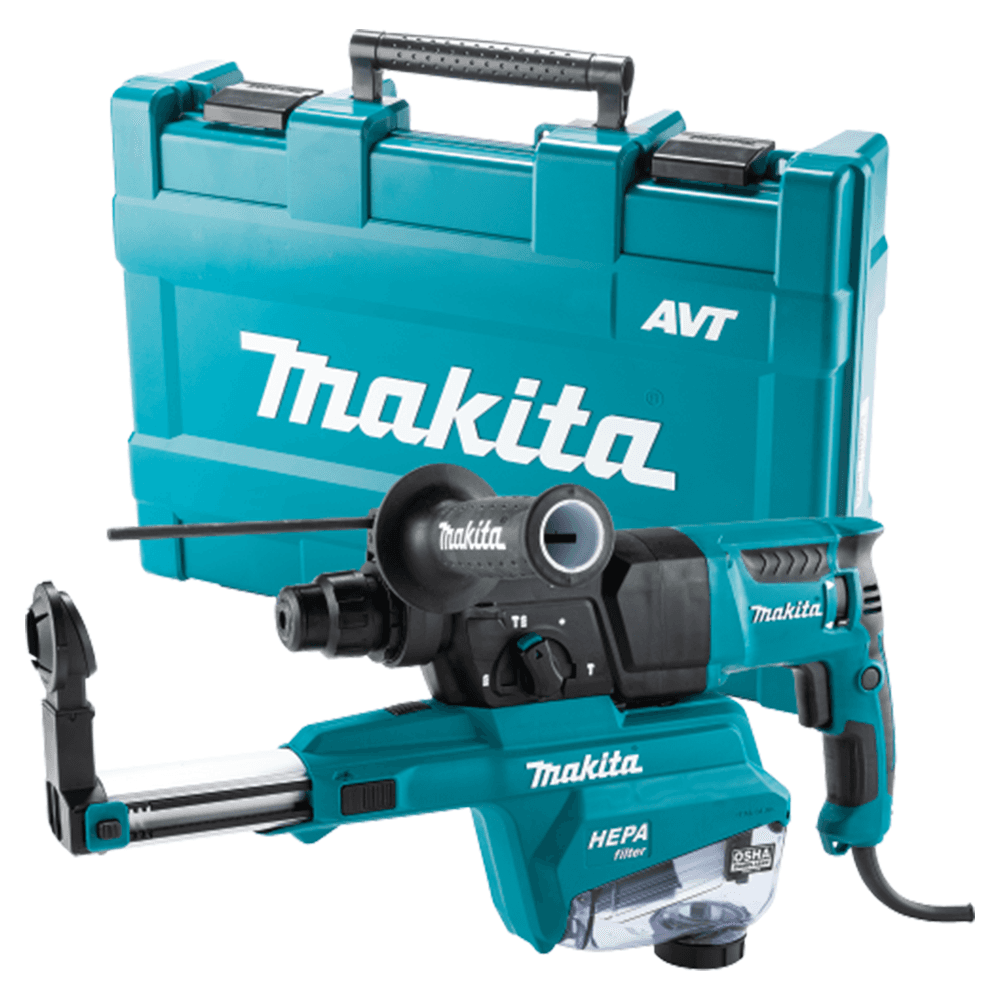

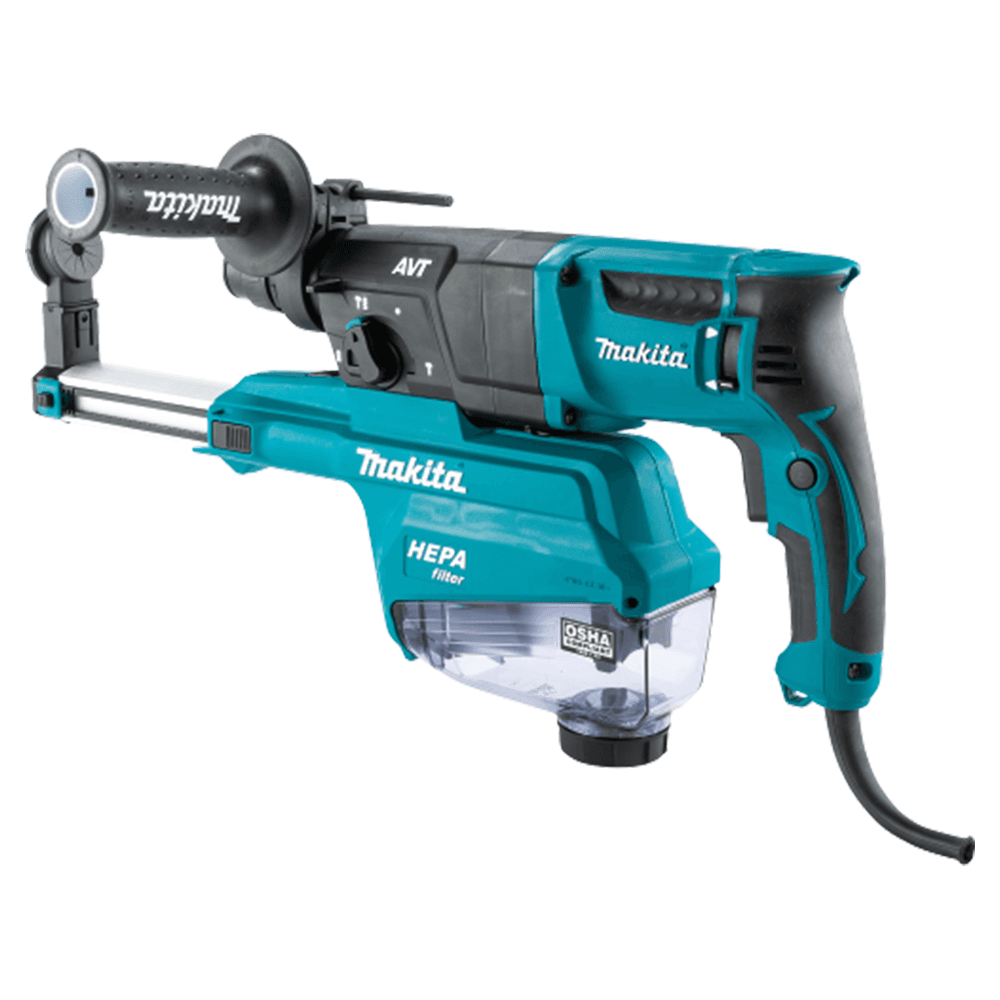

The 1" SDS-PLUS AVT Rotary Hammer, HEPA Dust Extractor with Pistol Grip (HR2653) is a total solution that combines efficient drilling and chipping with reduced vibration and improved dust extraction.

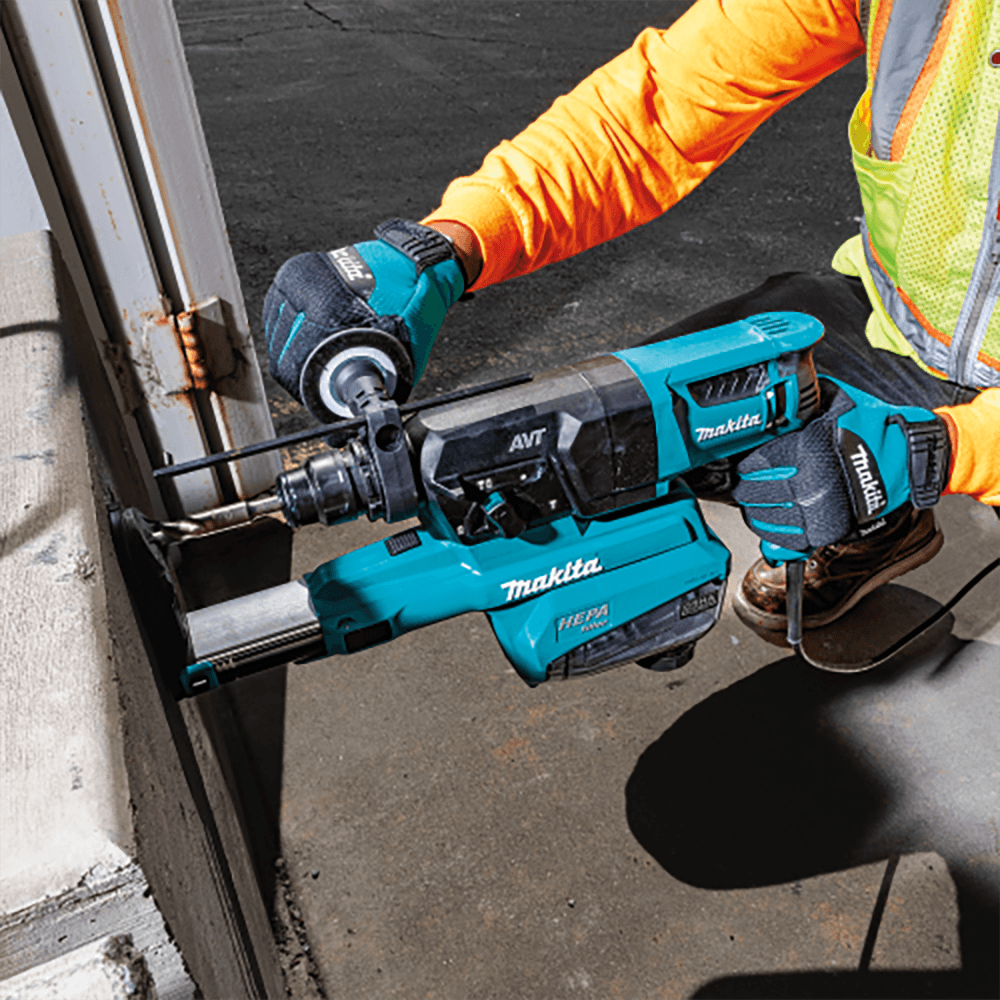

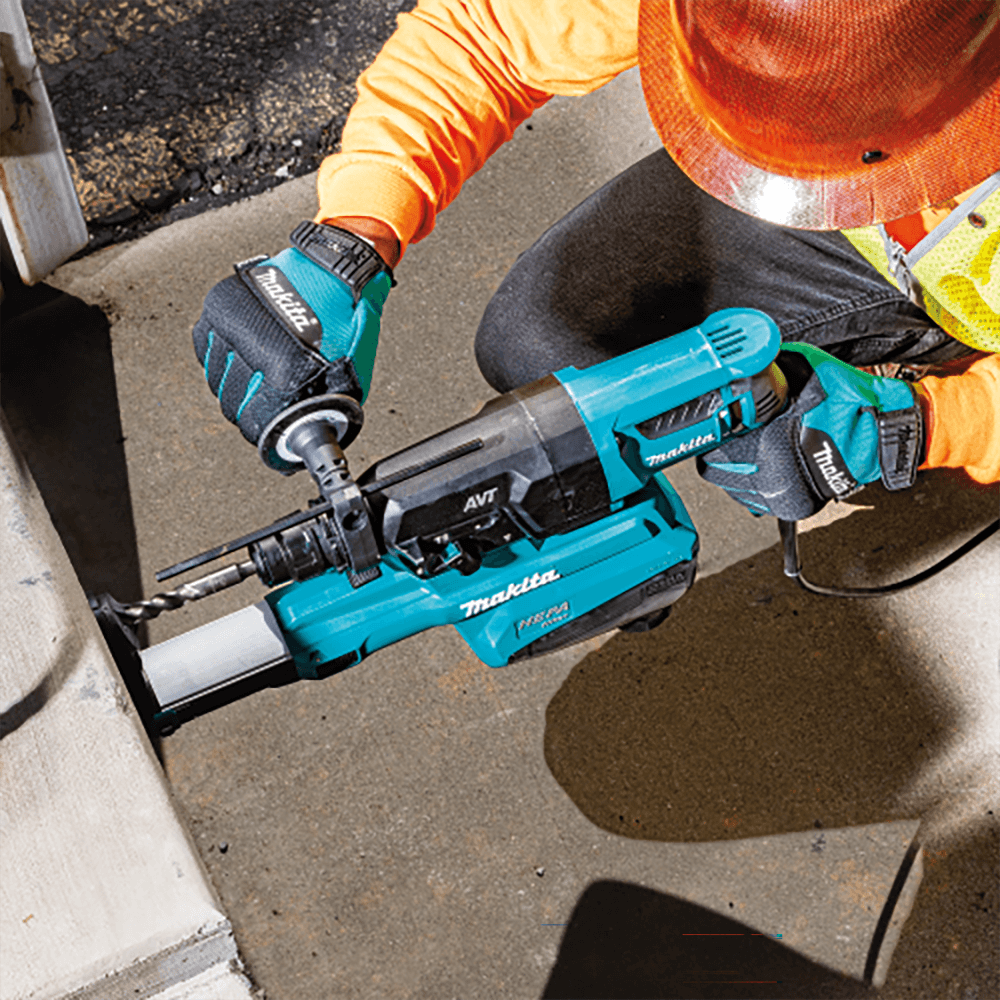

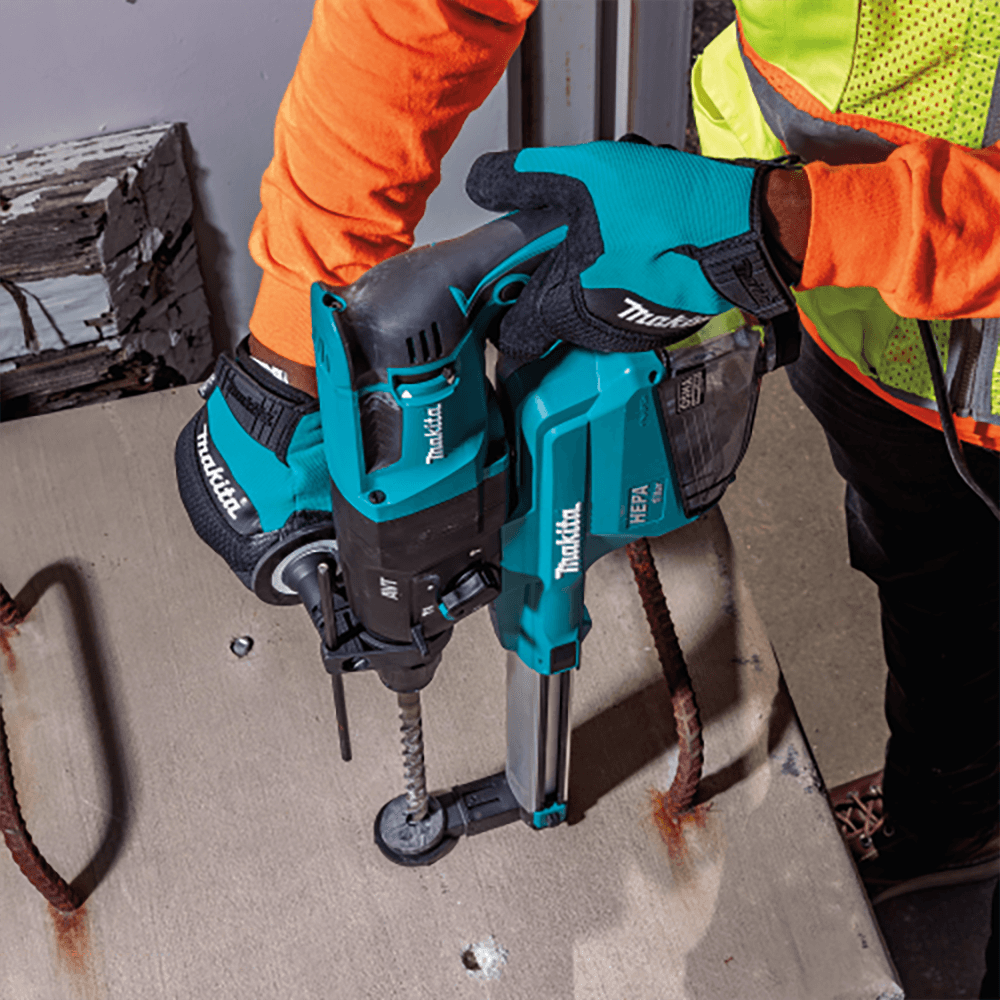

The HR2653 is equipped with Anti-Vibration Technology (AVT), an internal counterbalance system for significantly less vibration. It has a built-on dust extractor that captures concrete dust during drilling. HR2653 combines these performance features in a compact size. It is ideal for a range of applications including overhead drilling into concrete, wood and metal, removing tile, and more.

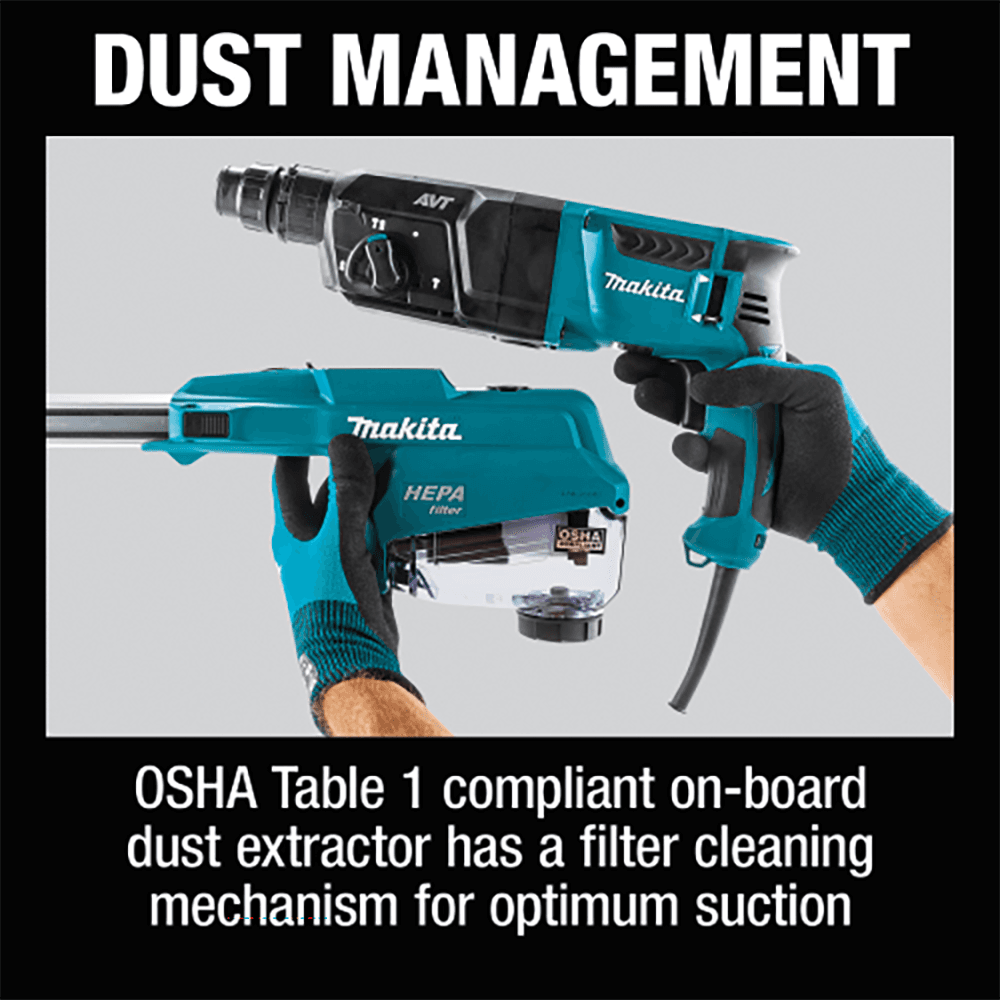

The HEPA Dust Extractor is OSHA Table 1 compliant for Exposure to Respirable Crystalline Silica (rule 1926.1153). The OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency. The dust extractor is activated by the tool for operator convenience and is equipped with an efficient HEPA filtration system that captures 99.97% of particulates .3 microns and larger. It has a transparent dust container with an accurate level indicator of collected material for added convenience.

The HR2653 has an 8 AMP motor that delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications. The 3-mode operation offers "rotation only", "hammering with rotation" or "chipping only" for multiple applications. Modes can be easily changed with a recessed hammer-function selector, which is located below the gear housing for improved durability.

Convenience features include an ergonomic pistol grip handle with a rubberized soft grip provides increased operator comfort. There is a retractable hook that allows the tool to remain close by but never in the way. It also features a depth stop adjustment that allows drilling up to 7-1/2" deep for increased capacity.

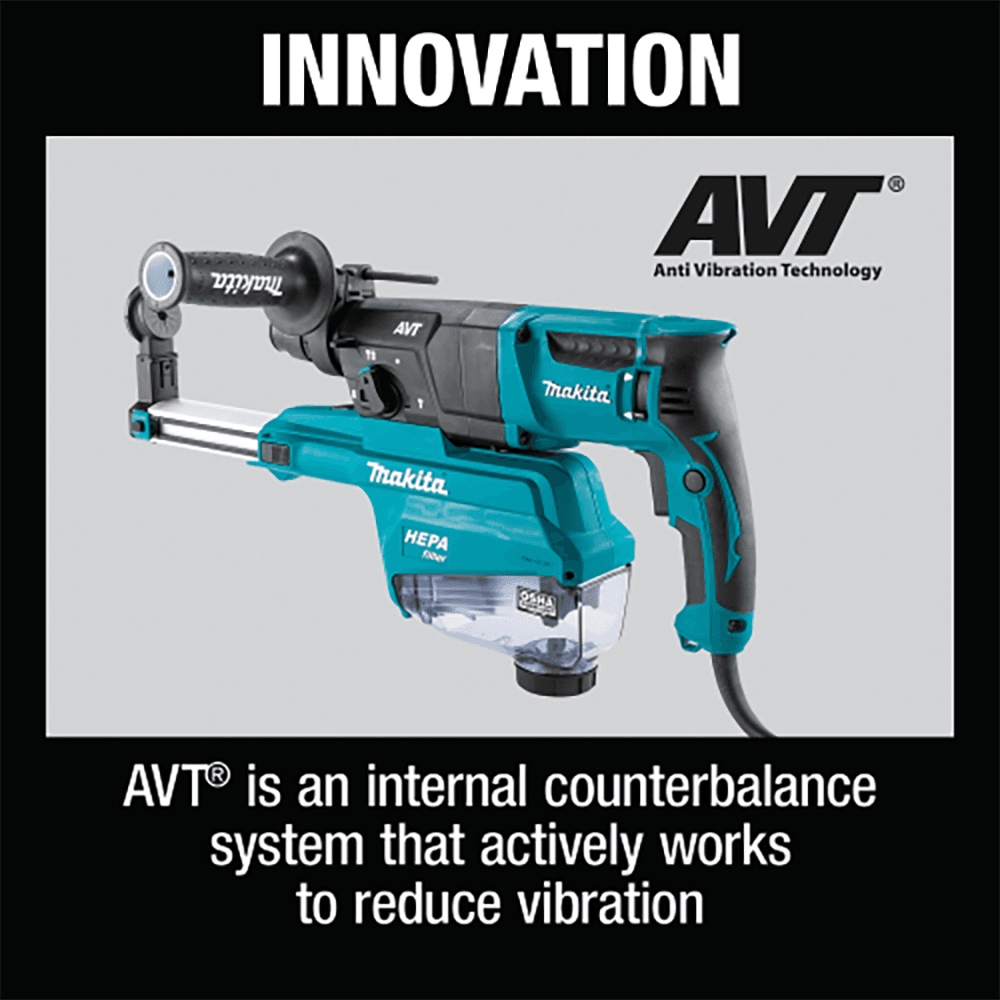

Anti-Vibration Technology (AVT) is a counterbalance system inside the tool that significantly reduces vibration. The AVT counterbalance design is based on seismic engineering, which developed this damping science to absorb shocks and protect buildings from earthquakes. AVT uses a mechanical damper, effectively a counterbalance weight inside the tool, that provides an equal and opposite force that puts a mass directly opposite the point where the striker bolt delivers the impact. As vibration is eliminated, power is efficiently increased which allows more of the generated energy in the motor to be delivered to the tool bit. Also has an AVT counterbalance system in select recipro saws. For users, AVT means significantly less vibration with no compromise in power and performance.

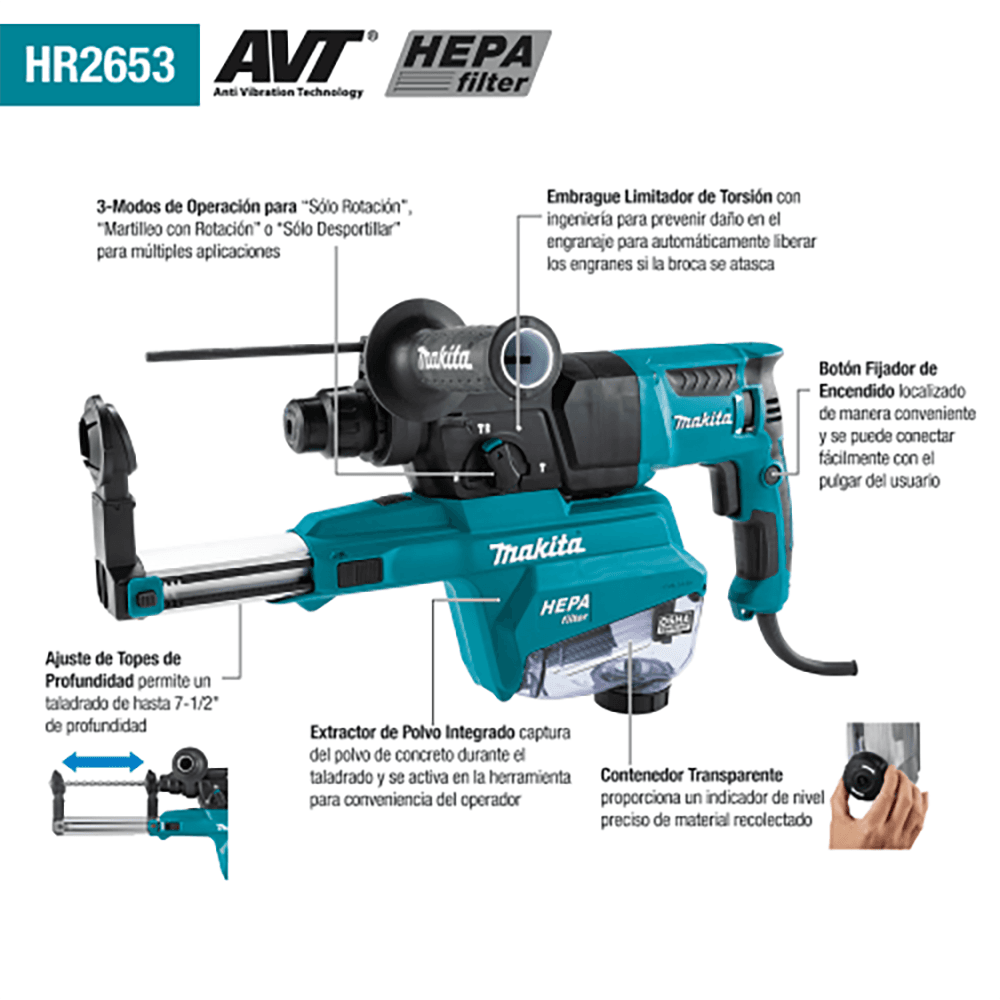

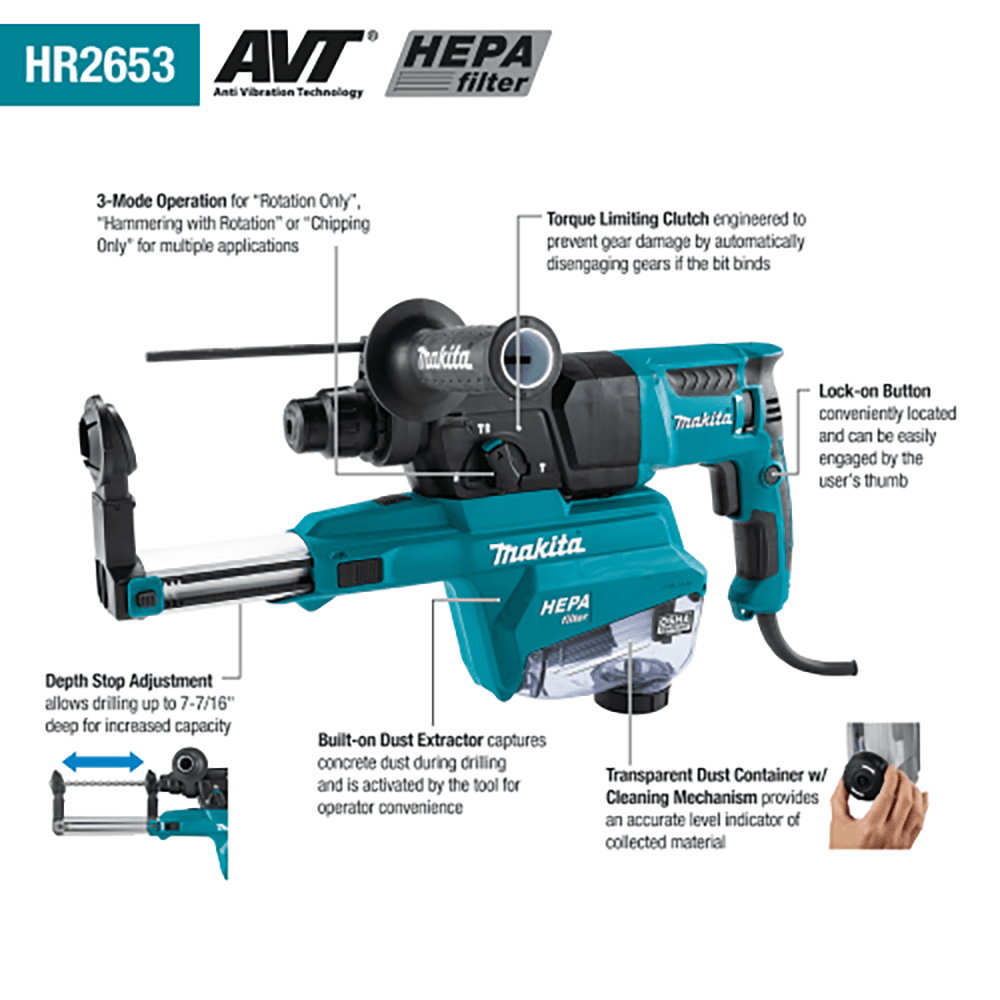

Features:
• Powerful 8 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications
• The OSHA Table 1 compliant on-board dust extractor provides a filter cleaning mechanism designed to help maintain optimum suction efficiency

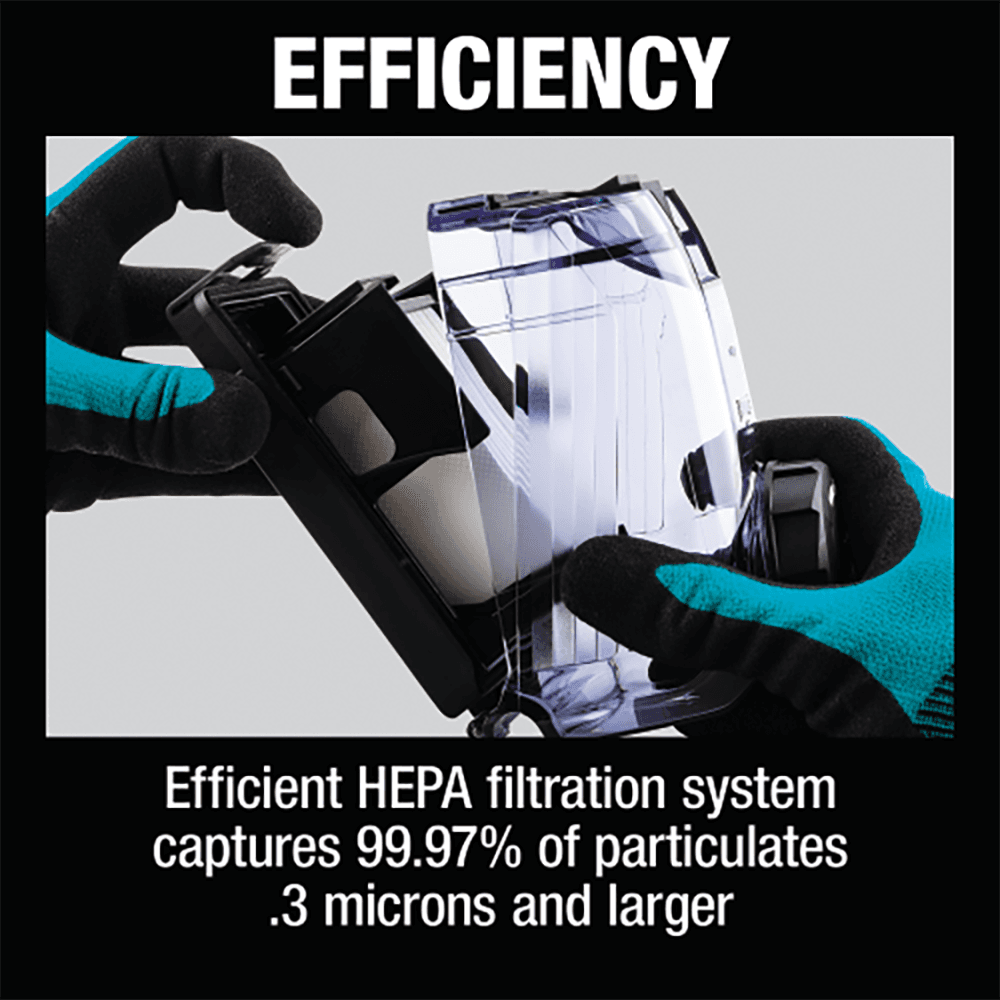

• Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
• Anti-Vibration Technology (AVT) is an internal counterbalance system that actively works to reduce vibration to the operator

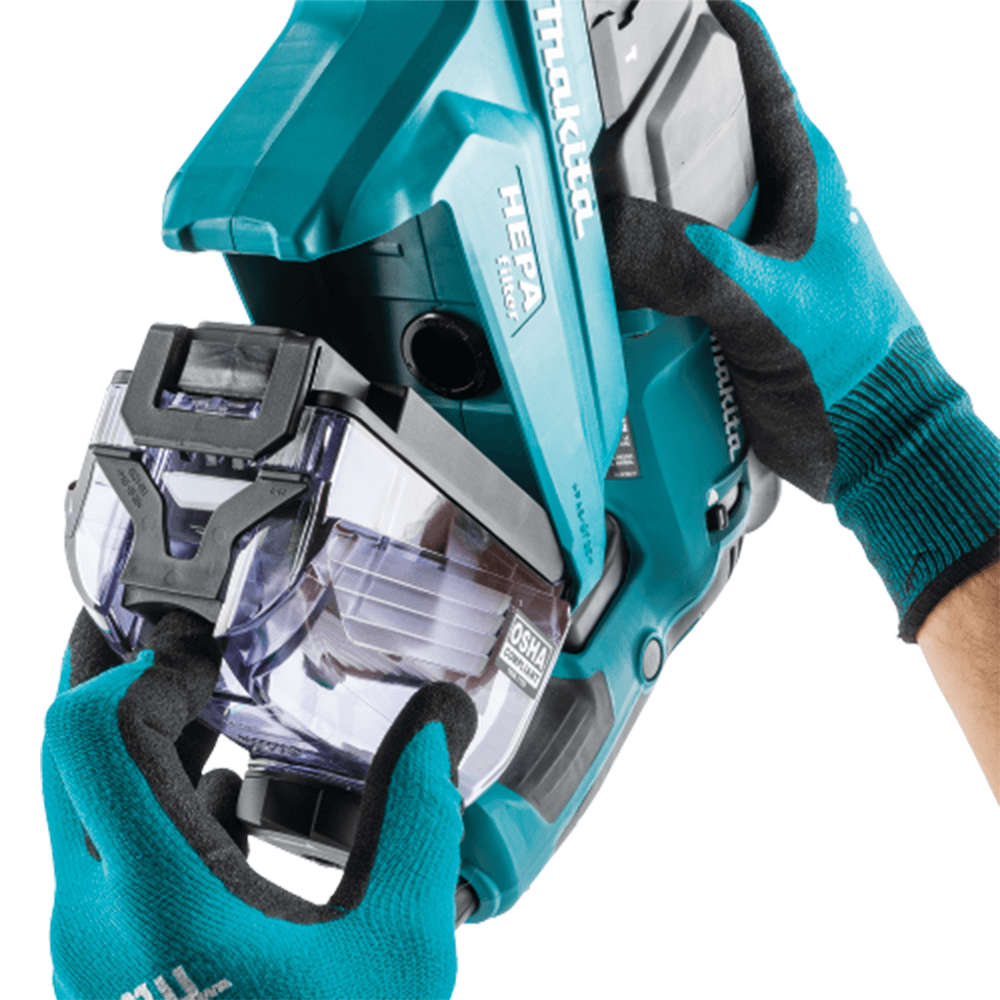

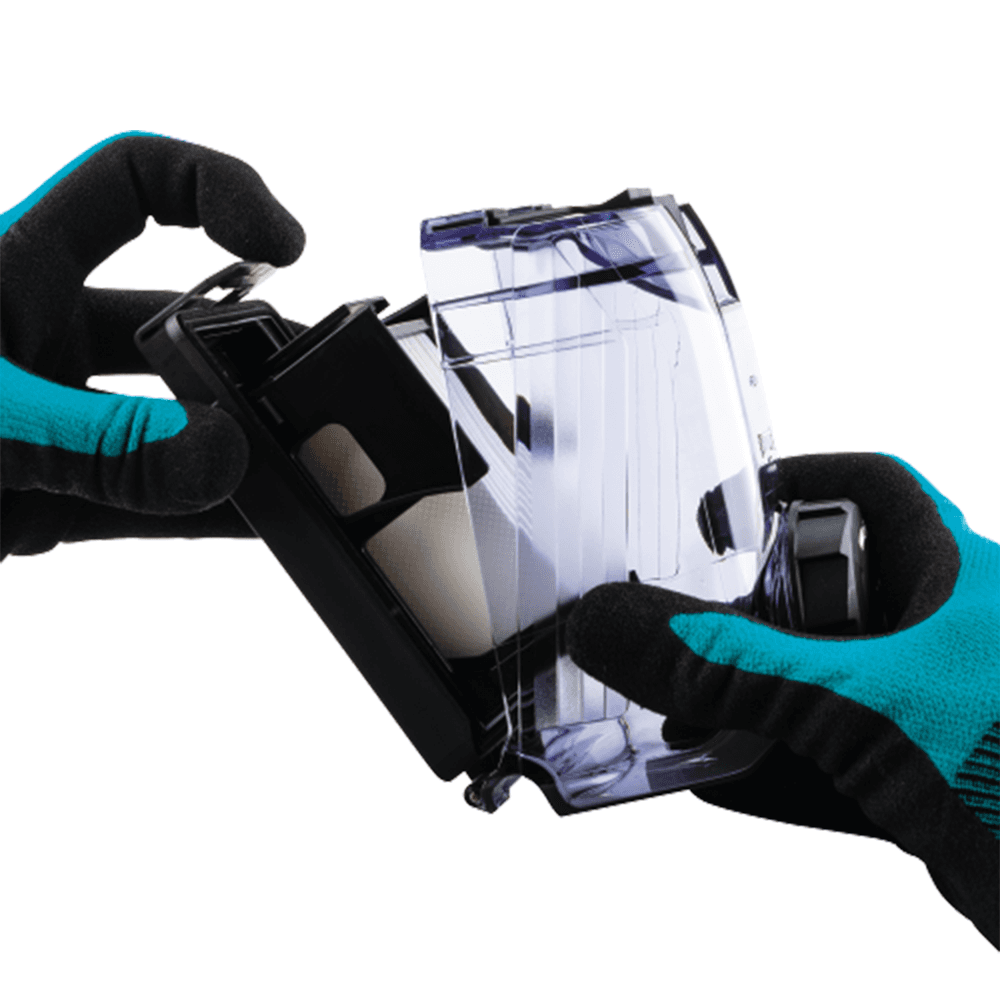

• Transparent dust container provides needed visibility in determining when the dust box needs to be emptied

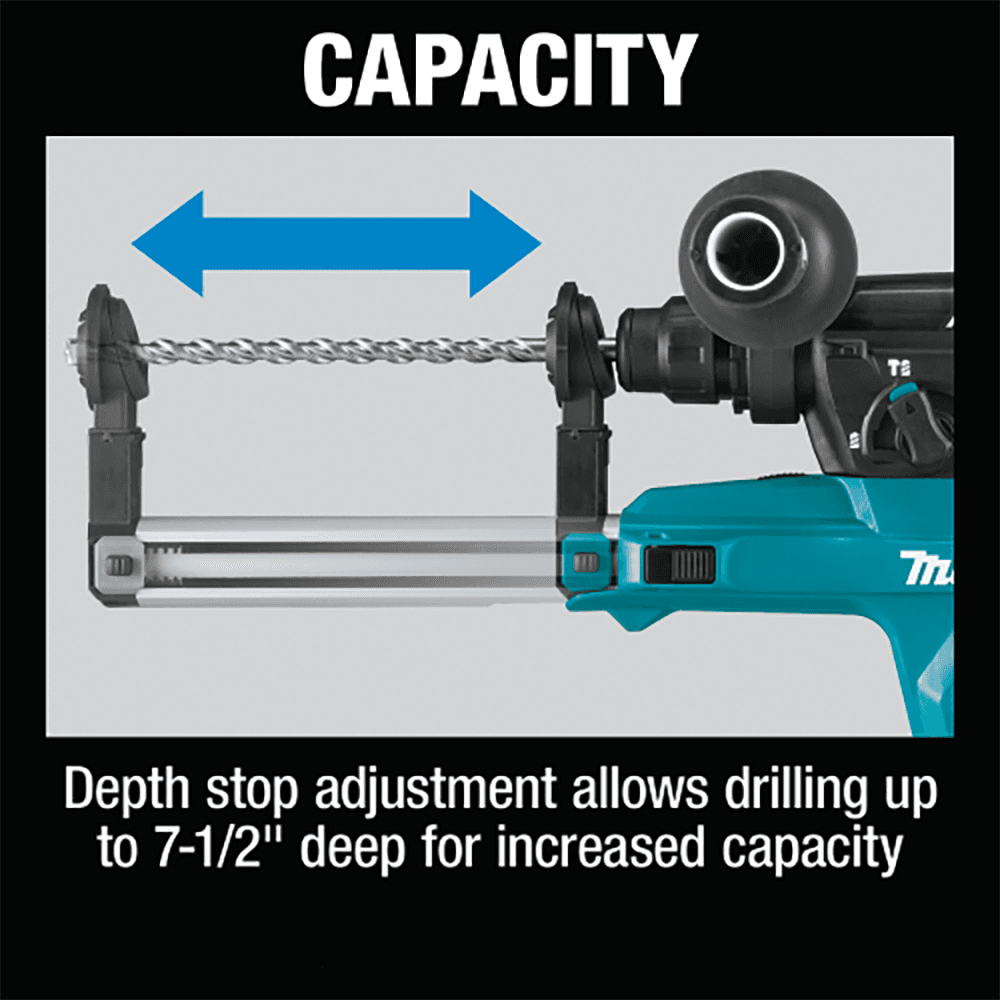

• Depth stop adjustment allows drilling up to 7-1/2" deep for increased capacity
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
• Retractable hook allows tool to remain close by but never in the way
• 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping Only" for multiple applications
• Variable speed trigger enables user to match the speed to the application for greater versatility
• 40 bit angle settings allow the bit to be set at different positions for operating convenience
• Ergonomic "Pistol Grip" handle with rubberized soft grip for increased comfort

Includes:

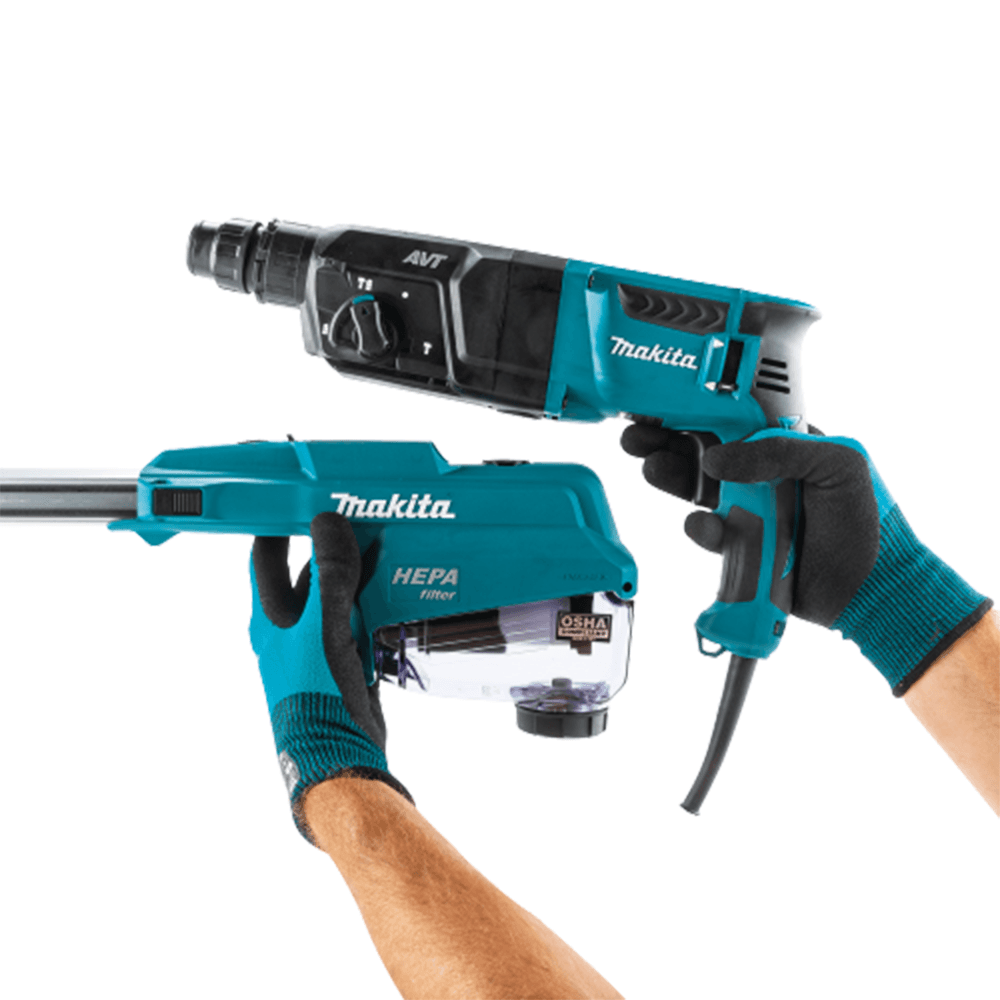

• (1) Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (127190-5)

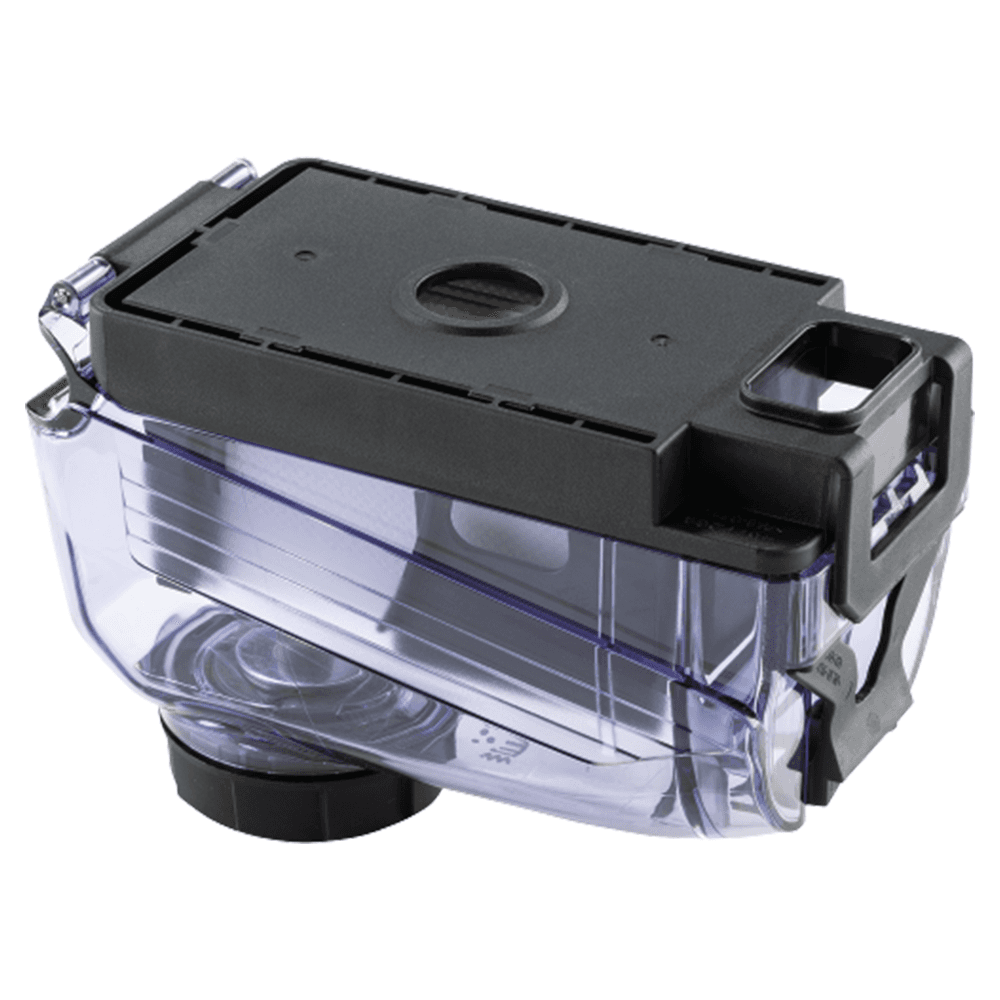

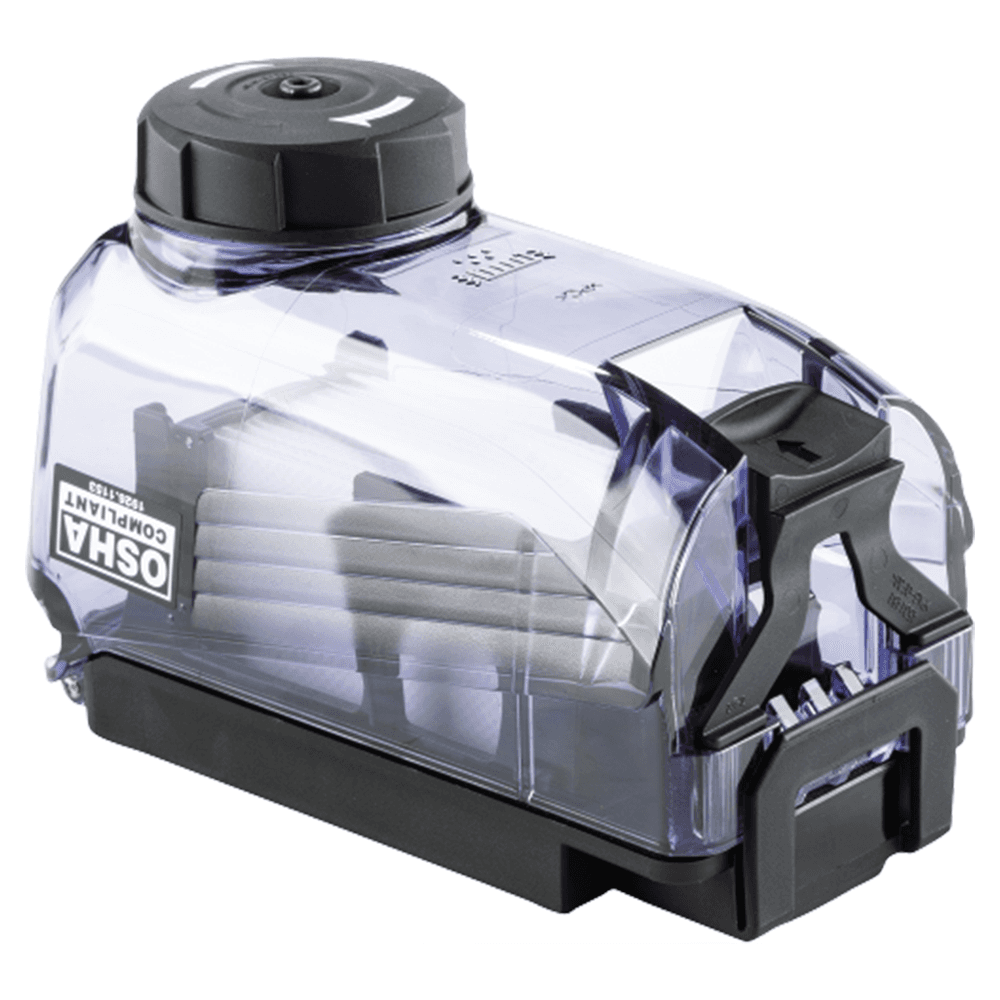

• (1) Dust Case with HEPA Filter Cleaning Mechanism (199587-8)
• (1) HEPA Filter (199558-5)
• (6) Sealing Cap (424474-5)
• (1) Side Handle
• (1) Depth Rod

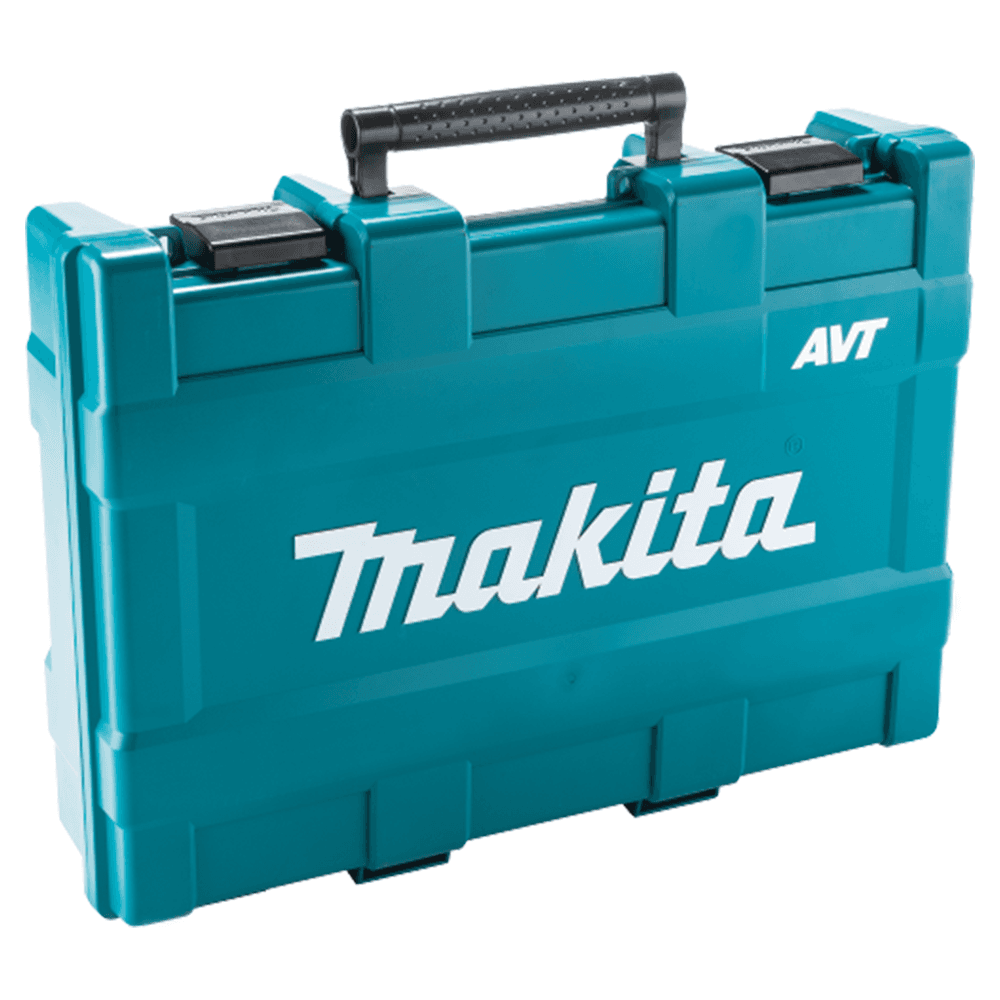

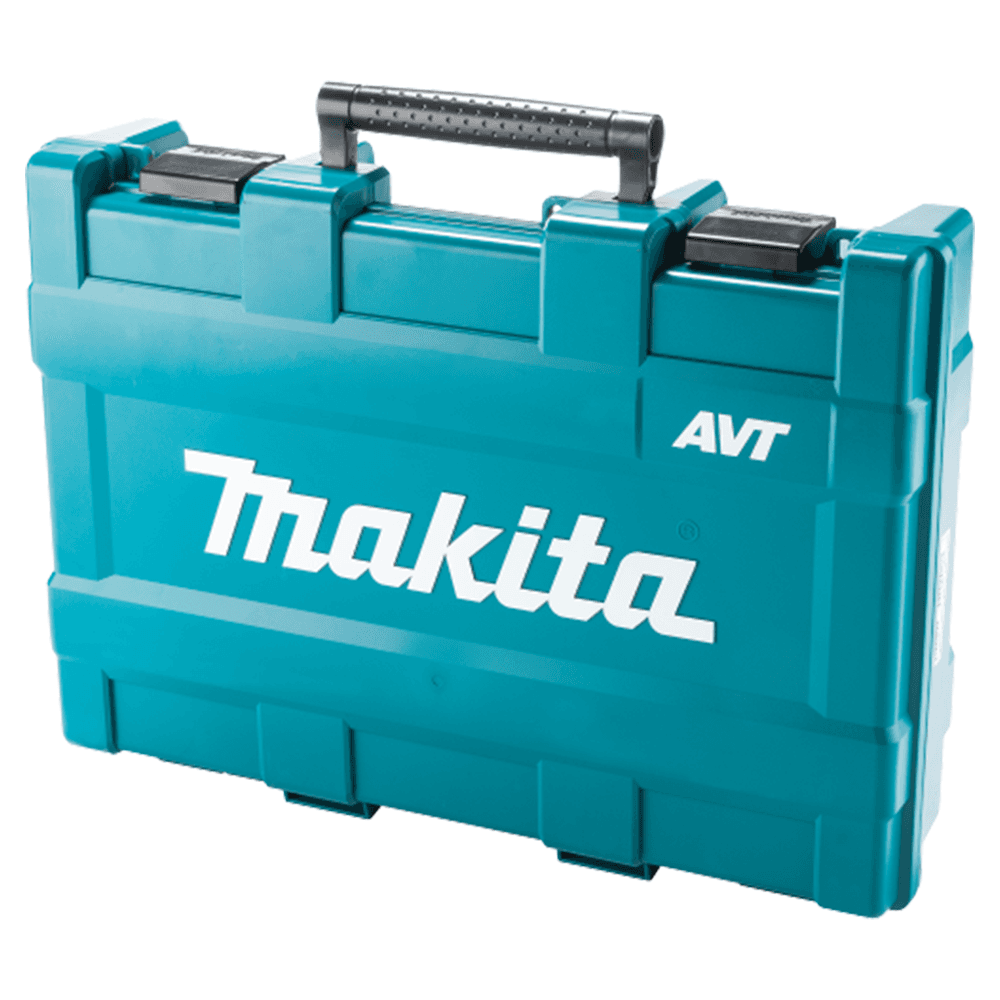

• (1) Tool Case
