SCM Startech CN K Electrospindle with R25 Attachment, 1 Phase
This item may incur additional shipping costs and lead times.
Product Details

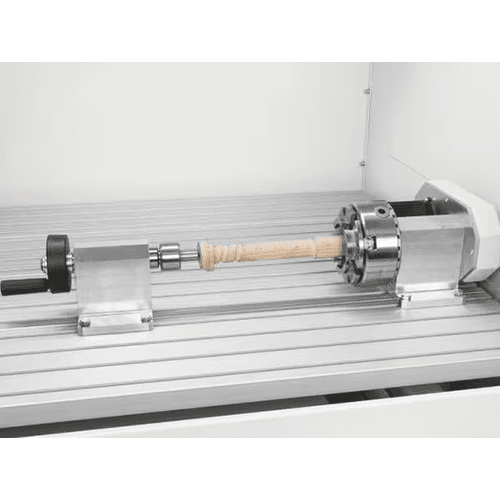

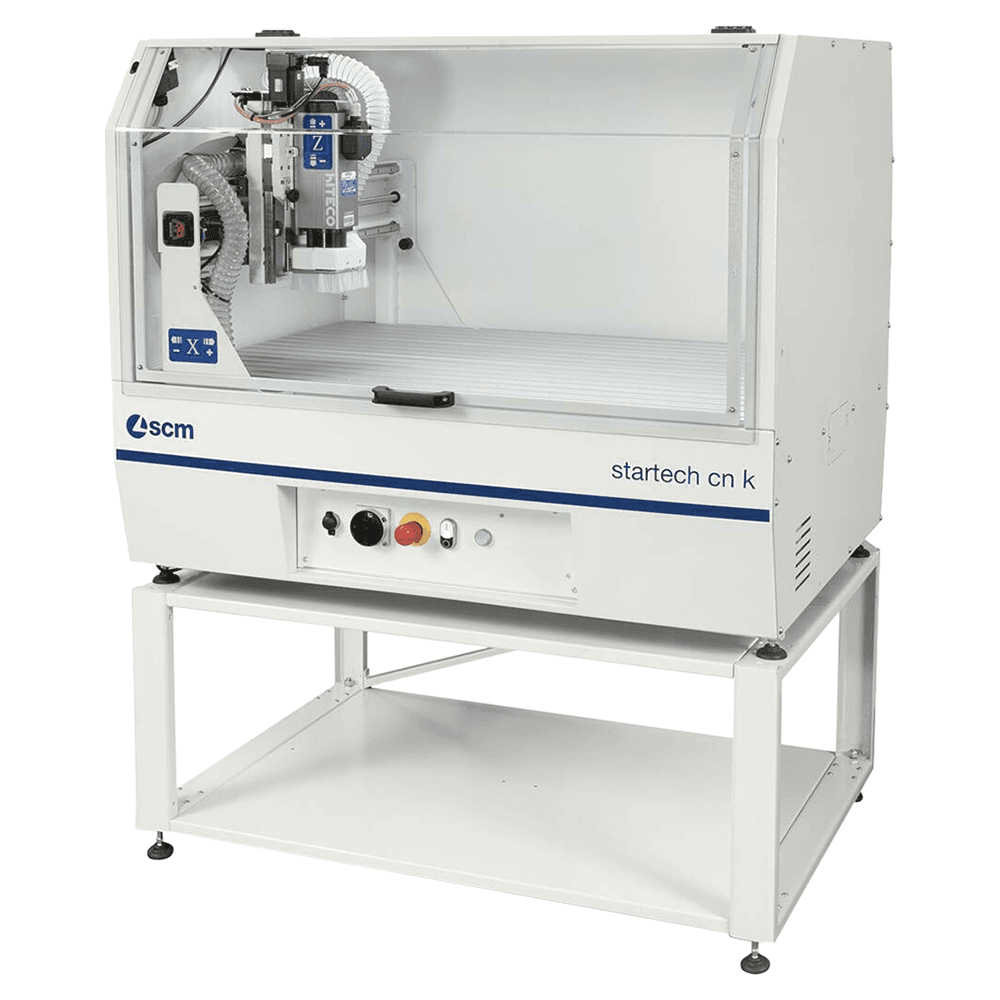

Compact 3-axis machining centre ideal for all types of milling, decorations, engraving, signboard creation and 3D models prototyping. Features: • 4th interpolating axis (lathe processing) that can be positioned on the worktable • NC movement with 3 interpolating axes. It is possible to use tools with max. 60 mm diameter and max. 16 mm tool holder. • Ease-of-Use and Accuracy: Kit of 5 pneumatic suction cups positionable on the worktable • Easy Machine Handling: Support base with wheels and adjustable feet (500 mm height) • Total Reliability: Tool height detection sensor
Advantages:

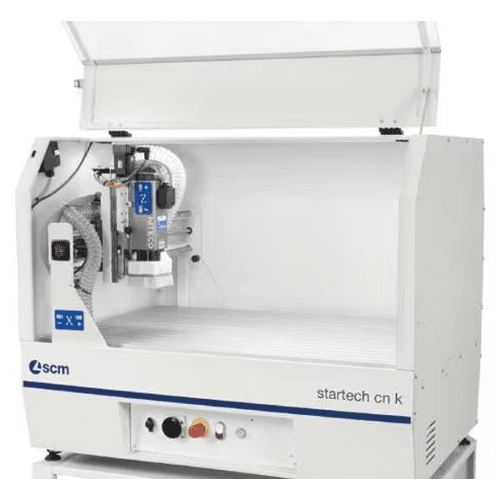

Maximum Safety: • The integral cabin with internal LED lighting ensures protection for the operator and keeps the surrounding environment clean

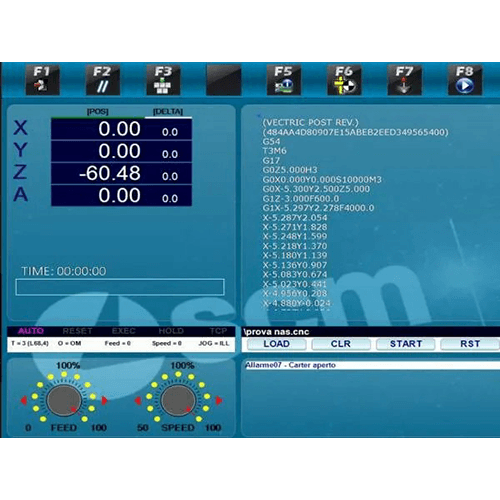

Easy Programming: • "open" virtual human-machine interface capable of importing G-code from any type of CAD/CAM software (it is advisable to verify with the software supplier that the CAD/CAM provides a G-code that can be read from the interface)

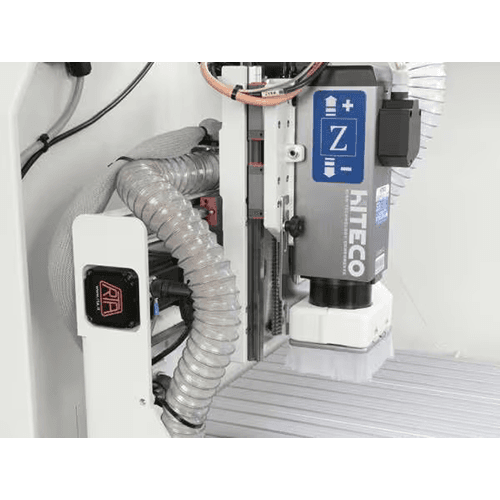

Unique in its Cateogory: • The machine has a powerful 2,4 kW electrospindle with R25 tool-chuck generally used on higher-segment machines
Technical Data: • Worktable Dimensions(mm): 1170x760 • X-Y-Z Stokes(mm): 915-610-176 • Z-Axis Work-Piece Clearance(mm): 160 • X-Y-Z Axes Max. Speed(m/min): 5-5-2,5 • Max. Tool Diameter(mm): 60 • Max. tool-holder diameter(mm): 16 • Electrospindle Max Speed(rpm): 24.000 • Electrospindle Motor Power(kw): 2,4 kW (S6)
Specifications
| Box Quantity | 1 |
| Product Type | Electrospindle Shaper |
| Power | |
| Phase | 1 |
| Length | |
| Width | |
| Height | |
| Horsepower | |
| Rangeof Speeds | |
| Electrical Controls | |
| Table Inserts (In.) | |
| Reversible | |
| Spindle Size Under Nut (In.) | |
| Recommended Circuit Size (Amps.) | |
| Table Travel (In.) | |
| Maximum Diameter Cutter Above Table (In.) | |
| Wiring Remarks | |
| Table Opening | |
| Maximum Diameter Cutter Below Table (In.) | |
| Motor Phase | |
| Router Bit Collet Included | |
| Dust Collection Minimum CFM Required (CFM) | |
| Fence Travel (Major and Minor) (In.) | |
| Spindle Stroke | |
| Motor Voltage (V.) | |
| Table Size (In.) | |
| Fence Size (L x H) (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Maximum Spindle Diameter (In.) | |
| Style (Type) | |
| Spindle Pivot | |
| Spindle Travel (In.) | |
| Digital Readouts | |
| Prewired Voltage (V.) | |
| Table T-Slot (In.) | |
| Spindles Included | |
| Sliding Table Size (In.) | |
| Motor Power | |
| Table Insert Opening Diameter (In.) | |
| Table Height from Floor (In.) | |
| Warranty | |
| Control | |
| Control Panel | |
| Rotational Speeds | |
| Display Resolution | |
| Repeat Accuracy | |
| Extraction Connections | |
| Drive Motor | |
| Range of Speeds |
