SCM Minimax S 540P 4.8HP Band Saw, 1 Phase
This item may incur additional shipping costs and lead times.
Product Details
Advantages:

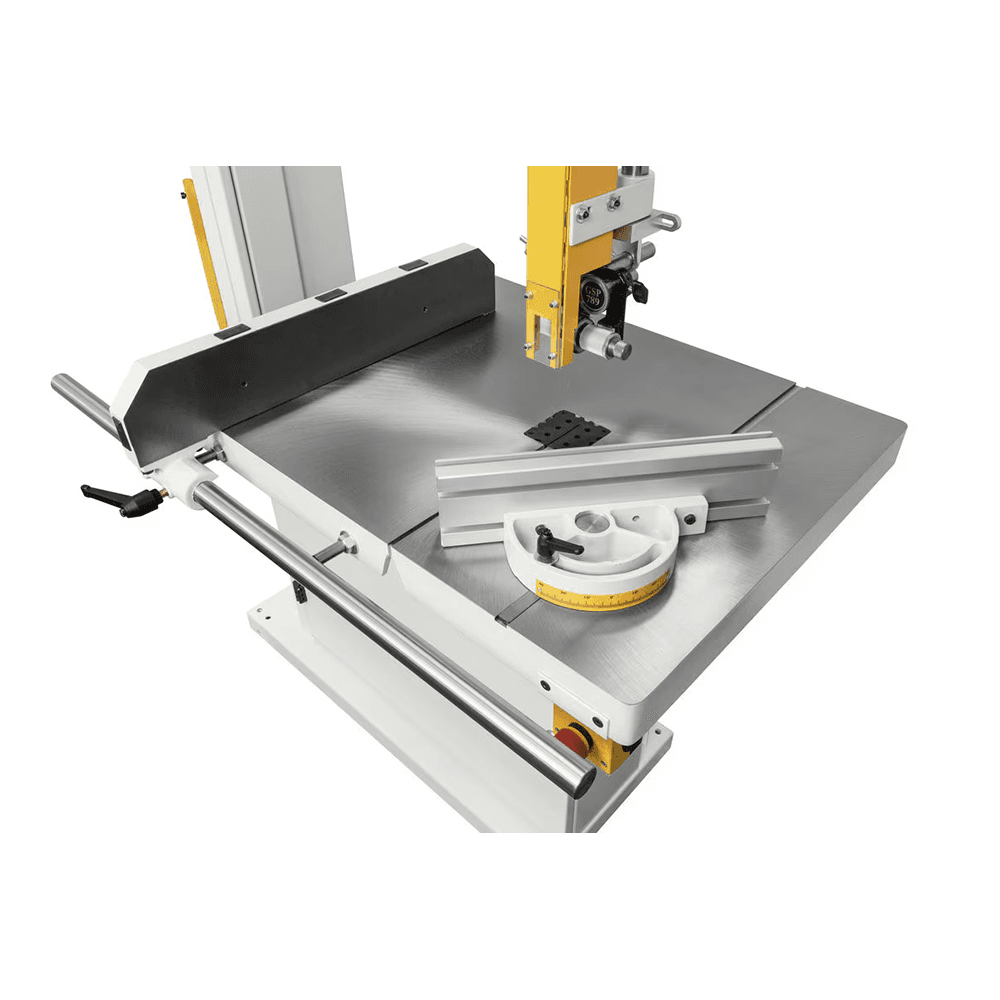

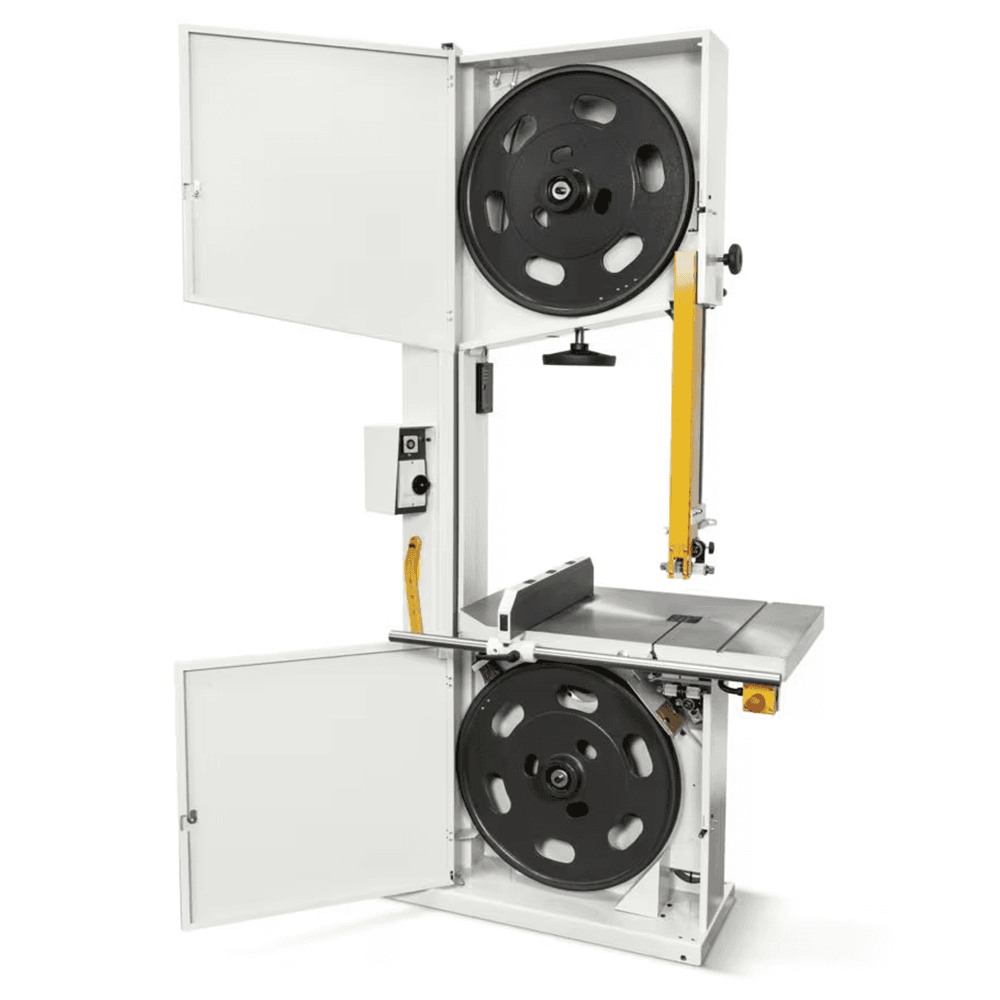

Solidity and Sturdiness: • Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.
Safety First: • Total safety machining with telescopic protections with rackwork to the blade.

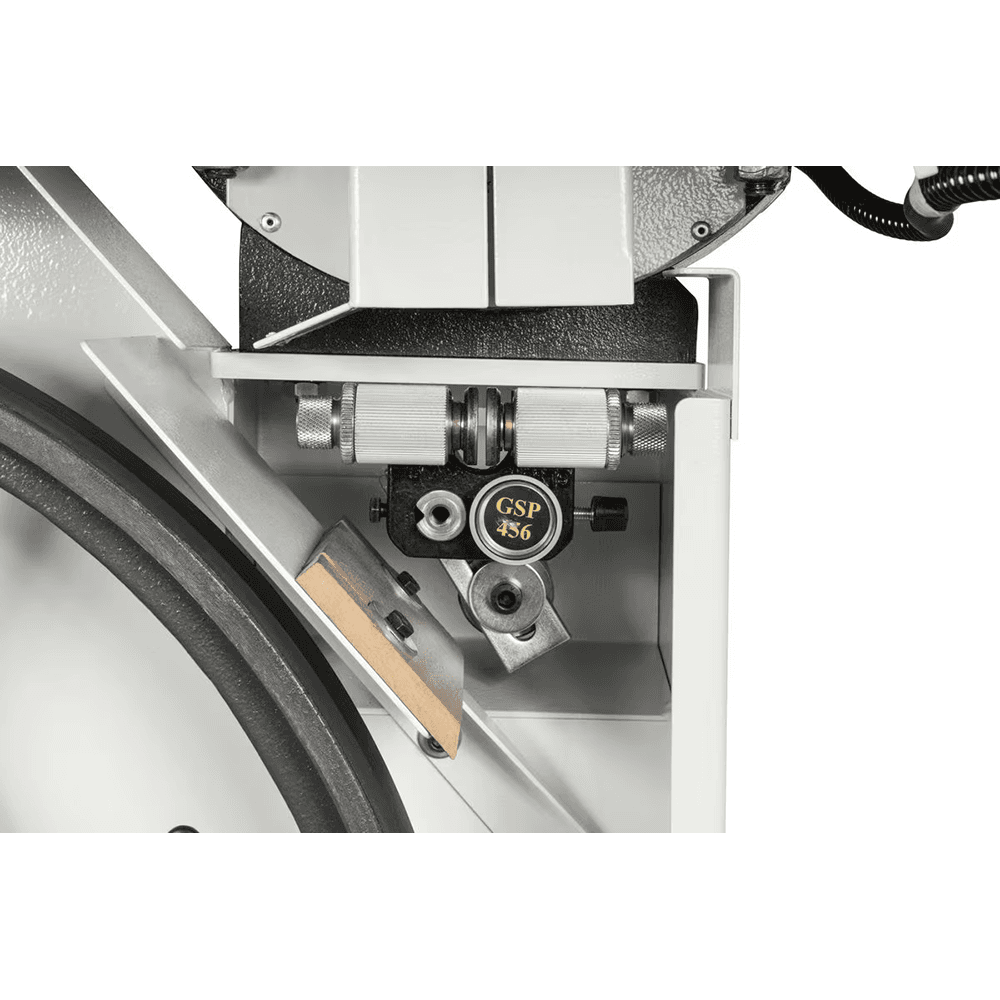

Perfect Results: • A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.
Technical Data: • Worktable dimensions(mm): 520 x 720 • Cast Iron Saw Wheels Diameter(mm): 540 • Saw Wheels Width(mm): 38 • Max. Cutting Height (inches)(mm): 500 (20") • Max. Cutting Width(mm): 520 • Worktable Tilting (CE): 0° ÷ 45° (20°) • Max. Blade Length(mm): 4560 • Standard Three-Phase Motor S1 400V 50Hz kW (Hp): 2,2 (3) • Standard Three-Phase Motor S1 220V 60Hz kW (Hp): 3,6 (4,8) • Standard Single-Phase Motor S1 220V 60Hz kW (Hp): 3,6 (4,8) • Exhaust Outlets Diameter(mm): N.2 x 120
Specifications
| Box Quantity | 1 |
| Product Type | Bandsaws |
| Table Size | 520 x 720 |
