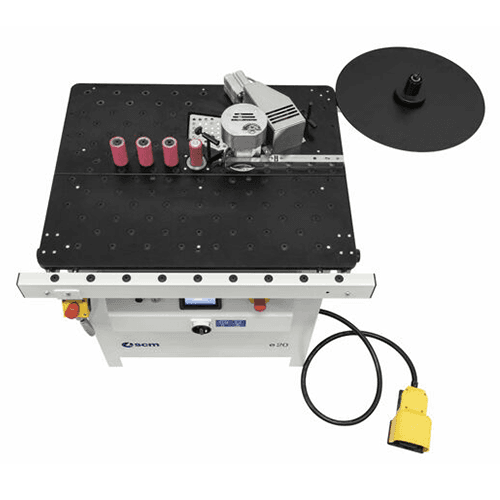

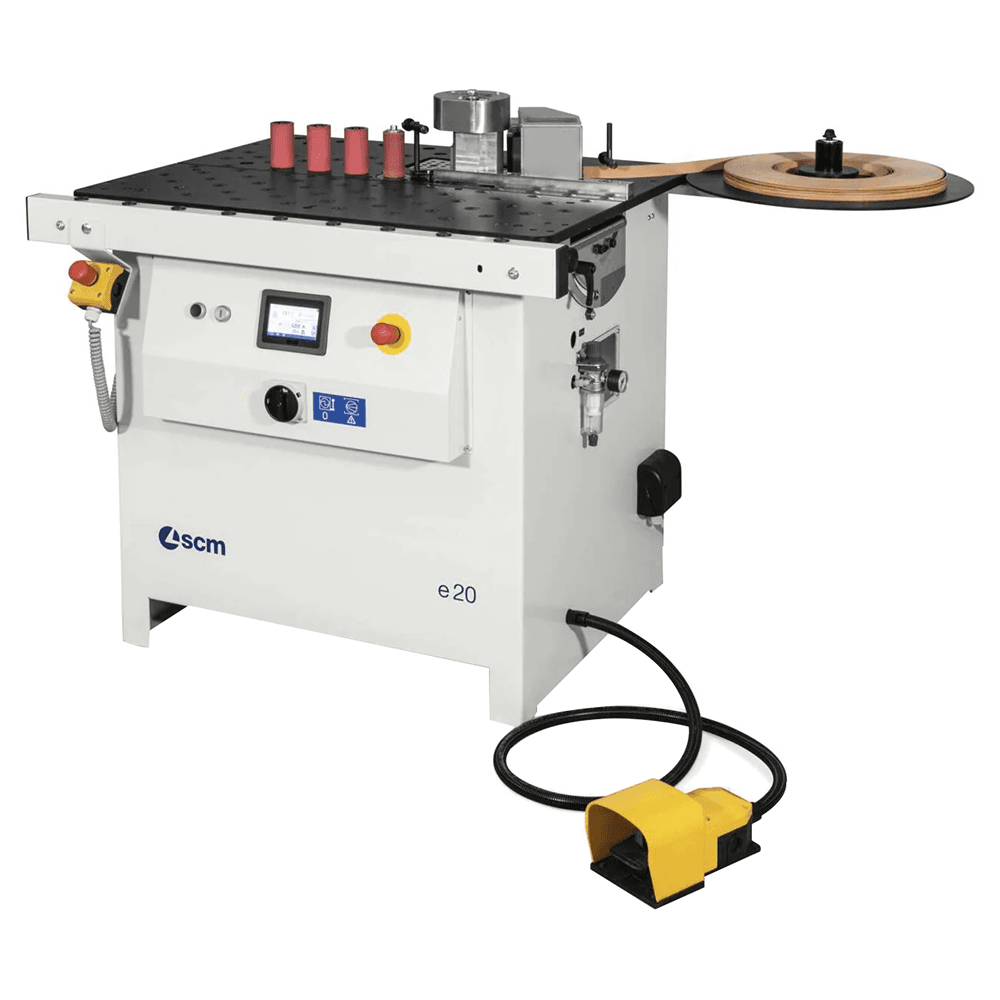

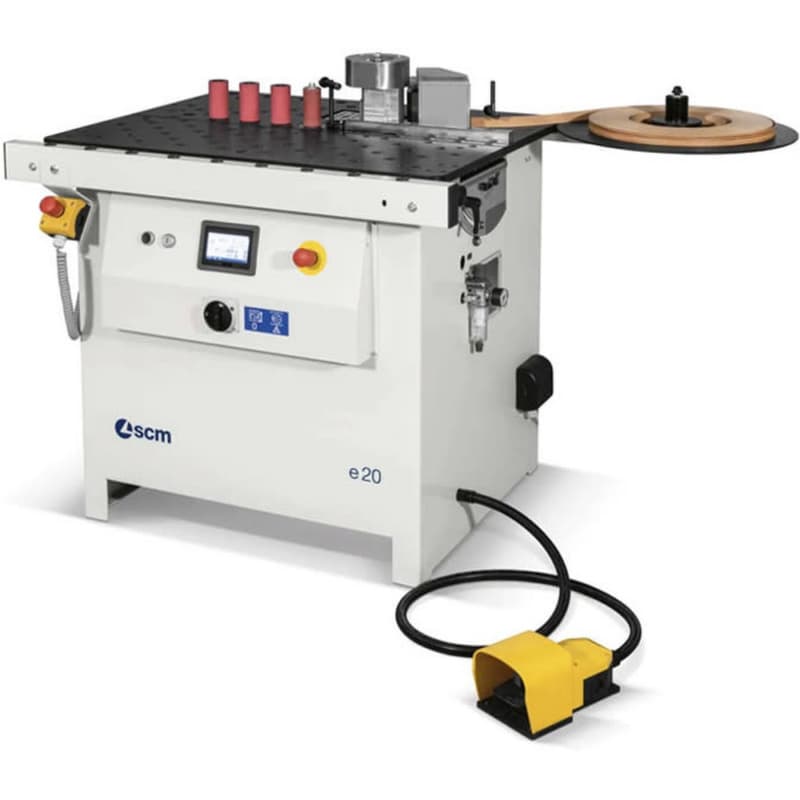

SCM Minimax E 20 5HP Contour Edgebander, 3 Phase
This item may incur additional shipping costs and lead times.
Product Details

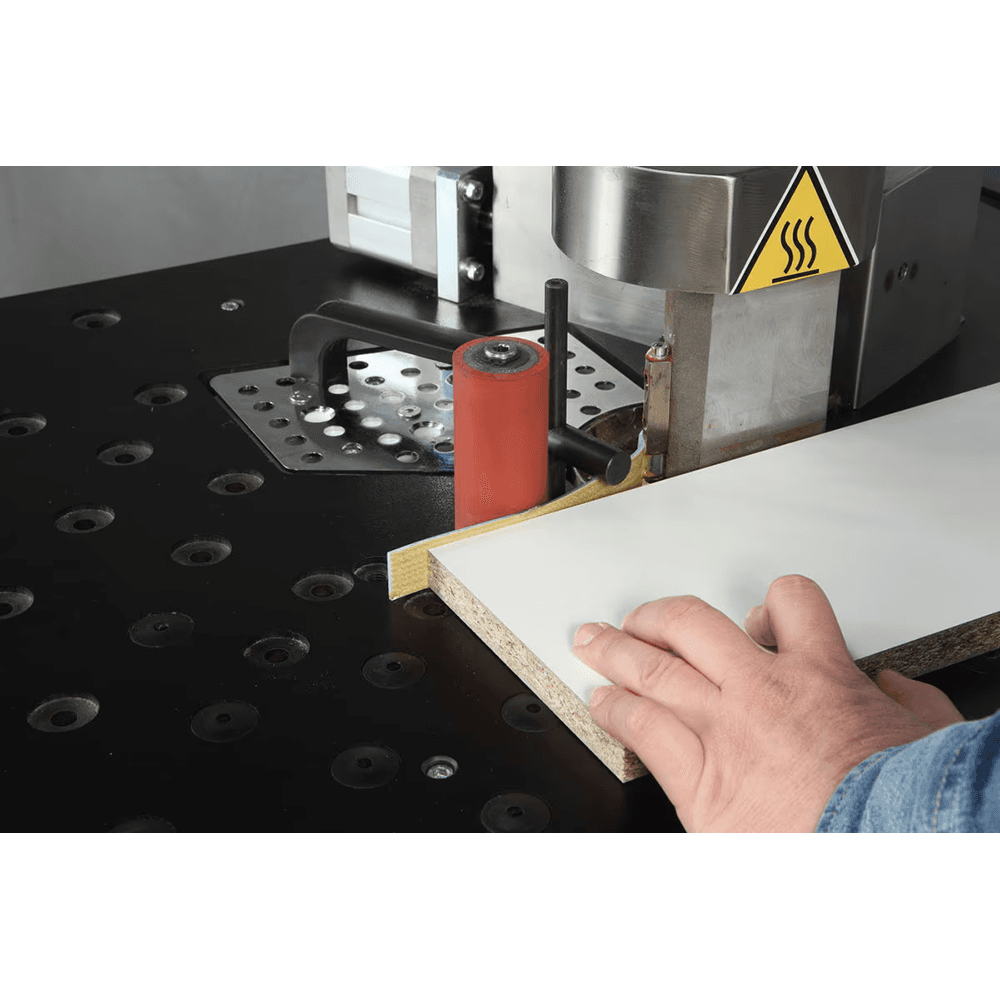

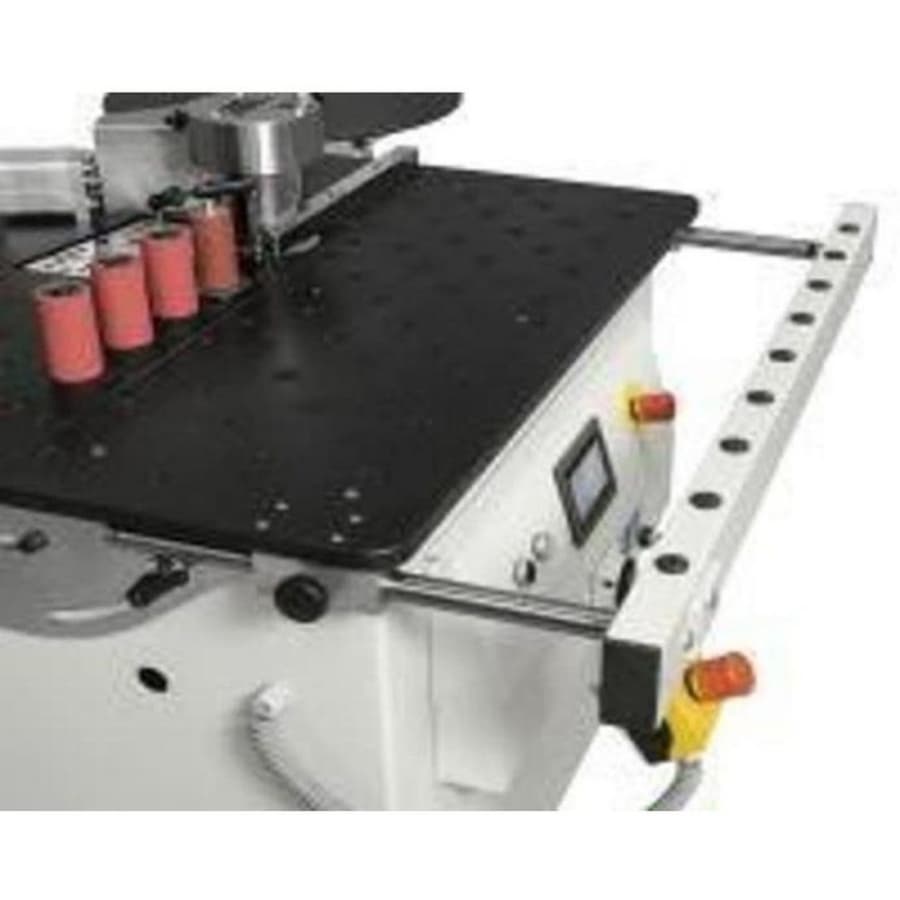

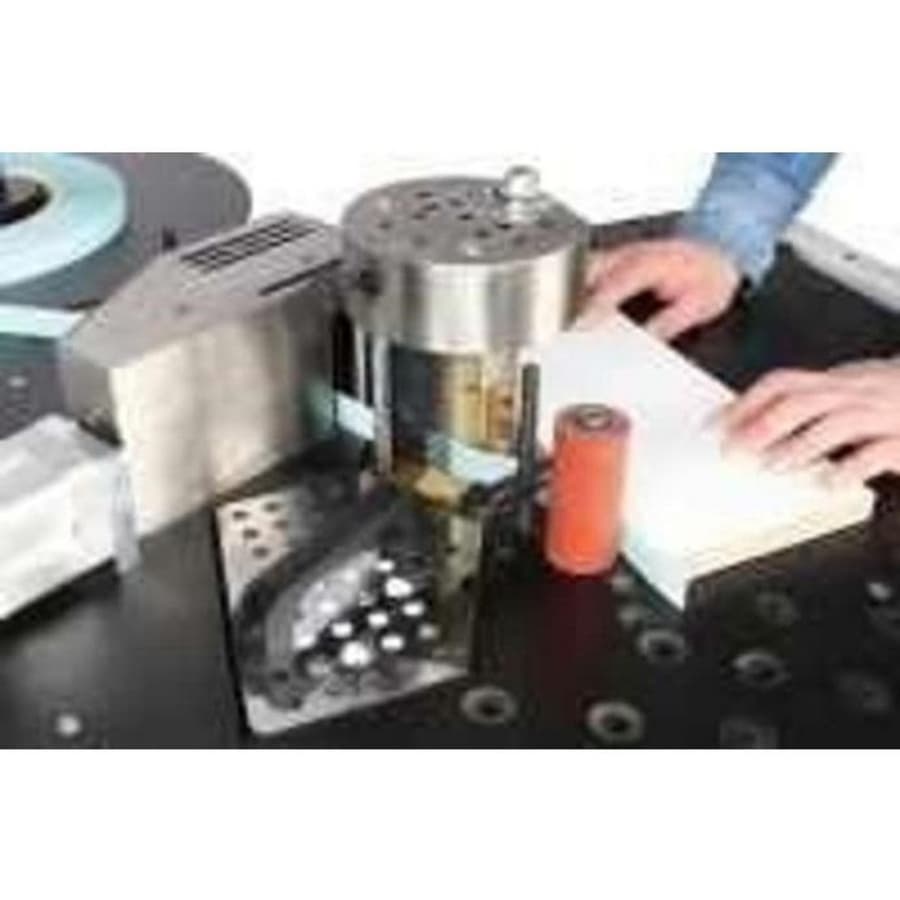

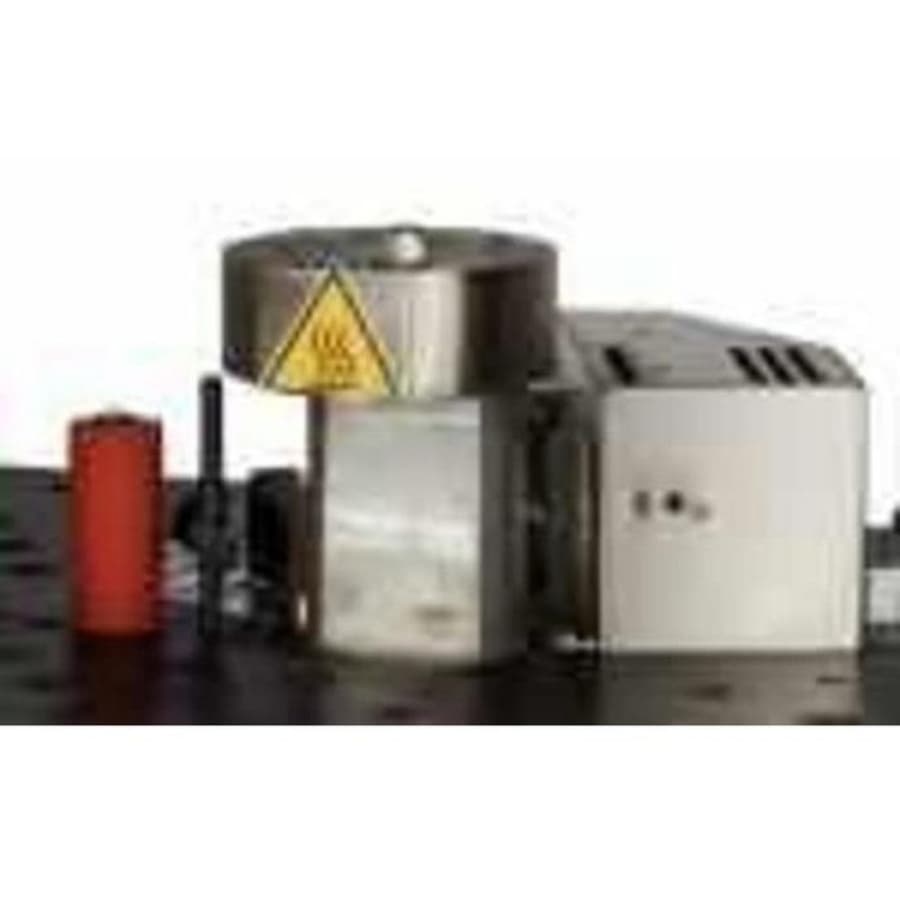

Edge banding with hot melt glueon edges in rolls and strips on shaped panels, simply essential and functional. Designed to be economic, reliable and practical machine for the edge banding of straight and shaped panels. Features: • The electronic control enables the panel perimeter measuring for continuous complex geometries by sliding the panel on the powered roller • Gluing the most critical edges without compromise. The teflon-coated hot melt glue pot, positioned underneath the worktable, with continuous glue circulation avoids burning of the glue. It is possible to adjust the quantity of the glue to be applied on the edge. • Programmed working mode: The operator enters the pre-set length of the edge, by pressing the pedal he starts the edge feeding and, at the desired length, the machine cuts the edge. Automatic calculation of the perimeter for common geometries as circle, ellipse, regular polygons, etc. • Excellent Finishing: The machine is equipped with a powered pressure roller to facilitate the panel feeding during the machining. The 3-roller outfeed fence (option) improves the edge gluing quality on large dimensioned straight panels. • Maximum Practicality: The infeed fence is extremely helpful in the processing of large dimensioned linear panels. • Versatility: The mobile front extension makes easy the handling of large dimensioned pieces on the worktable. • Best Accuracy: The tilting worktable adjustable from 0 to 45° allows the simple edge banding of panels with sides not in square with reference to the support table.

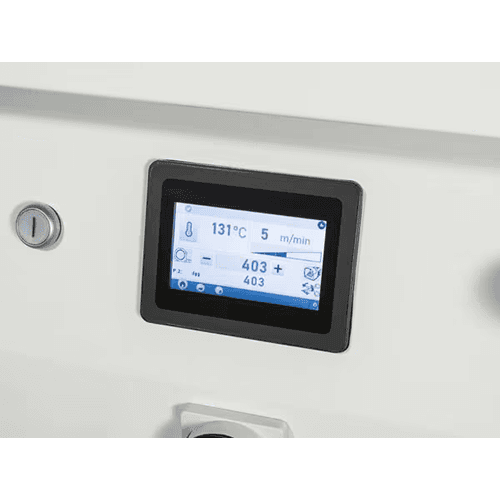

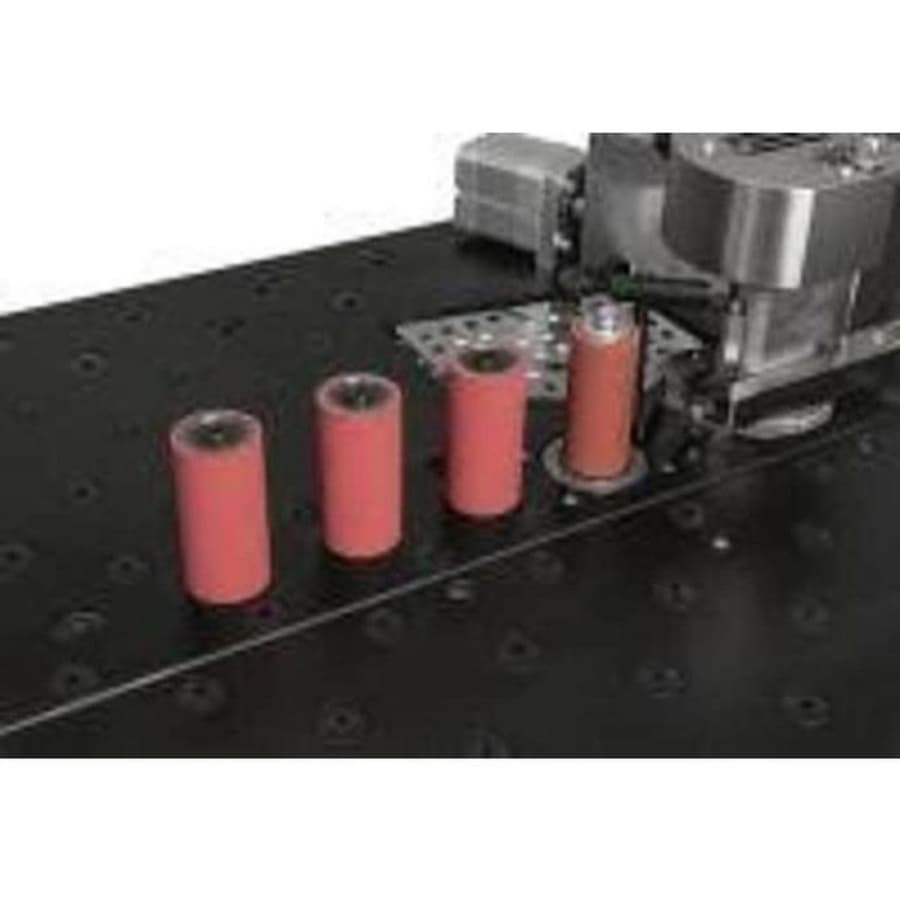

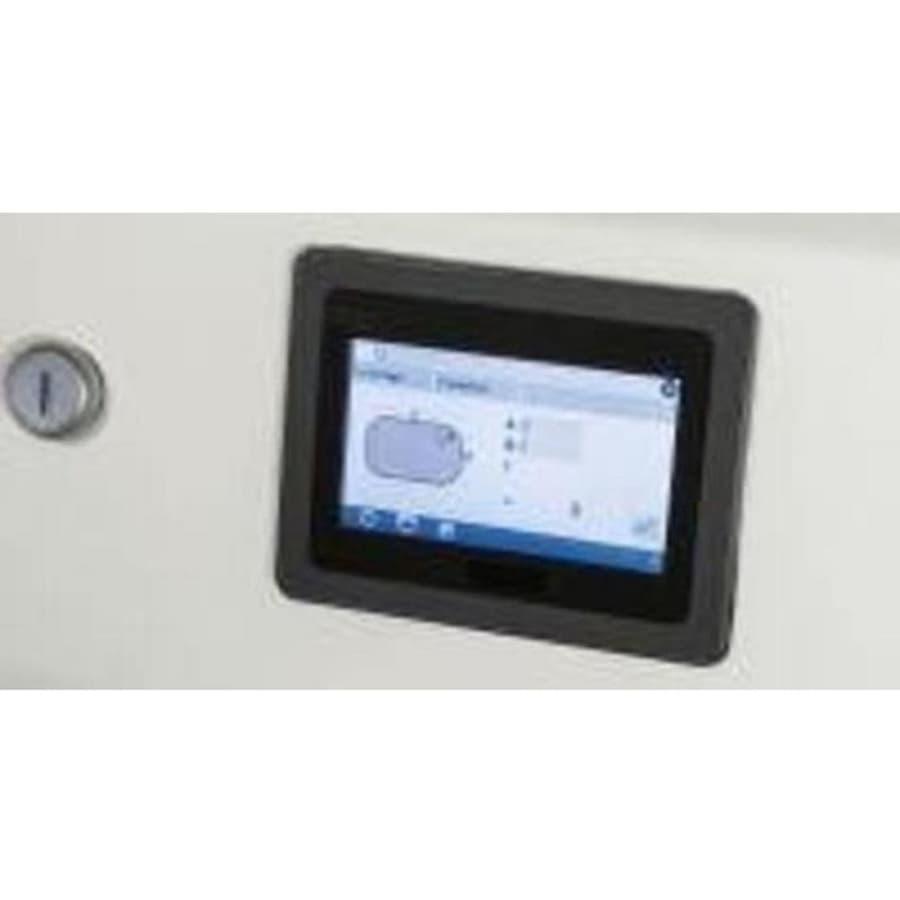

Advantages: 4.3" Touch-Screen Electronic Control: • Feed speed adjustment of the edge from 3 to 8 m/min, Rapid glue heating system • Stand-by timed function • Manual working mode: The operator decides when starting the edge feeding (1st pedal pressure) and the edge cutting (2nd pedal pressure) Powered Pressure Roller: • It facilitates the panel feeding during the machining. Anti-Scratch Phenolic Multilayer Worktable: • No surface damage to the work piece during machining thanks to the special worktable with modular holes complete with panel supports.
Technical Data: • Min. ÷ Max. Edge Thickness(mm): 0,4 ÷ 3 • Min. ÷ Max. Edge Height(mm): 10 ÷ 84 • Min. ÷ Max. Panels Height(mm): 8 ÷ 80 • Min. ÷ Max. Panels Lenght/Width(mm): 290/50 • Min. Internal Radius (concave), 0,4 mm Thickness(mm): 25 • Min. External Radius (convex), 0,4 mm thickness(mm): 5 • Feed Speeds(m/min): 3 - 4 - 5 - 6 - 7 - 8
Specifications
| Box Quantity | 1 |
| Phase | 3 |
| Product Type | Edgebanders |
