SCM Minimax E 20 2HP Contour Edgebander, 3 Phase
Product Details

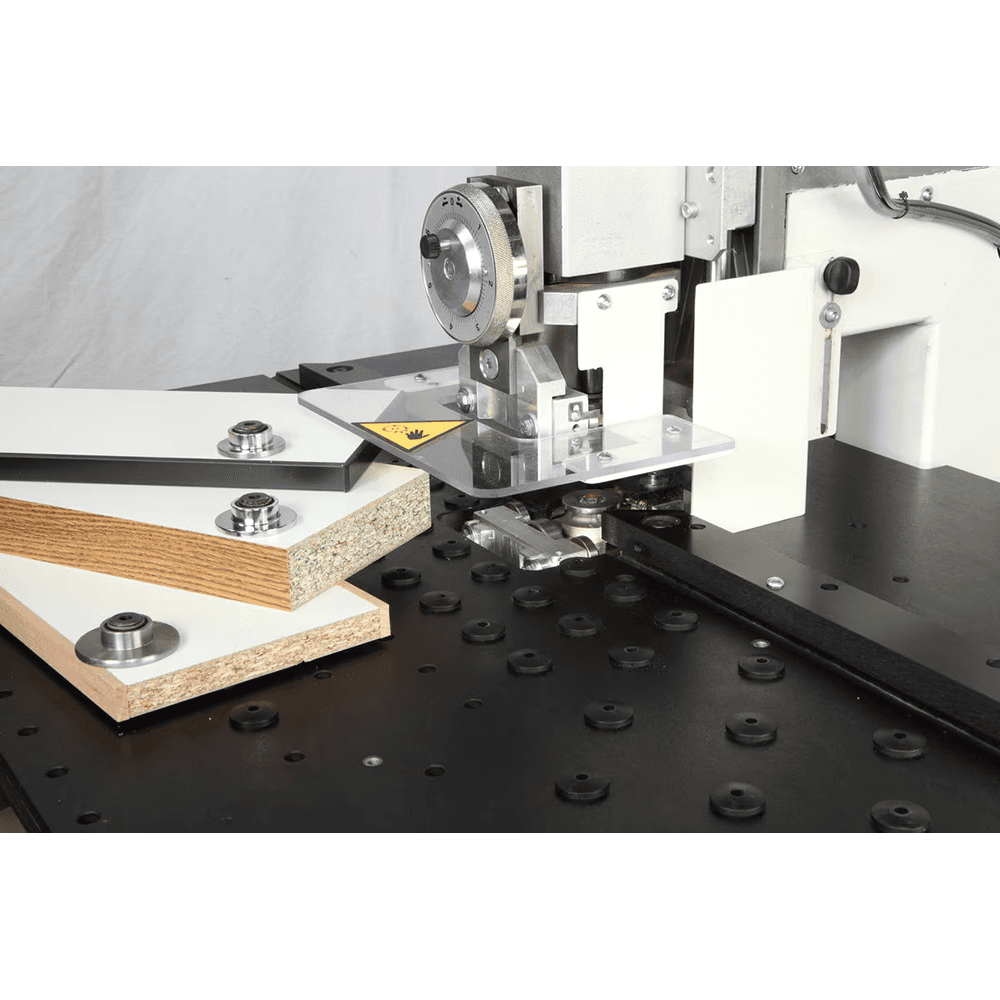

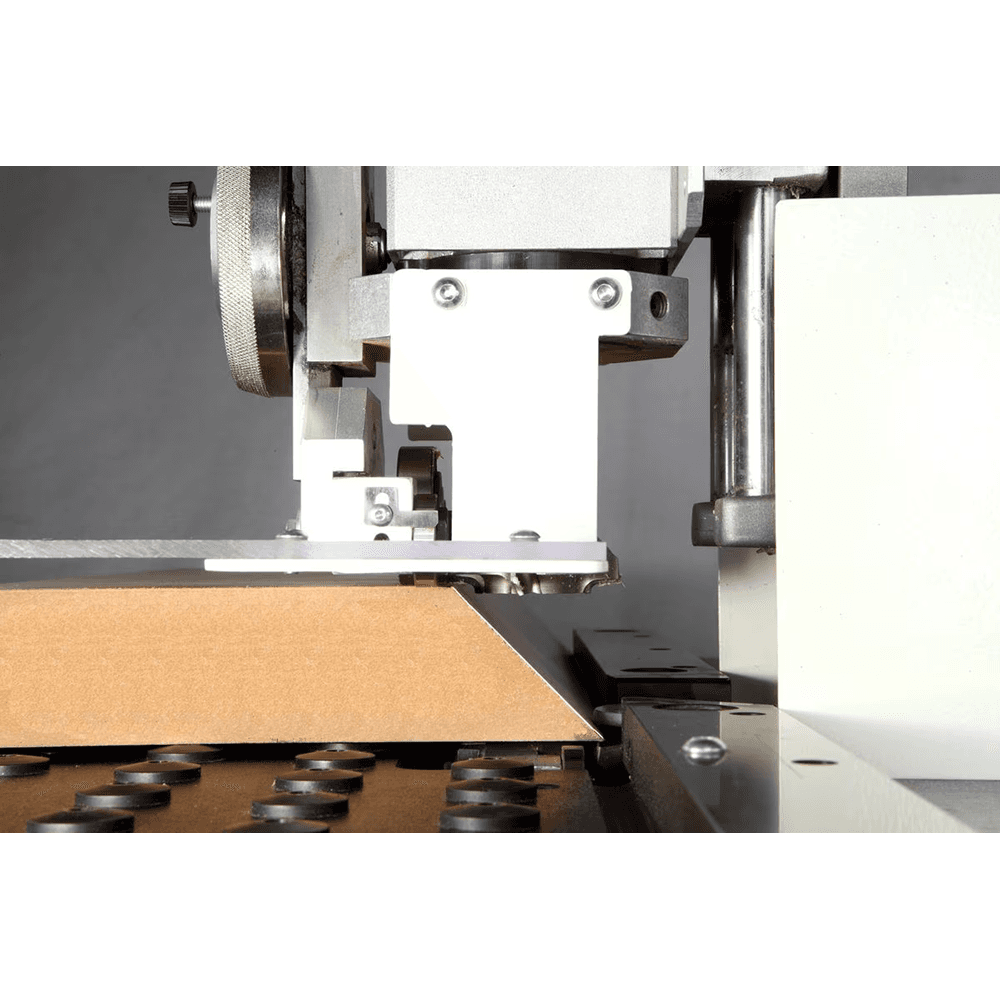

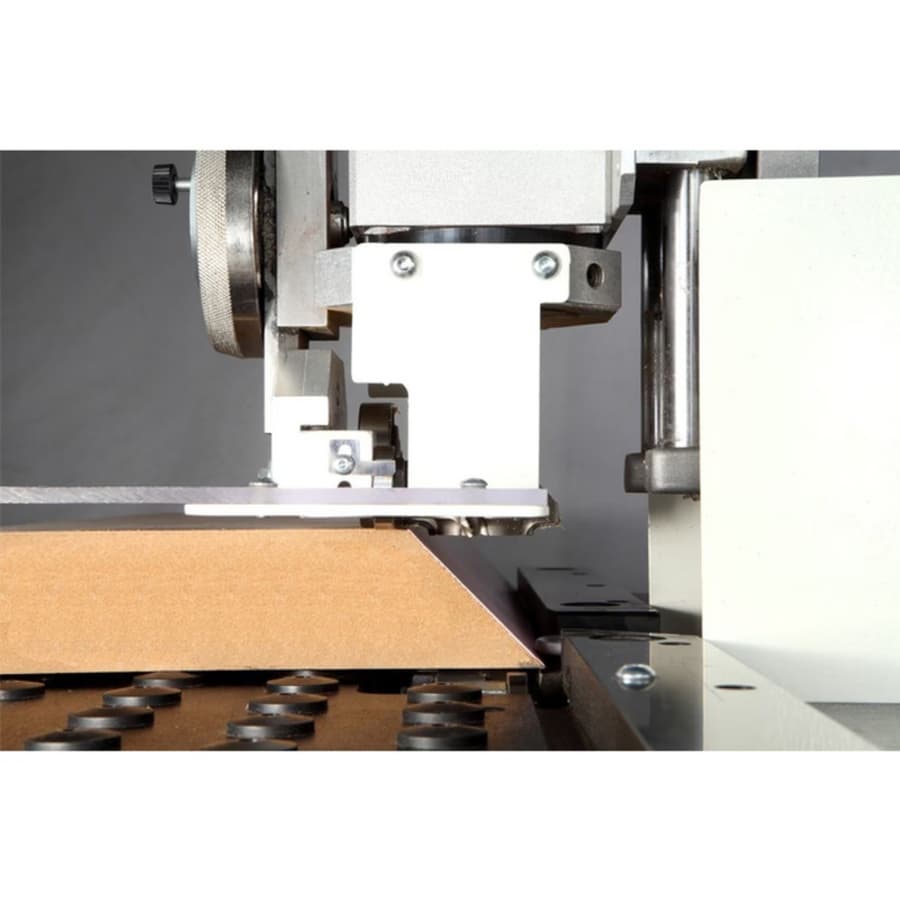

Trimming of shaped panels and with tilted edge. Simply intelligent and versatile. Designed with exclusive solutions, this trimming machine allows a set up facility without comparison. Features: • Exact Configuration for Every Type of Machining: The two different interchangeable vertical copying devices, supplied as a standard feature, facilitate the working on straight and shaped panels assuring the very best results. • Maximum Performance as Standard: The diamond multifunction tools, supplied as standard, provide a high quality finish and easy set up as well as a very long working life. • High Versatility Thanks to the Execution of Tilted Edges: The possibility to horizontally adjust the position of the upper trimmer allows the machining of tilted panels and to carry out a different edge profile on the upper and lower edges (an example: edge with an R2 radius on the upper edge and a straight edge on the lower one) • Finish Quality with Every Type of Material: Due to the use of high frequency motors equipped with an inverter for the adjustment of the cutting speed.

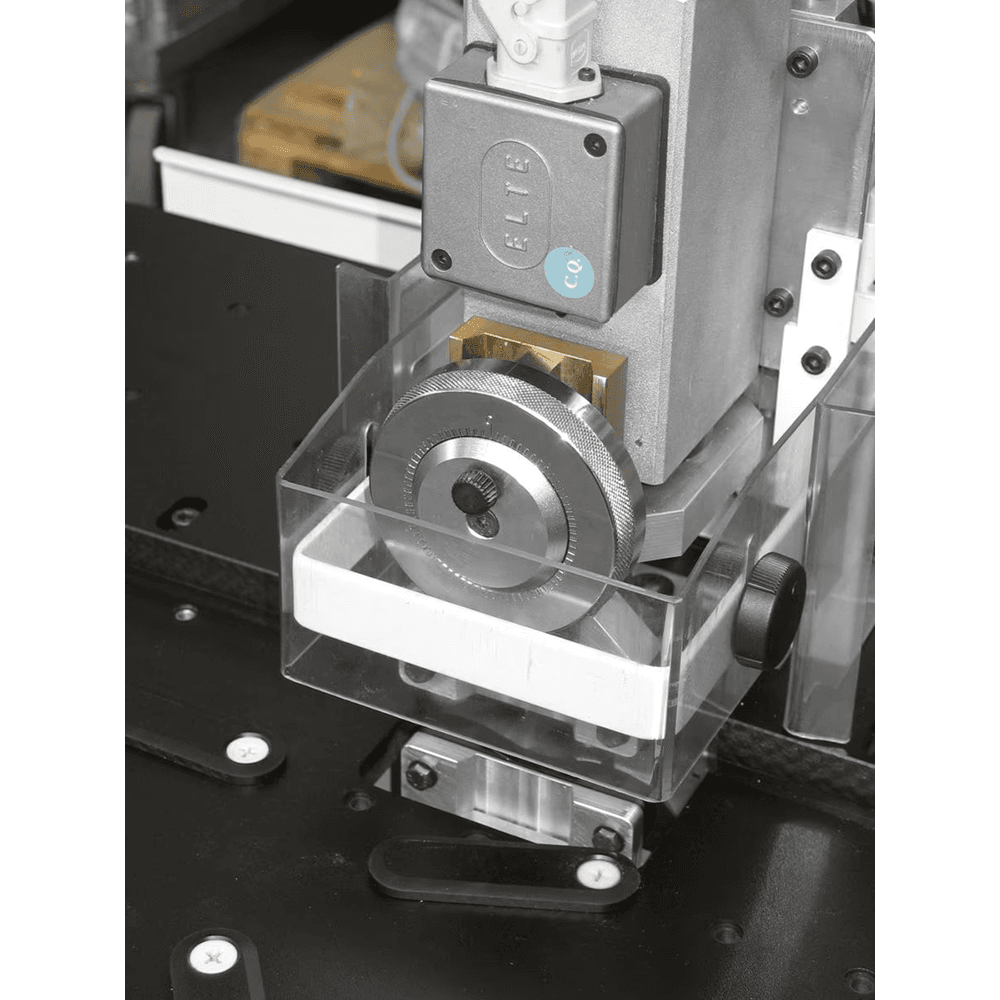

Advantages: Simple and Precise Setting up of the Trimming Group: • The trimming adjustment is carried out in few seconds and without errors by means of the Scm exclusive device which provides a pivoting ring with a decimal dial which allows the adjustment of the vertical copier without using any tool. No Adjustments, Only Copying Device Replacement: • Rapid and precise set up during machine changeover with the interchangeable horizontal copying device coupled with the multifunction tools (SCM exclusive system).
Technical Data: • Max. Edgebanding Thickness(mm): 4 • Min. - Max. Panel Height(mm): 14 - 80 • Min. Panel Length/Width(mm): 200/160 • Minimum internal radius(mm): 25 • Variable Cutters Speed(rpm): 9000 - 15000
Specifications
| Box Quantity | 1 |
| Phase | 3 |
| Product Type | Edgebanders |
