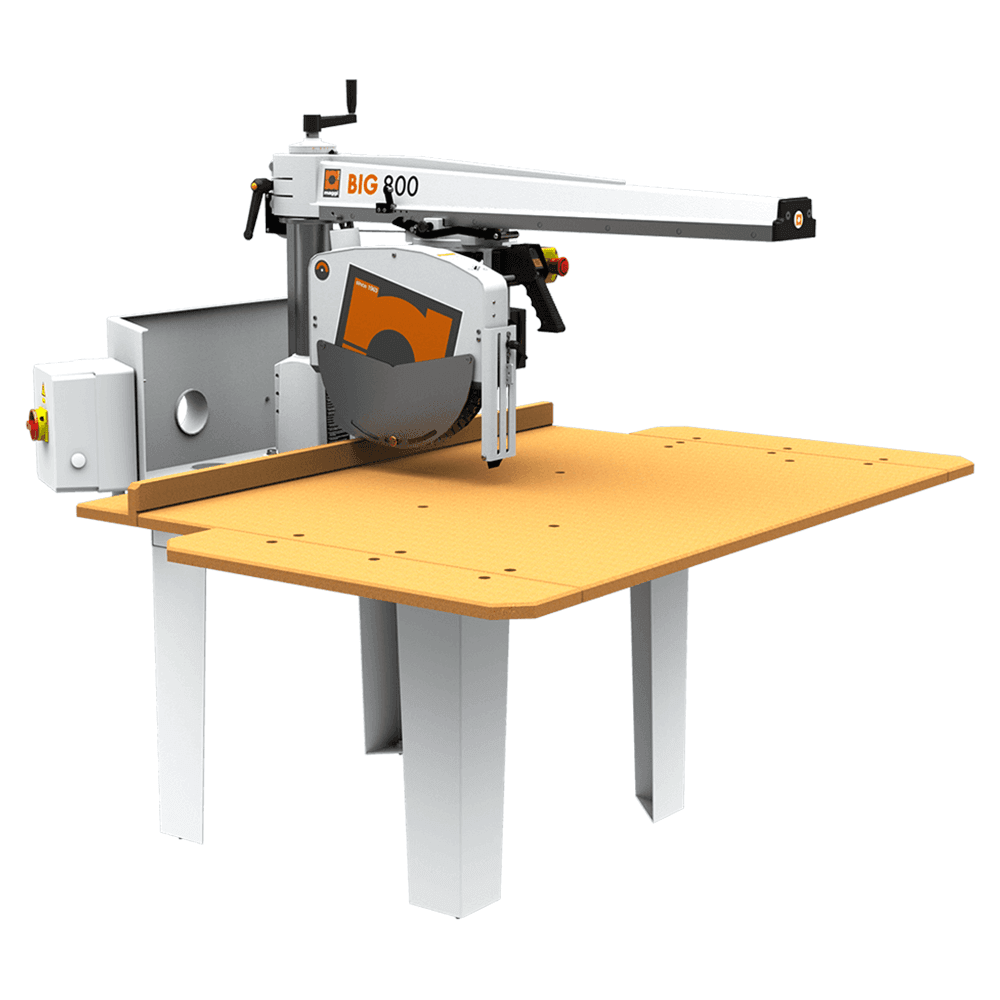

Maggi BIG800CE 400mm Radial Arm Crosscut Saw 4HP Single Phase
This item may incur additional shipping costs and lead times.
Product Details

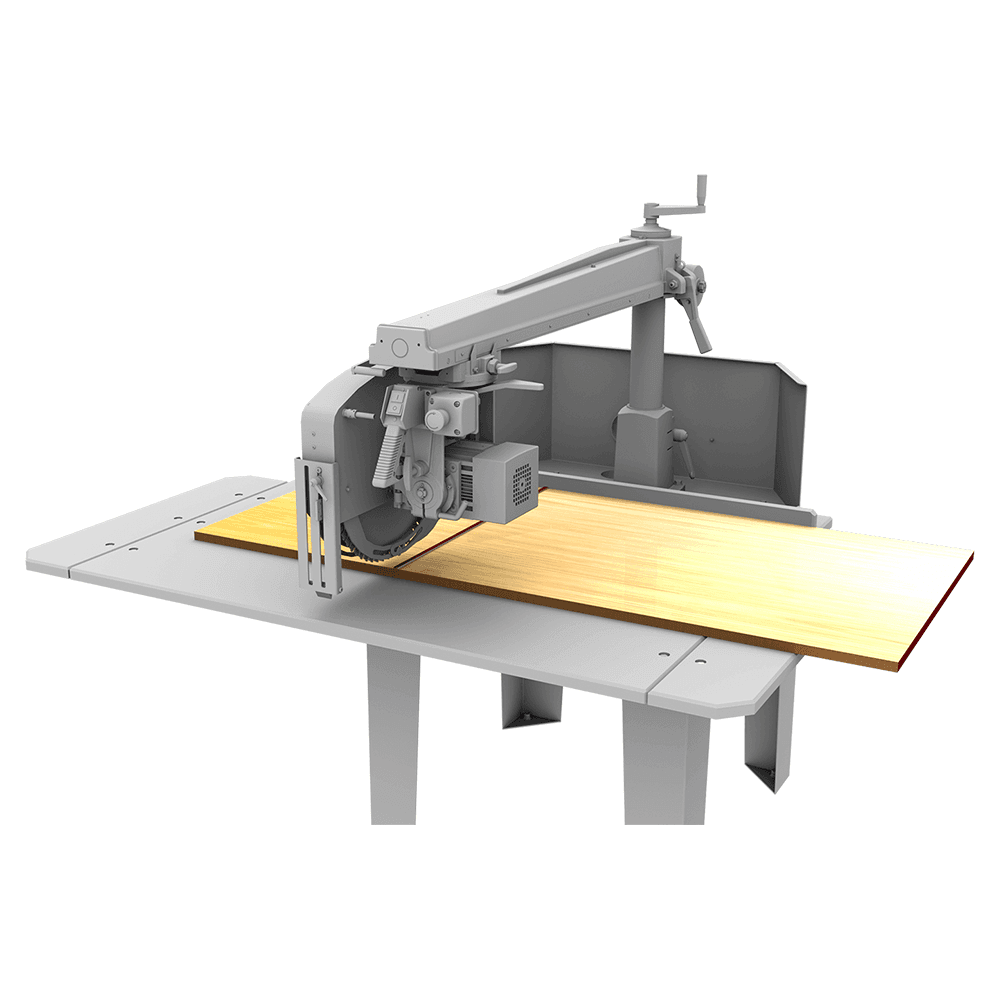

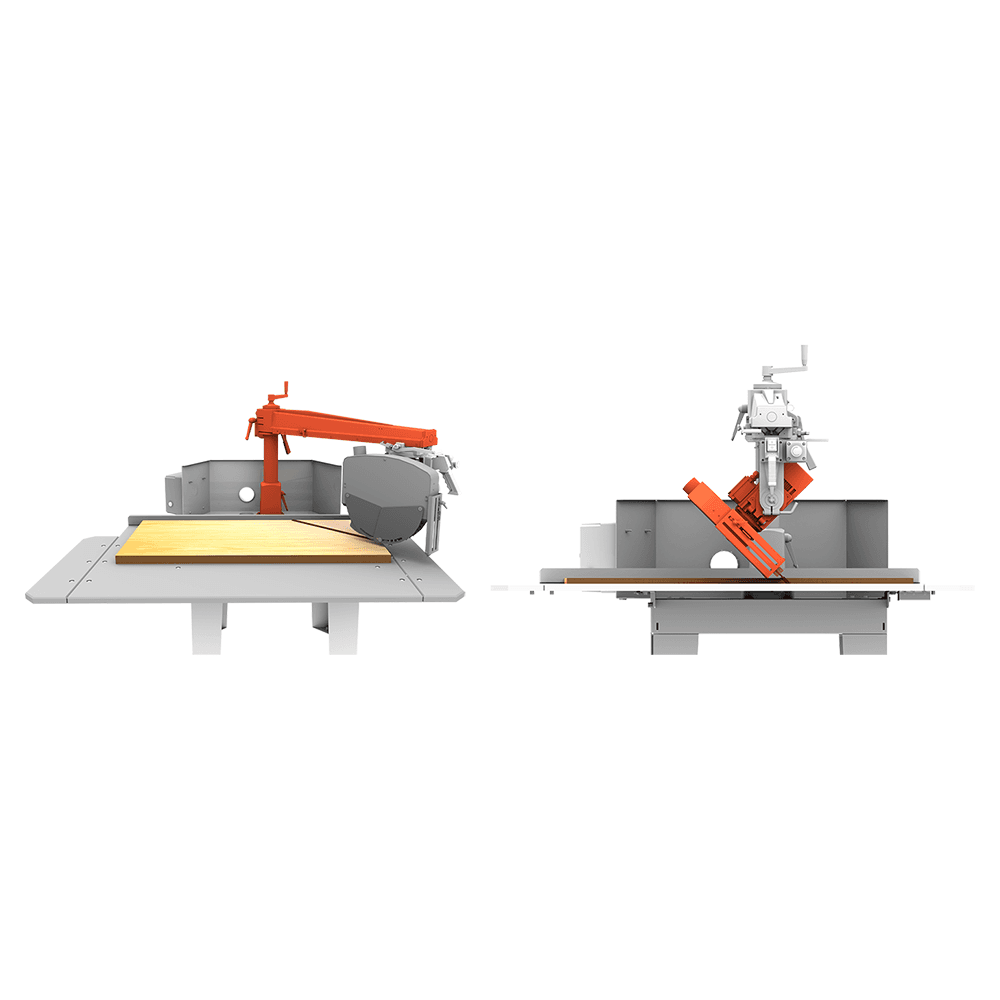

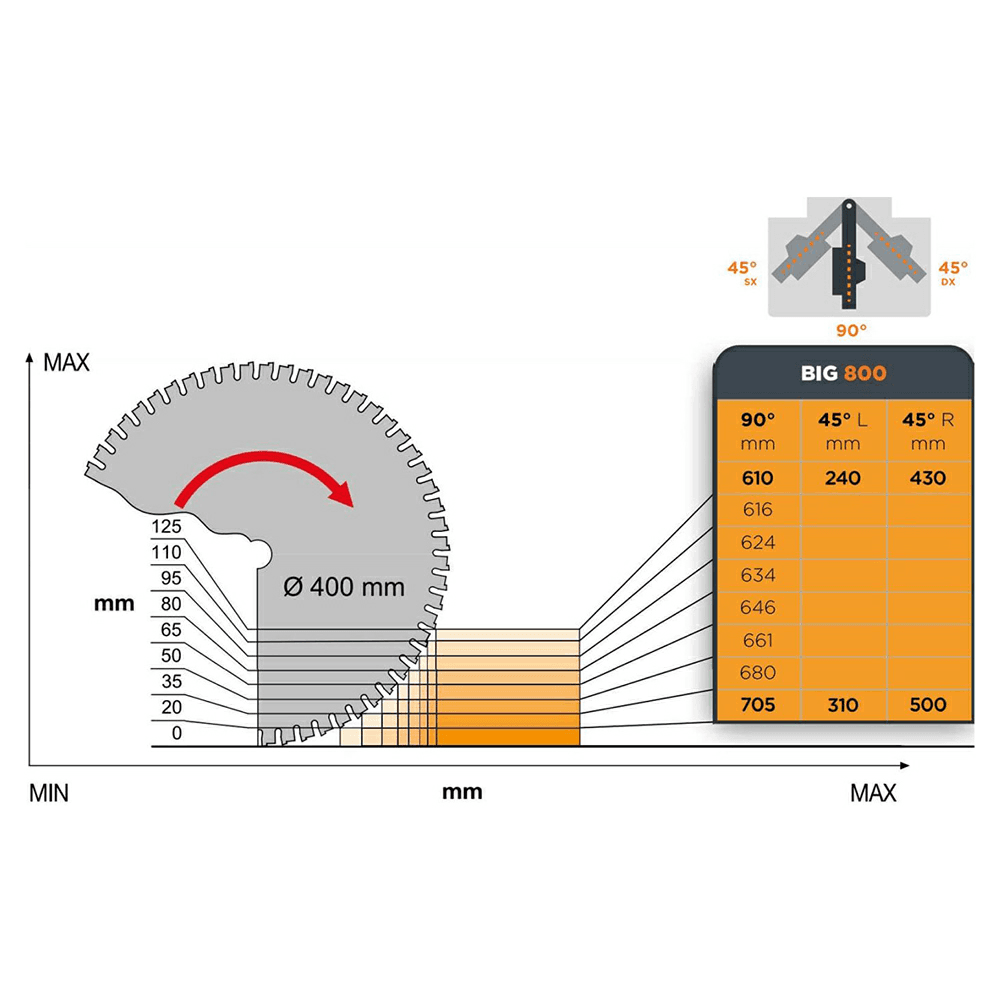

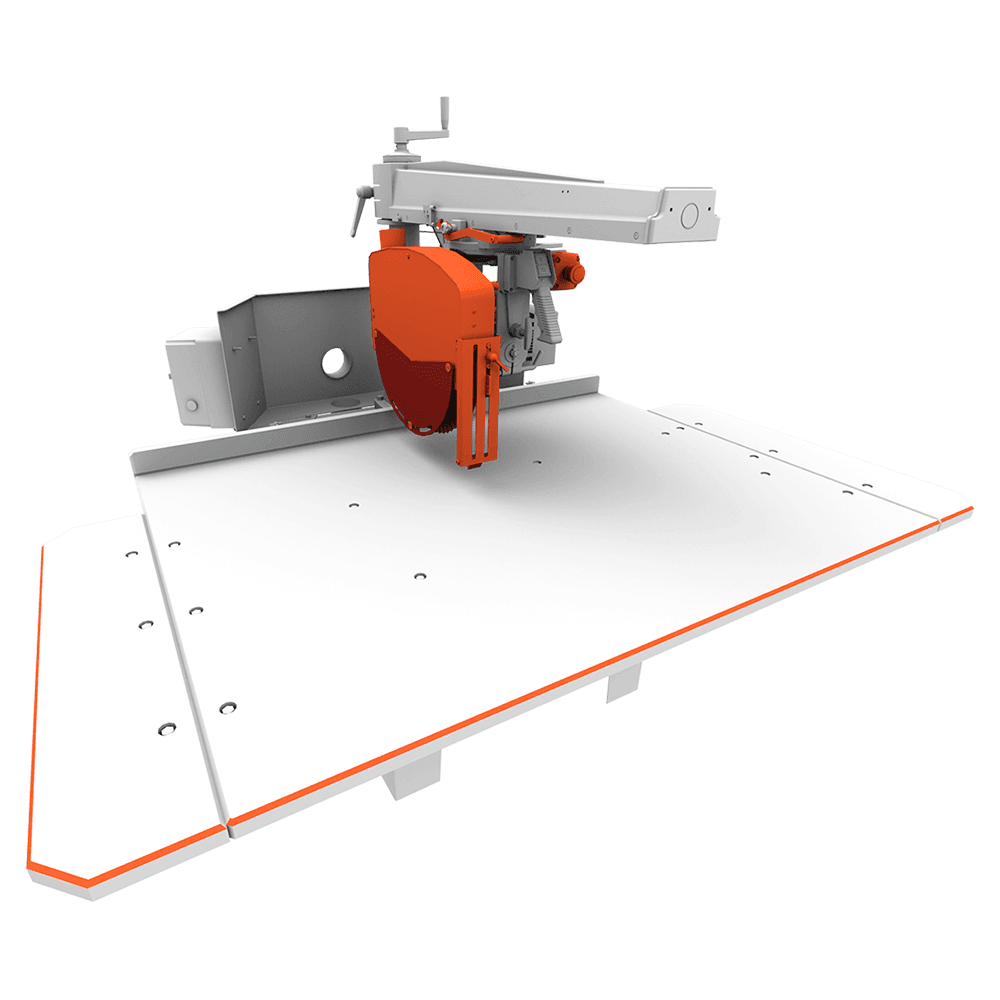

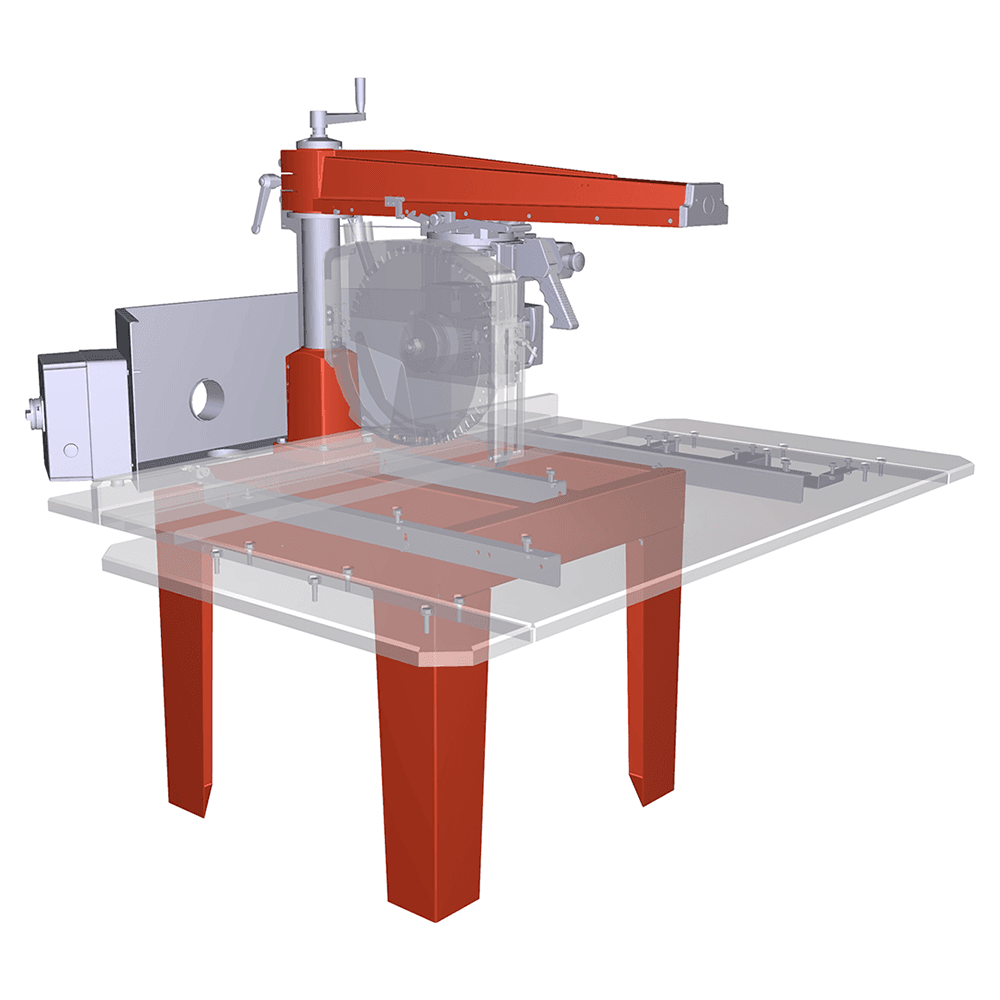

Radial-arm saw for straight (90°) cross cutting and bevel cutting at 45° left and right. The movement of the cutting unit along the arm, on guides and ball bearings, is manual, aided by a return spring, so is the blade tilting with mechanical locking system at 45° left. The pillar group is made of cast-iron and fixed on a solid frame and legs made of steel. Working bench in MDF. Manufactured according to EC standards. Versatile: Swivelling arm up to 45° left and right and left tilting cutting-head (stop and lock at 45°) allow many different cutting operations for the greatest versatility. Safe: Sound-insulated, full-cover blade guard with safety microswitch, anti-kickback, well-dimensioned working bench and emergency button, definitively contribute to the operator safety during the cutting process. Solid and Accurate: Rugged steel construction, arm and base made of cast iron. Interchangeable, tempered-steel made guides. Cutting head sliding on 8 ball bearings for a smooth, precise and effortless carriage mouvement. Medium-Duty Professional: Cutting width up to 705 mm; it meets most of the working needs. Features: • Automatic return-spring • Self-braking motor • Electrical system equipped with motor-overload protection and emergency button • Sound-insulated blade guard made of steel • Well-dimensioned rear hood, ready to be connected to a dust collector • MDF working bench • Lockable switch • Package: recyclable cardboard box • Blade not included • Max. cutting height: 125 mm • Max. cutting width: 705 x 20 H mm • Min. cutting width: 610 x 125 H mm • Max. length of workpiece: Infinito • Height of blade at 45° from the table: 0 - 80 mm • Min. and Max. cutting width at 45° (right): 430 - 500 mm • Min. and Max. cutting width at 45° (left): 240 - 310 mm • Height of blade from working bench: 0 - 45 mm • Blade bore diameter: 30 mm • Motor: HP/KW 4/3 RPM 2800 • Working bench dimensions: 1690 x 1155 x 25 mm • Diameter of dust collection nozzle on blade guard: 60 mm • Diameter of dust collection nozzle on rear hood: 100 mm ( n.2) • Overall dimensions of full-assembled machine and net weight: 1690 x 1560 x H 1598 mm / 225 Kg • Dimensions and gross weight - Half Assembled Machine: 1380 x 920 x H 960 mm - 251 Kg
Specifications
| Box Quantity | 1 |
| Blade Diameter | 400mm |
| Battery Voltage | |
| Amps | |
| Battery Capacity | |
| Blade Type | Saw |
| Product Type | Radial Arm Crosscut Saw |
| Battery Type | |
| Power Type | |
| Depth of Cut | |
| Speed |
